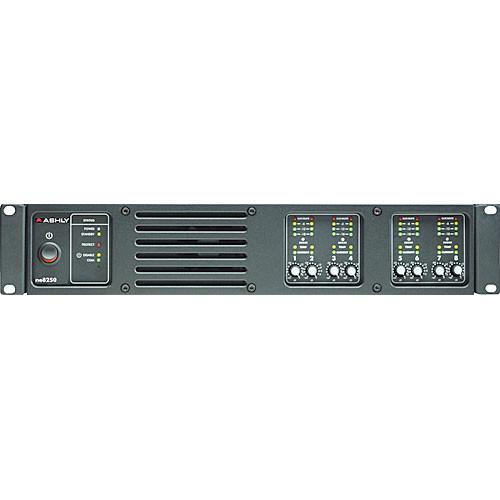

User Manual for Ashly ne8250.70pe Network-Enabled 250W Eight-Channel 70V Amplifier with DSP Click to enlarge the picture
Contents of the user manual for the Ashly ne8250.70pe Network-Enabled 250W Eight-Channel 70V
- Product category: 70-Volt Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly 70-Volt Amplifiers
|
User manual for the Ashly ne8250.70pe Network-Enabled 250W Eight-Channel 70V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashly ne8250.70pe is a 2 RU rack-mountable, network-enabled, eight-channel amplifier with DSP capable of delivering 250W per channel at a constant voltage of 70V for installation in retail applications, paging systems, warehouses, and more. Its Class-D output circuitry and switched-mode power supply ensure high efficiency and reliable performance. A temperature-sensitive, variable-speed fan along with built-in amplifier and load protection inhibit overheating and overcurrent conditions. The ne8250.70pe has an integrated DSP signal processing library, which utilizes two SHARC 32-bit / 96 kHz processors. This library includes processing blocks such for dynamics controls, gain functions, graphic and parametric EQ, crossover functions, delay, metering, and a signal generator. Euroblock inputs and outputs allow standardized connectivity with line mixers and constant-voltage speakers, and the per-channel stepped, calibrated input attenuators offer easy recallability. The selectable high-pass filter can be set to 12 dB/octave at 80 Hz or 6 dB/octave at 400 Hz, thereby preventing excessive low frequencies from reaching your speakers. Setup and control of the ne8250.70pe are conveniently executed via Ashly Protea software using standard 10/100 Ethernet protocol. - DSP signal processor powered by two SHARC 32-bit / 96 kHz processors with blocks for Graphic, Parametric, Notch and Shelving Equalization, High-, Low- and All-Pass Filters (HPF/LPF/APF) with up to 48 dB/octave slopes, Delay, Compressor/Limiter, Gate, Ducking, Auto-leveler, plus Gain and Signal Generators (sinewave, white and pink noise)
- Supports control and setup over Ethernet connection via Ashly Protea software
- Euroblock connections for inputs and outputs
- The ne8250.70pe has multiple layers of protection circuits including overcurrent, thermal, and mains protection
- Class-D output circuitry with switched-mode power supply
- Stepped, calibrated input attenuators
- Selectable software-controlled internal high-pass filter at 80 Hz (12 dB/octave) or 400 Hz (6 dB/octave)
- Temperature-sensitive, variable-speed fan with side-to-front airflow
- Rack-mountable enclosure occupies 2 RU
UPC: 694970466845 In the Box Ashly ne8250.70pe Network-Enabled 250W Eight-Channel 70V Amplifier with DSP AC Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly ne8250.70pe Network-Enabled 250W Eight-Channel 70V Amplifier with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly ne8250.70 Specs | Power Rating | 250 W per channel | | Amplifier Class | Class-D | | Voltage | 70 V | | Voltage Gain | 32 dB | | Damping Factor | > 250 (8 Ohms, 1 kHz) | | Frequency Response | 20 Hz to 20 kHz
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
