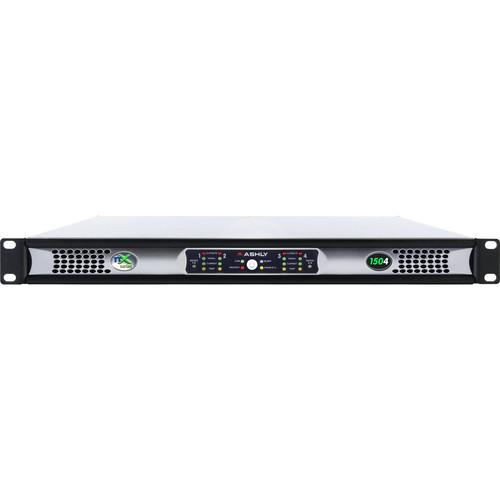

User Manual for Ashly nX Series 4-Channel Multi-Mode Power Amplifier Click to enlarge the picture
Contents of the user manual for the Ashly nX Series 4-Channel Multi-Mode Power
- Product category: Power Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Power Amplifiers
|
User manual for the Ashly nX Series 4-Channel Multi-Mode Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The nX Series 4-Channel Multi-Mode Power Amplifier from Ashly is capable of driving 2, 4, and 8 ohms loads at full power and offers a maximum rated output power of 150W per channel at 25V, 70V, and 100V modes. It features a universal switch-mode power supply with PFC (Power Factor Correction) that operates from 70 to 270 VAC. The multi-mode output capability allows each individual amplifier output channel to be set for low-impedance (2, 4, and 8 Ohms) or constant voltage (25, 70, or 100V) operation using DIP switches. The amplifier has power-saving Ashly EMS (Energy Management System) that provides an automatic sleep-mode drawing less than 1W. It is suitable for live sound and fixed installation sound systems in stadiums, arenas, performance venues, places of worship, and convention centers. - Utilizes Class-D switching amplifier technology
- Selectable 80 Hz second-order Hi-pass filter, limiter, and input gain per channel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fan
- Euroblock input and loudspeaker connectors
- Detachable AC mains line-cord connector
In the Box Ashly nX Series 4-Channel Multi-Mode Power Amplifier (150W) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly nX Series 4-Channel Multi-Mode Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NX1504 Specs | Number of Channels | 4 | | Voltage Gain | Selectable at 26, 32, or 38 dB, or 1.4 V | | Damping Factor | >250 (8 Ohms load <1 kHz) | | Filter | Input High Pass Filter: 80 Hz second-order | | Distortion | SMPTE (Typical): <0.5%
THD-N (Typical): <0.5% (8 Ohms, 10 dB below rated power, 20 Hz to 20 kHz) | | Channel Separation | -75 dB (dB from full output, 1 kHz) | | Signal-to-noise | >99 dB (un-weighted 20 Hz to 20 kHz, Gain @ 26 dB) | | Frequency Response | 20 Hz to 20 kHz, ±0.05 dB | | Input Impedance | 10 kOhms | | Balanced Input | Euroblock 3.5 mm | | Maximum Input Level | +21 dBu | | Speaker Output | Euroblock 7.62 mm | | Level Control | Remote DC Level Control: Euroblock 3.5 mm - Gnd, CV, V+ per input | | Attenuation | Per Channel: Rear panel, fully off= mute | | Front Panel LED Indicators | White LED:
Power Switch: On, off, flashing (standby mode)
Red LED:
Protect: On (fault condition or shut down), Off
Clip / Mute (Per Channel): Clip @ 1 dB below rated output / mute
Blue LED:
Sleep Mode: On (when the amplifier is asleep from audio inactivity)
Yellow LED:
Disable: On (when the power switch & attenuators are disabled)
Temperature (Per Channel): On dim at 90% maximum operating temperature, full bright + protect at 100%
Green LED:
Signal (Per Channel): -18 dB, below rated output
Bridge (Per Channel): Pair, On, off
Current (Per Channel): Brightness is proportional to output current | | Protection Circuits | Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses | | Cooling | Continuously variable temperature controlled fan | | Nominal Voltage | Input: 120 to 240 VAC @ 50/60 Hz | | Operating Range | 70 to 270 VAC @ 50/60 Hz | | Power-Up Action | Minimum Power-Up: 70 VAC @ 50/60 Hz | | Power Supply Type | SMPS with active PFC (Power Factor Correction) | | AC Mains Power Cord | Connector: Detachable NEMA 5-15 for USA | | Maximum Output Power | Low Impedance Output Mode (All Channels Driven at Rated Load):
2, 4, & 8 Ohms: 150 W | | Low Impedance | Low Impedance Output in Bridge Mode (All Channels Driven at Rated Load):
4, & 8 Ohms: 300 W | | Voltage Output | Constant Voltage Output (All Channels Driven at Rated Load):
25, 70, & 100 V (Per Channel): 150 W | | Power Draw | Total AC Mains Power Draw (Typical Input):
Sleep Mode: <1 w
Standby Mode: 25 W
Idle (No Signal): 53 W
Typical Input (1/8 Max Power @ 2 Ohms): 230 W | | Current Draw | For 120 VAC (Typical Input, Total for all Channels):
Sleep Mode: 94 mA
Standby Mode: 0.27 A
Idle (No Signal): 0.5 A
1/8 Max Power @ 2 Ohms: 2.2 A
For 240 VAC (Typical Input, Total for all Channels):
Sleep Mode: 47 mA
Standby Mode: 0.135 A
Idle (No Signal): 0.25 A
1/8 Max Power @ 2 Ohms: 1.1 A | | Thermal Dissipation | Typical Input (Total for all Channels):
Sleep Mode: 2.14 BTU/hr
Standby Mode: 86.4 BTU/hr
Idle (No signal): 180 BTU/hr
Typical (1/8 Max Power @ 2 Ohms): 505 BTU/hr | | Environmental Conditions | 32 to 120°F (0 to 49°C), non-condensing | | Dimensions (W x H x D) | 19.00 x 1.75 x 14.54" (483 x 45 x 369 mm) | | Weight | 12.1 lb (5.5 kg) | | | | Box Dimensions (LxWxH) | 30.0 x 16.0 x 4.0" |
