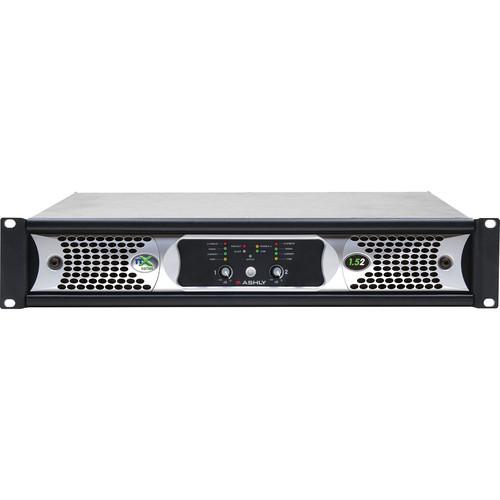

Product description The Ashly NX1.52 Programmable Output Power Amplifier features lightweight, energy efficient Class D switching amplifier technology combined with a switch mode power supply. The NX1.52 amplifier is designed to meet the needs of demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers.The NX1.52 is a base level amplifier, available in either 2 or 4-channel models. Use rear panel DIP switches to program each channel output for either High-Z (70V or 100V Constant Voltage) or Low-Z (stable down to 2Ω) operation. When in Sleep Mode, the NX1.52 amplifier draws less than 1W. - 2 and 4-channel high-output, lightweight amplifier with programmable output on each channel (Hi-Z or Lo-Z, selected via rear panel DIP switches)
- Power-saving, Energy Management System (Ashly EMS) automatic <1w sleep-mode (defeatable)1
Please Note: <1W sleep mode can be defeated for applications that are subject to third-party performance standards that prohibit a sleep mode. close - Front panel power switch and level controls (can be disabled for security)
- Front panel LEDs for temperature, current, signal, clip, mute, bridge mode, protect, sleep, and disable (of front panel controls)
- Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
- Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
- Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
- Remote DC level control on each input channel
- Neutrik powerCON detachable AC mains connector
- Switch mode power supply automatically detects 120 or 240VAC operation
- Extensive protection circuitry, continuously variable cooling fans
- Multiple independent internal power supplies provide increased channel separation and reliability
In the Box Ashly NX1.52 Programmable Output Power Amplifier Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly NX1.52 Programmable Output Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly nX1.52 Specs | Output Power | Per Channel, EIAJ Test Standard, 1 kHz, 20 Hz to 20 kHz, 1%THD, Low Z Output, All Channels Driven
2 Ω: 1,500 W
4 Ω: 1,500 W
8 Ω: 1,250 W
Low Z output, Bridge Mode, 20 Hz to 20 kHz, 1%THD, All Channels Driven
4 Ω: 3,000 W
70 V, 100 V Output, All Channels Driven
70 V (per channel): 1,500 W
100 V (per channel): 1,250 W | | Power Draw | Sleep Mode: < 1 W
Standby Mode: 40 W
Idle (no signal): 55 W | | Current Draw | 120 VAC Mains (Divide by 2 for 240 V)
Sleep Mode: 0.1 A
Standby Mode: 0.70 A
Idle (no signal): 1.00 A
All Channels Driven (Divide by 2 for 240 VAC)
Typical: 8.0 A | | Dissipation | Thermal (All Channels Driven)
Sleep Mode: 3.4 BTU/hr
Standby Mode: 136 BTU/hr
Idle (no signal): 187 BTU/hr
Typical (1/8 maximum power): 850 BTU/hr | | Voltage Gain | Selectable at 26 dB, 32 dB, 38 dB, or 1.4 V | | Damping Factor | >250 (8 Ω load <1 kHz) | | High-Pass Filter | Input: 80 Hz 2nd order | | Distortion | SMPTE (typical): <0.5%
THD-N (typical): <0.5% (8 Ω, 10 dB below rated power,20 Hz to 20 kHz) | | Channel Separation | -75 dB (dB from full output, 1 kHz) | | Signal to Noise Ratio | 20 Hz to 20 kHz (unweighted): >111 dB | | Frequency Response | 20 Hz to 20 kHz, +/-0.05 dB | | Input Connector | Balanced: Euroblock 3.5 mm, 1/4" TRS and XLR Combo jack | | Input Impedance | 10 kΩ | | Maximum Input Level | +21 dBu | | Output Connector | Speaker: Neutrik speakON | | Connection | Data: Euroblock 3.5 mm - Gnd, 18 V, In, Out | | Level Control | Remote DC: Euroblock 3.5 mm - Gnd, CV, V+ per input | | Attenuation | Per Channel: Front panel, software, offset link group, and remote. Fully off = Mute | | Protection | Amplifier: Inrush current limitation, temperature monitoring, output over-power protection, mains fuses | | Cooling | Continuously variable temperature controlled axial fan(s) | | Environmental | 32 to 113˚F (0 to 45˚C) non condensing | | Dimensions (W x H x D) | 19.0 x 3.5 x 16.8" (482.6 x 88.9 x 426.7 mm) | | Weight | < 28.0 lb (12.7 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 4.0" |
