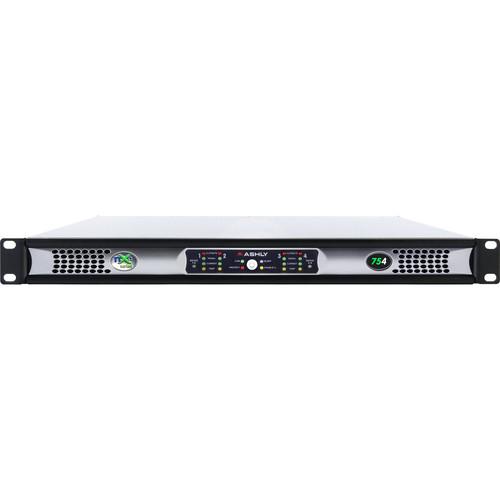

User Manual for Ashly NXE Series 4-Channel Networkable Multi-Mode Power Amplifier with with OPAES2, OPDAC4 & OPDante Cards Click to enlarge the picture
Contents of the user manual for the Ashly NXE Series 4-Channel Networkable Multi-Mode
- Product category: Power Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Power Amplifiers
|
User manual for the Ashly NXE Series 4-Channel Networkable Multi-Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashly NXE Series 4-Channel Networkable Multi-Mode Power Amplifier comes pre-installed with OPAES2 2-channel AES3 input with pass-thru,OPDAC4 internal 4-Channel DAC with selectable HPF, and OPDante Dante Network Audio Interface cards. The OPDante card enables access to digital audio networks at low latencies (83.3 μs) over fast Ethernet. It can be installed in the rear card slot of nXe series amplifiers. Signal can be routed from other Dante enabled devices by simply connecting a CAT5e or CAT6 cable to the card's primary or secondary (redundant) Ethernet ports.
The amplifier is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 75W per channel at 25V, 70V, and 100V modes. The amplifier comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control. The OPDAC4 card includes a software selectable high-pass filter that can be set for 80 Hz @ 12 dB/Oct, 400 Hz @ 6 dB/Oct, and Off.
The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. The amplifier features a lightweight 1U designs with universal AC input SMPS for improved energy efficiency. Thanks to the Euroblock, and IEC connectivity, the power amplifier safely fulfills the requirements for installed sound applications. - Consumes less than 1W in the automatic sleep mode
- Network, Serial, and Logic control via Ashly remotes (sold separately)
In the Box Ashly NXE Series 4-Channel Networkable Multi-Mode Power Amplifier with with OPAES2, OPDAC4 & OPDante Cards Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly NXE Series 4-Channel Networkable Multi-Mode Power Amplifier with with OPAES2, OPDAC4 & OPDante Cards in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NXE754ABD Specs | Number of Channels | 4 | | Output Power | 75 W @ 2, 4, and 8 Ohms | | Dimensions (W x H x D) | 19 x 1.75 x 14.54" (482.6 x 44.45 x 369.3 mm) | | Weight | 12 lb (5.44 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
