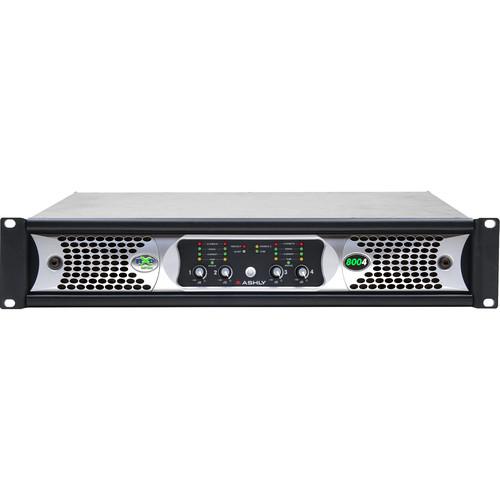

User Manual for Ashly nXp800 4-Channel Multi-Mode Network Power Amplifier with Protea DSP Software Suite, AES3 Inputs, & Dante Digital Interface Click to enlarge the picture
Contents of the user manual for the Ashly nXp800 4-Channel Multi-Mode Network Power
- Product category: Power Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Power Amplifiers
|
User manual for the Ashly nXp800 4-Channel Multi-Mode Network Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The lightweight nXp800 4-Channel Multi-Mode Network Power Amplifier from Ashly features programmable output on each channel selectable via rear panel DIP switches with swept load impedance monitoring. Audio is processed via the 32-bit SHARC DSP at 48 or 96 kHz sample rates and a built-in signal generator is provided for test tone and noise-masking. The nXp800 amplifier comes pre-installed with a four-channel AES3 input card with pass-thru for digital audio, Dante network audio module, and features aux preamp outputs. Ethernet control is supported via the free Protea NE software (downloadable from Ashly's website) and serial data control is possible via Ashly programmable remotes or third party controllers (available separately). The Protea DSP (Digital Signal Processing) software is included for dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. The amplifier is suitable for live sound and fixed installation sound systems at performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship. - 32-bit SHARC DSP processing at 48 or 96 kHz sample rates
- Class-D switching amplifier technology
- Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
- Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
- Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
- Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
- Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
- Real-time clock with event scheduler
- Assign automatic execution of selected functions and tasks
- Event scheduler is programmed using the free Protea NE software and stored in the amplifier
- Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
- Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
- Preset recall via contact closure, software control, remote control, or event scheduler
- Programmable power-on delay
- Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
- Aux preamp line outputs for driving other amplifiers
- Fault condition logic outputs, assignable
- Signal generator function for test and noise masking
- Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
- Neutrik speakON twist locking loudspeaker connectors
- Neutrik powerCON detachable AC mains connector
- Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fans
- Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
- Multiple internal power supplies-provides increased channel separation and reliability
- Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
- Auto-switching 120 / 240 VAC power supply
- cTUVus, CE, FCC, RoHS compliant
In the Box Ashly nXp800 4-Channel Multi-Mode Network Power Amplifier with Protea DSP Software Suite, AES3 Inputs, & Dante Digital Interface Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly nXp800 4-Channel Multi-Mode Network Power Amplifier with Protea DSP Software Suite, AES3 Inputs, & Dante Digital Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NXP8004AD Specs | | | Number of Channels | 4 | | Voltage Gain | Selectable at 26, 32, or 38 dB, or 1.4 V | | Damping Factor | >250 (8 Ohms load <1 kHz) | | Filter | Input High Pass Filter: 80 Hz 2nd order | | Distortion | SMPTE (Typical): <0.5%
THD-N (Typical): <0.5% (8 Ohms, 10 dB below rated power, 20 Hz to 20 kHz) | | Channel Separation | -75 dB (dB from full output, 1 kHz) | | Signal-to-noise | >108 dB (20 Hz to 20 kHz, un-weighted) | | Frequency Response | 20 Hz to 20 kHz, ±0.05 dB | | Input Impedance | 10 kOhms | | Balanced Input | Euroblock 3.5 mm, 1/4" TRS and XLR combo jack | | Maximum Input Level | +21 dBu | | Speaker Output | Neutrik speakON | | Network Controllers | Compatible with standard 100 MB Ethernet | | AUX Outputs | Balanced Euroblock 3.5 mm | | Maximum Output Level | +21 dBu (Aux output) | | Standby Mode | Euroblock 3.5 mm, close contact to GND for standby mode | | Preset | Euroblock 3.5 mm, close contact to GND for preset 1-4 recall | | Data | Data Connection: Euroblock 3.5 mm - GND, 18 V, in, out | | Outputs | Fault Condition Logic Outputs: 4 x 3.5 mm Euroblock | | Level Control | Remote DC Level Control: Euroblock 3.5mm - GND, CV, V+ per input | | Digital I/O | 4-channel, AES3 input with pass-thru | | Audio Control Module | Dante network audio interface (pre-installed) | | Attenuation | Per Channel: Front panel, software, offset link group, and remote
Fully off = Mute | | Front Panel LED Indicators | White LED:
Power Switch: On, off, flashing (standby mode)
Red LED:
Protect: On (fault condition or shut down), Off
Clip / Mute (Per Channel): Clip @ 1 dB below full output / mute
Blue LED:
Sleep Mode: On (when the amplifier is asleep from audio inactivity)
Yellow LED:
Disable: On (when the power switch & front panel attenuators are disabled)
Temperature (Per Channel): On dim at 90% maximum operating temperature, full bright + protect at 100%
Green LED:
Com: On, for Ethernet data or device ID
Signal (Per Channel): -18 dBu, below rated output
Bridge (Per Channel): On, off
Current (Per Channel): Proportional to output | | Protection Circuits | Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses | | | | Input Source | Protea DSP Options: Analog, auto (net, AES3, analog) | | Limiter | Brick Wall Limiter
Threshold: -20 to 20 dBu
Ratio: Infinite
Attack: 0.2 to 50 ms/dB
Release: 5 to 1000 ms/dB | | Compressor | Threshold: -20 to +20 dBu
Ratio: 1.2:1 to infinite
Attack: 0.2 to 50 ms
Release 5 to 1000 ms/dB
Detector: Peak/Average
Attenuation Bus: 2 available
Metering: In, Out, Attenuation, Graphical | | Controls | Autoleveler Controls
Target Level: -40 to +20 dBu
Action: Gentle, Normal, Aggressive, User-Defined
Maximum Gain: 0 to +22 dB
Metering: Input, Gain, Attenuation
Ratio: 1.2:1 to 10:1
Threshold Below Target: -30 to 0 dB
Gain Increase/Decrease Rate: 5 to 1000 ms/dB
Hold Time: 0 to 6 sec | | Ambient Noise Compensation | Output only
Max Gain: -20 to +20 dB
Min/Base Gain: -40 to +20 dB
Gain Change Rate: 0.2 to 20 s/dB
Link Group: 16 available
ANC Input Channel: 1 to 2 or 1 to 4
Noise Threshold -40 to +20 dBu
Program/Ambient Gain Ratio; 0.3:1 to 3:1
Metering: Input level, Attenuation, Average noise | | Ducking | High/Low Priority, Trigger, Filibuster, Ducked Program
Trigger Threshold: -80 to +20 dBu
Ducking Release: 5 to 1000 ms/dB
Ducking Depth: 0 to -30 dB, -∞
Enable ducking at matrix mixer
Metering input | | Gate | Threshold: -80 to +20 dBu
Range: Off, 100 to 0 dB
Attack: 0.2 to 50 ms/dB
Release: 5 to 1000 ms/dB
Metering: Key signal, gate LED, graphical
Advanced Gate Controls
Key engage enable
Key Frequency: 20 Hz to 20 kHz
Key Bandwidth: 0.016 to 3.995 octave | | Gain | Gain (with / without VCA): -50 to 12 dB, off, polarity invert
Digital VCA Groups: 4 available
Remote RD8C Gain: Enable per channel, 0 dB to -∞
WR-5 (neWR-5) Remote Gain: 0 to -50 dB, mute | | EQ Type | For FIR Filter
Output only, 48 kHz only, 2-384 taps
File Type: .csv, .fir
For 31-Band
Filter Type: Constant Q or proportional
Bandwidth: 0.499 octave to 0.25 octave
For Parametric 2,4,6, or 10 Band
Frequency: 20 to 20 kHz
Level: -30 to 15 dB
Q Value: 0.016 to 3.995 octave
For Hi / Low Shelf 6 / 12 dB/octave
Frequency: 20 Hz to 20 kHz
Level: -15 to 15 dB
For All Pass
Frequency: 20 Hz to 20 kHz
For Variable Q HP / LP
Frequency: 20 Hz to 20 kHz
Q Value: 3.047 to 0.267
For Notch / Bandpass
Frequency: 20 Hz to 20 kHz
Q Value: 92.436 to 0.267 | | Feedback | 48 kHz Sampling Rate
12 x filters
In/Out per filter
Lock (per filter) and global lock
Filter Modes: Float, restricted, manual
Filter Type: Notch, parametric
Filter Frequency Range: 20 Hz to 20 kHz
Notch Filter: -∞
Parametric Filter: 15 to -30 dB
Filter Bandwidth 0.016 to 3.995 Octave
Detector Sensitivity: 5 levels
Float Time 5 minutes to 24 hours | | Crossover | 2 Way, 3 Way, 4 Way Crossover & High Pass / Low Pass Filters
Bessel & Butterworth Filters: 12 / 18 / 24 / 48 dB/octave
Linkwitz-Riley Filter: 12 / 24 / 48 dB / octave
Frequency: Off, 20 Hz to 20 kHz | | Delay | At 48 kHz Sampling Rate (Input Time, Distance & Temperature):
Speaker Delay: 0 to 21 ms
Delay: 0 to 682 ms
At 96 kHz Sampling Rate (Input Time, Distance & Temperature):
Speaker Delay: 0 to 10.6 ms
Delay: 0 to 341 ms | | Audio Metering | Range: -60 to 20 dBu
Increments: 1 dB
Peak Hold Indicator | | Signal Generator | Pink Noise, White Noise, Sine Wave
Signal Level: Off, -50 to 20 dBu
Sine Wave Frequency: 20 Hz to 12 kHz | | Mixer | Matrix Mixer:
Gain (0.5 dB Increments): Off, -50 to 12 dB
Mute: Per channel
Auto-Mixer Enabled: Per channel
Global Auto-mixer Response: 0.01 to 2 sec
Enable Ducking at Mixer
Ducking LED: Per channel if enabled
Metering: Level, auto-mixer level | | Processor | Input A/D, Output D/A: 24 bit
DSP Processors: 32-bit floating point
Sample Rates: 48 kHz, 96 kHz
Propagation Delay @ 48 kHz: 1.42 ms
Propagation Delay @ 96 kHz: 0.71 ms | | | | Nominal | Automatic Sensing SMPS:
120 VAC @ 60 Hz
240 VAC @ 50 Hz | | Operating Range | 70 to 135 VAC @ 60 Hz
140 to 270 VAC @ 50 Hz | | Power | Minimum Power-Up:
85 VAC @ 60 Hz
170 VAC @ 50 Hz | | Connector | Power Cable Connector: 20 A powerCON | | Maximum Output Power | Per Channel, Low-Z Output, All Channels Driven:
2/4/8 Ohms: 800 W | | Low Impedance | Bridge Mode (All Channels Driven):
4/8 Ohms: 1600 W
70 V, 100 V Output (All Channels Driven):
70/100 V (Per Channel): 800 W | | Power Draw | Sleep Mode: <1 w
Standby Mode: 40 W
Idle (No Signal): 70 W | | Maximum Current Draw | All Channels Driven, Typical Input (1/8 Max Power @ 2 Ohms):
8.8 A for 120 VAC
4.4 A for 240 VAC | | Current Draw | For 120 VAC
Sleep Mode: 0.1 A
Standby Mode: 0.7 A
Idle (No Signal): 1.3 A
For 240 VAC
Sleep Mode: 0.05 A
Standby Mode: 0.35 A
Idle (No Signal): 0.65 A | | Dissipation | Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
Standby Mode: 136 BTU/hr
Idle (No signal): 238 BTU/hr
Typical (1/8 Max Power @ 2 Ohms): 970 BTU/hr | | | | Cooling | Continuously variable temperature controlled axial fans | | Environmental | Non-condensing 32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 19.00 x 3.50 x 16.84" (483 x 89 x 428 mm) | | Weight | 25.9 lb (11.7 kg) |
