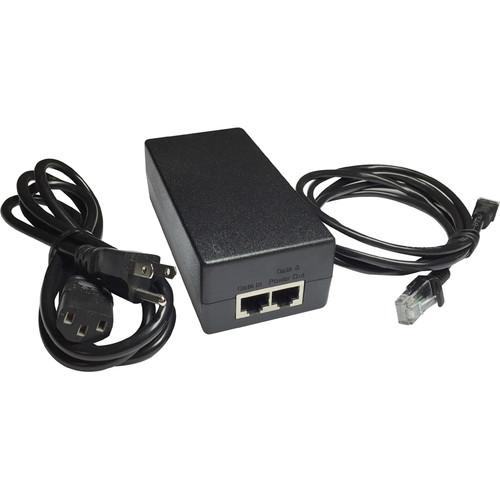

User Manual for Ashly Power Over Ethernet Injector for neWR-5, FR-8, & FR-16 Remotes Click to enlarge the picture
Contents of the user manual for the Ashly Power Over Ethernet Injector for
- Product category: Modules & Cards Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Modules & Cards
|
User manual for the Ashly Power Over Ethernet Injector for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Power Over Ethernet Injector from Ashly is designed for use with neWR-5, FR-8, and FR-16 networked remotes. The PoE standard (IEEE 802.3af) is designed to transmit data and power to devices over a single wired network connection. It is inserted between the Ethernet switch and the remote device. If the network switch already provides PoE on the port used for the remote device, then no PoE injector is necessary. However if there is no PoE available, the PoE injector can provide power to the remote control device while still using the non-PoE switch. - Compatibility
- neWR-5, FR-8, and FR-16 Networked Remotes
- Compatible with Class 1 IEEE 802.3af PoE
In the Box Ashly Power Over Ethernet Injector for neWR-5, FR-8, & FR-16 Remotes Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly Power Over Ethernet Injector for neWR-5, FR-8, & FR-16 Remotes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly RPOE-1 Specs | Power Input | 100 to 240 VAC, 50/60 Hz, 0.5 A maximum | | LAN | 10/100 Mb/s | | Cable Type | Cat5/Cat6 (maximum length up to 328' / 100 m) | | Output Voltage | 48 VDC | | Power Output | 24 W | | Protection Type | Auto-recover | | Compliance | CISPR 22B, VCCIB, FCC Class B, UL | | Weight | 5.11 oz (145 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.0 x 4.25 x 2.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
