Ashly Protea 24.24M - Audio Matrix

Search your instruction manual in PDF to download

User Manual for Ashly Protea 24.24M - Audio Matrix Processor with Tamper-Proof Operation and System Software for Windows

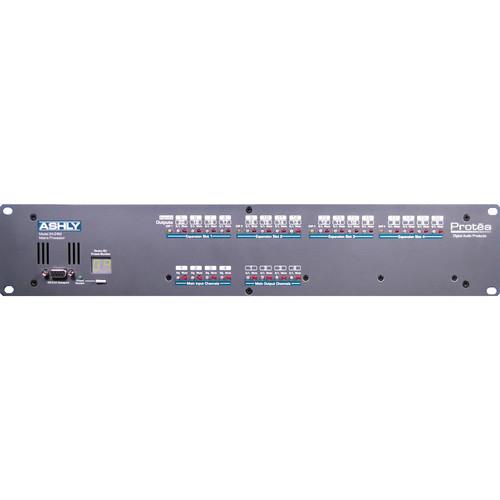

Click to enlarge the picture
Ashly Protea 24.24M - Audio Matrix Processor with Tamper-Proof Operation and System Software for Windows Contents of the user manual for the Ashly Protea 24.24M - Audio Matrix
  • Product category: System Processors Ashly
  • Brand: Ashly
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ashly System Processors

User manual for the Ashly Protea 24.24M - Audio Matrix contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ashly product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!



Product description

The Protea 24.24M from Ashly is an audio matrix processor without front-panel control, and provides multiple routing options, along with very comprehensive DSP processing, both on input and output. The base unit (with four-inputs and four-outputs) is suitable for installation in corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right theatres, auditoriums or conference centers. The lack of front-panel control allows the unit to be installed in situations where secure, tamper-proof operation is required. Programming is achieved via the included Protea System software running on a Windows based computer. Additionally, various accessories are available for controlling volume and presets from a remote location without the use of a computer, once the unit has been initially set up. The Protea 24.24M can be expanded to a toatal of twenty-four audio channels using optional four-channel expander cards. The expander cards are configured for either input or output, are field installable, and contain their own DSP and A/D/A converters. The latter insures that all processing blocks remain available on each input and output, regardless of the number of installed channels. On installation, the base unit automatically recognizes their presence without further programming. Firmware updates can easily be installed without taking the unit out of its operating environment. With excellent audio fidelity and a full compliment of processing blocks, the Protea 24.24M will satisfy any requirements for a zoned system, requiring input/output matrixing and signal processing.
  • Digital matrix processor with four inputs and four outputs, along with a dedicated DSP processor and A/D/A circuitry
  • No front-panel controls for secure, tamper-proof installation situations
  • Can be expanded to twenty-four channels of audio using four-channel expansion cards that each have their own dedicated processor and A/D/A
  • Each input channel has fixed processing blocks that include a microphone preamp with +48V phantom power, gain, delay, fifteen EQ filters, gate, autoleveler and ducker
  • Inputs may be configured as either microphone or line level
  • Output channel processing blocks consist of a cross point mixer, crossover (Hi-/Low-pass filter), delay, fifteen EQ filters, gain and limiter
  • The cross point mixer in the output section allows the user to route any input to any output at any level and mute any input at any output without affecting the true input configuration
  • The Hi-/Low-pass filter block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes
  • Front- and rear-panel 9-pin RS-232 connectors allow all functions to be controlled either by a Windows based PC or a dedicated control system
  • Includes thirty-five factory presets that may be programmed by the user and stored in the unit's internal memory
  • Rear panel Euroblock connectors for audio, preset recall, DC remote level control and data in/out
UPC: 694970381919 In the Box Ashly Protea 24.24M - Audio Matrix Processor with Tamper-Proof Operation and System Software for Windows (4 Input / 4 Output Base Unit)
  • AC Power Cable
  • Five (5) Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ashly Protea 24.24M - Audio Matrix Processor with Tamper-Proof Operation and System Software for Windows in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ashly Protea 24.24M Specs

    Frequency Response 20Hz to 20kHz, +/-0.25dB
    Dynamic Range >110dB unweighted, 20Hz to 20kHz B/W
    Input Connections Euroblock
    Output Connections Euroblock
    Input Impedance 18kΩ
    Output Impedance 112Ω
    Maximum Input Level +20dBu
    Maximum Output Level +20dBu
    Sample Rate 48kHz
    RTA Mic Phantom Voltage Not applicable
    THD & Noise <0.01% @1kHz, +20dBu
    Dimensions (WxDxH) 19 x 8.5 x 3.5" (483 x216 x 89mm)
    Weight 13 lbs (5.9 kg)
    Specialties Requires computer running under Windows 95/98/ME/2000/XP or NTAMX NetLinx and ACCENT3 compatible
    Package Weight 12.6 lb
    Box Dimensions (LxWxH) 24.1 x 14.5 x 4.1"
