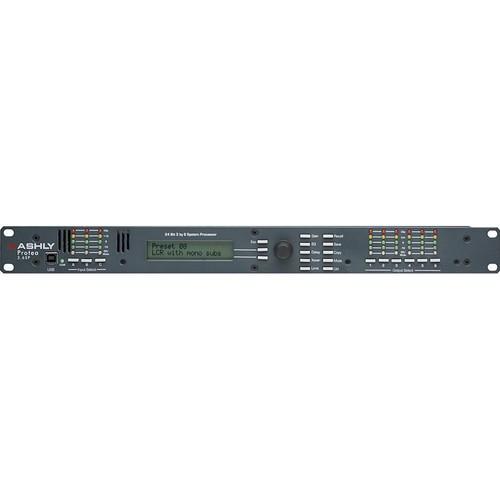

User Manual for Ashly Protea 3.6SP - 3 Input, 6 Output Digital Speaker Processor Click to enlarge the picture
Contents of the user manual for the Ashly Protea 3.6SP - 3 Input,
- Product category: Crossovers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Crossovers
|
User manual for the Ashly Protea 3.6SP - 3 Input, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashly Protea 3.6SP 3-Input, 6-Output Digital Speaker Processor delivers enhanced DSP processing, superb audio quality and flexible control features for professional sound reinforcement in touring, venue installations, nightclubs, large theater sound systems and more.The Protea 3.6SP features 24-Bit A/D converters and an array of DSP functions that include crossover, time delay features, compression, limiting, feedback control features and much more.An intuitive back-lit LCD display helps navigate through the its extensive feature set and is also easy to see in dimly lit venues. The 3.6SP will store up to 30 total presets. A preset file takes a "snapshot" of all current settings and stores complete control data for all channels and all audio functions. - Three Inputs - Six Outputs
- Extremely Intuitive User Interface
- Crossover, EQ, Delay and Limiter Functions
- Outputs Assignable to Any Input
- Front Panel Or PC Programming and Control
- Third Party Control Friendly
- Balanced Inputs and Outputs
- Parametric Filters and Comp/Limiter to Control Feedback Problems
- Linkwitz-Riley, Bessel and Butterworth Filters
- 12, 18, 24 and 48dB/Octave Slopes
- Parametric EQ: 1/64th to 4 Octave Range
- 682ms Input and Output Delay
- Individual Input and Output Metering
UPC: 694970822467 In the Box Ashly Protea 3.6SP - 3 Input, 6 Output Digital Speaker Processor 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly Protea 3.6SP - 3 Input, 6 Output Digital Speaker Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly Protea 3.6SP Specs | Filter Type | Linkwitz-Riley, Bessel, Butterworth | | Crossover Frequencies | Off to 21.98KHz, 245 step incr | | Gain Range | +12/-40dB, 0.1dB Incr | | Inputs | 3-pin XLR Female x3 | | Outputs | 3-pin XLR Male x6 | | Maximum Input Level | +20dBu | | Maximum Output Level | +20dBu | | Frequency Response | 20Hz - 20KHz,+/-0.25dB | | Dynamic Range | >110dB (20Hz-20KHz) unweighted | | Noise | < - 90dBu unweighted | | Dimensions (WxDxH) | 19.0 x 3.5 x 8.5" | | Weight | 13 lbs (shipping) | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 24.0 x 14.5 x 2.5" |
