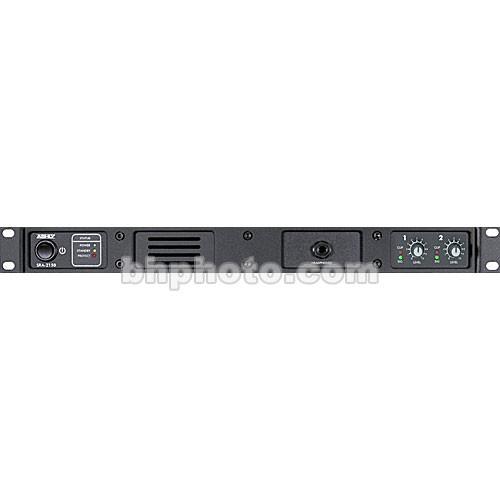

Product description The Ashly SRA-2150 is a 2-channel convection-cooled rackmount studio PA, or power amplifier, housed in a rugged 1RU metal chassis. Offering an output of 80 watts per side at 8 Ohms, it is designed to drive 4- and 8-Ohm loads.The SRA-2150 incorporates a switch-mode power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and dual or bridged modes of operation.The SRA-2150 is equipped with a front-panel headphone monitoring output, an internally switchable 120V/240V power supply, extensive protection circuitry, and standard Euroblock inputs along with screw terminal outputs. - 1RU, 9 lb lightweight rackmount stereo power amplifier with 80 watts per side power output at 8 Ohms
- Selectable Stereo or Bridged Mono Operation, designed for 4- or 8-Ohm loads
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- Onboard 80 Hz HPF, selectable gain sensitivity
- Up to 8 sec of turn-on delay with selectable DIP switch complement
- Comprehensive amplifier protection circuitry includes: Output Over-Current, DC Output, Main Supply Rail Over-Voltage, Chassis Temperature, Inrush Limiting, Mains Fuse
- Front-Panel Indicators include: overall power, standby, and protect; per-channel clip and signal indicators
- Euroblock input connectors, screw-terminal outputs
In the Box Ashly SRA-2150 - Rackmount Stereo Power Amplifier Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly SRA-2150 - Rackmount Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly SRA-2150 Specs | Power Rating | Stereo @ 8 Ohms: 80 W per Channel
Stereo @ 4 Ohms: 150 W per Channel
Mono Bridge @ 8 Ohms: 300 W | | Damping Factor | >200, 8-Ohm load, <1 kHz | | Input Sensitivity | 1 dBu (75 W), 4 dBu (150 W) | | Input Impedance | 20 kOhms, Balanced | | Gain | Selectable 26 dB or 36 dB | | Output Circuit | Class D | | Frequency Response | 20 Hz to 20 kHz, +/-1.0 dB | | Signal-to-Noise Ratio | >105 dB, 20 Hz to 20 kHz Unweighted | | Total Harmonic Distortion (THD) | <0.01% (8-Ohm load, 10 dB below rated power, 20 Hz to 10 kHz | | Input Connections | 2 (1 x Channels 1 and 2)
3-Pin Euroblock | | Output Connectors | 2 (1 x Channels 1 and 2) Screw Terminals
1 x 1/4" / 6.3 mm Stereo Headphone Jack | | Controls Front Panel | 1 x Power Switch
2 x Gain Control Knob | | Controls (Rear) | 4 x Delay DIP Switche
2 x 80 Hz HPF On/Off Button
2 x Gain Sensitivity Button
2 x Bridge/Stereo Mode Switch | | Indicators | 1 x Blue Power On LED
1 x Yellow Standby LED
1 x Red Protect LED
2 x Red Clip LED
2 x Green Signal LED | | Cooling | Convection Cooled | | Power Consumption | 37.5W (1/8 Power Pink Noise @ 4 Ohms)
Typical Current:
Idle: 0.35A
1/8 Power: 1.10A | | Specialties | Adjustable Turn-On Delay Switches
Convection Cooling
Switch-Mode Power Supply | | Dimensions | 19.00 x 1.75 x 11.00" / 48.26 x 4.45 x 27.94 cm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 19.0 x 11.0 x 3.0" |
