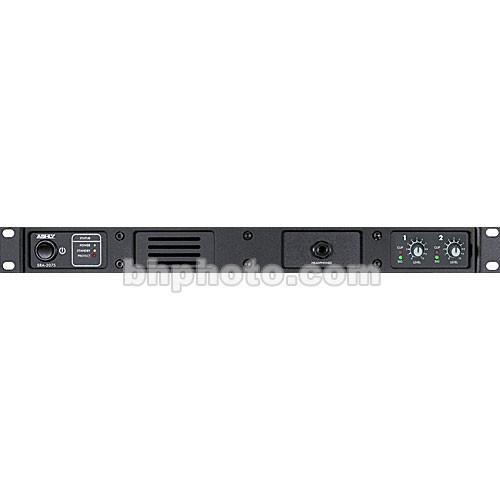

User Manual for Ashly SRA Series SRA-2075 Convection-Cooled Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Ashly SRA Series SRA-2075 Convection-Cooled Stereo
- Product category: Standard Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Standard Amplifiers
|
User manual for the Ashly SRA Series SRA-2075 Convection-Cooled Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The SRA Series SRA-2075 Convection-Cooled Stereo Power Amplifier from Ashly is a 2-channel convection-cooled rackmount studio PA, or power amplifier, housed in a rugged 1RU metal chassis, offering an output of 40 watts per side at 8 Ohms and designed to drive 4- and 8-Ohm loads.The SRA-2075 incorporates a switch-mode power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and dual or bridge modes of operation.The SRA-2075 is equipped with a front-panel headphone monitoring output, an internally switchable 120V/240V power supply, extensive protection circuitry, and standard Euroblock inputs along with screw terminal outputs. - 1RU, 9 lb lightweight rackmount stereo power amplifier with a 40 watts per side power output at 8 Ohms
- Selectable Stereo or Bridged Mono operation, designed for 4- or 8-Ohm loads
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- Onboard 80 Hz HPF, selectable gain sensitivity
- Up to 8 sec of turn-on delay with selectable DIP switch complement
- Comprehensive amplifier-protection circuitry includes: Output Over-Current, DC Output, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse
- Front-panel indicators include: overall power, standby, and protect; per-channel clip and signal indicators
- Euroblock input connectors, screw terminal outputs
UPC: 694970958777 In the Box Ashly SRA-2075 - Rackmount Stereo Power Amplifier - 40 Watts per Channel at 8 Ohms Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly SRA Series SRA-2075 Convection-Cooled Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly SRA-2075 Specs | Power Rating | Stereo @ 8 Ohms: 40 W Per Channel
Stereo @ 4 Ohms: 75 W Per Channel
Mono Bridge @ 8 Ohms: 150 W | | Damping Factor | >200, 8-Ohm Load, <1 kHz | | Input Sensitivity | 1 dBu (75 W), 4 dBu (150 W) | | Input Impedance | 20 kOhms, Balanced | | Gain | Selectable 26 dBu or 36 dBu | | Frequency Response | 20 Hz to 20 kHz, +/-1.0 dB | | Signal-to-Noise Ratio | >98 dB, 20 Hz to 20 kHz Unweighted | | Total Harmonic Distortion (THD) | <0.01% (8-Ohm Load), 10 dB Below Rated Power, 20 Hz to 20 kHz | | Input Connections | 2 (1 x Channels 1 and 2) 3-Pin Euroblock | | Output Connectors | 2 (1 x Channels 1 and 2) Screw Terminals
1 x 1/4" /6.3 mm Stereo Headphone Jack | | Controls Front Panel | 1 x Power Switch
2 x Gain Control Knobs | | Controls (Rear) | 4 x Delay DIP Switch
2 x 80 Hz HPF On/Off Button
2 x Gain Sensitivity Button
2 x Bridge/Stereo Mode Switch | | Indicators | 1 x Blue Power On LED
1 x Yellow Standby LED
1 x Red Protect LED
2 x Red Clip LEDs
2 x Green Signal LEDs | | Cooling | Convection Cooled | | Specialties | Adjustable Turn-On Delay Switches
Convection Cooling
Switch-Mode Power Supply | | Dimensions | 19.00 x 1.75 x 11.00" / 48.26 x 4.45 x 27.94 cm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 24.0 x 17.7 x 5.2" |
