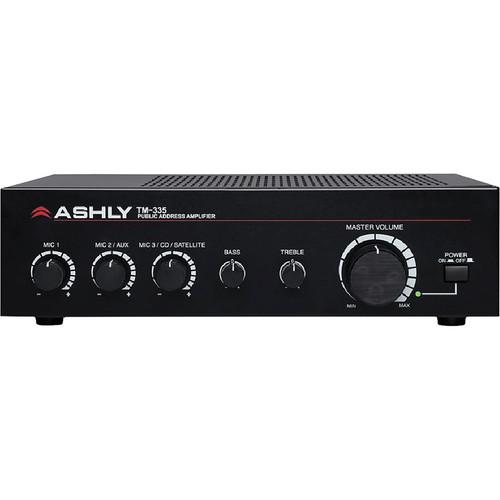

User Manual for Ashly TM-335 Public Address Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Ashly TM-335 Public Address Mixer Amplifier
- Product category: Mixer/Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Mixer/Amplifiers
|
User manual for the Ashly TM-335 Public Address Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashley TM-335 Public Address Mixer/Amplifier is a mono mixer/amplifier that's compact, outputs 35 watts of power and aimed squarely at audio for background music, paging, commercial offices, retail and more. The amplifier supports 4 ohm, 8 ohm, 25 volt and 70 volt operation, with taps on Euroblock connectors. There are mic and line inputs, provisions for audio ducking in priority audio situations, telephone input and more. The straightforward front panel features a level control, bass and treble controls and a level control dial for each of the 3 input channels. - 35W mono speaker output with 4W, 8W, 25V, and 70V taps on Euroblock 230V export models have 4W, 8W, 70V, and 100V output taps
- Euroblock telephone input with rear panel level and ducking depth controls
- Euroblock mic input with rear panel ducking depth control
- Selectable Euroblock mic input or summed stereo aux input on Euroblock or 3.5mm jack
- Selectable Euroblock mic input or summed stereo CD/Satellite input on RCA jack
- Front panel level and master volume controls
- Front panel bass and treble controls
- Limited five year warranty
- Safety/Compliance: cCSAus, CE, FCC, RoHS
In the Box Ashly TM-335 Public Address Mixer/Amplifier 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly TM-335 Public Address Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly TM-335 Specs | Power Output | 35W (RMS) (@ THD 5%) | | Frequency Response | Mic 1, 2, 3: 130Hz to 20kHz
Aux: 50Hz to 20kHz CD/Satellite: 50Hz to 20kHz
Telephone: 330Hz to 3kHz | | THD | Less that 5% (at rated output, 1kHz) | | Signal-to-Noise Ratio | 89dB (26dB gain) | | Input Sensitivity | Mic 1, 2, 3: -50dBV/600 ohms
Aux: -15dBV/10k ohms CD/Satellite: -15dBV/10k ohms
Telephone: 0.3V/600 ohms | | Output Voltage | EC & Associated (230V): 4 ohms/11.8V, 8 ohms/16.7V, 140 ohms/70V, 285 ohms/100V
USA/Canada & Associated: 4 ohms/11.8V, 8 ohms/16.7V, 18 ohms/25V, 140 ohms/70V | | Temperature | -10 to +40°C | | Power Supply | 100-120VAC or 220-240VAC; 50/60Hz
(supplied AC mains transformer depends on country requirements) | | Current Draw | Idle: 0.11A
1/8 power pink noise: 0.27A 1/3 power sine wave: 0.31A
(120VAC, 60Hz) | | Online Thermal Dissipation | Idle: 30
1/8 power pink noise: 68 1/3 power sine wave: 75 | | Dimensions (WxHxD) | 11.4 x 3 x 7.3" (290 x 76 x 185mm) | | Weight | 9.7lb (4.4kg) | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 14.7 x 11.4 x 6.6" |
