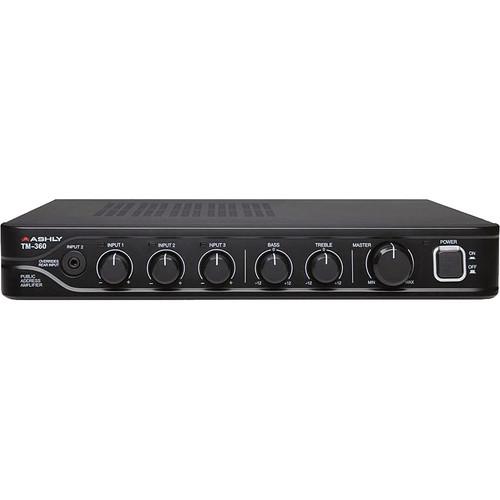

Product description The Ashley TM-360 Public Address Mixer/Amplifier is a mono mixer/amplifier with 60 watts of power and intended for background music, paging, commercial offices, retail spaces and more. The amplifier supports 4 ohm, 25 volt, 70 volt and 100 volt operation, with taps on Euroblock connectors. There are mic and line inputs, phantom power, and front-mounted audio input jack. Priority mute interrupts background music and all other programming in order to prioritize pages, announcements, etc. The straightforward front panel features a level control, bass and treble controls and level control dial for each of the 3 input channels. - 1 x mic/line input (balanced Euroblock)
- 2 x line/stereo inputs (balanced Euroblock, unbalanced stereo)
- Zone 2 Output for selected inputs
- Selectable 400Hz low-cut filter
- 60W Output
- 4 Ohms (direct out)
25V Transformer Isolated (US) 70V Transformer Isolated
100V Transformer Isolated (EC, Japan) - Manual or automatic power saving mode
UPC: 694970608528 In the Box Ashly TM-360 Public Address Mixer/Amplifier 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly TM-360 Public Address Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly TM-360 Specs | Power Output | 60W RMS (THD 1%)
Zone 2 output: Rated power 8Ω (RMS, THD 3%), 1W, Balanced 600Ω, 2.4V | | Output Voltage | EC & Associated (230V): 4Ω / 15.5V, 82Ω / 70V, 167Ω / 100V
USA/Canada & Associated: 4Ω / 15.5V, 10.4Ω/ 25V, 82Ω / 70V | | Frequency Response | Input 1, 2, 3: +1/-3dB, 80Hz - 15kHz
(1W @ 1KHz) | | THD | < 1%
(60W @ 1kHz) | | Signal-to-Noise Ratio | Input 1, 2, 3: >80dB
(60W @ 1KHz, A- weighted) | | Input Sensitivity | Input 1: -10dBV to -50dBV
Input 1, 2: 0dBV to -20dBV | | Tone Control | Treble (10kHz): +/- 10dB
Bass (100Hz): +/- 10dB | | Residual Noise | Master volume minimum: -72dB
Master volume maximum: -57dB | | Preamp Output | 0dBV (input -10dBV) | | Switches | SW1: Zone 2 Assign Input 1
SW2: Zone 2 Assign Input 2 SW3: Zone 2 Assign Input 3
SW4: VOX Trigger Input 1 SW5: VOX Trigger Input 2
SW6: Mute Link Input 2 & 3SW8: Ch1 Phantom Power, +18V | | Mute | Manual Mute Contact Closure: Pins 1 & G = Input 1 Mute Trigger
Master System Standby Contact Closure: Pins G & 2 = Power Standby | | Power Supply | 120VAC, 60Hz, 24W (USA & Canada and Associated) 230VAC, 50/60Hz, 24W (EC and Associated) | | Current Draw | Standby: 0.15A
Idle: 0.24A 1/8 power pink noise: 0.38A
1/3 power sine wave: 0.66A | | Online Thermal Dissipation | Standby: 26
Idle: 43 1/8 power pink noise: 53
1/3 power sine wave: 75 | | Temperature | 4 to 49° C (40 - 120° F) | | Dimensions (WxHxD) | 11.4 x 3 x 7.3" (290 x 76 x 185mm) | | Weight | 8.6lb (3.9kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 3.0" |
