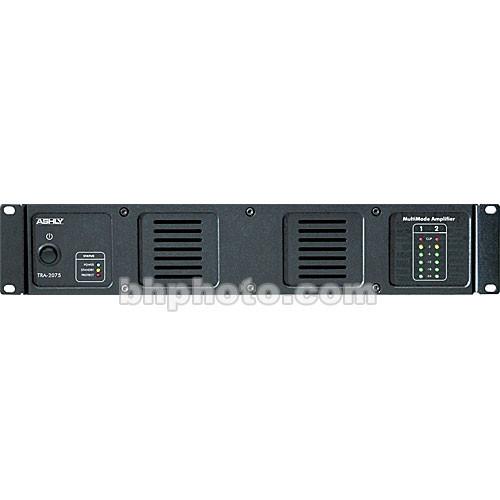

Product description The Ashly TRA-2075 is a 2-channel convection-cooled rackmount P.A. or installation power amplifier housed in a rugged 2-RU metal chassis. The unit offers an output of 40 Watts per side at 8 Ohms, an output of 75 Watts per side at 8 Ohms, and is designed to drive 4-and 8-Ohm loads and transformer-coupled 70V and 100V lines simultaneously. The coupling transformers are internally mounted.The TRA-2075 incorporates a switch-mode-power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable HPF filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay, and rear-mounted set-and-forget gain controls.The TRA-2075 is equipped with an internally switchable 120/240V power supply and extensive protection circuitry, along with standard Euroblock inputs and Euroblock outputs. - 2-RU rackmount stereo power amplifier with 40 Watts per side power output at 8 Ohms and built-in 60W/70V transformer
- Designed to simultaneously drive 4- or 8-Ohm loads and 70/100V transformer-coupled lines
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- Onboard 80 Hz HPF, selectable gain sensitivity
- Up to 8 sec. of turn-on delay with selectable dip switch complement
- Comprehensive amplifier protection circuitry includes: output over-current, DC output, main supply rail over-voltage, chassis temperature, inrush limiting, and mains fuse
- Front panel indicators include: overall power, standby, and protect—along with per-channel clip and signal indicators
- Euroblock input and output connectors
UPC: 694970332898 In the Box Ashly TRA-2075 Rackmount Stereo Power Amplifier with Transformer Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly TRA-2075 Rackmount Stereo Power Amplifier with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly TRA-2075 Specs | Power Rating | Stereo @ 8 Ohms: 40 W per Ch.
Stereo @ 4 Ohms: 75 W per Ch.
Stereo @ 70 V: 75 W per Ch.
Stereo @ 100 V: 75 W per Ch. | | Damping Factor | >200, 8-Ohms load, <1 kHz | | Input Sensitivity | 1 dBu (75 W), 4 dBu (150 W) | | Input Impedance | 20 kOhms, Balanced | | Gain | Selectable 26 dB or 36 dB | | Frequency Response | 20 Hz to 20 kHz, +/-1.0 dB, -3 dBu @ 80 Hz Due to Internal HPF | | Signal-to-Noise Ratio | >100 dB, 20 Hz to 20 kHz unweighted | | Total Harmonic Distortion (THD) | <0.05% (8-Ohms load, 10 dB Below Rated Power, 20 Hz to 10 kHz | | Input Connections | 2 x Ch.1, 2, 3- Pin Euroblock | | Output Connectors | 2 x Ch.1, 2, Euroblock | | Controls Front Panel | 1 x Power Switch | | Controls (Rear) | 2 x Gain Control Knobs
4 x Delay DIP Switches
2 x 80 Hz HPF On/Off Buttons
2 x Gain Sensitivity Buttons | | Indicators | 1 x Blue Power On LED
1 x Yellow Standby LED
1 x Red Protect LED
2 x Red Clip LED's
6 x Green -24/-18/-12dB Signal LED's
4 x Yellow -6/-3dB Signal LED's | | Cooling | Convection-cooled | | Power Consumption | 18.75 W (1/8 Power Pink Noise @ 4 Ohms)
Typical Current:
Idle: 0.30 A
1/8 Power: 0.69 A | | Specialties | Adjustable Turn-On Delay Switches
Convection Cooling
Switch-Mode Power Supply | | Dimensions (W x H x D) | 19.0 x 3.5 x 12.0" / 48.3 x 8.9 x 30.5 cm | | Weight | 19.9 lb / 9.0 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 4.0" |
