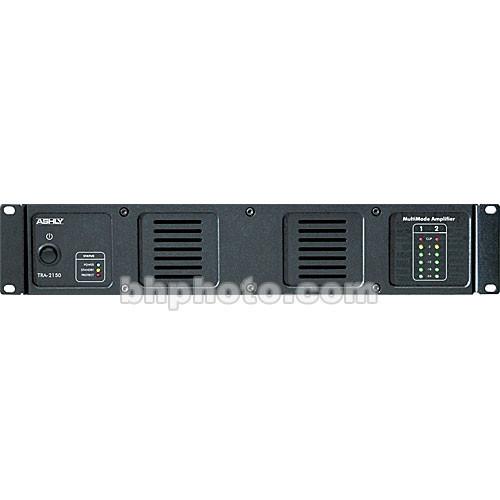

User Manual for Ashly TRA-2150 Rackmount Stereo Power Amplifier with Transformer Click to enlarge the picture
Contents of the user manual for the Ashly TRA-2150 Rackmount Stereo Power Amplifier
- Product category: Standard Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Standard Amplifiers
|
User manual for the Ashly TRA-2150 Rackmount Stereo Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashly TRA-2150 is a 2-channel convection-cooled rackmount P.A. or installation power amplifier housed in a rugged 2-RU metal chassis. The unit offers an output of 80 Watts per side at 8 Ohms, 150 Watts per side at 4 Ohms, and is designed to drive 4- and 8-Ohm loads and transformer-coupled 70V and 100V lines simultaneously. The coupling transformers are internally mounted.The TRA-2150 incorporates a switch-mode power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and rear-mounted set-and-forget gain controls.The TRA-2150 is equipped with an internally switchable 120/240V power supply, and extensive protection circuitry, along with standard Euroblock inputs and screw terminal outputs. - 2-RU rackmount stereo power amplifier with 80 Watts per channel power output at 8 Ohms and built-in 60W/70V transformer
- Designed to simultaneously drive 4- or 8-Ohm loads and 70/100V transformer-coupled lines
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- Onboard 80 Hz HPF, selectable gain sensitivity
- Up to 8 seconds of turn-on delay with selectable dip switch complement
- Comprehensive amplifier protection circuitry includes: output over-current, DC output, main supply rail over-voltage, chassis temperature, inrush limiting, and mains fuse
- Front panel indicators include: overall power, standby, and protect—along with per-channel clip and signal indicators
- Euroblock input connectors, screw terminal outputs
UPC: 694970271791 In the Box Ashly TRA-2150 - Rackmount Stereo Power Amplifier with 70V/100V Transformer - 80 Watts per Channel at 8 Ohms Power Cable 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly TRA-2150 Rackmount Stereo Power Amplifier with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly TRA-2150 Specs | Power Rating | Stereo @ 8 Ohms: 80 W per Ch.
Stereo @ 4 Ohms: 150 W per Ch.
Stereo @ 70 V: 150 W per Ch.
Stereo @ 100 V: 150 W per Ch. | | Standby Mode | 89 mA | | Idle | 370 mA | | Pink Noise Type | 1/8th Power: 1.10 A | | 1/3 Sine Wave | 2.10 A | | Thermal Dissipation | Standby: 14 BTU/Hr
Idle: 72 BTU/Hr
1/8th Power Pink Noise: 111 BTU/Hr
1/3 Power Sine Wave: 126 BTU/Hr | | Signal-to-Noise Ratio | >103 dB, (20 Hz to 20 kHz Unweighted) | | Voltage Gain | Selectable 26 dB or 36 dB | | Output Circuit | Class D | | Frequency Response | 80 Hz to 20 kHz (-3 to +/-1.0 dB Due to Internal 80 Hz HPF) | | Total Harmonic Distortion (THD) | <0.5% (8 Ohm Load, 10 dB Below Rated Power, 20 Hz to 20 kHz) | | Distortion | SMPTE: < 0.5% (8
