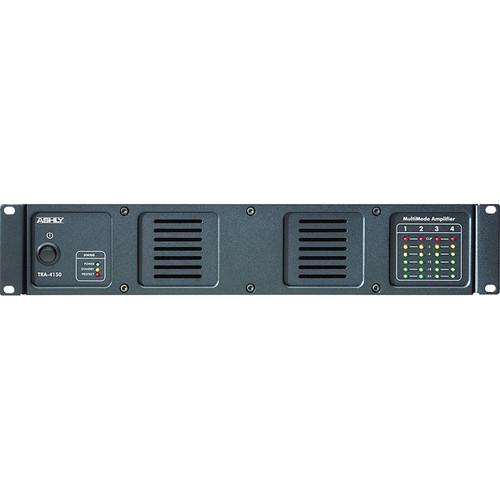

Product description The Ashly TRA-4150 is a 4-channel convection-cooled rackmount P.A. or installation power amplifier housed in a rugged 2-RU metal chassis, offering an output of 80 Watts per channel at 8 Ohms and designed to drive 4- and 8-Ohm loads and transformer-coupled 70V and 100V lines simultaneously. The coupling transformers are internally mounted.The TRA-4150 incorporates a switch-mode-power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and rear-mounted set-and-forget gain controls.The TRA-4150 is equipped with an internally switchable 120/240V power supply and extensive protection circuitry, along with standard Euroblock inputs and screw terminal outputs. - 2-RU rackmount 4-channel power amplifier with 80 Watts per channel power output at 8 Ohms and built-in 60W/70V transformer
- Designed to simultaneously drive 4- or 8-Ohm loads and 70/100V transformer-coupled lines
- 2-stage high-efficiency switched-mode power supply with high power-to-weight ratio
- Ultra-quiet convection-cooled operation
- On-board 80 Hz HPF, selectable gain sensitivity
- Up to 8 seconds of turn-on delay with selectable dip switch complement
- Comprehensive amplifier protection circuitry includes: output over-current, DC output, main supply rail over-voltage, chassis temperature, inrush limiting, and mains fuse
- Front-panel indicators include: overall power, standby, and protect—along with per-channel clip and signal indicators
- Euroblock input connectors, screw terminal outputs
UPC: 694970132825 In the Box Ashly TRA-4150 Rackmount 4-Channel Power Amplifier with Transformer Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly TRA-4150 Rackmount 4-Channel Power Amplifier with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly TRA-4150 Specs | Power Rating | Stereo @ 8 Ohms: 4 x 80 W per Ch.
Stereo @ 4 Ohms: 4 x 150 W per Ch.
Stereo @ 70 V: 4 x 150 W per Ch.
Stereo @ 100 V: 4 x 150 W per Ch. | | Damping Factor | >200, 8-Ohm Load, <1 kHz | | Input Sensitivity | 1 dBu (75 W), 4 dBu (150 W) | | Input Impedance | 20 kOhms, Balanced | | Voltage Gain | Selectable 26 dB or 36 dB | | Output Circuit | Class D | | Frequency Response | 80 Hz to 20 kHz (-3 to +/-1.0 dB Due to Internal 80 Hz HPF) | | Signal-to-Noise Ratio | >105dB, 20Hz - 20kHz Unweighted | | Total Harmonic Distortion (THD) | <0.5% (8 Ohm Load, 10 dB Below Rated Power, 20 Hz to 20 kHz) | | Distortion | SMPTE: < 0.5% (8 Ohm Load, 10 dB Below Rated Power) | | Input Connections | 4 x 3-Pin Euroblock (Ch.1,2,3,4) | | Output Connectors | 4 x Screw Terminals (Ch.1,2,3,4) | | Front Panel Controls and Indicators | Per Channel: Clips and Signal
Overall: Power, Standby, and Protect
Attenuators: Per Channel Rear Panel | | Cooling | Convection | | Power Cable | 3-Prong IEC | | Dimensions | 19.0 x 3.5 x 12.0" / 48.3 x 8.9 x 30.5 cm | | Weight | 30.0 lb / 13.6 kg | | | | Package Weight | 35.05 lb | | Box Dimensions (LxWxH) | 24.3 x 17.5 x 5.3" |
