Product description The Assimilate Z CAM S1 & SCRATCH VR Z Bundle includes the Z CAM S1 6K Professional VR Camera, Z CAM WonderStitch software, and Assimilate SCRATCH VR Z software, which is the standard SCRATCH VR software with integrated Z CAM S1 camera control features. Altogether the bundle provides a comprehensive professional VR post-production workflow with a real-time toolset and data management functionality for dailies, conform, color grading, compositing, ambisonic sound, and finishing.
The Z CAM S1 is a compact professional VR camera designed with four Sony CMOS image sensors to capture high-quality spherical VR video at 6K/30 or 4K/60 fps. A gigabit Ethernet port offers 4K/60 fps equirectangular live streaming using the Windows-based Z CAM WonderLive software. Each of the camera's four fisheye lenses is constructed with 10-layer, professional-grade optics, minimizing distortion and flare. Unlike rig-based VR systems, the S1's four integrated sensors provide coordinated auto-exposure and white balance functions. The built-in Z CAM Sync Hardware ensures synchronized recording, and Z-Log gamma enables image fine-tuning and color grading. The S1's cylindrical body measures just over 9.5" in height when used with its detachable battery unit. When powered via the included AC adapter, the S1 measures under 6". Slim and under 4" in diameter, the camera can be placed 2.6' or closer to subjects.

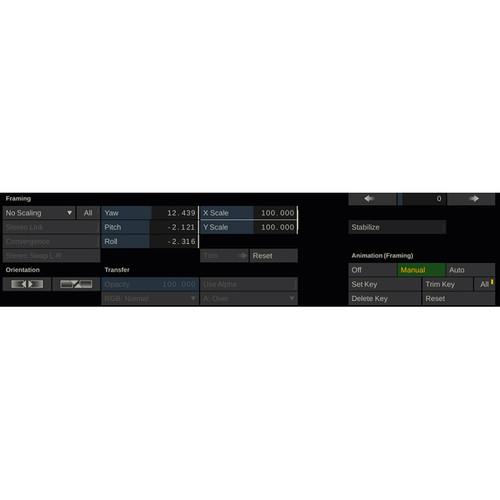

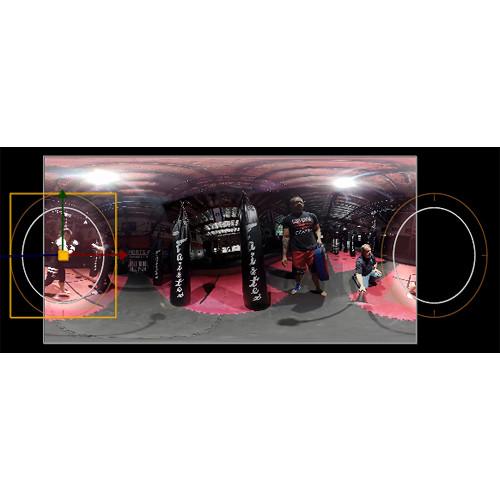

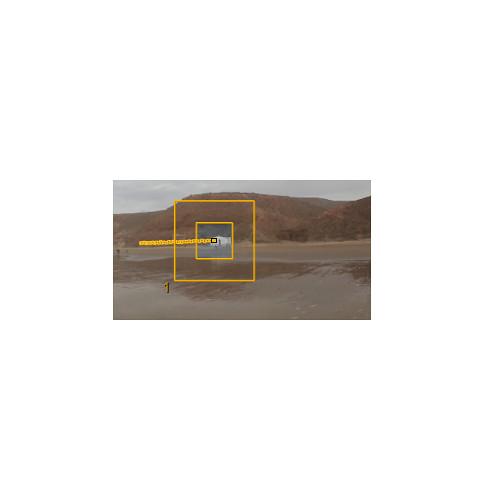

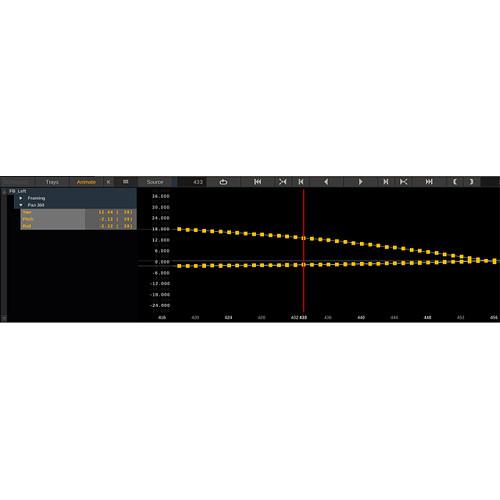

SCRATCH VR Z, like SCRATCH VR, includes all the features of SCRATCH plus seamless VR color grading, 360 compositing tools (such as stabilizing, titling, and inserting 2D elements into a 360 scene), and stitching and ambisonic audio, altogether providing for a complete end-to-end VR workflow. It's compatible with Mac and Windows systems. Note: Four required 18650 lithium-ion batteries and a charger are not included with the camera. - Z CAM S1
-
- Captures high-quality, spherical VR video at 6K/30 or 4K/60 fps
- 4K equirectangular live streaming
- Four Sony CMOS image sensors
- Coordinated auto-exposure and white balance functions
- Z-Log gamma for image fine-tuning and color grading
- Record up to two continuous hours to SanDisk Extreme Pro SD cards (batteries sold separately)
- 10-layer, high-quality, all-glass fisheye lenses
- Compact cylindrical form measures just over 9.5" in height with battery unit
- 2:1 post-stitching aspect ratio (using the Z CAM WonderStitch software)
- SCRATCH VR Z
-
- Dailies
- Conform
- Editorial
- Color grading
- Compositing
- Finishing
- Multichannel/ambisonic audio support
- Publish to online 360 VOD platforms (Facebook 360, YouTube360, etc.)
- Publish to all other 360 deliverables
- Z CAM S1 camera controls
- Z CAM S1 live preview
- Integrated Z CAM WonderStitch
- Data management/meta-data management directly from Z CAM S1
- Direct multichannel audio support from Z CAM S1
In the Box Assimilate Z CAM S1 & SCRATCH VR Z Bundle - S1 6K Professional VR Camera vfwqzcrzxcbueayqsrsywcaw
- Z CAM WonderStitch Software (Permanent, Download)
- SCRATCH VR Z Software (Permanent, Download)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Assimilate Z CAM S1 & SCRATCH VR Z Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

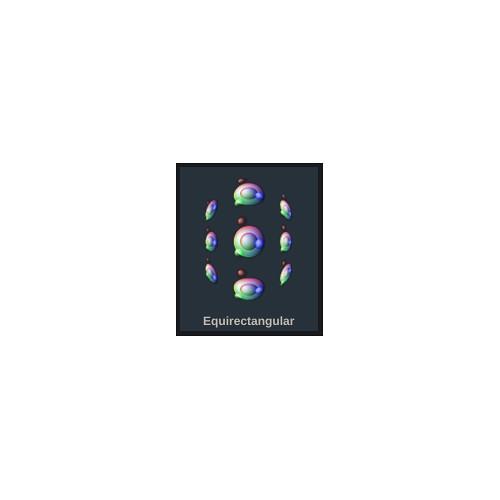

Technical parametersAssimilate S1VRZ-C-BUNDLE Specs | | | Stitching | External | | Supported Spherical Projection Types | Equirectangular | | Still Image Resolution | PNG: 6000 x 3000 (post-stitching output, equirectangular) | | Lenses | 4 (10 lens elements each) | | Sensors | 4 x 1-chip CMOS | | Angle of View | 190° | | Video Format | Per Lens:
3840 x 2160p at 30 fps
2704 x 1520p at 60 fps (H.264) | | Recording Media | SDXC (128 GB maximum) | | Built-In Microphone | 4 x Directional, mono | | Audio Format | AAC | | Status Display | No | | Shutter Speed | 1/30 - 1/8000 Second (Photo, Video, Streaming) | | ISO Range | Photo: 100-6400 (Manual)
Video: 100-6400 (Manual) (Auto mode also available) | | Wi-Fi | None | | Tripod Mount | None | | Inputs | 1 x RJ45 Ethernet | | Outputs | 4 x Mini-HDMI (type C) | | Microphone Input | None | | Headphone Jack | None | | Battery | Supports 4 x rechargeable lithium-ion battery packs, 3400 mAh each (not included)
Max Runtime with Supported Batteries: 2 hours per charge | | Power Adapter | 100-240 VAC | | Operating Temperature | Maximum 104°F (40°C) | | Dimensions | With Battery Unit: 6.7 x 9.7 x 6.7" / 16.9 x 24.6 x 16.9 cm
Without Battery Unit: 3.6 x 3.0 x 3.6" / 9.2 x 7.7 x 9.2 cm | | Weight | With Battery Unit (without Cells): 2.25 lb / 1.02 kg
Without Battery Unit: 1.43 lb / 0.65 kg | | | | System Requirements | Windows 7 and up
OS X 10.7 and up (the OS X version does not have Oculus support)
Intel processor (Intel i7 Quad Core and higher recommended)
Any modern graphics card
NVIDIA Quadro / AMD Firepro recommended for high-end graphics (Note that on systems with standard Intel graphics not all features might be supported. Furthermore, be aware that the Oculus will not work with an Optimus setup, combining Intel graphics with an NVIDIA card)
RAM: 8 GB (12 GB recommended) |
