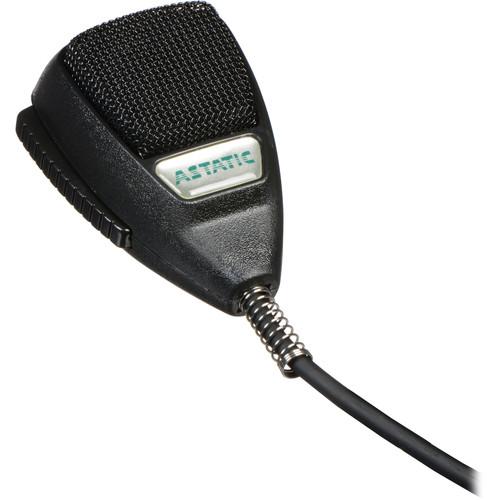

User Manual for Astatic 611L Palmheld Omnidirectional Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Astatic 611L Palmheld Omnidirectional Dynamic Microphone
- Product category: Paging & Security Microphones Astatic
- Brand: Astatic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astatic Paging & Security Microphones
|
User manual for the Astatic 611L Palmheld Omnidirectional Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astatic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astatic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astatic product will considerably shorten its lifespan!
|
Product description The Astatic 611L from CAD is a palmheld omnidirectional dynamic microphone offering easy operation and voice-tailored frequency reproduction for public address and vehicular two-way communication. It features a push-to-talk thumb switch for quick momentary activation and an unterminated four-conductor, two-shield coiled cable, which extends to six feet in length. The dynamic capsule requires no power source, and its omnidirectional polar pattern provides a generous pickup area. With a frequency response of 100 Hz to 7.5 kHz, its audio output is optimized for vocal transmission. The rugged, molded Cycolac housing maintains durability while remaining lightweight. The 611L is an ideal solution for paging systems, dispatch, mobile radio communication, and more. - Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a generous pickup area for accurate speech capturing in any situation.
- Durable Diaphragm
- The dynamic cartridge's rugged polyester diaphragm resists moisture, temperature extremes, most acids, alkalies, and solvents.
- Momentary Thumb Switch
- A momentary thumb switch provides quick on/off function.
- Four-Conductor Shielded Cable
- The four-conductor, two-shield cable provides an unterminated connection to paging systems, amplifiers, mobile radio receivers, etc.
UPC: 631922102307 In the Box Astatic 611L Palmheld Omnidirectional Dynamic Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astatic 611L Palmheld Omnidirectional Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstatic 611L Specs | Transducer | Dynamic | | Polar Pattern | Omnidirectional | | Output Level | -58 dB (0 dB = 1 mW / 10 microbars)
-76 dB (0 dB = 1 V / microbar)
1.6 mV/PA | | Frequency Response | 100 Hz to 7.5 kHz | | Output Impedance | 400 Ohms, matches 150 to 1000 Ohms | | Output Connectors | Unterminated pigtail | | Cable Characteristic | Four-conductor, two-shield cord with neoprene jacket | | Cable Length | Extends to 6' / 1.8 m | | Power Requirements | None | | Housing Material | Molded Cycolac | | Dimensions (W x H x D) | 3.0 x 3.9 x 2.2" / 75.4 x 100.0 x 54.8 mm | | Weight | 8 oz / 227 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.7 x 4.55 x 3.15" |
