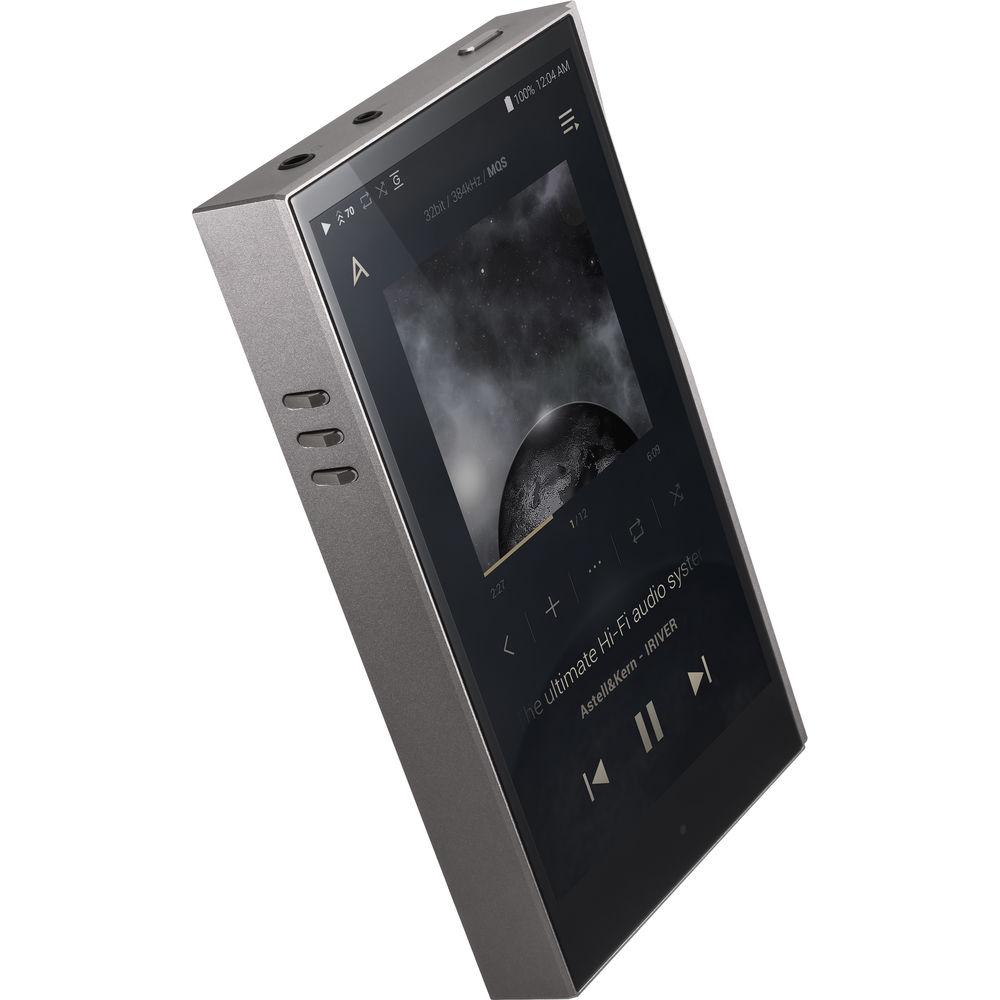

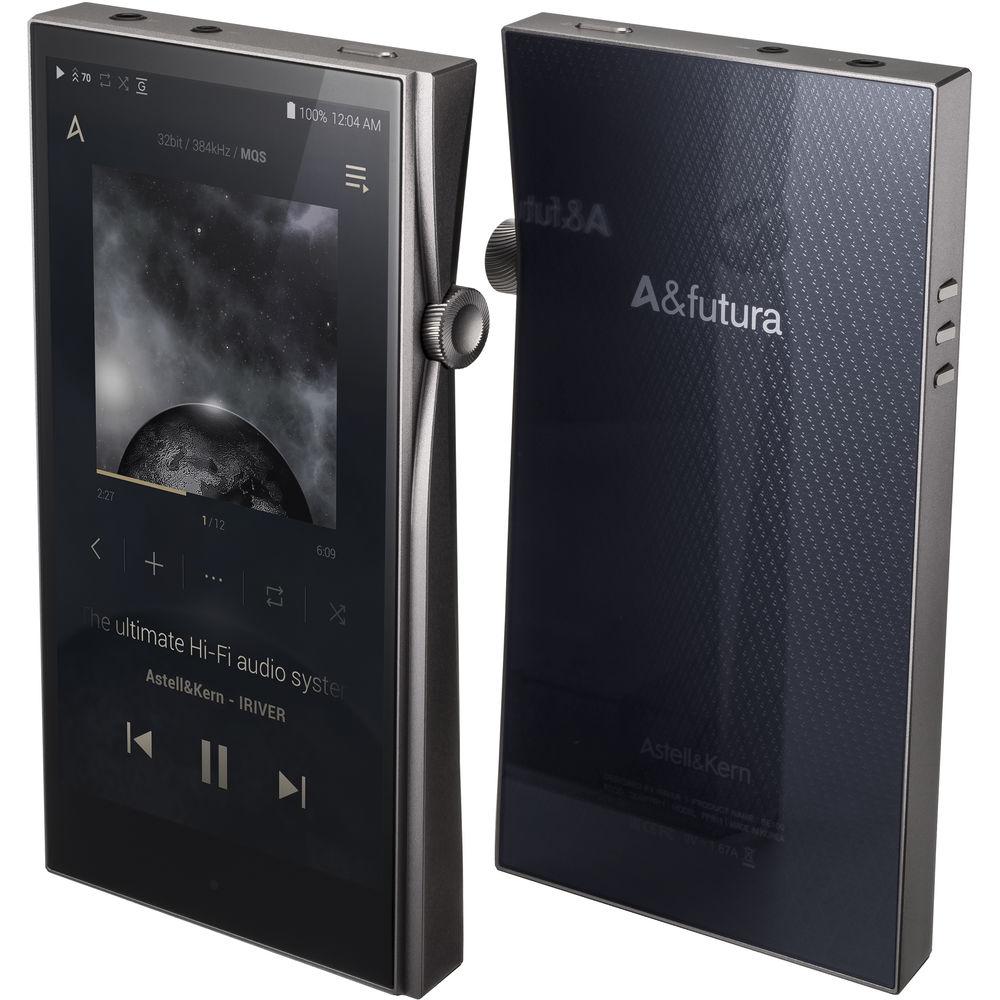

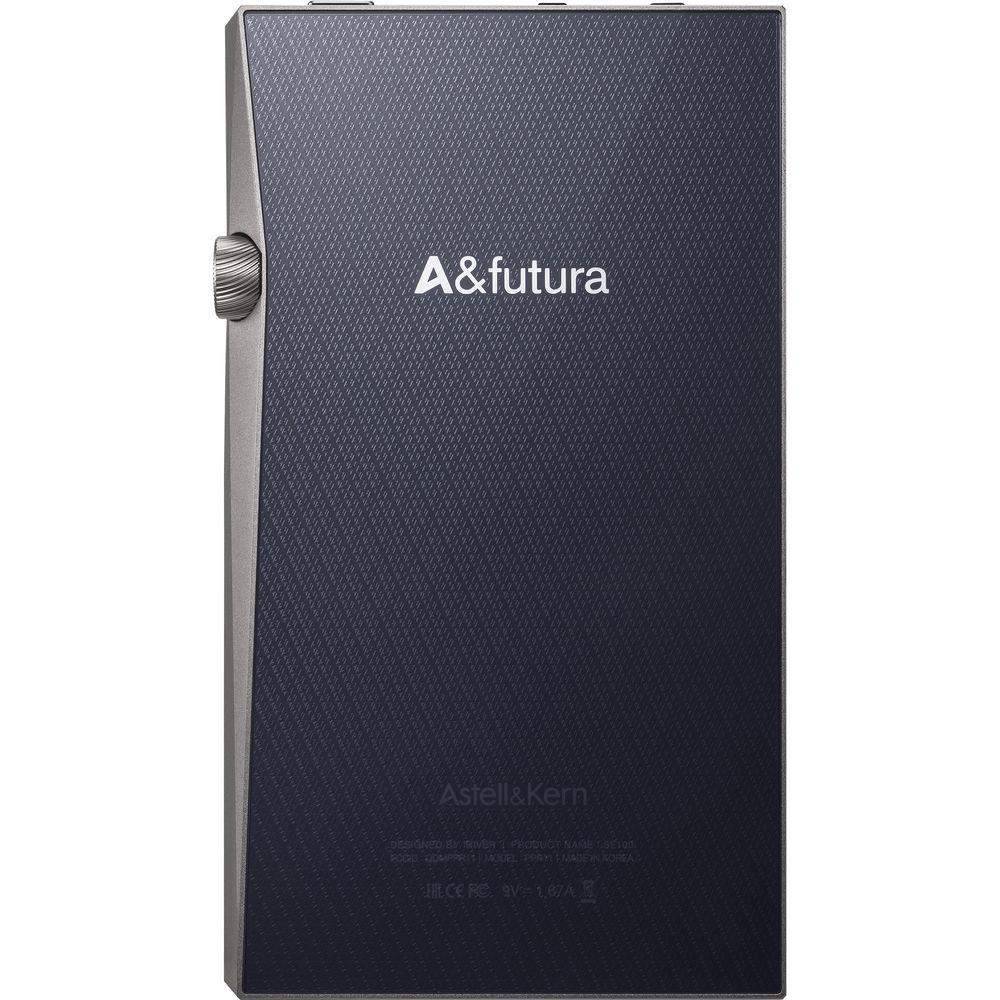

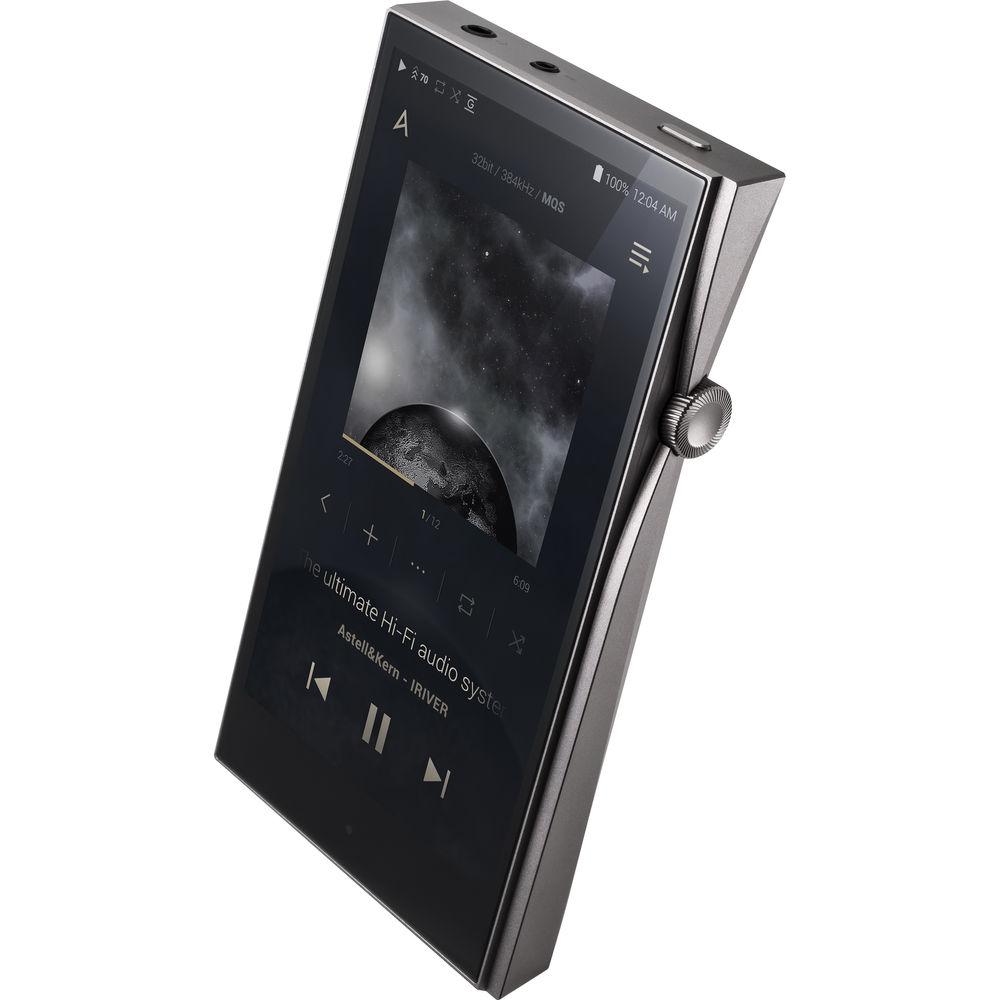

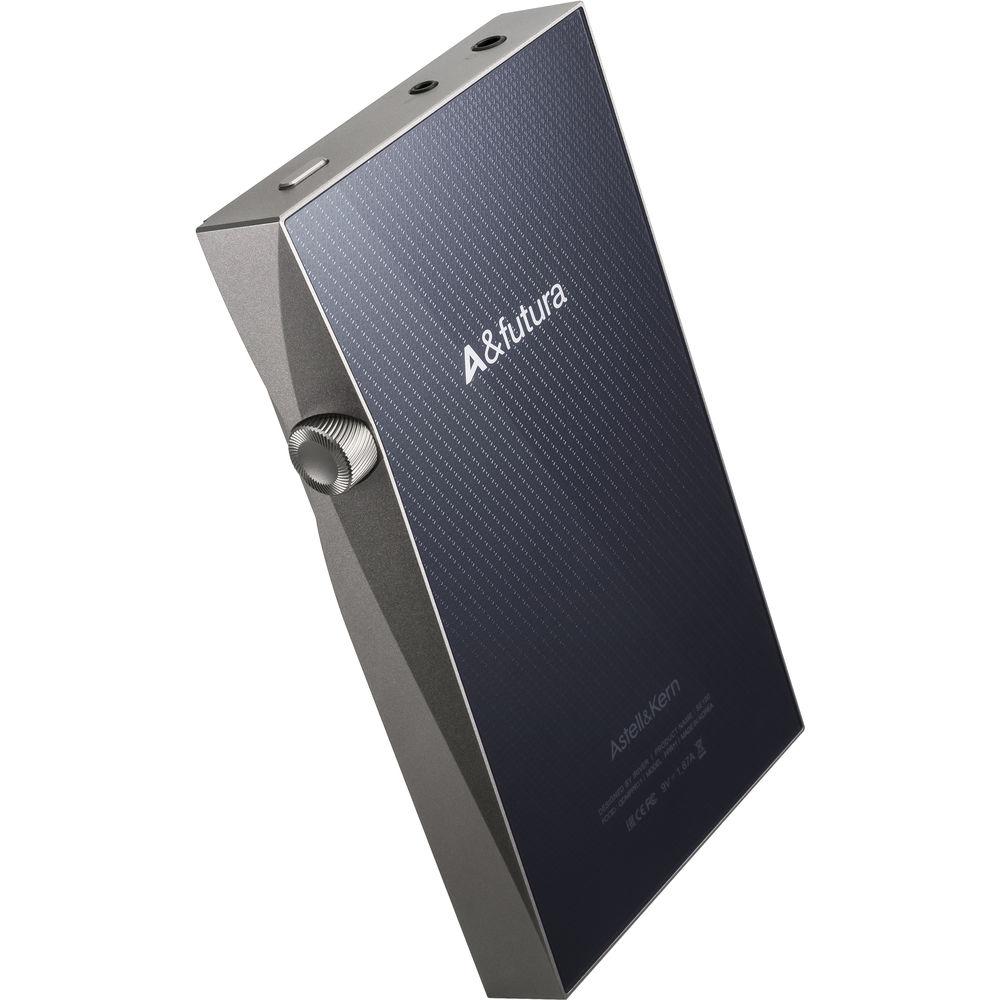

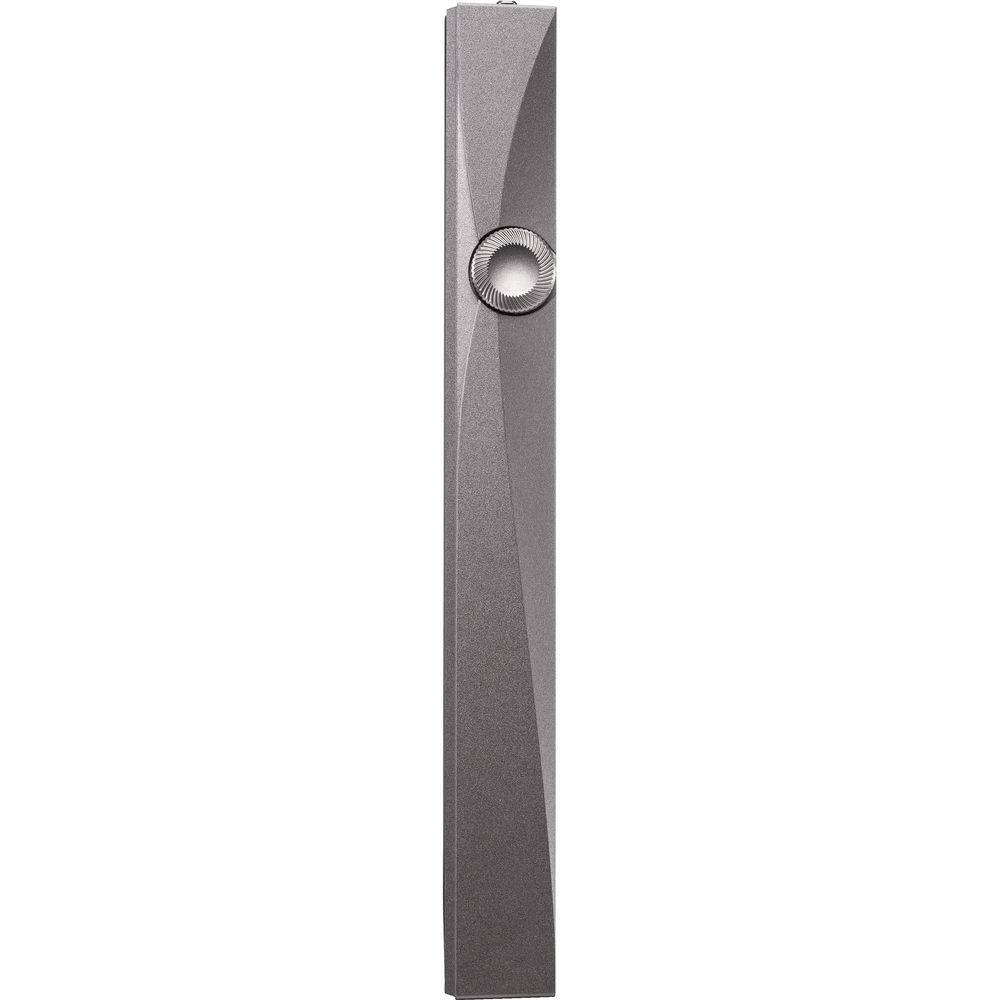

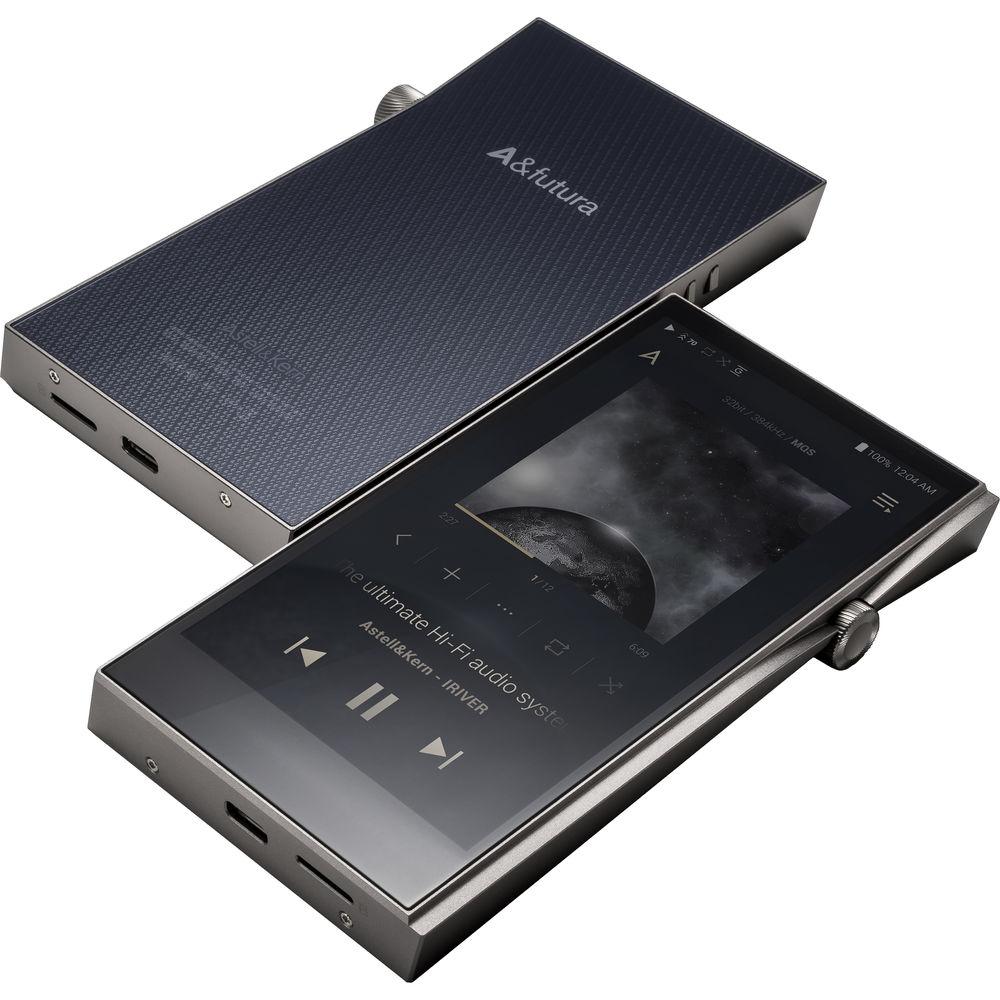

Product description Boasting the ability to play bit-to-bit DSD playback, the Titan Silver Astell&Kern A&futura Series SE100 is a portable audio player for audiophiles and hi-fi enthusiasts. Utilizing an ESS SABRE ES9038PRO DAC, the player provides low harmonic distortion, high dynamic range, and bit-to-bit playback over an 8-channel DAC.
Listen to multiple formats, including WAV, OGG, APE, and yes, DSD (DSDnative, DSD128, and DSD256). Look at the 5" touchscreen while doing so—it provides a resolution of 720 x 1280, the better to promote its intuitive user experience.

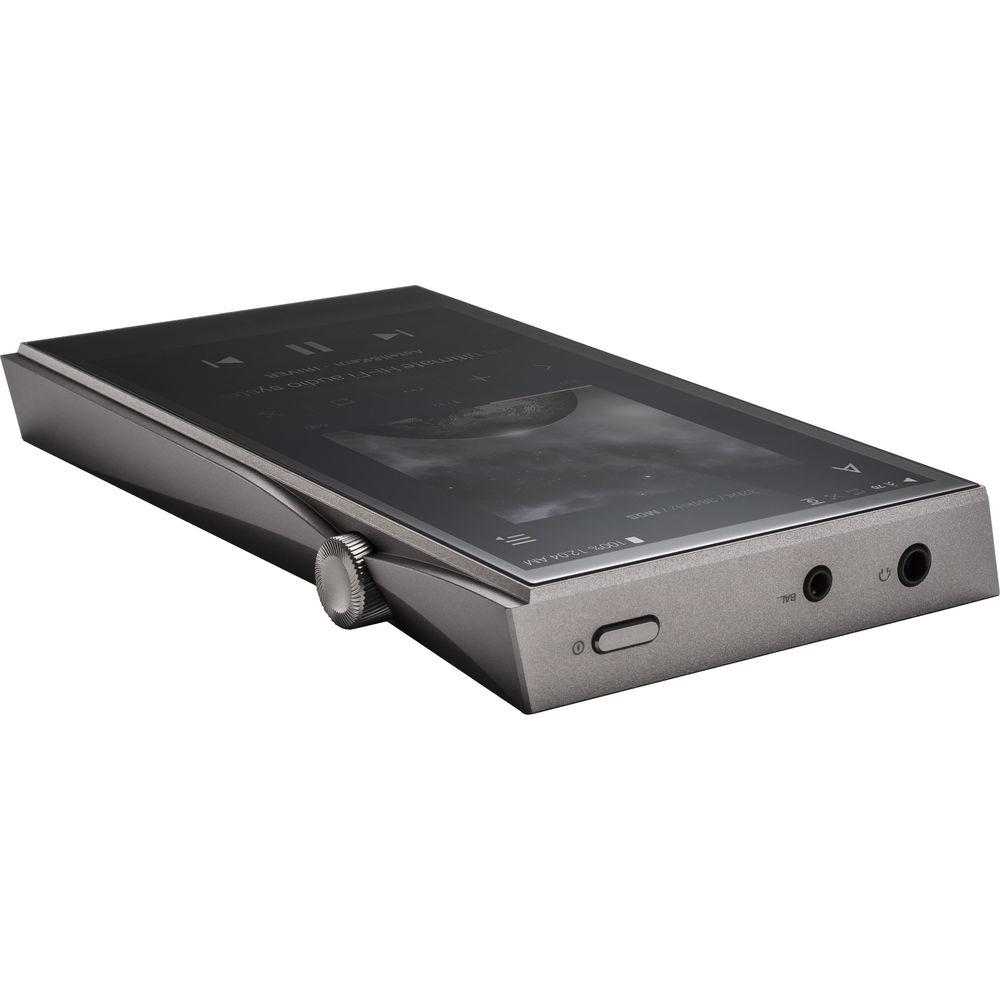

Speedy transfer and lag-free operation is made possible by the octa-core CPU, which also allows for fast booting times and a detailed sonic reproduction of your music files. Hear music through the 3.5mm unbalanced phone jack, or the balanced 4-pole 2.5mm jack, which provides an even more pristine experience. If battery performance is important to you, you'll be pleased by the SE100's ability to play for 11 hours at a time off a two hour fast-charge—though the fast-charger is available separately, and thankfully, the unit boasts a USB 3.0 port. This allows you to transfer data from your machine while charging all the while. - ESS SABRE PRO DAC
- The SABRE PRO series offers high dynamic range (DNR) with impressively low levels of total harmonic distortion plus noise (THD+N) in a 32-bit, 8-channel DAC. All SABRE PRO DACs feature ESS's patented 32-bit HyperStream DAC technology, which delivers professional-level sound quality and performance.
- Quality Amps for Low-Noise Performance
- The SE100 sports 4.1 Vrms of balanced output power with 123 dB of SNR (signal to noise ratio). At the same time, the noise level on single-ended cable is even lower, producing 122 dB of SNR.
- High-Precision Clock
- A voltage-controlled crystal oscillator (VCXO) high-precision clock has been utilized to bring a performance of 800 femtoseconds.
- Octa-Core CPU
- The A&futura SE100 is equipped with an octa-core CPU. This allows the player to produce the exact musical detail present in the original recording without distortion and provides quick, lag-free operation. The machine sports faster booting times, speedy file transfers, lag-free processing, and an intuitive user interface.
- Bit-to-Bit DSD Playback
- The A&futura SE100 supports native bit-to-bit DSD playback up to 11.2 MHz. The music is played back bit-for-bit, just as the artist and engineer intended for it to be heard.
- Other Features at a Glance
-
- ES9038PRO 8-channel DAC
- 32-bit bit-to-bit playback
- USB Type-C
- File transfer speeds up to 5 Gbps
- Supports data transfer and charging from the same cable
- Charging with a separately-available fast charger (at 9V/1.67A) takes only two hours and allows up to 11 hours of continuous playback
UPC: 821566016645 In the Box Astell&Kern A&futura Series SE100 Player (Titan Silver) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astell&Kern A&futura Series SE100 Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstell&Kern SE100 Specs | | | DAC | 1 x ESS SABRE ES9038PRO 32-Bit | | Audio Resolution | PCM: 8 ~ 384 kHz / 8-Bit
PCM: 8 ~ 384 kHz / 16-Bit
PCM: 8 ~ 384 kHz / 24-Bit
PCM: 8 ~ 384 kHz / 32-Bit
DSDNative: 2.8 MHz / 1-Bit
DSD128: 5.6 MHz / 1-Bit
DSD256: 11.2 MHz / 1-Bit | | Frequency Response | 20 Hz - 20 kHz±0.038 dB (Unbalanced Headphone Out)
10 Hz - 70 kHz±0.074 dB (Unbalanced Headphone Out)
20 Hz - 20 kHz±0.028 dB (Balanced Headphone Out)
10 Hz - 70 kHz±0.03 dB (Balanced Headphone Out) | | Impedance | 1 Ohms (Balanced Headphone Out)
1.5 Ohms (Unbalanced Headphone Out) | | THD + N | 0.0007% at 1 kHz (Unbalanced)
0.0006% at 1 kHz (Balanced) | | Maximum Output Voltage | 4.1 Vrms | | Signal to Noise Ratio | 122 dB (Unbalanced Headphone Out)
123 dB (Balanced Headphone Out) | | Clock Jitter | 800 fs | | Crosstalk | 138 dB at 1 kHz (Unbalanced Headphone Out)
144 dB at 1 kHz (Balanced Headphone Out) | | Custom Equalizer | Yes | | | | CPU | Octa-Core | | Internal Storage Capacity | 128 GB | | Maximum Storage Capacity | 528 GB | | Flash Media Slot | 1 x microSDXC | | Display | 5" LCD (720 x 1280 Resolution) | | Operation Method | Physical Buttons, Touchscreen, Volume Wheel | | | | FM Tuner | No | | Video Recording | No | | Video Playback | No | | Formats Supported | Audio: WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF | | | | Wireless | Bluetooth 4.1 | | Bluetooth Codecs | aptX HD | | Connections | 1 x USB Type-C
1 x 1/8" (3.5 mm) Stereo Headphone
1 x 2.5 mm Balanced Headphone | | Built-In Mic | No | | | | Battery | 1x Built-In Rechargeable Lithium-Polymer Battery 3700 mAh
Providing up to 11 Hours per Charge for Audio Playback | | Charging Time | Full Charge: 2 Hours | | | | System Requirements | Operating System
Windows XP, 7, 8, 10
Mac OS X 10.7 | | Water Resistance | None | | Dimensions (W x H x D) | 3.0 x 5.2 x 0.6" / 75.8 x 132.7 x 15.3 mm | | Weight | 8.5 oz / 241 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.3 x 5.2 x 2.0" |
