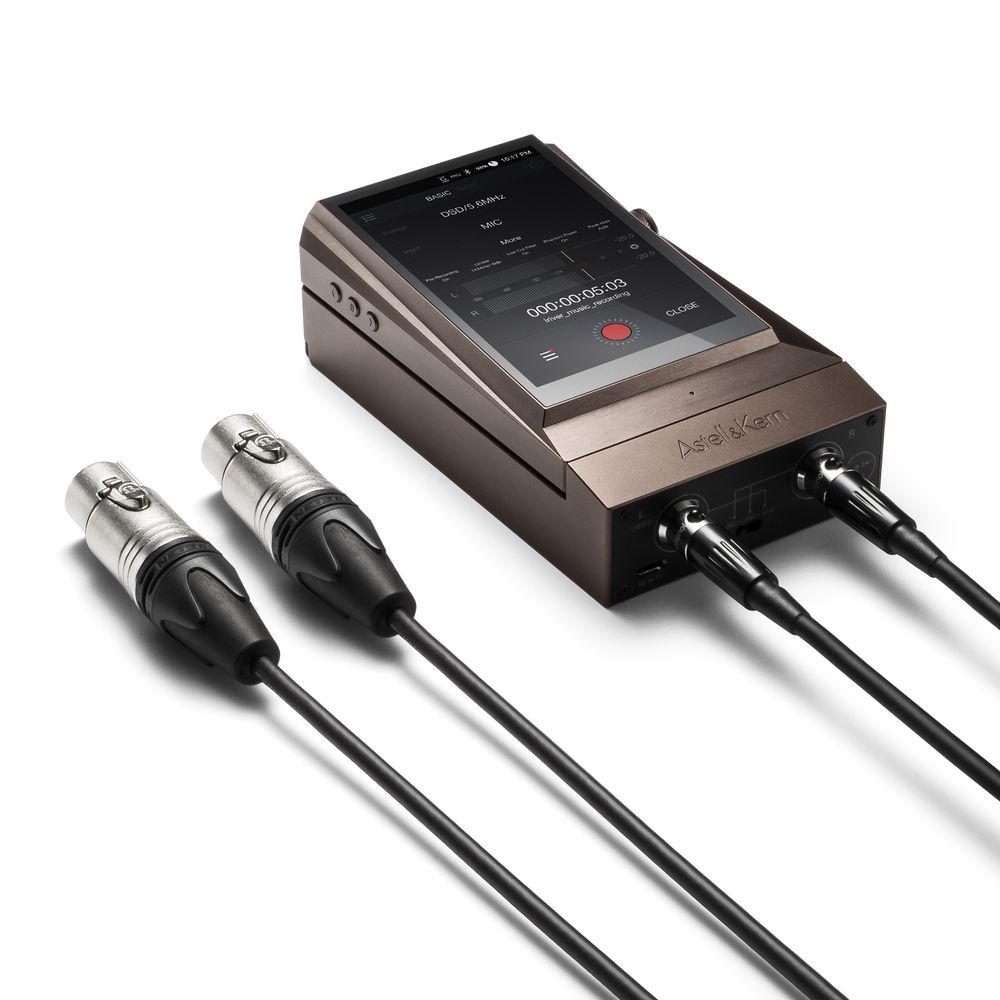

User Manual for Astell&Kern AK Recorder Module for AK300, AK320, and AK380 Music Players Click to enlarge the picture
Contents of the user manual for the Astell&Kern AK Recorder Module for AK300,
- Product category: iPod & Media Player Accessories Astell&Kern
- Brand: Astell&Kern
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astell&Kern iPod & Media Player Accessories
 |
User manual for the Astell&Kern AK Recorder Module for AK300, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astell&Kern product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astell&Kern user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astell&Kern product will considerably shorten its lifespan!
|

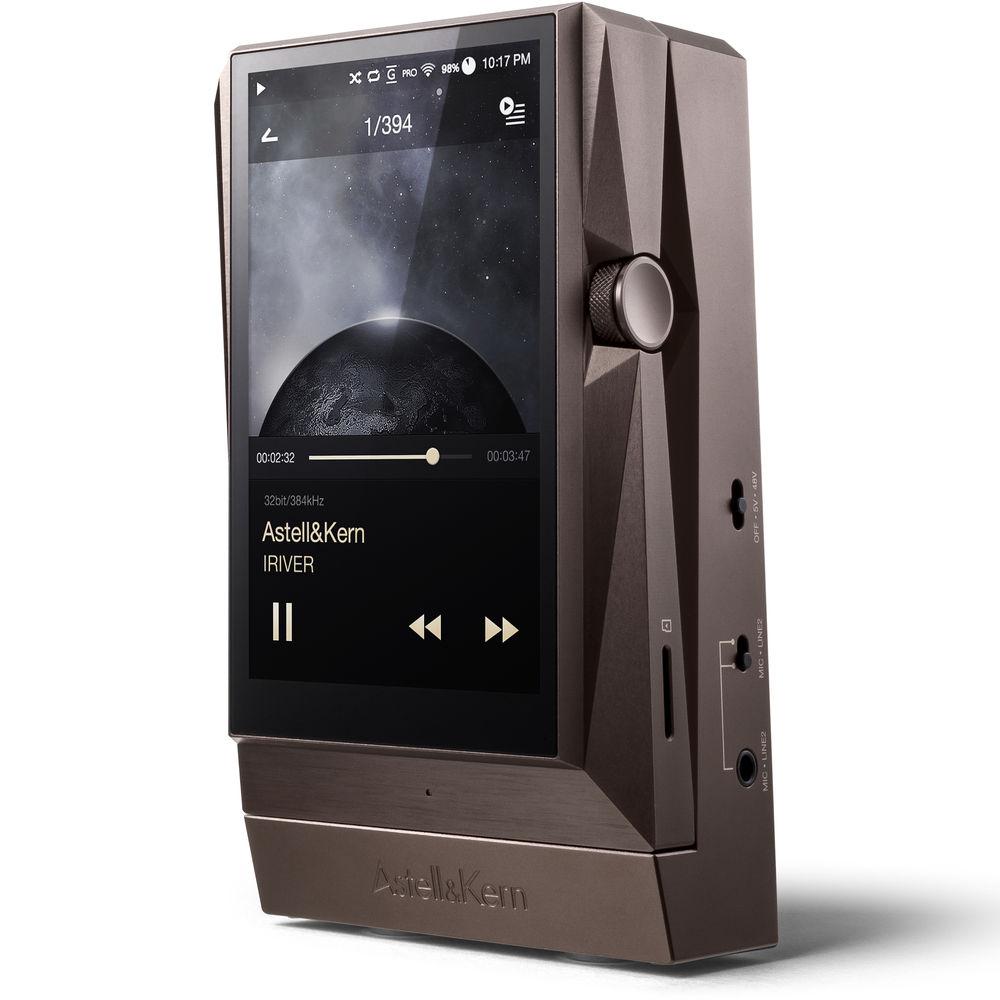

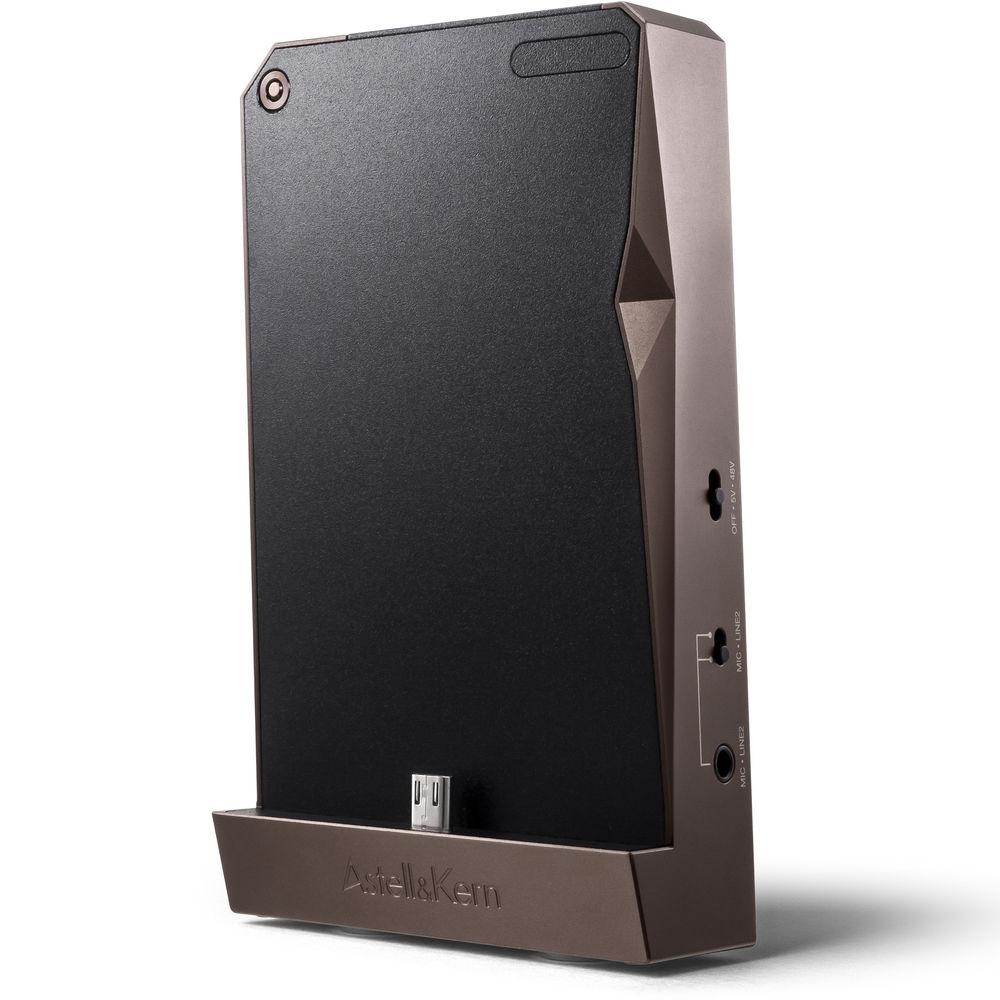

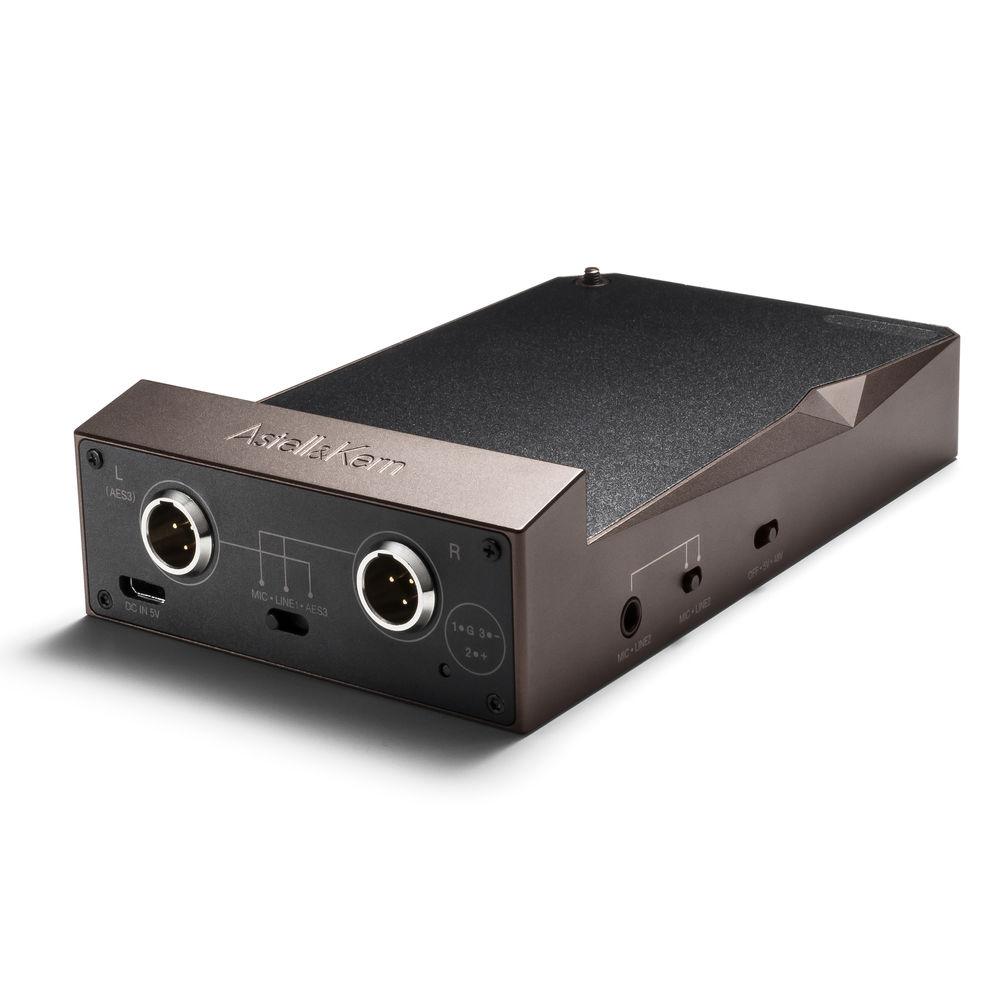

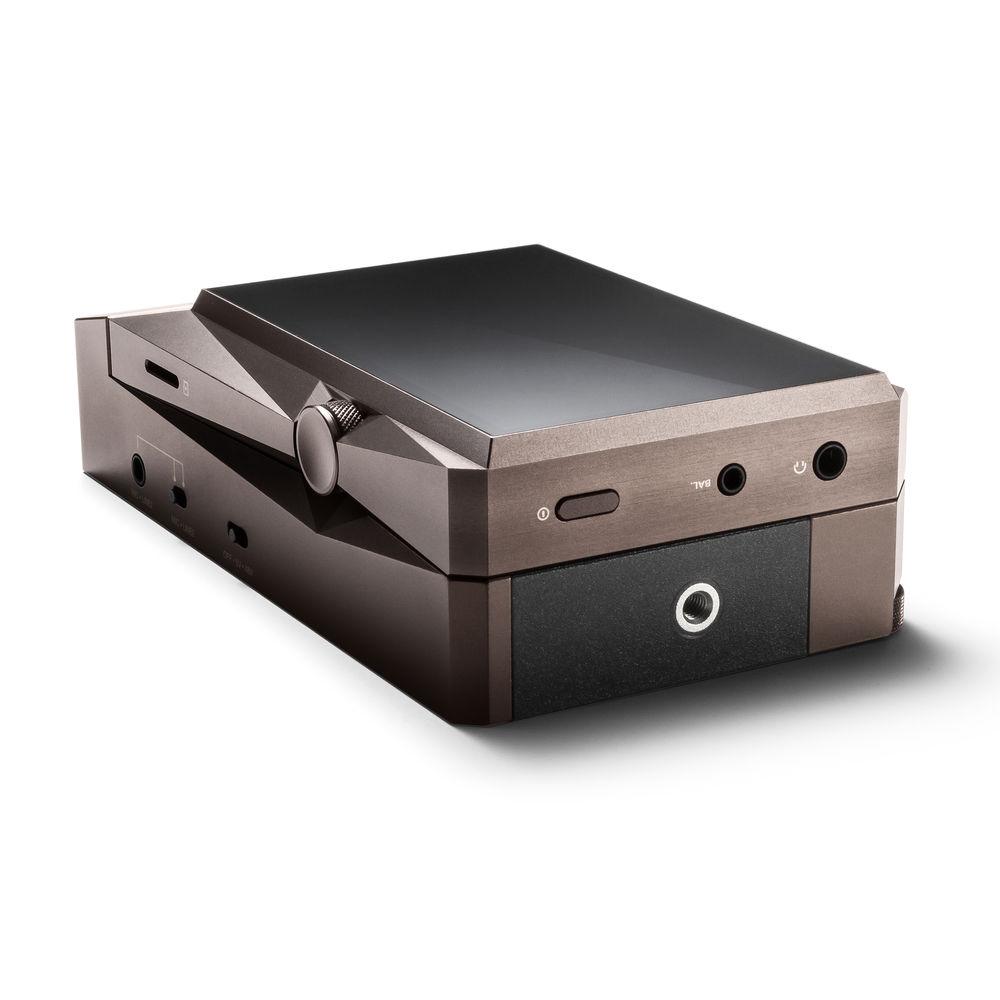

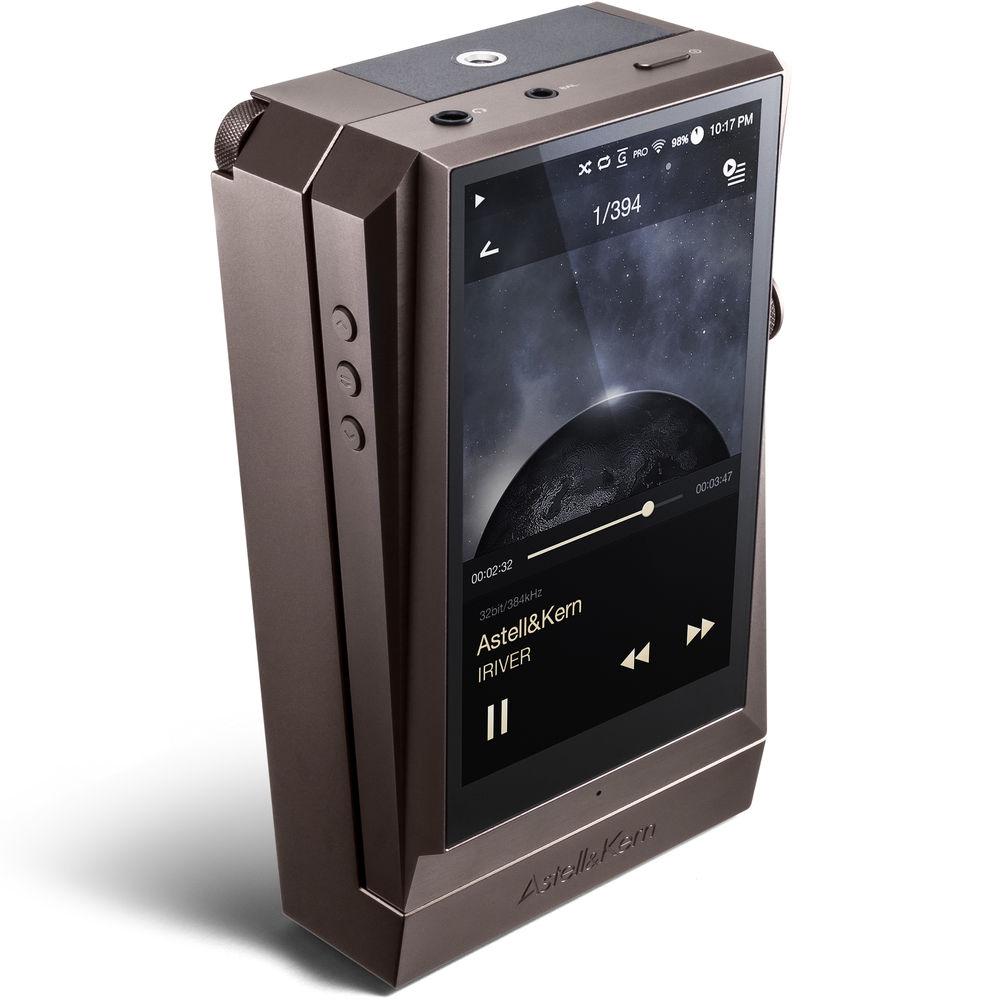

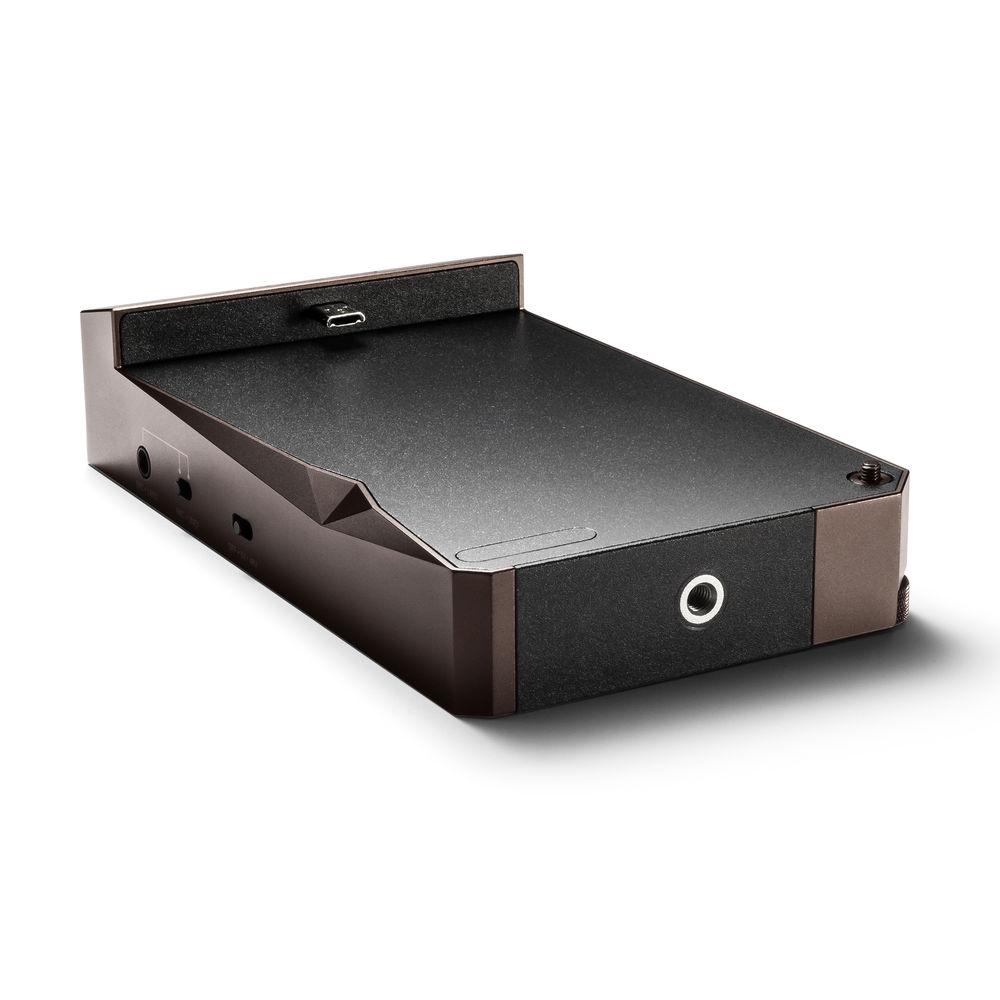

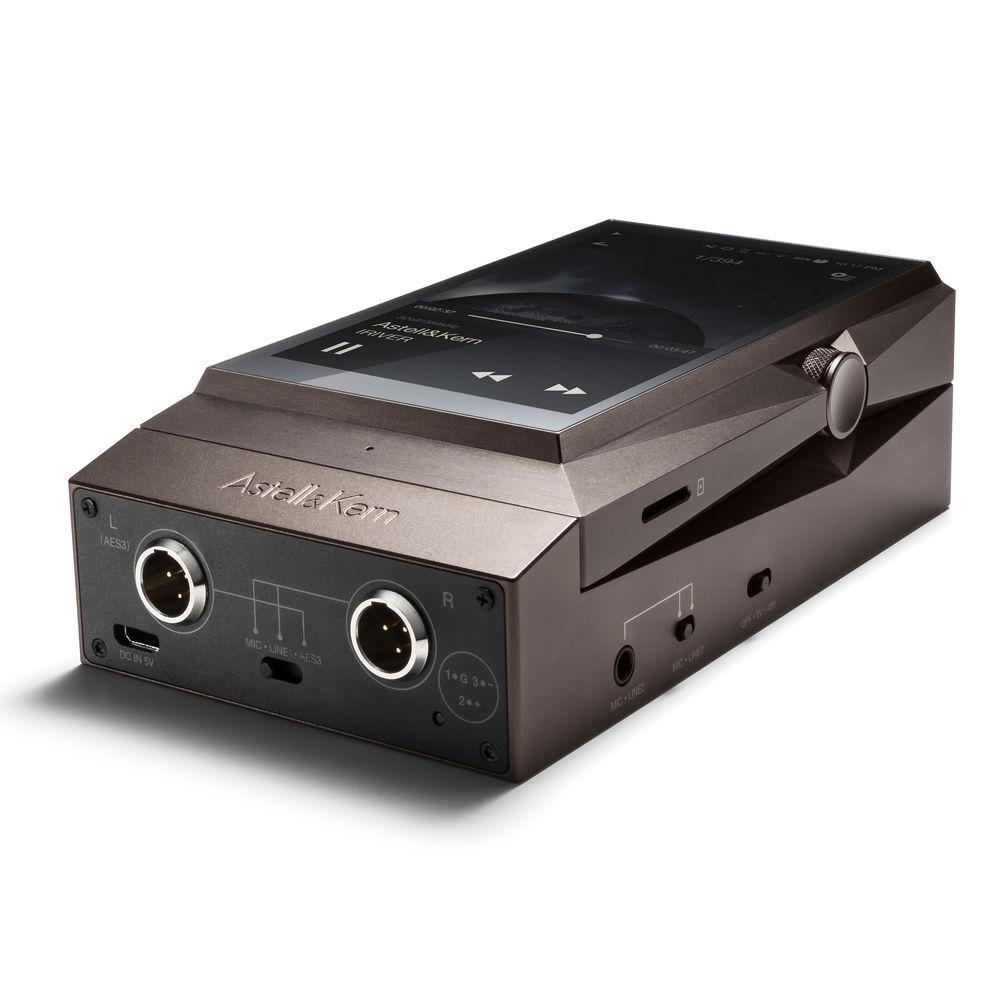

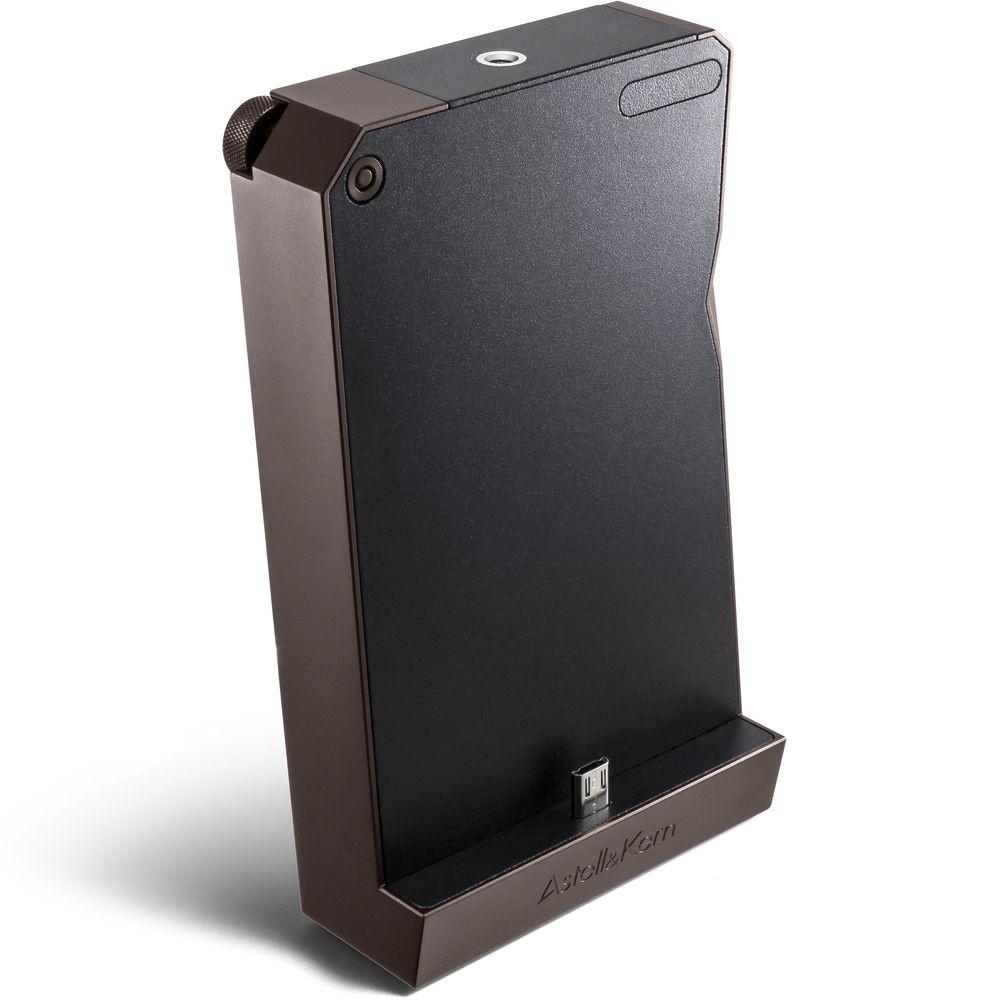

Product description The AK Recorder Module for AK300, AK320, and AK380 Music Players from Astel&Kern is a modular DSD 5.6 MHz recorder. It can be used with any AK300 Series player (sold separately) and can capture live-quality recordings of vocals and instrumentals. The portable, handy recorder offers a wide range of features such as support for condenser microphones through independent phantom power, detailed control of microphones, and pre-amplifier gains. The interface is both analog and digital and it is built with a digital limiter, a peak hold, and a low-cut filter with support for several recording options including pre-recording. In addition, the AK recorder is capable of recording sounds from live sessions, vocals, instruments, and speech, as well as both analog and digital sources by connecting it with other devices like turntables, microphones, or digital inputs via AES3. Finally, the AK recorder supports remote-control recording via Wi-Fi. Simply install the free application on your smartphone or tablet and you can record as much as you want from the convenience of that device. You can start/stop/pause recording, adjust gain, view level meters in real-time, and access other features with just a touch. - DSD Recording
- With the support of DSD 5.6 MHz recording, you will be able to record every second of a live music recording in the DSD 5.6 MHz format, which is closest to analog in terms of quality.
- A Complete Recording Solution
- The AK Recorder is a complete recording solution that allows recording via microphones and supports input from both analog and digital sources.
- Advanced Recording Technology
- This Recorder provides several features that give you an easy-to-use system through which to produce the highest recording quality. Advanced Compressor/Limiter, Peak Hold, Low Cut Filter and Pre-Recording features are all designed to produce a quality recording.
- Perfect Match
- Made to match the design of Astell&Kern AK300 series players, its body features light-reflecting surfaces that glisten when exposed to light and produces small sparkles of detail.
UPC: 821566015679 In the Box Astell&Kern AK Recorder Module for AK300, AK320, and AK380 Music Players 2 x Mini 3-Pin XLR to 3-Pin XLR F Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astell&Kern AK Recorder Module for AK300, AK320, and AK380 Music Players in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstell&Kern 2PRF110-CMMB01 Specs | | | Material of Construction | Aluminum | | Recording Characteristics | 2 channel, stereo recording | | Audio Inputs | 2 x mini XLR 3-pin type mic/line (L/R)
1 x AES3 (L)
1 x 1/8" (3.5 mm) mic/line | | Mini 3-Pin XLR Map | Pin 1: Ground
Pin 2: Positive (+)
Pin 3: Negative (-) | | Interface | Select Key: 1 x mic, line 1, AES3
Select Key: 1 x mic 2, line 2
Select Key: 1 x phantom power (off, 5 V, and 48 V) | | Battery | 3.7 V lithium-polymer battery, 4,700 mAh, | | Continuous Recording Time | 4 hours (24-bit/96 kHz WAV, external mic & phantom power 48 V) | | Dimensions (W x H x D) | 3.17 x 5.01 x 1.17" (80.7 x 127.4 x 29.9 mm) | | Weight | 8.85 oz (251 g) | | | | Recording Bit Rate | WAV: 16-, 24-, and 32-bit, DSD64, DSD128 | | Sampling Frequency | 44.1, 48, 88.2, 96, 176.4, 192, 352.8, and 384 kHz | | Frequency Response | 10 Hz to 40 kHz | | Dynamic Range | 116 dBA-weighted bandwidth | | Equivalent Input Noise | Mic: -126 dBu, 150 Ohms source, A-weighted filter | | Total Harmonic Distortion (THD) + N | Mic: 0.0004% maximum (1 kHz, -15 dBu)
Line: 0.0006% maximum (1 kHz, -15 dBu) | | Gain | Mic: 9 to 60 dB, 3.0 dB increments
Line: -96 to 22 dB, 0.5 dB increments | | Low-Cut Filter | 40 to 240 Hz in 10 Hz steps @ 6, 12, 18, and 24 dB/oct | | Compressor / Limiter | 0 ~ -10 dBFS, 1:2 ~ 1:20; Limiter, 1 ~ 1,000 ms attack time, 10 ~ 2,000 ms release time | | Phantom Power | 5 V, 48 V | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 7.3 x 5.4 x 3.3" |
