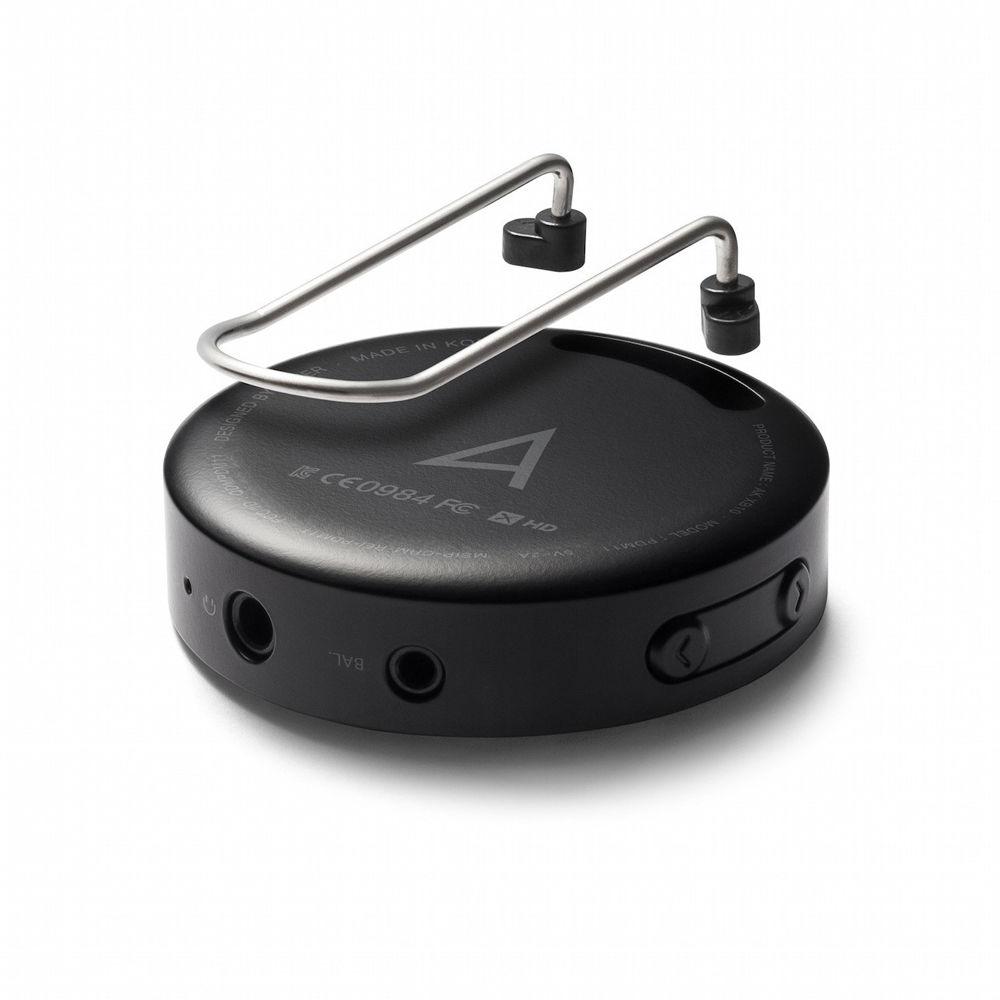

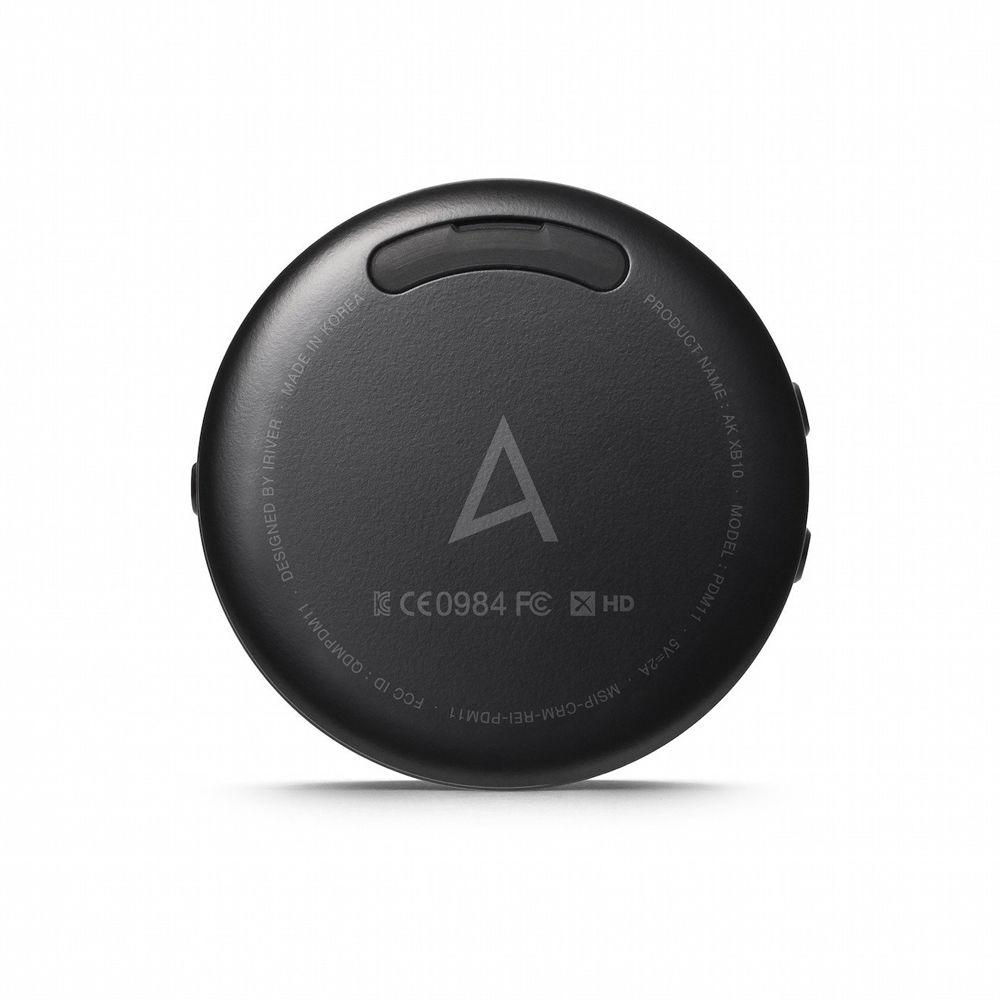

User Manual for Astell&Kern XB10 Portable Bluetooth Receiver Click to enlarge the picture
Contents of the user manual for the Astell&Kern XB10 Portable Bluetooth Receiver
- Product category: Other Headphone Accessories Astell&Kern
- Brand: Astell&Kern
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astell&Kern Other Headphone Accessories
 |
User manual for the Astell&Kern XB10 Portable Bluetooth Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astell&Kern product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astell&Kern user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astell&Kern product will considerably shorten its lifespan!
|

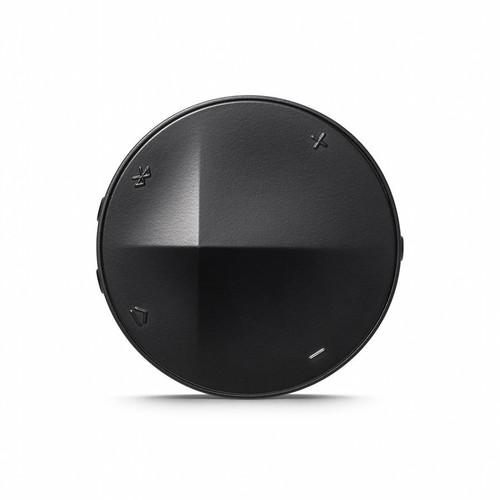

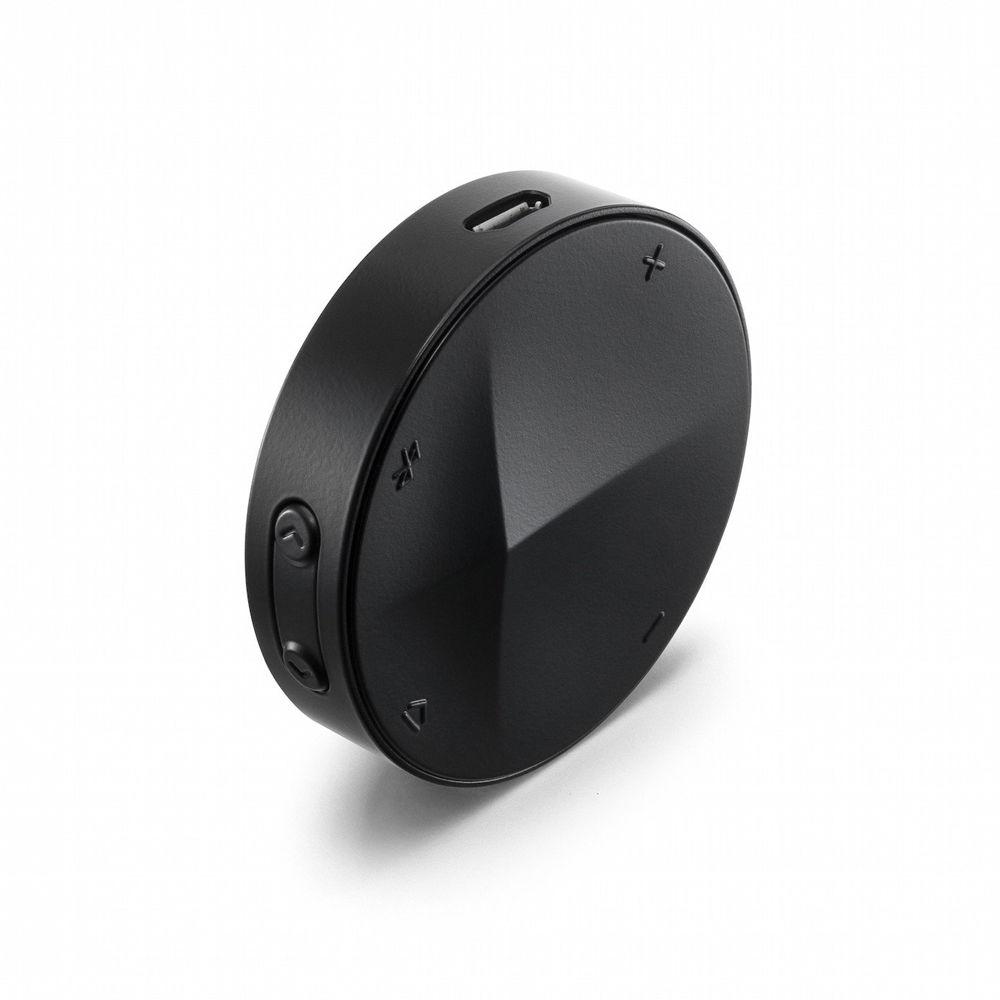

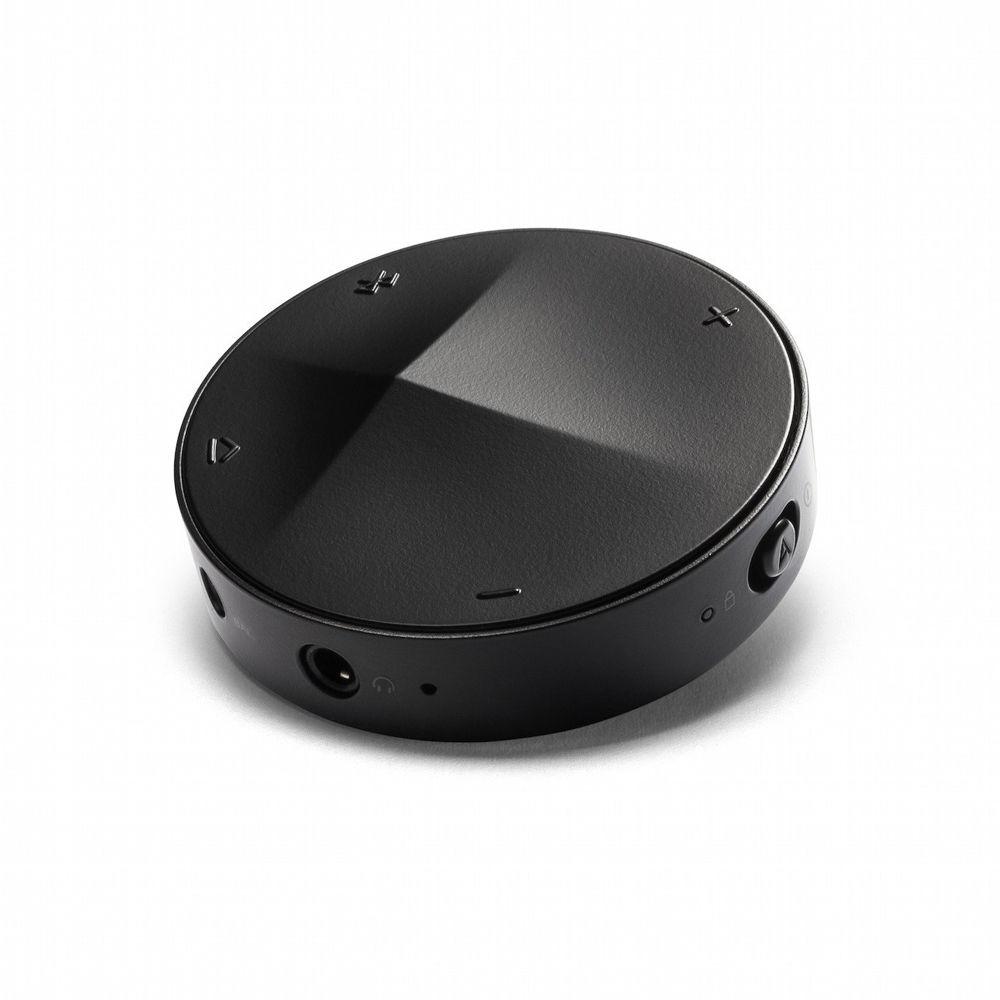

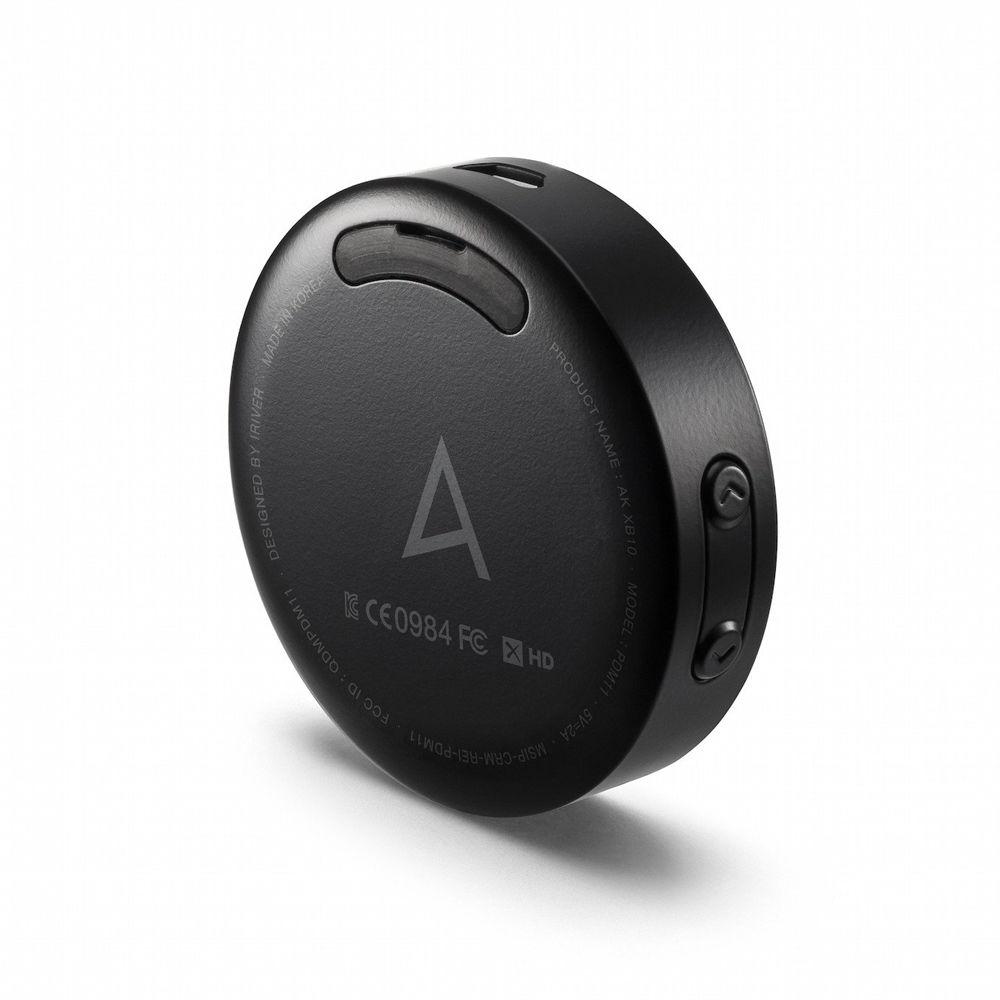

Product description Make your favorite wired headphones wireless with the Astell&Kern XB10 Portable Bluetooth Receiver. It uses Bluetooth 4.1 technology with support for the aptX HD codec for an enhanced listening experience with similarly compatible devices. The XB10 provides a 32.8' wireless range, allowing you to go about your day untethered. It has a 3.5mm unbalanced output for common headphones and a 2.5mm balanced output for use with audiophile headphones.
The XB10 features a built-in microphone, allowing you to use your wired headphones for phone calls even if they don't have their own microphone. The built-in battery will provide up to 5 hours of streaming or talk time and up to 300 hours of standby time. - Qualcomm aptX HD
- With aptX HD compatibility, the XB10 is capable of transmitting up to 24-bit/48 kHz audio that is designed to be faithful to the original audio file.
- Built-In DAC
- The XB10 is equipped with a Hi-Fi DAC (digital-analog converter) capable of reproducing sound up to 24-bit/192 kHz.

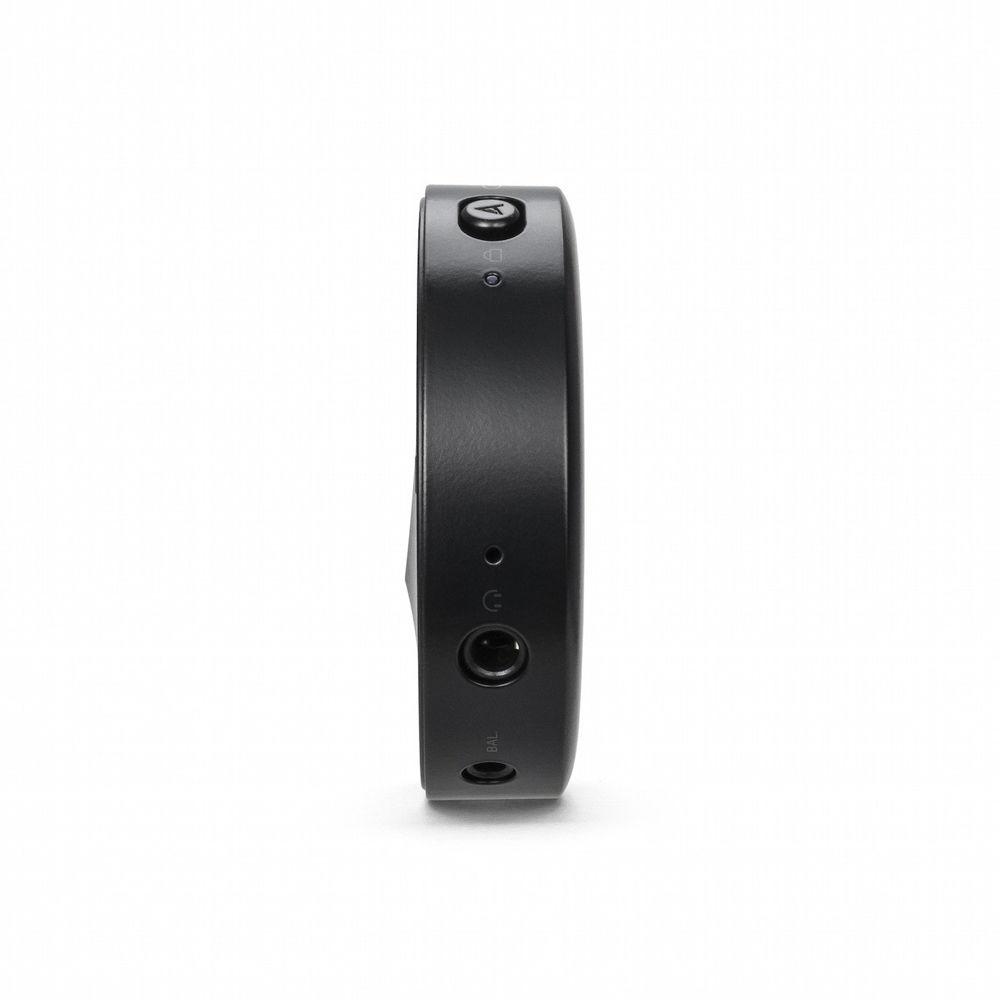

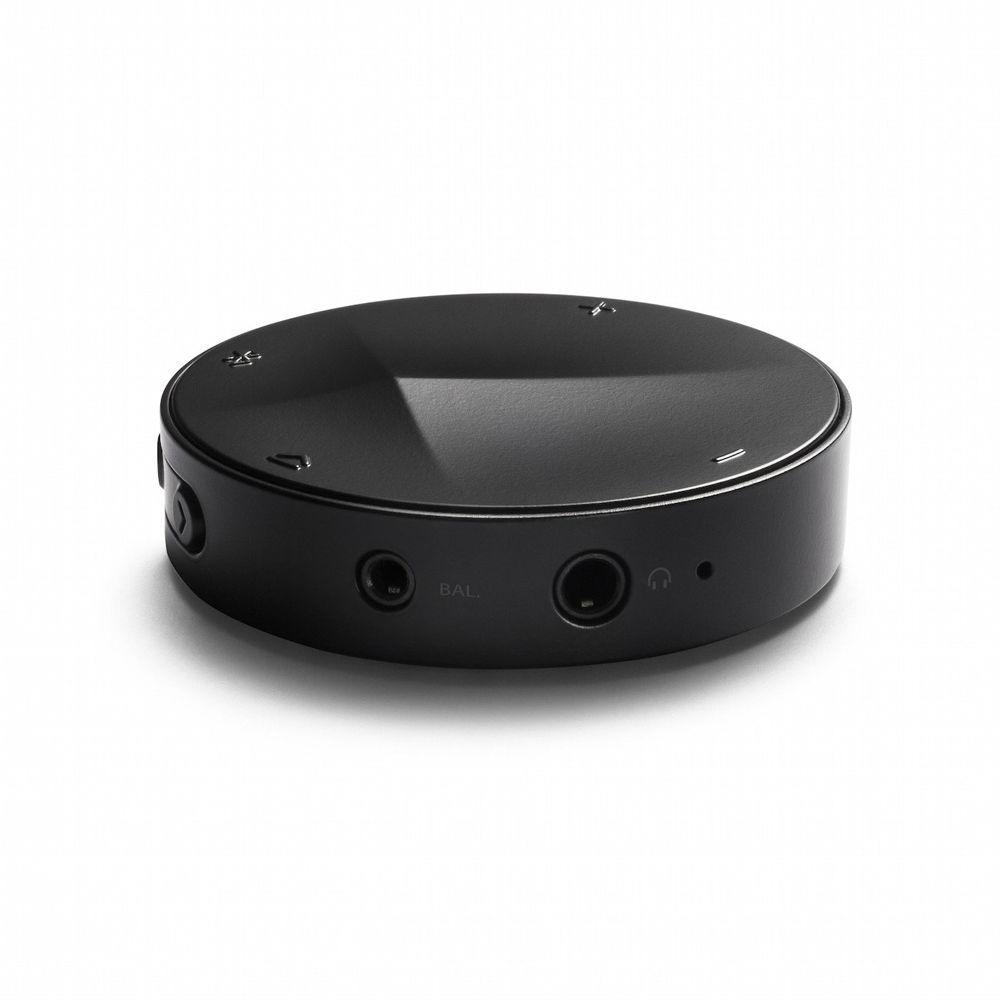

- Dual Audio Outputs
- Designed to work with most headphones, the XB10 is equipped with both 3.5mm unbalanced & 2.5mm balanced audio outputs.
- iOS & Android Compatible
- The XB10 is designed to be compatible with all iOS and Android devices, plus many other Bluetooth-compatible devices.
- Hands-Free Function
- The hands-free function allows you to receive calls when using earphones, and if they don't have a microphone built-in, you can use the one built into the XB10.

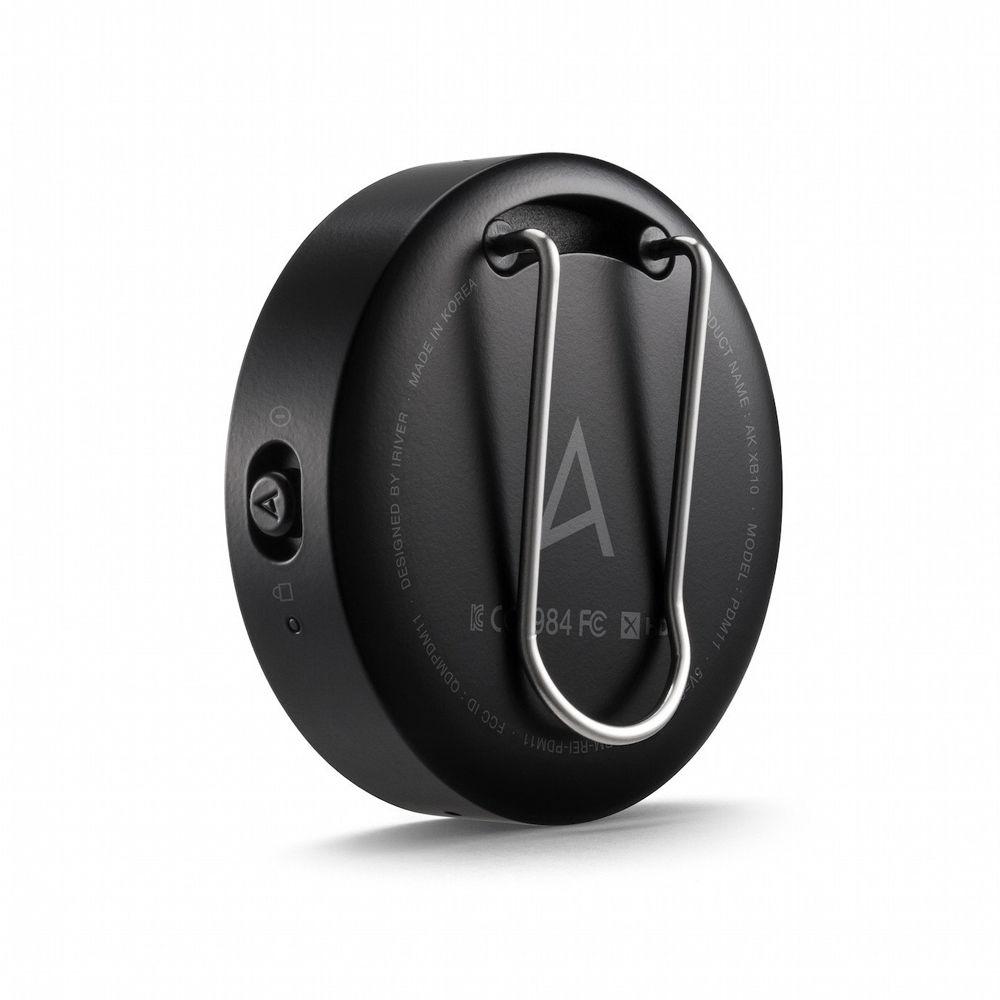

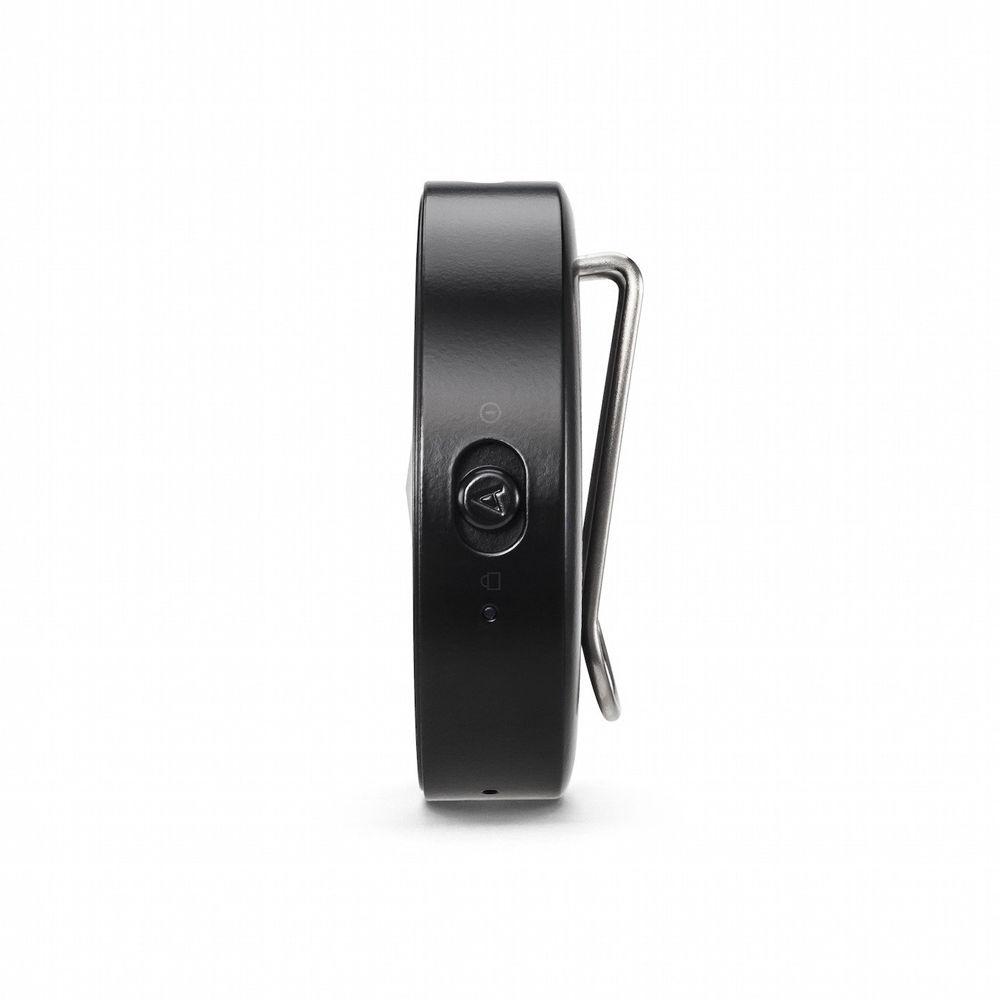

- Includes Attachment Clip
- When you want to enjoy your music but don't want to be tied down, simply mount the included clip to the XB10 and clip it to your shirt or bag.
UPC: 821566015815 In the Box Astell&Kern XB10 Portable Bluetooth Receiver Clothing Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astell&Kern XB10 Portable Bluetooth Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstell&Kern XB10 Specs | | | Bluetooth Version | 4.1, Class 2 | | Bluetooth Profile Support | A2DP (multi), AVRCP, HFP, HSP | | Codec Support | SBC, AAC, aptX, aptX HD | | Frequency Band | 2.4 to 2.4835 GHz ISM band | | Range | Up to 32.8' (10 m) | | Outputs | 1 x 1/8" (3.5 mm) unbalanced
1 x 0.1" (2.5 mm) balanced | | Output Level | 1/8" (3.5 mm) Unbalanced: 0.9 V RMS
0.1" (2.5 mm) Balanced: 1.8 V RMS | | | | Battery Type | Lithium-polymer | | Battery Volt-Amp-Hour Capacity | 3.7 V, 350 mAh | | Battery Life | Music Playing and Phone Calls: Up to 5 hours
Standby: Up to 300 hours | | Charging Time | Approximately 2 hours | | Power Input | Micro-USB 5-pin (5 V, 2 A) | | | | Operating Temperature | 23 to 113°F (-10 to 45°C) | | Dimensions (Ø x D) | 1.97 x 0.48" (50 x 12.3 mm) | | Weight | 0.81 oz (23 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 3.3 x 3.3 x 2.4" |
