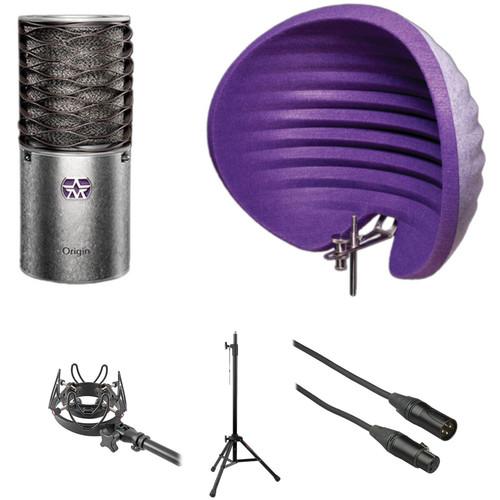

Aston Microphones Origin Cardioid Condenser Microphone

User Manual for Aston Microphones Origin Cardioid Condenser Microphone and Complete Vocal Bundle Kit

• Product category: Large Diaphragm Condenser Aston Microphones
• Brand: Aston Microphones
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Aston Microphones Large Diaphragm Condenser

Product description

• Aston Microphones Origin Cardioid Condenser Microphone
  • Aston Origin - A brief story
  The Aston Origin is a cardioid condenser microphone that utilizes a 1” gold-evaporated capsule. It is versatile enough to use with most instruments, such as acoustic guitar and strings, and sounds great on vocals. Its hand-selected capsule is combined with transformer-less circuitry to deliver accurate sound reproduction.

  The mic has a mesh-knit pop filter built into the wave-form head. The weave allows sound to pass while reducing unwanted plosives. This single-piece mesh cage is formed in stainless steel, so it won't rust with use and can even be removed and washed.
  • • Custom-molded end caps with integrated XLR and stand adapter
    • Harmonized circuit-stage arrangement for easy integration from phantom-power input circuitry to capsule voltage bias
    • Non-linear voltage/current-source rectification to provide controlled amplification and smooth/clear audio
• Rycote InVision Universal Microphone Shock Mount
  • Aston Origin - A brief story
  This InVision Universal Microphone Shock Mount from Rycote provides a discreet, low-profile way to mount practically any microphone with a diameter of 18-55mm. The mount uses Rycote's patented "Lyre" suspension system, which does not use any runner or elastic components to isolate the mic. Instead, the unique shape gives the mount specific compliance to the mic to prevent handling noise from reaching the capsule.

  The high-grade materials used in constructing the mount give it an exceptionally wide working temperature of -31°F to over 212°F (-35°C to 100°C), far exceeding the range of typical elastic or rubber shock mounts. The mount retains all of the flexibility, balance, and performance that you would expect from a Rycote suspension system. Note: This mount is designed for studio and installed use, and does not have the ability to be used in conjunction with a windshield.
  • Discreet, low-profile design
  • Supports practically any microphone with a diameter of 18-55mm
  • Patented "Lyre" suspension system does not use any runner or elastic components to isolate the mic. Instead, unique shape gives the mount specific compliance to the mic to prevent handling noise from reaching the capsule
  • High-grade materials give the mount an exceptionally wide working temperature of -31°F to over 212°F (-35°C to 100°C), far exceeding the range of typical elastic or rubber shock mounts
  • The mount retains all of the flexibility, balance, and performance that you would expect from a Rycote suspension system
• Aston Microphones Halo Reflection Filter Purple
  • Aston Origin - A brief story
  The purple Halo Reflection Filter from Aston Microphones is made with patented PET-felt acoustic technology and molding techniques to reflect, absorb and diffuse sound in both professional- and home-studio environments. Its large surface area provides linear absorption, while the corrugated surface diffuses sound for minimal coloration.

  The Halo's spherical shape yields horizontal as well as vertical filtering, while its 4-inch radius improves sound isolation, making it a practical solution for recording vocal tracks or multiple acoustic instruments in one room.

  You can experiment with placing the Halo in different room locations depending on the desired reflection and absorption characteristics. It is portable and lightweight and comes with proprietary mounting hardware.
  • • Patented PET-felt acoustic technology
    • High surface density for sound insulation
    • Spherical physical construction
    • Acoustic materials provide linear absorption
    • Proprietary mounting hardware
• Auray RFMS-580 Reflection Filter Tripod Mic Stand
  • Aston Origin - A brief story
  The RFMS-580 Reflection Filter Tripod Mic Stand from Auray features heavy duty steel construction and is capable of providing sturdy support to your reflection filter and studio microphone at the same time. The tripod stand design features collapsible legs for convenient storage and a telescoping center column that can be adjusted to reach a maximum working height of 76", including a standard reflection filter.

  The stand also features non-slip feet for added traction on hard surfaces as well as a 5/8" threaded adapter for attaching a shockmount or mic clip.
  • Provides sturdy support to a microphone and a reflection filter at the same time
  • May also be used as a speaker stand (may require 3/8" thread adapter)
  UPC: 847628576827
• Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black
  • Aston Origin - A brief story
  The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (25') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.

  Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 98% braided shield offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Cast zinc shell and chuck style strain relief.
  UPC: 847628551206

• Origin Cardioid Condenser Microphone
• Limited 3-Year Warranty

• Rycote - InVision Universal Microphone Shock Mount

• Halo Reflection Filter Purple

• Auray - RFMS-580 Reflection Filter Tripod Mic Stand

• Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Aston Microphones Origin Cardioid Condenser Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	1" / 25.40 mm
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted
  Maximum SPL	127 dB SPL
  Pad	-10 dB
  THD	0.5%
  Sensitivity	23.7 mV/Pa at 1 kHz into 1 kOhms
  Low-Cut Filter	@ 80 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	48 V ± 4 V

  Box Dimensions (LxWxH)	9.5 x 4.7 x 3.7"

• Rycote InVision Universal Microphone Shock Mount

  Box Dimensions (LxWxH)	7.7 x 5.6 x 3.2"

• Aston Microphones Halo Reflection Filter Purple

  Surface	Corrugated
  Material of Construction	Recycled PET plastic-bottle material
  Radial Depth	4" / 100 mm

  Box Dimensions (LxWxH)	23.0 x 19.6 x 12.4"

• Auray RFMS-580 Reflection Filter Tripod Mic Stand

  Thread Size	5/8"
  Folded Height	35.2" (89.4 cm)
  Adjustable Height Range	42 to 68" (106.7 to 172.7 cm)
  Weight	5.2 lb (2.36 kg)

  Box Dimensions (LxWxH)	35.75 x 5.0 x 4.25"

• Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	25' / 7.6 m
  Shielding	98% Braid
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.3 x 6.0 x 1.9"
