User Manual for Aston Microphones Spirit Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Aston Microphones Spirit Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser Aston Microphones
- Brand: Aston Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aston Microphones Large Diaphragm Condenser
 |
User manual for the Aston Microphones Spirit Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aston Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aston Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aston Microphones product will considerably shorten its lifespan!
|
Product description New Origin and Spirit from Aston Microphones now at B&H Read More - Both Sides Of The Booth - Recording Horns - Sharing Tales, Tips, and Techniques

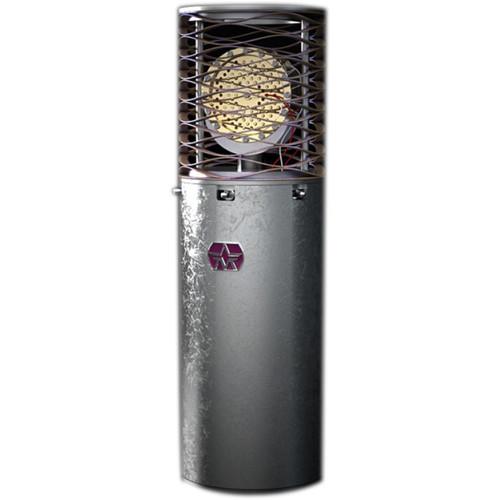

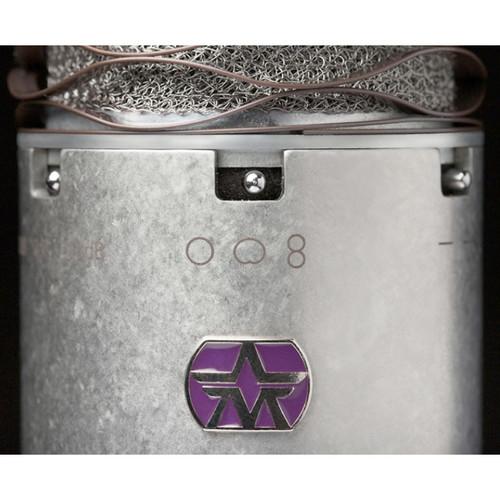

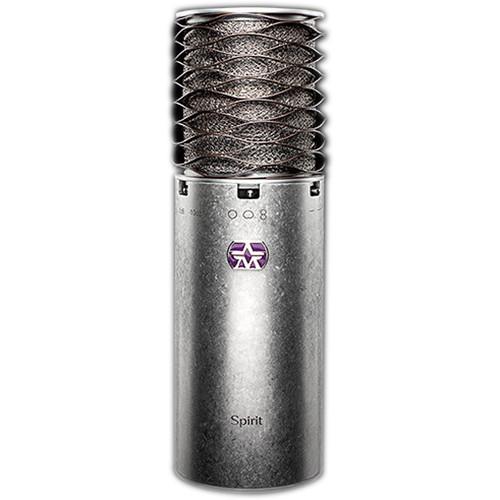

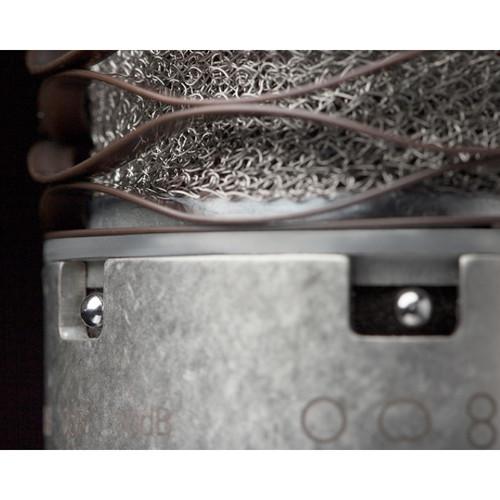

The Aston Spirit is a multi-pattern condenser microphone utilizing a 1" gold-evaporated capsule. A switch on the mic body selects between omni, cardioid, or figure-8 polar patterns. It is versatile enough to use with most instruments, and excels on acoustic guitar and vocals. Its hand-selected capsule is teamed with high-end transformer-balanced circuitry using only the best components.
The Spirit is designed to deliver an open sound with sparkling harmonics. This accurate microphone provides natural and transparent recording, capturing detail in the high range, but without adding the harshness that some condenser microphones tend to.

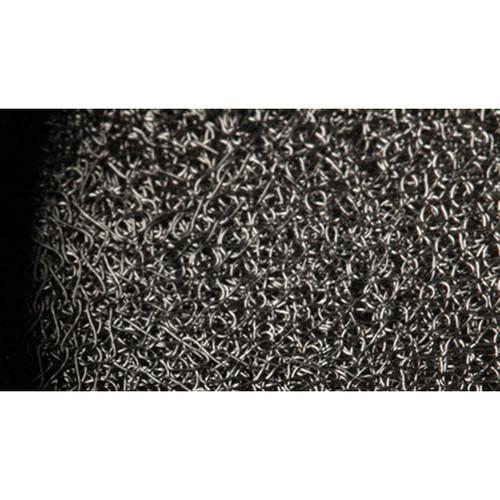

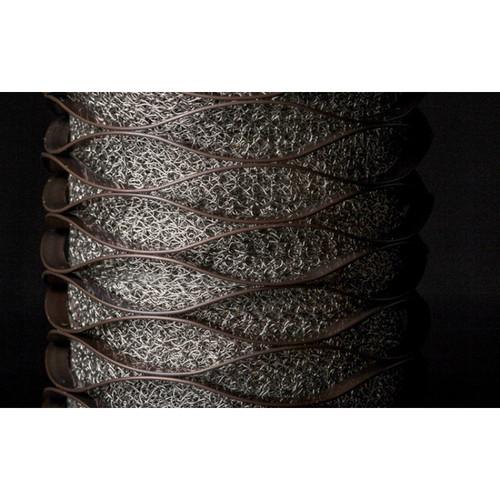

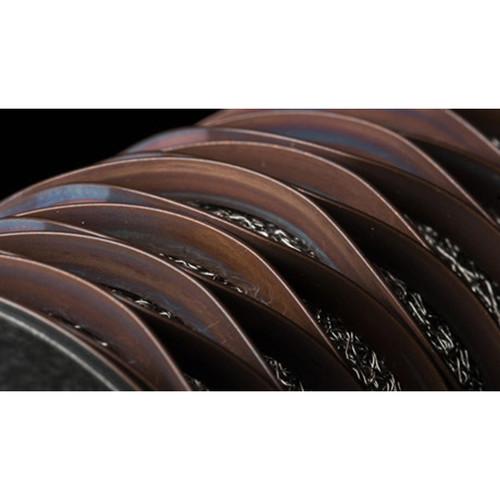

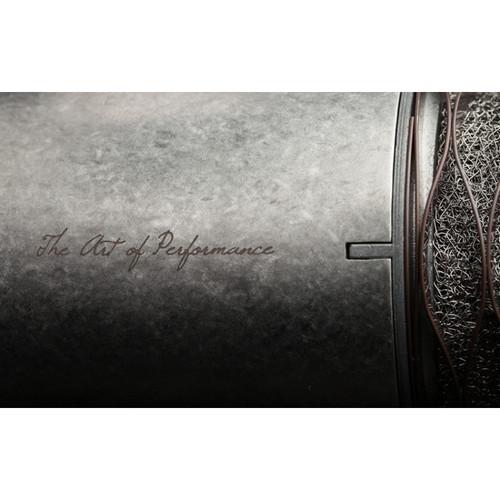

The mic has a mesh-knit pop filter built into the wave-form head. The weave allows sound to pass while reducing unwanted plosives. This single-piece mesh cage is formed in stainless steel, so it won't rust with use and can even be removed and washed. -

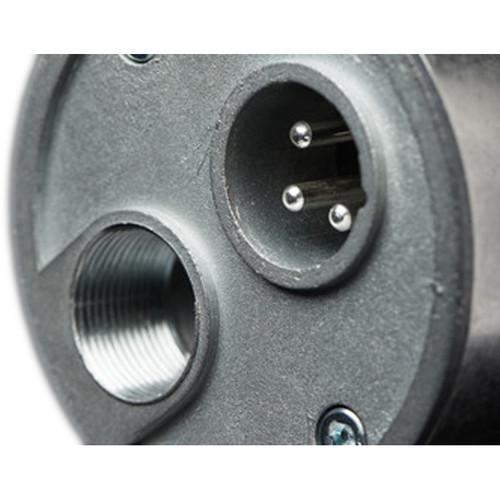

- Custom-molded end caps with integrated XLR and stand adapter
- Harmonized circuit-stage arrangement for easy integration from phantom-power input circuitry to capsule voltage bias
- Non-linear voltage/current-source rectification to provide controlled amplification and smooth/clear audio
In the Box Aston Microphones Spirit Multi-Pattern Condenser Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aston Microphones Spirit Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAston Microphones Spirit Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB A-Weighted | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 138 dB SPL | | Pad | -10 dB
-20 dB | | THD | 0.5% | | Sensitivity | 23.7 mV/Pa at 1 kHz into 1 kOhms | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V ± 4 V | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.4 x 4.7 x 3.6" |
