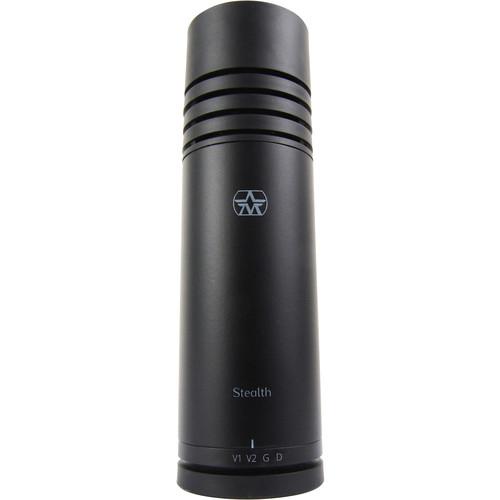

User Manual for Aston Microphones Stealth 4-Voice Dynamic Microphone for Pro Audio Applications Click to enlarge the picture
Contents of the user manual for the Aston Microphones Stealth 4-Voice Dynamic Microphone
- Product category: Dynamic Microphones Aston Microphones
- Brand: Aston Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aston Microphones Dynamic Microphones
 |
User manual for the Aston Microphones Stealth 4-Voice Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aston Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aston Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aston Microphones product will considerably shorten its lifespan!
|
Product description - First Look at the New Aston Stealth Mic - The Worlds Most Versatile Microphone?

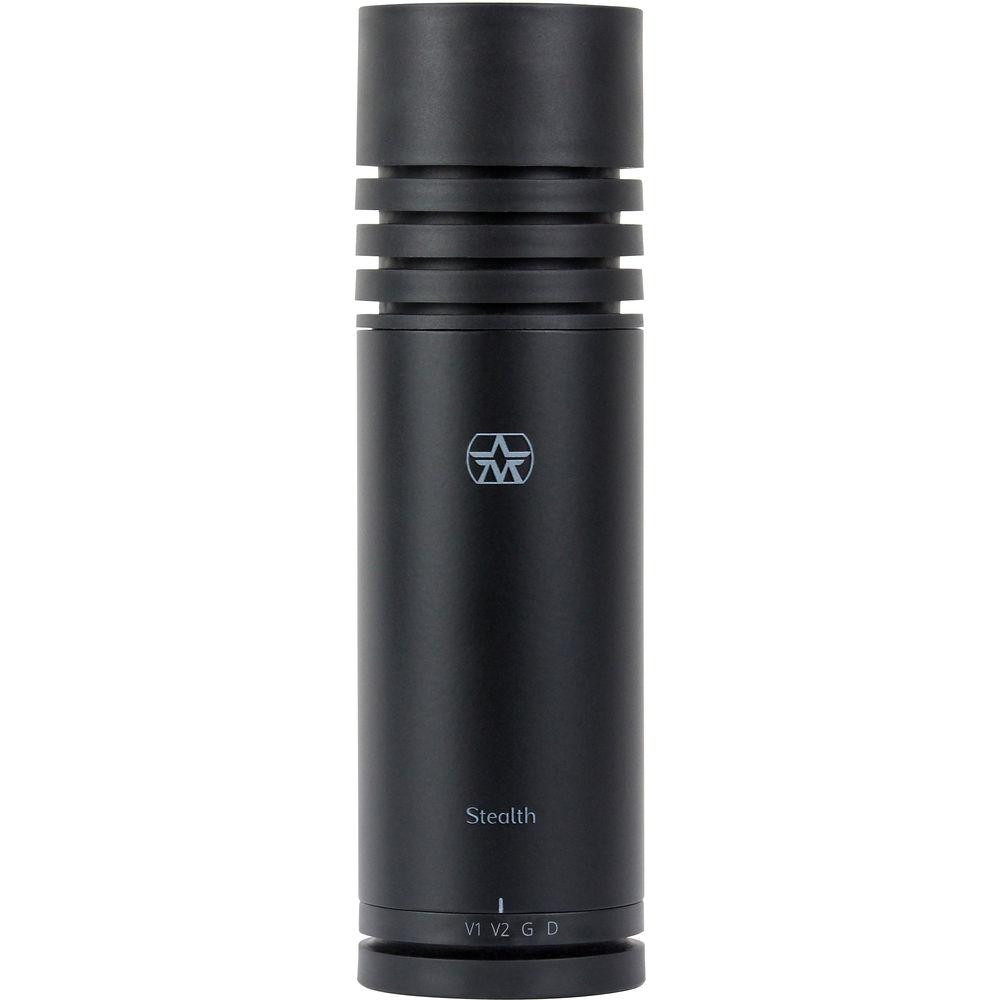

The Aston Stealth is a moving-coil, dynamic microphone that's suitable for capturing voice-overs, sung vocals, guitars, and more. A cardioid microphone designed to minimize pickup on the sides, the Stealth offers four switchable voices that are tailored toward different audio signals. V1 and V2 are designed for vocalists. G is for guitar, be it electric, classical, or steel-string acoustic. D is for dark, and this is your vintage sound, with a timbre reminiscent of ribbon microphones.
As this is a dynamic microphone, the Stealth is designed to work without phantom power. However, it also makes use of an active circuit that automatically senses the presence of 48V phantom power and switches on a built-in Class-A mic preamp, effectively mitigating the need for external gain-lifting devices.
Speaking of mitigating, the diaphragm is housed in a Faraday cage that mitigates EMI and RFI, helping you ensure a noise-free capture. This microphone comes with a custom-designed, adjustable quick release stand mount. - 4 Voicings for Different Sounds
- You'll find four voicings to aid you in matching the mic with different sound sources. V1 and V2 are designed for vocals. G is designed for guitars and is equally suited to Spanish guitar, electric guitar cabinets, and steel-string acoustics. D stands for dark; it's designed to give you a vintage sound reminiscent of classic ribbon mics.
- Contour Networks over EQ
- The Stealth mic does not utilize EQ filters. Instead, the mic utilizes contour networks, meaning the bulk of the signal does not pass through any sort of filter circuitry. The whole signal is slightly attenuated, with some frequencies being added back in at a higher level. This results in lower phase distortion than conventional filter designs.
- Active & Passive Modes
- The Stealth works with or without 48V phantom power. In passive mode, the active circuit is completely bypassed and the Stealth operates with the simplest possible signal chain. A built-in Autodetect function senses the presence of 48V phantom power and will automatically switch the mic to active mode to make use of a built-in, Class-A mic pre.
- Class-A Mic Pre in Active Mode
- When in active mode, Stealth offers a high-quality built-in Class-A microphone preamp, dispensing with the need for an external gain-lifting device.
- Internal Shockmount
- Aston Stealth includes a proprietary internal shockmount design with the capsule suspended in mid-air, isolated from the mic chassis, and supported at three points by Sorbothane polymer hemispheres. Sorbothane itself is a synthetic, visco-elastic urethane polymer used as a vibration damper and acoustic shield used in computing, hi-fi, and industrial applications.

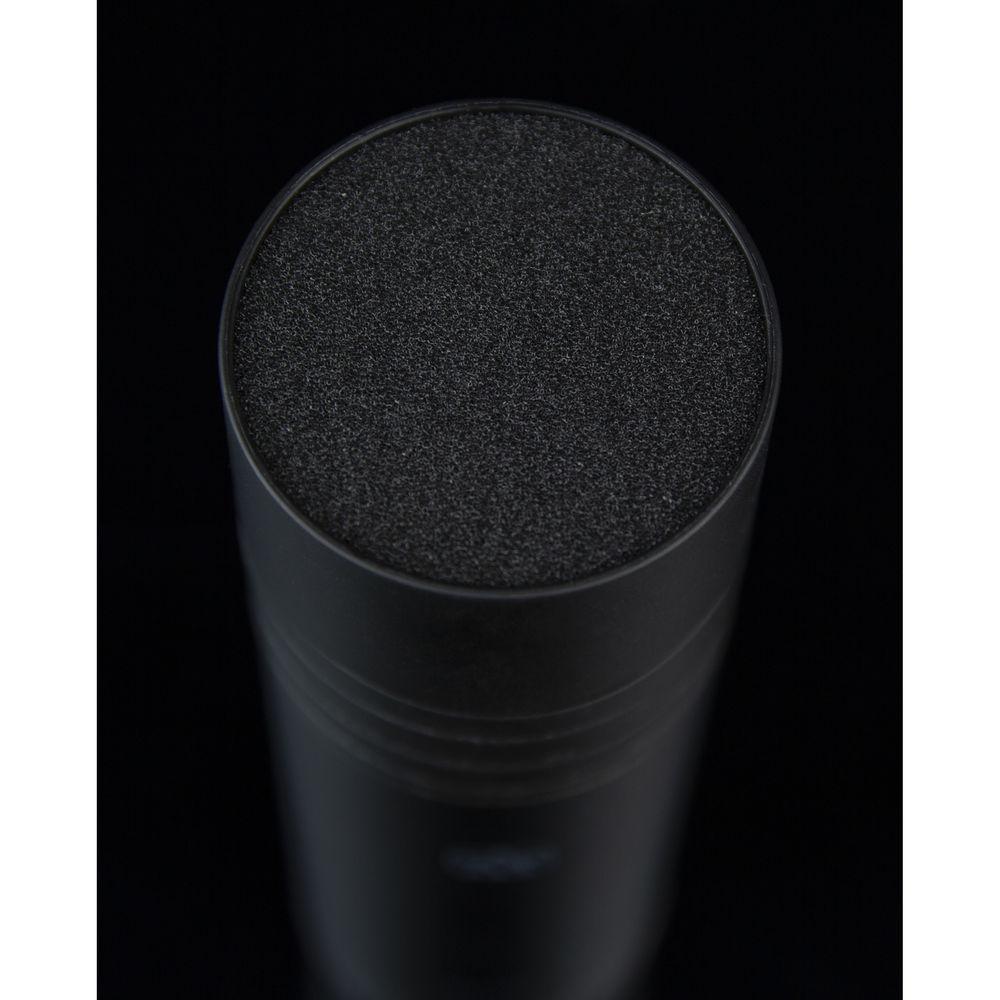

- RFI & EMI Rejection
- The Stealth's capsule is fully enclosed in a stainless-steel Faraday cage that effectively blocks electromagnetic fields and keeps stray radio frequencies at bay. Indeed, Faraday keeps it all far away.

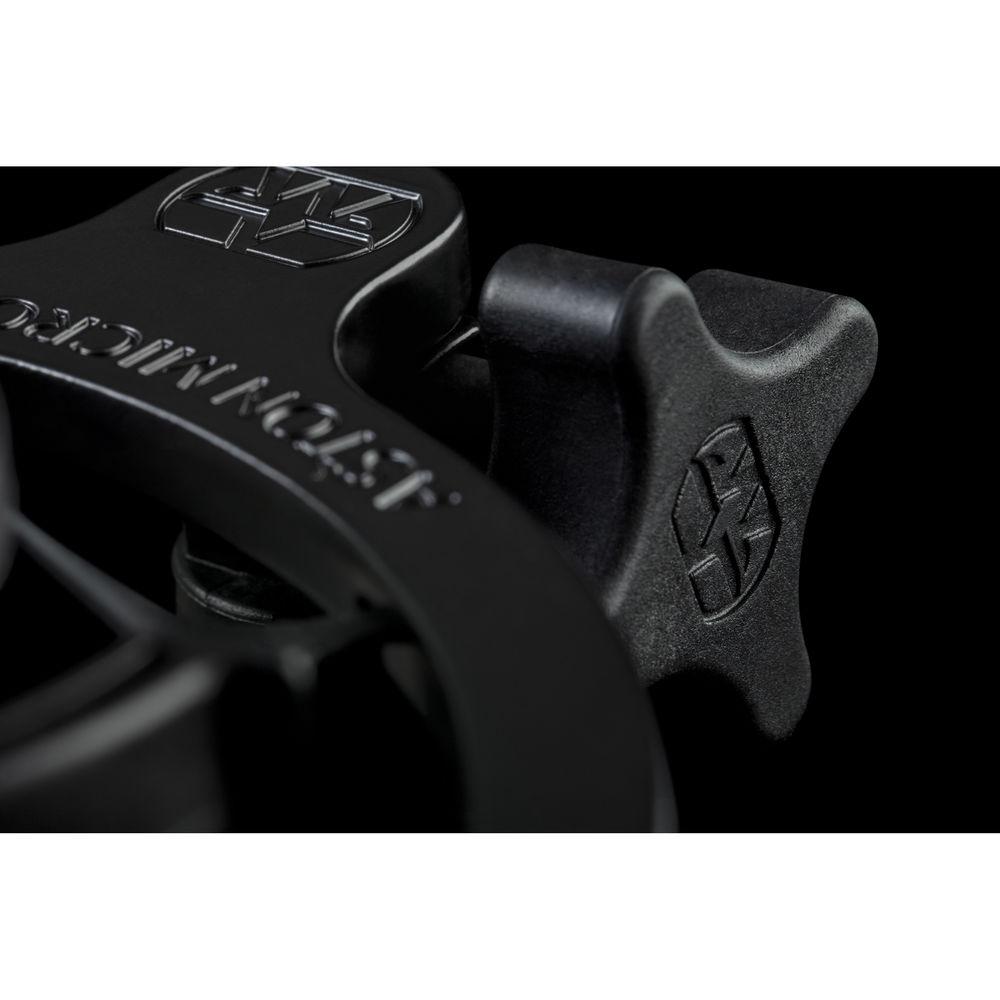

- Included Stand Mount

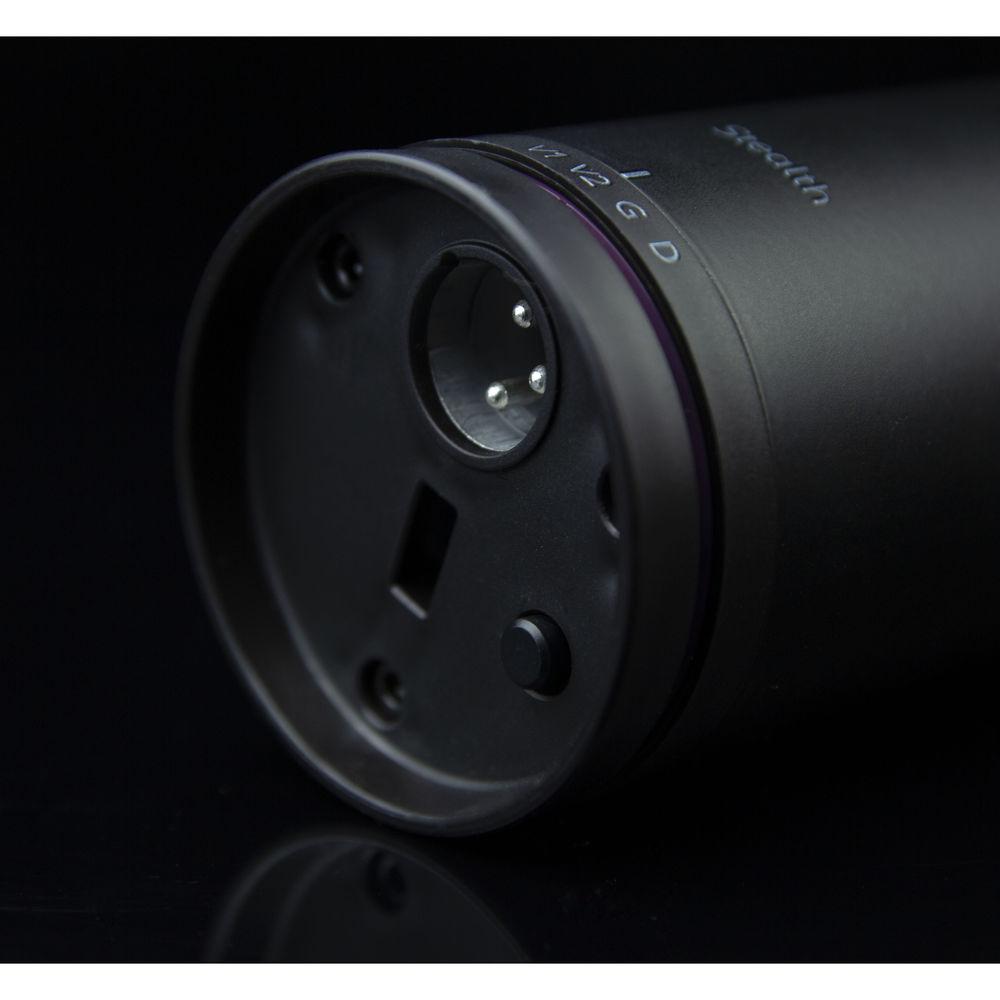

- The Aston Stealth uses custom-molded end caps with integrated XLR and a special design quick release stand mount. An included stand mount allows you to simply click the mic into place and release it just as quickly for storage, and this mount can angle the mic perfectly for any application.
In the Box Aston Microphones Stealth 4-Voice Dynamic Microphone for Pro Audio Applications Adjustable Quick-Release Stand Mount Limited 2-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Aston Microphones Stealth 4-Voice Dynamic Microphone for Pro Audio Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAston Microphones AST-STEALTH Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | Cardioid: 140 dB SPL | | THD | 0.5% | | Sensitivity | Cardioid: 1 mV/Pa at 1 kHz into 1 kOhms
Cardioid: 150 mV/Pa at 1 kHz into 1 kOhms 1st Value in Passive Mode (Varies across 4 Voices) 2nd Value in Active Mode (Varies across 4 Voices) | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V 48V Phantom Power Auto-Sensing & Optional | | Length | 7.72" / 196 mm | | Diameter | 2.28" / 58 mm | | Weight | 1.52 lb / 692 g | | | | Package Weight | 2.155 lb | | Box Dimensions (LxWxH) | 9.4 x 4.6 x 3.8" |
