User Manual for Astora PS 1300B Bi-Color Power-Spot LED Panel Click to enlarge the picture
Contents of the user manual for the Astora PS 1300B Bi-Color Power-Spot LED
- Product category: LED Lights Astora
- Brand: Astora
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astora LED Lights
 |
User manual for the Astora PS 1300B Bi-Color Power-Spot LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astora product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astora user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astora product will considerably shorten its lifespan!
|

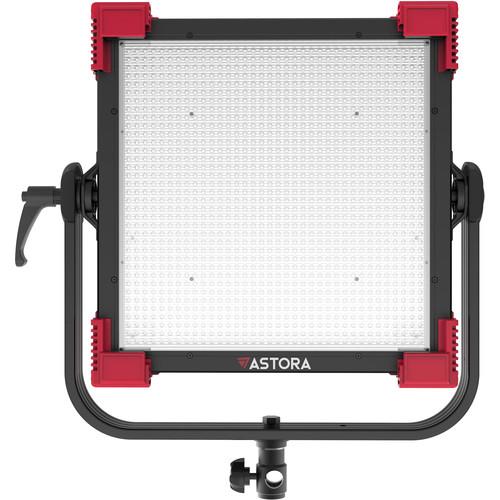

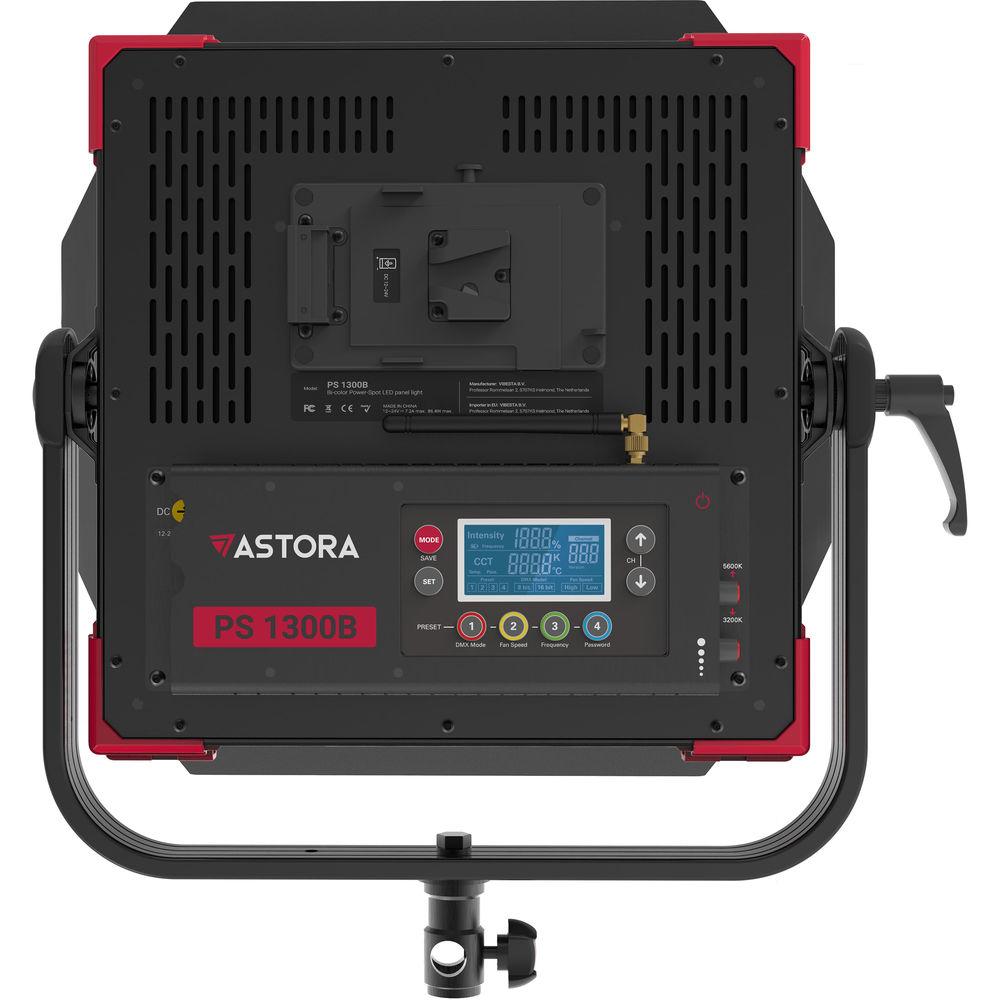

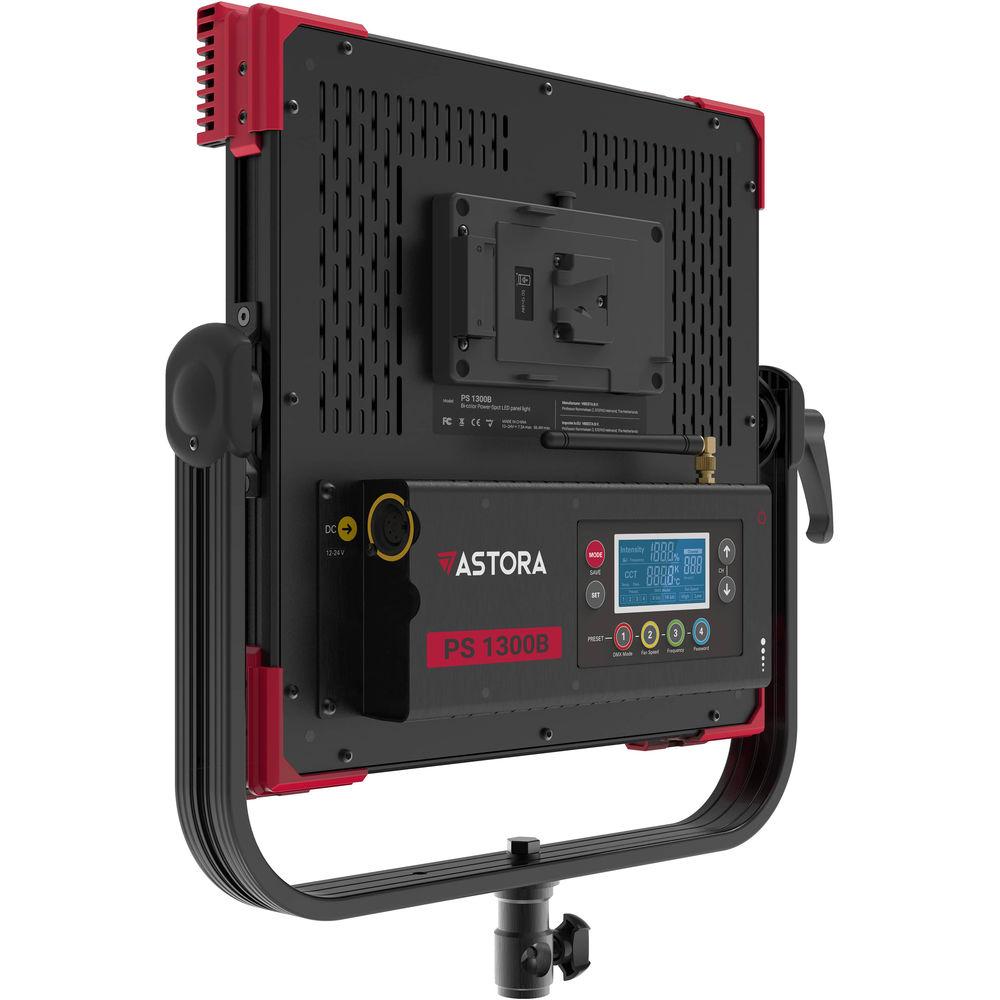

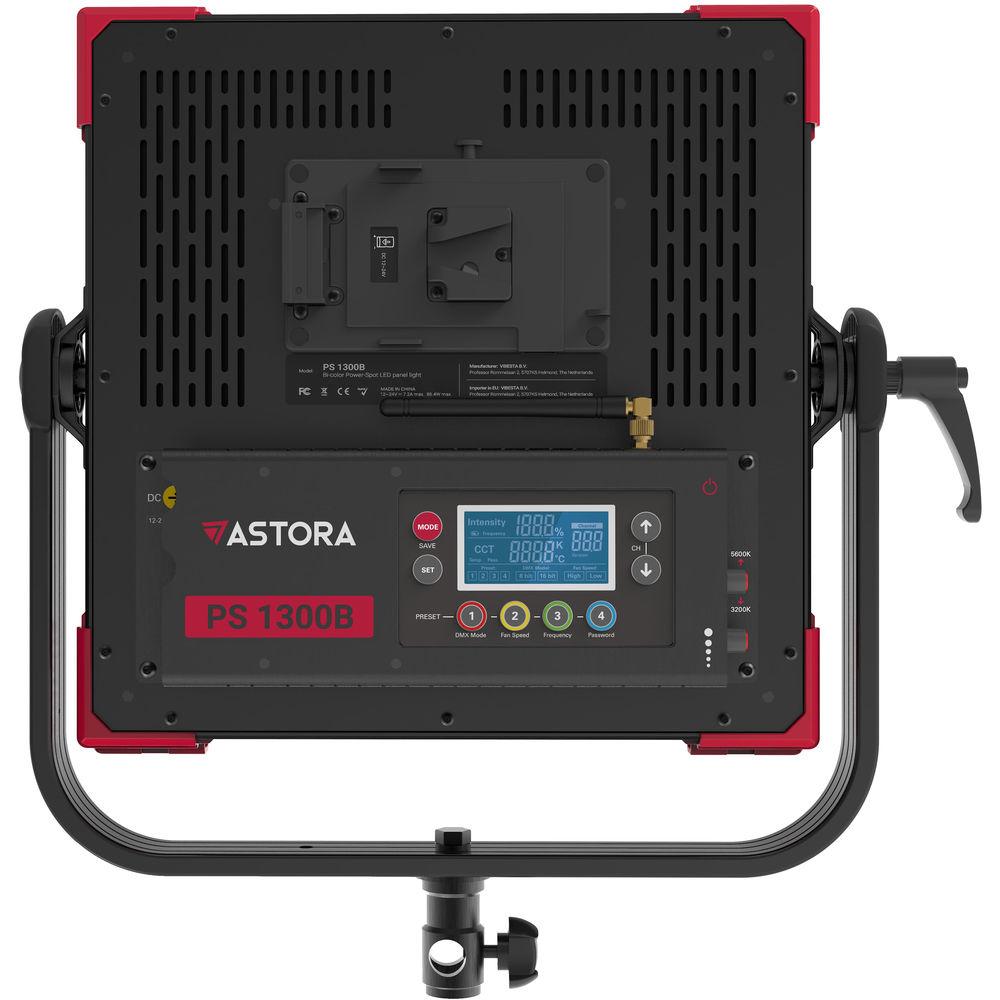

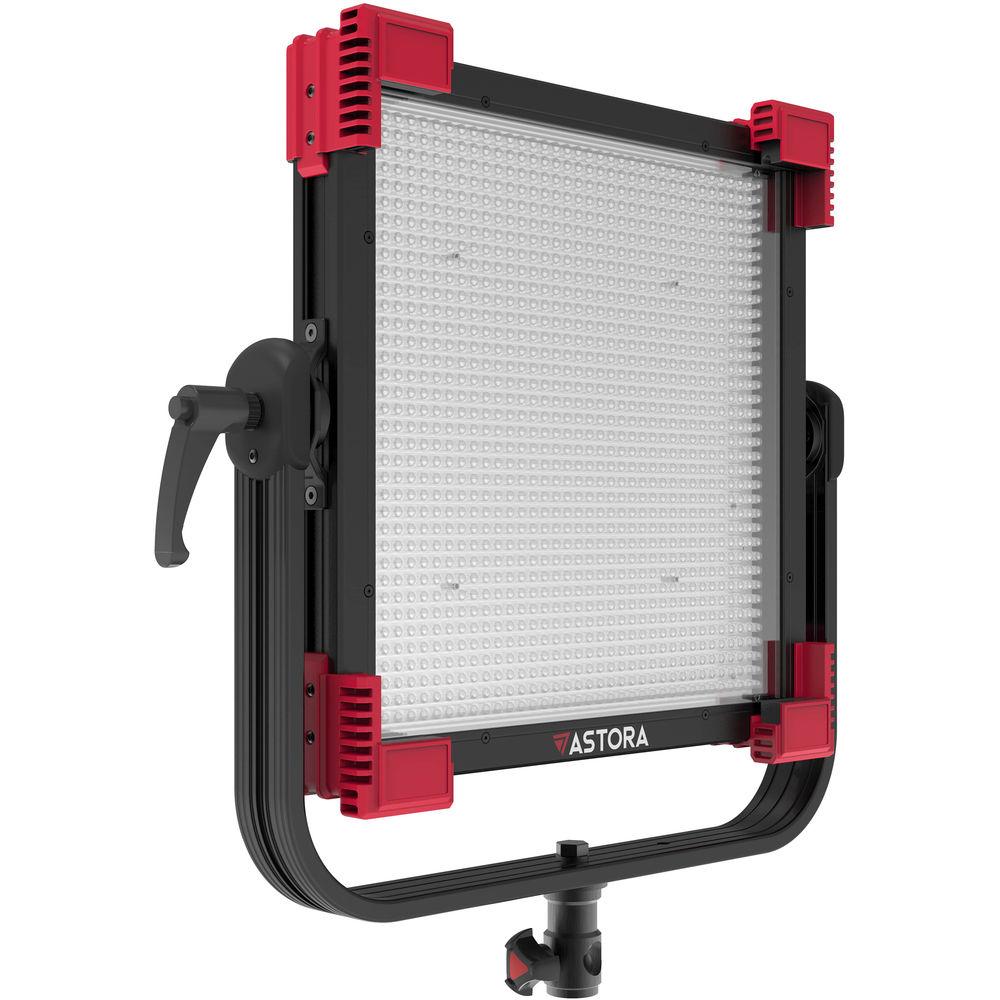

Product description The 16.7 x 17.4 x 3.7" PS 1300B Bi-Color Power-Spot LED Panel from Astora is a compact fixture with a 30-degree beam spread and barndoors that make it ideal for selective lighting and long-throw work. The PS 1300B's flicker-free output is variable from 3200 to 5600K, allowing it to meet any ambient light challenge, match other fixtures, or facilitate creative expression, while its CRI/TLCI ratings as high as 97 and 98 indicate precise rendition of color. Light intensity is variable from 0 to 100% and while you can make adjustments locally on the fixture, you can also do it wirelessly from a distance via the included remote control. The PS 1300B runs dead quiet thanks to its heatsink and efficient air flow - a valuable asset in sound sensitive environments. The PS 1300B is ready for worldwide use via its multi-voltage AC adapter, but its V-mount plate allows it to run on optional batteries when mains power is unavailable. - Quick Setup, Easy Use
- Integrated controls and battery adapter plate on the light head make it hassle-free to setup and use.
- Mobile Operation with V-Mount Battery Option
- With a power consumption of 86.4W, the Astora Power-Spot can run on any normal V-mount battery and is not restricted to expensive high-current V-mount versions.
- Accurate Color Reproduction
- The PS 1300 offers precise color reproduction with a TLCI up to 98 and a CRI up to 97.
- Wireless Control Built-In
- With the integrated wireless control you can easily adjust settings from a distance.
- Fan-Less, Silent Operation
- The light's metal housing was designed and optimized for passive cooling through efficient internal airflow employing a heatsink for fan-less, silent operation.
- Flicker-Free
- Even at high frame rates or shutter speeds the Astora PS 1300 delivers consistent lighting without flicker.
- Complete Shooting Kit

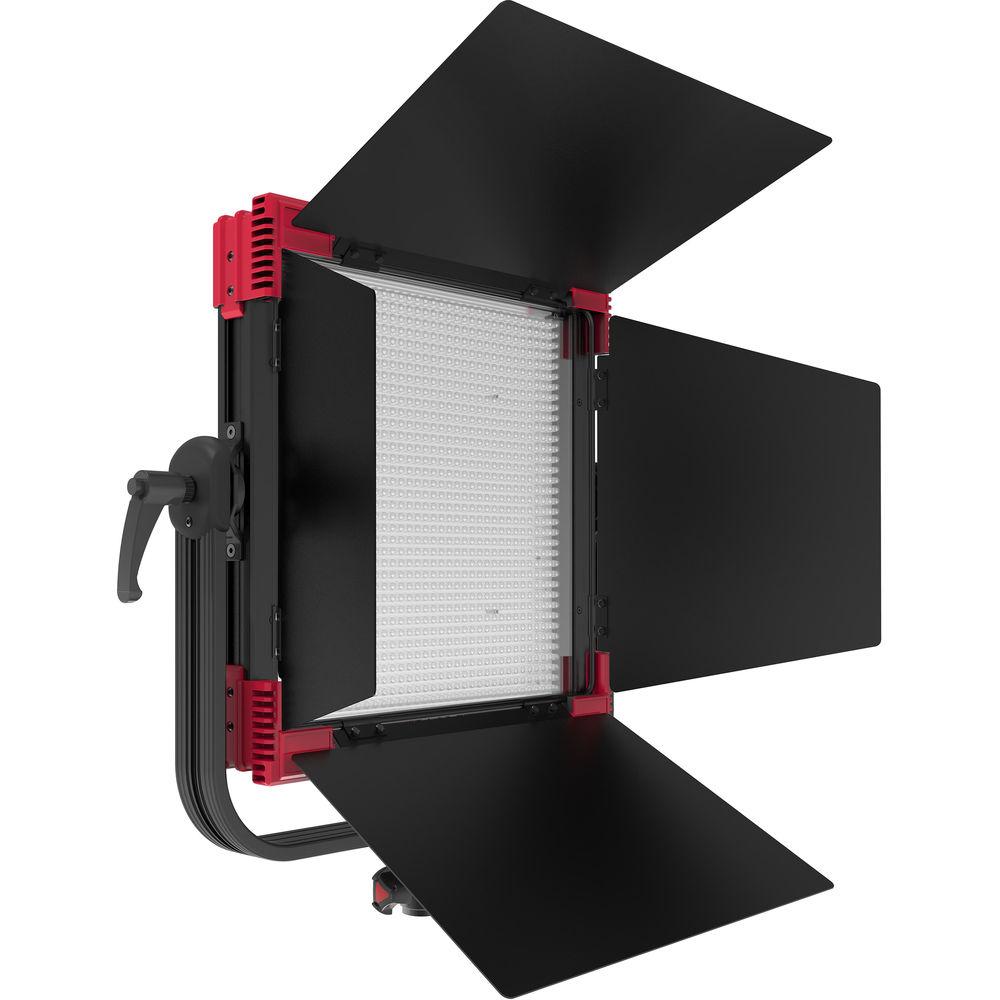

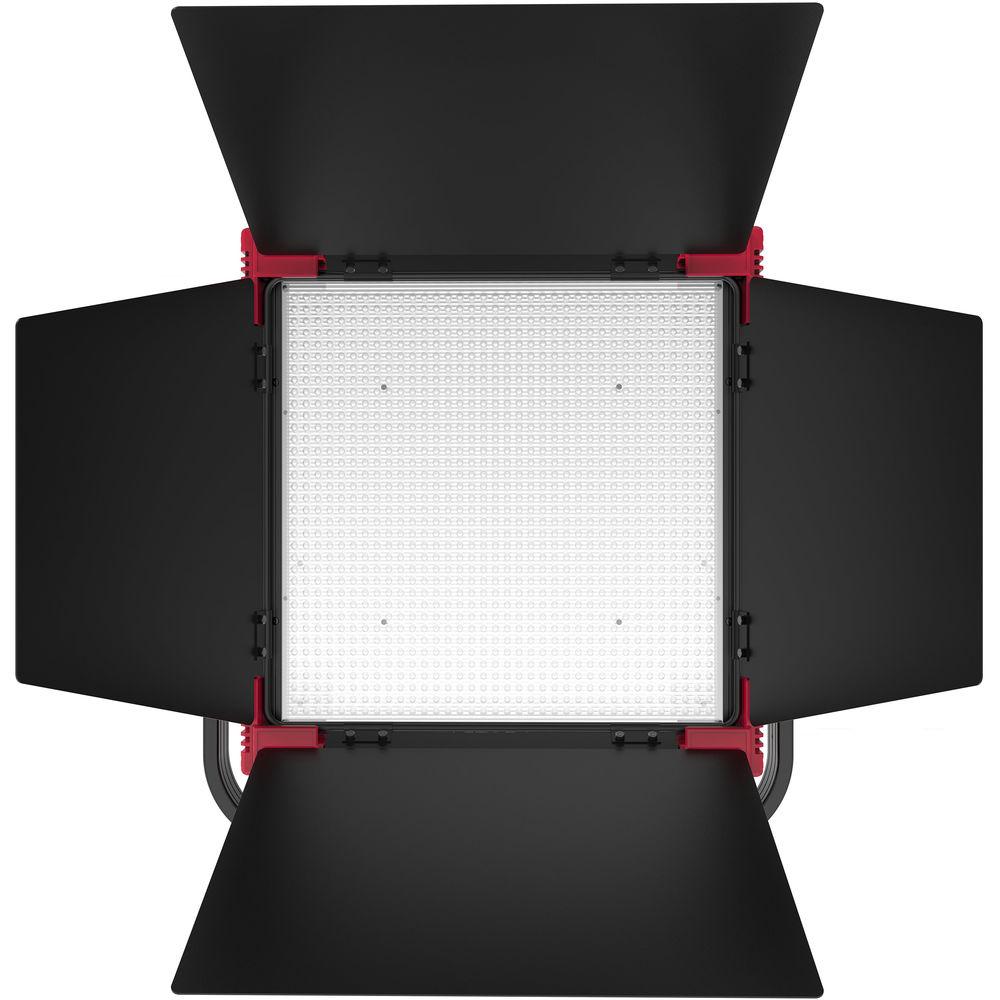

- The Astora PS 1300 comes as a complete package including removable barndoors, a remote control for wireless adjustments, AC adapter and cable, and a carrying bag.
UPC: 709016298325 In the Box Astora PS 1300B Bi-Color Power-Spot LED Panel Barndoor Set Remote Control AC Adapter and Cable Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astora PS 1300B Bi-Color Power-Spot LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstora PS 1300B Specs | | | Beam Angle | 30° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 97
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Housing Material | Metal | | Photometrics | 30° at 4400K:
1427 fc / 15,354.5 lux at 3.28' / 1 m | | Number of LEDs | 1296 | | Fixture Dimensions | 16.7 x 17.4 x 3.7" / 423.0 x 441.0 x 93.0 mm | | Fixture Weight | 7.50 lb / 3.4 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery Battery Optional | | Max Power Consumption | 86.4 W | | | | Certifications | CE, FCC, REACH, RoHS, as per Manufacturer | | IP Rating | IP20 | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 19.0 x 18.0 x 15.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
