User Manual for Astora SF 200 Bi-Color LED Panel Click to enlarge the picture
Contents of the user manual for the Astora SF 200 Bi-Color LED Panel
- Product category: LED Lights Astora
- Brand: Astora
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astora LED Lights
|
User manual for the Astora SF 200 Bi-Color LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astora product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astora user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astora product will considerably shorten its lifespan!
|

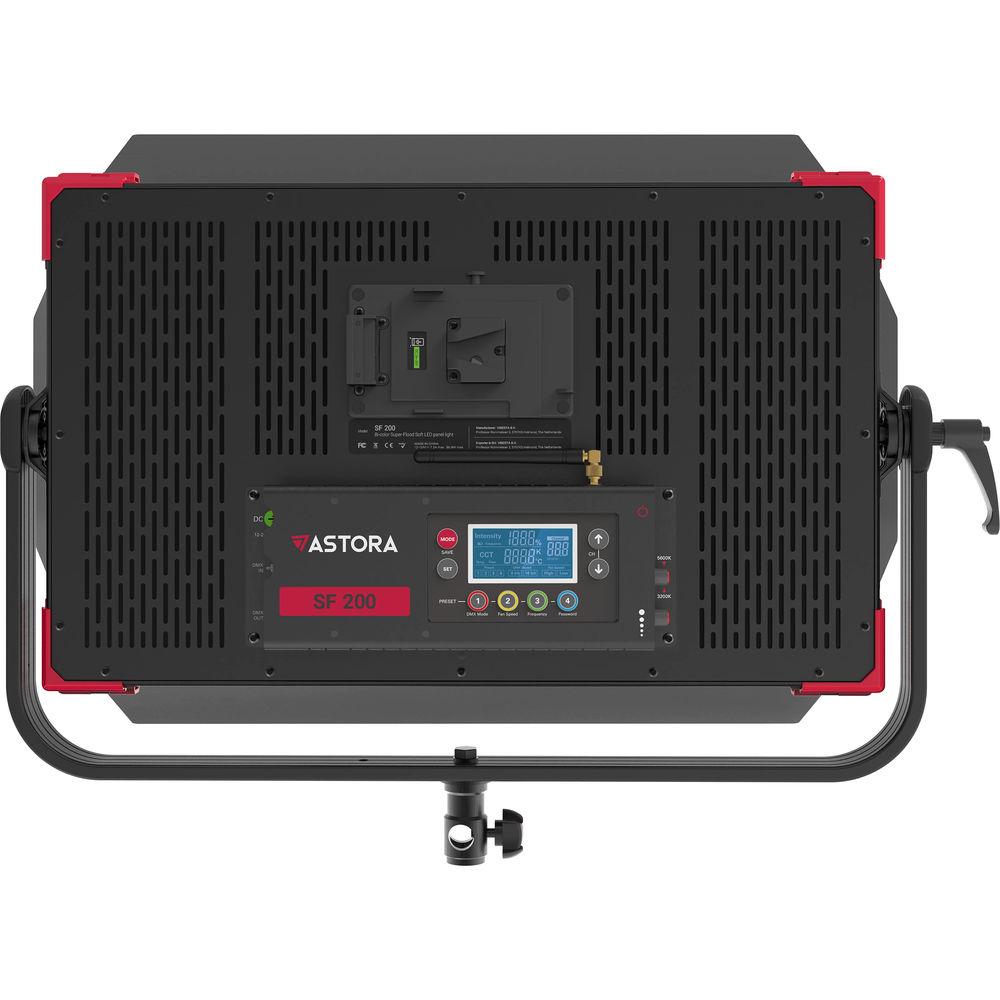

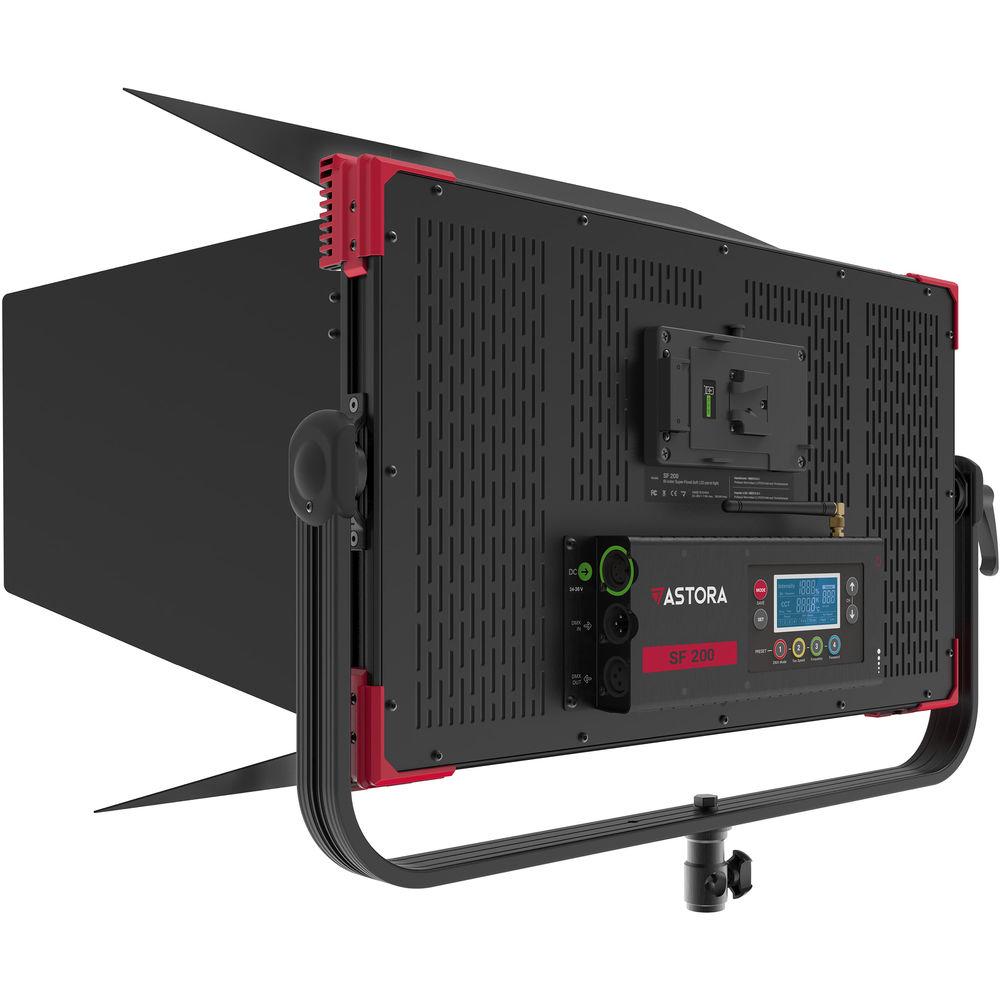

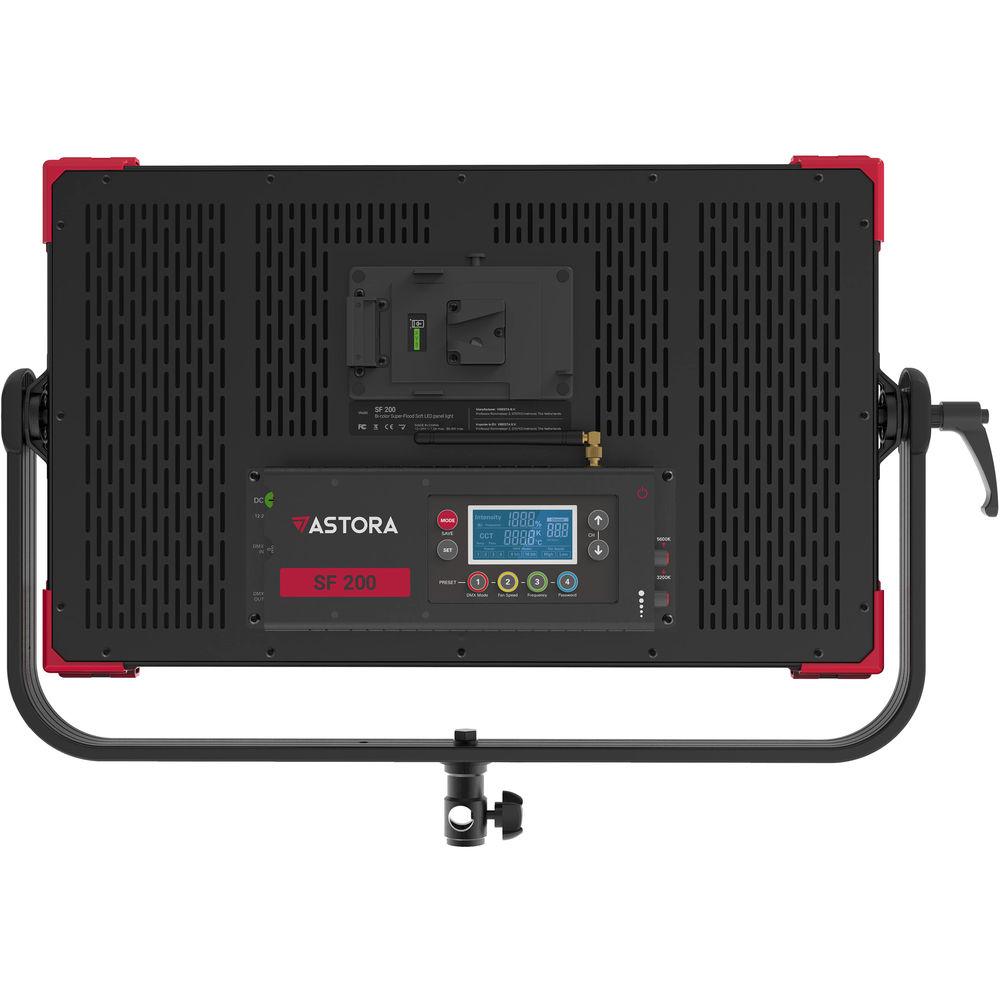

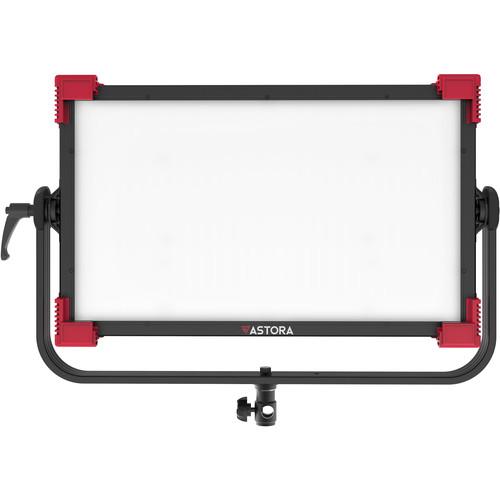

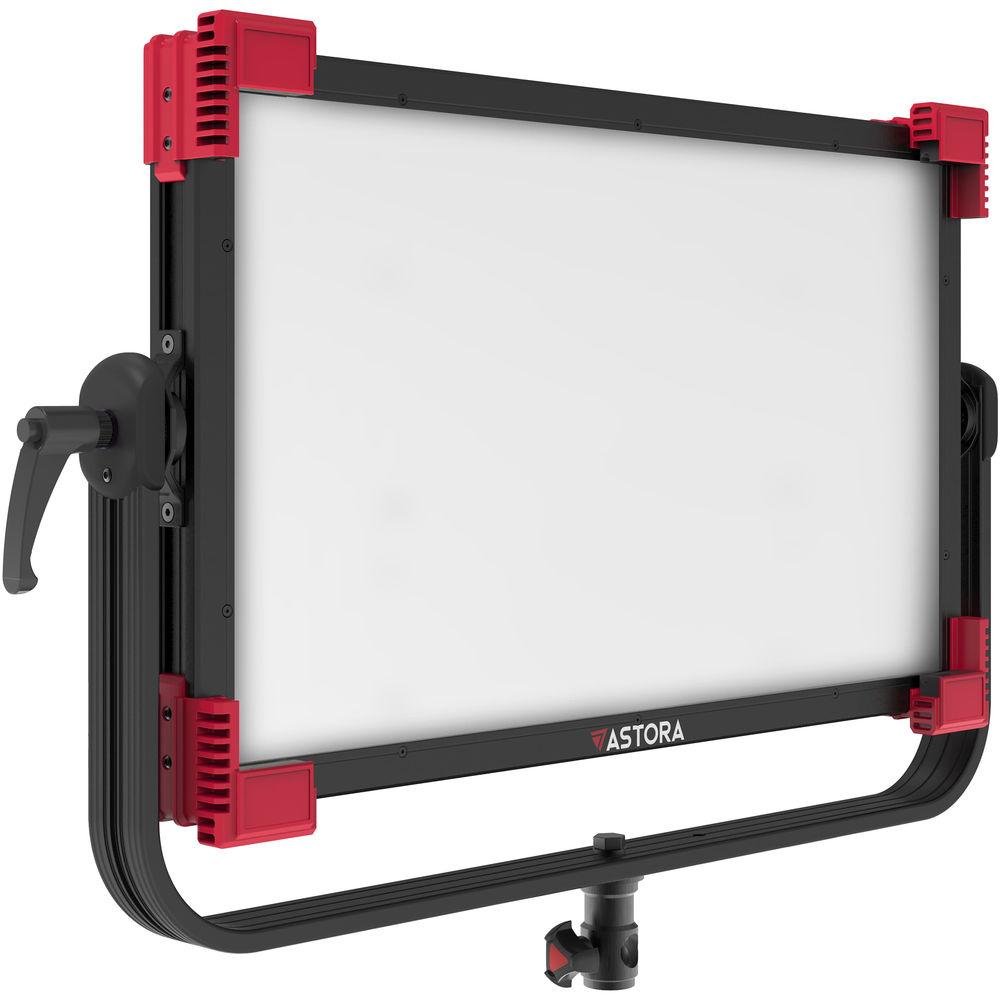

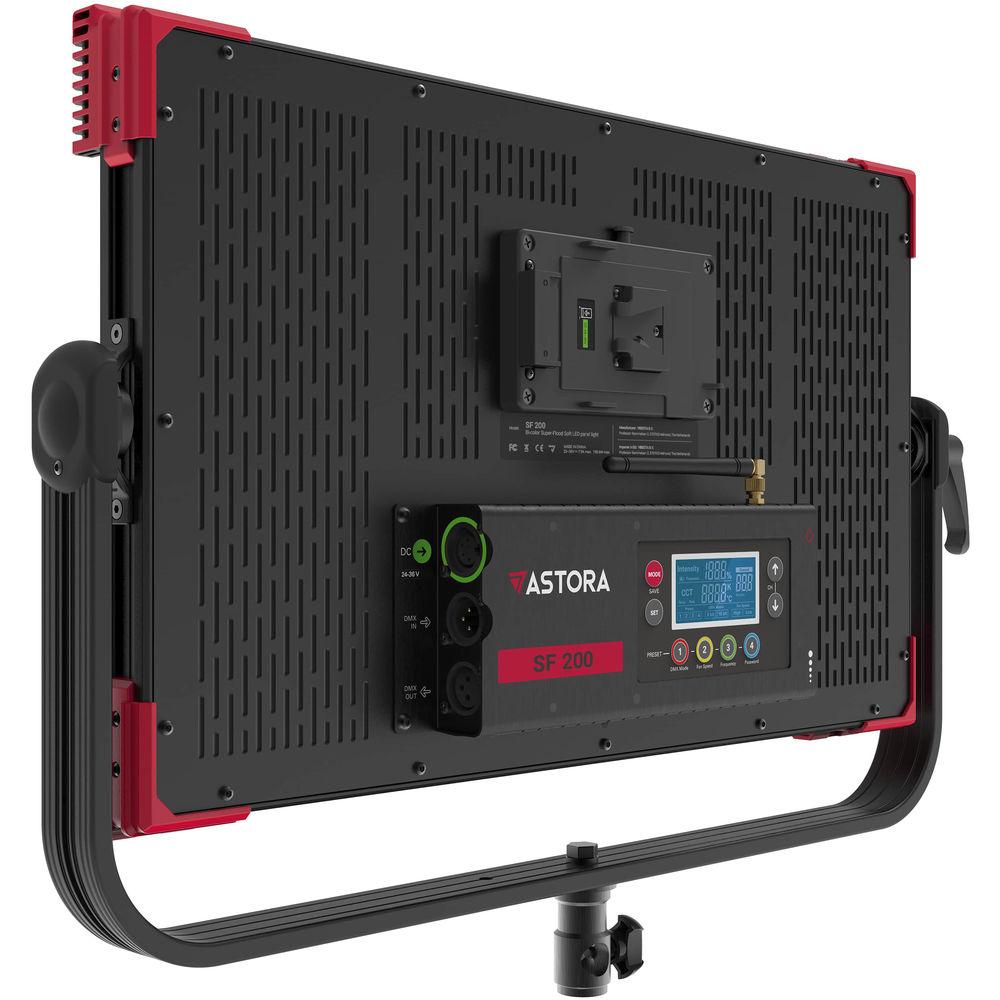

Product description The 24.9 x 17.4 x 3.7" SF 200 Bi-Color LED Panel from Astora is a full-featured fixture with a 120-degree beam spread for wide coverage that can be narrowed with the included barndoors for selective lighting and long-throw work. The PS 1300B's flicker-free output is variable from 3200 to 5600K, allowing it to meet any ambient light challenge, match other fixtures, or facilitate creative expression, while its CRI/TLCI ratings as high as 97 and 98 indicate precise rendition of color. Light intensity is variable from 0 to 100% and while you can make adjustments locally on the fixture, you can also do it wirelessly from a distance via the included remote control or from a console via onboard DMX. The SF 200 runs dead quiet thanks to its heatsink and efficient air flow - a valuable asset in sound sensitive environments. The SF 200 is ready for worldwide use via its multi-voltage AC adapter but its V-mount plate allows it to run on optional batteries when mains power is unavailable. - Ultra-Soft Light Quality
- With the Astora SF you can easily create soft diffused light that wraps nicely around its subject.
- Mobile Operation with V-Mount Battery Option
- With its low power consumption, the Astora SF 200 can run on standard V-mount batteries when mains power is unavailable.
- Accurate Color Reproduction
- The SF 200 offers precise color reproduction with a TLCI up to 98 and a CRI up to 97.
- Wireless and Control Built-In
- In addition to wireless control the Astora SF also has DMX 512 built-in, so that it can be integrated into any existing environment easily via industry standard XLR connectors.
- Fan-Less, Silent Operation
- The light's metal housing was designed and optimized for passive cooling through efficient internal airflow employing a heatsink for fan-less, silent operation.
- Flicker-Free
- Even at high frame rates or shutter speeds the Astora SF 200 delivers consistent lighting without flicker.
- Complete Shooting Kit

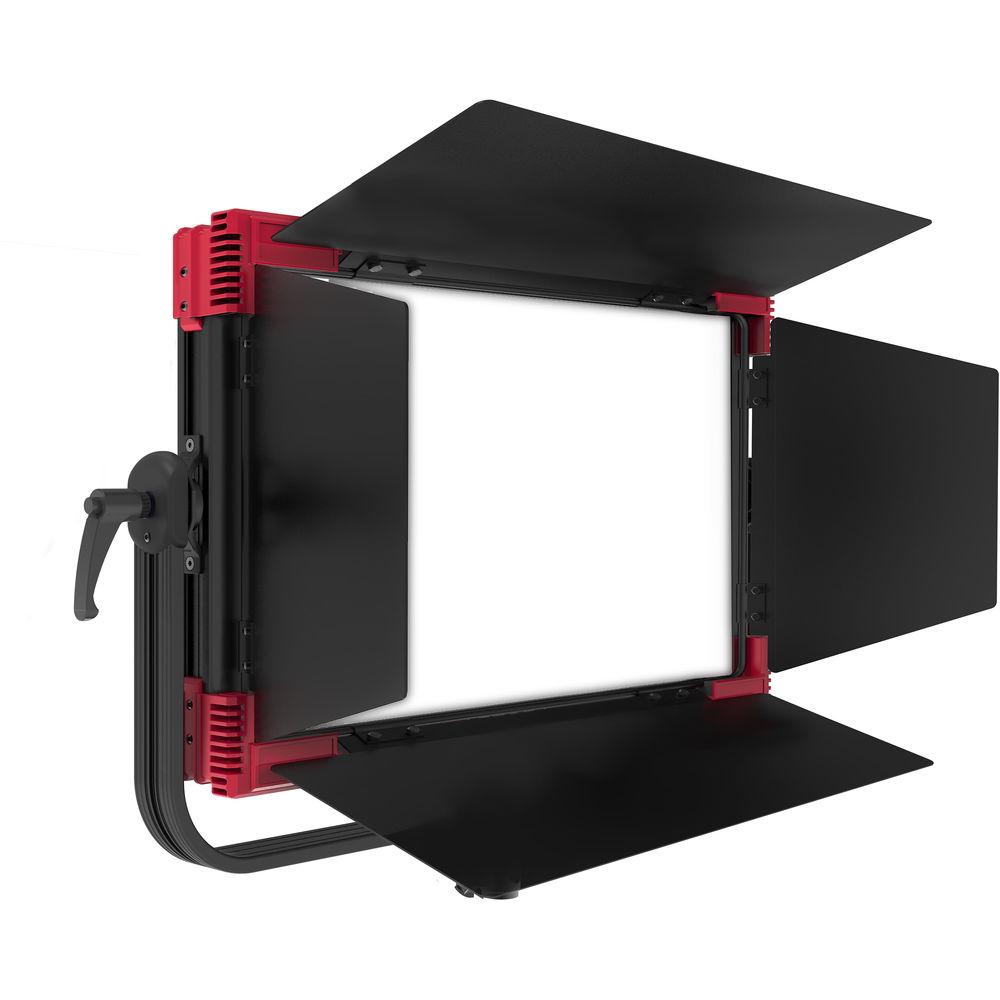

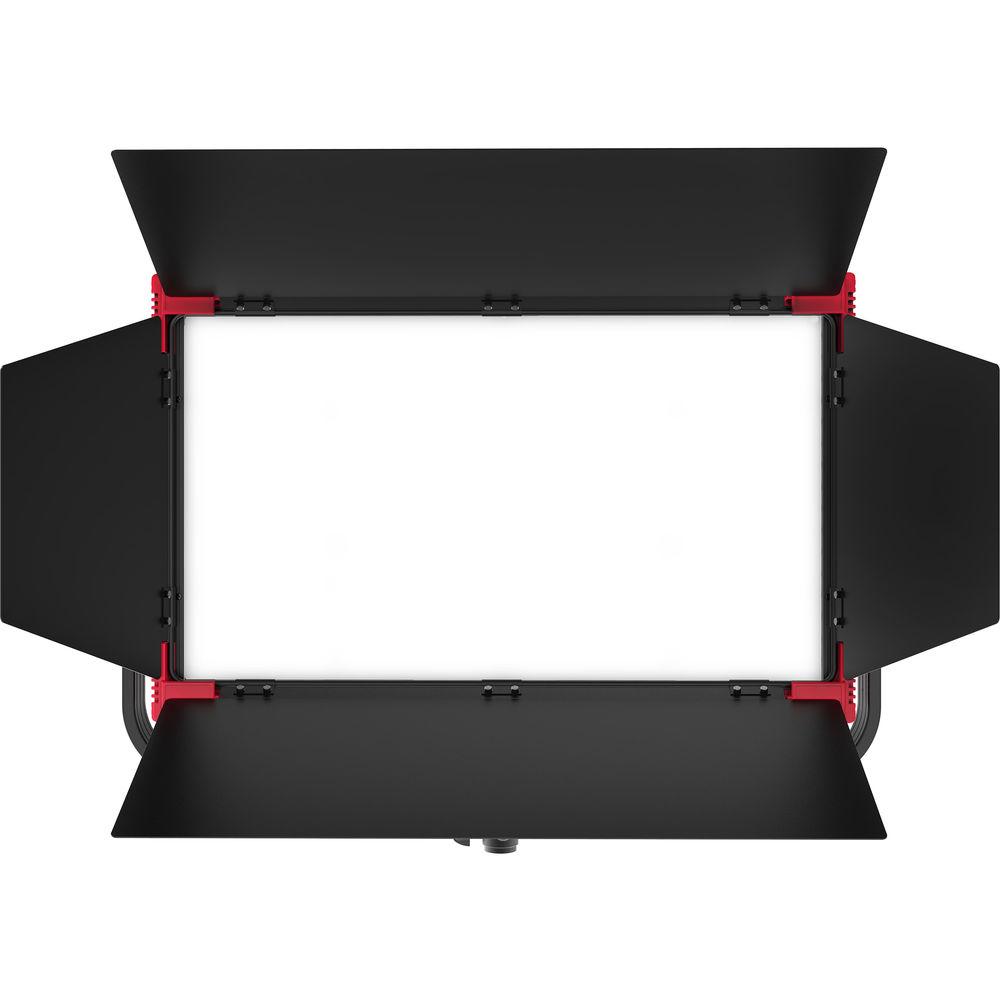

- The Astora SF 200 comes as a complete package including removable barndoors, a remote control for wireless adjustments, AC adapter and cable, and a carrying bag.
UPC: 709016298363 In the Box Astora SF 200 Bi-Color LED Panel Barndoor Set Remote Control AC Adapter and Cable Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astora SF 200 Bi-Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstora SF 200 Specs | Beam Angle | 120° | Color Temperature | 3200 to 5600K | Color Accuracy Standard | CRI 97 TLCI 98 | Cooling System | Passive | Dimming | Yes, 0 to 100% | Display | LCD | Housing Material | Metal | Photometrics | 120° at 4400K: 383 fc / 4121.1 lux at 3.28' / 1 m | Fixture Dimensions | 24.9 x 17.4 x 3.7" / 632.0 x 441.0 x 93.0 mm | Fixture Weight | 10.14 lb / 4.6 kg (Including Yoke) | | Battery Plate | 1 x V-Mount | Power Input Connector | 4-Pin XLR | DMX Connector | 3-Pin XLR | | Fixture Mount | 5/8" Receiver | Accessory Mount | None | | Remote Control Type | Proprietary Wireless | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | DC Input Power | 24 to 36 VDC | Power Source | AC Adapter, External Battery Battery Optional | Max Power Consumption | 191 W | | Certifications | CE, FCC, REACH, RoHS, as per Manufacturer | IP Rating | IP20 | | Package Weight | 17.93 lb | Box Dimensions (LxWxH) | 25.9 x 21.6 x 5.3" |
