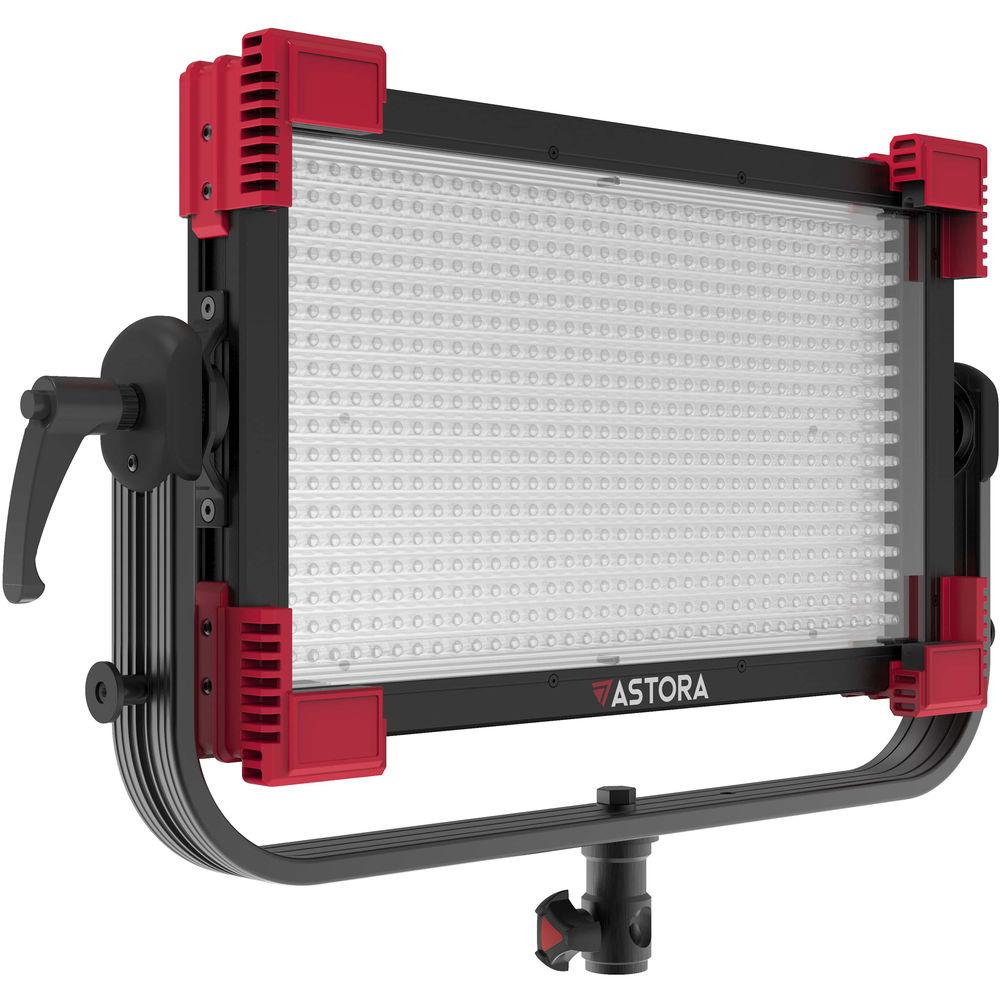

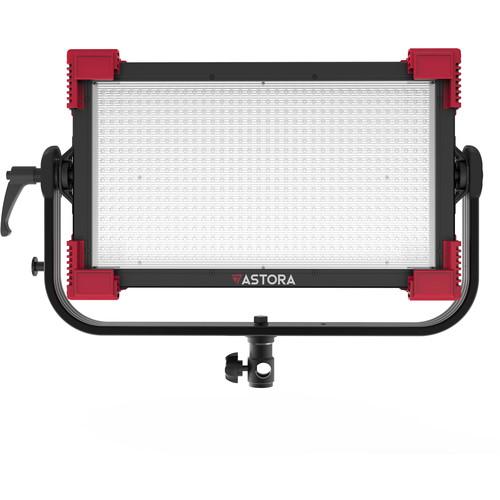

Product description The 19.7 x 13.6 x 3.7" WS 840B Bi-Color Widescreen LED Panel from Astora is a compact fixture with a 50-degree beam spread and a 16:9 format that gives it a wrap-around quality of light. The WS 840B's flicker-free output is variable from 3200 to 5600K, allowing it to meet any ambient light challenge, match other fixtures, or facilitate creative expression, while its CRI/TLCI ratings as high as 97 and 98 indicate precise rendition of color. Light intensity is variable from 0 to 100% and while you can make adjustments locally on the fixture, you can also do it wirelessly from a distance via the included remote control. The 840B runs quiet thanks to its heatsink and efficient air flow - a valuable asset in sound-sensitive environments. The 840B is ready for worldwide use with separate purchase of a multi-voltage AC adapter but its dual NP-F plate allows it to run on optional batteries when mains power is unavailable. - Quick Setup, Easy Use

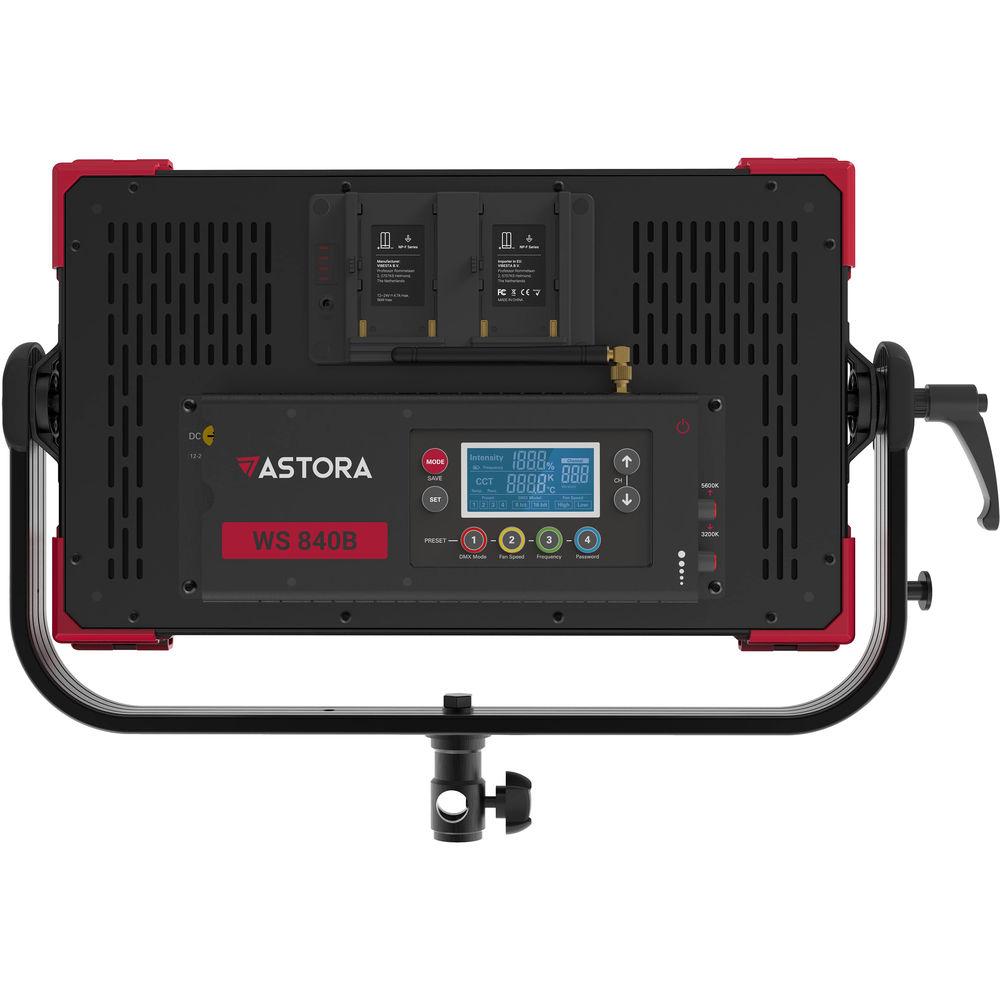

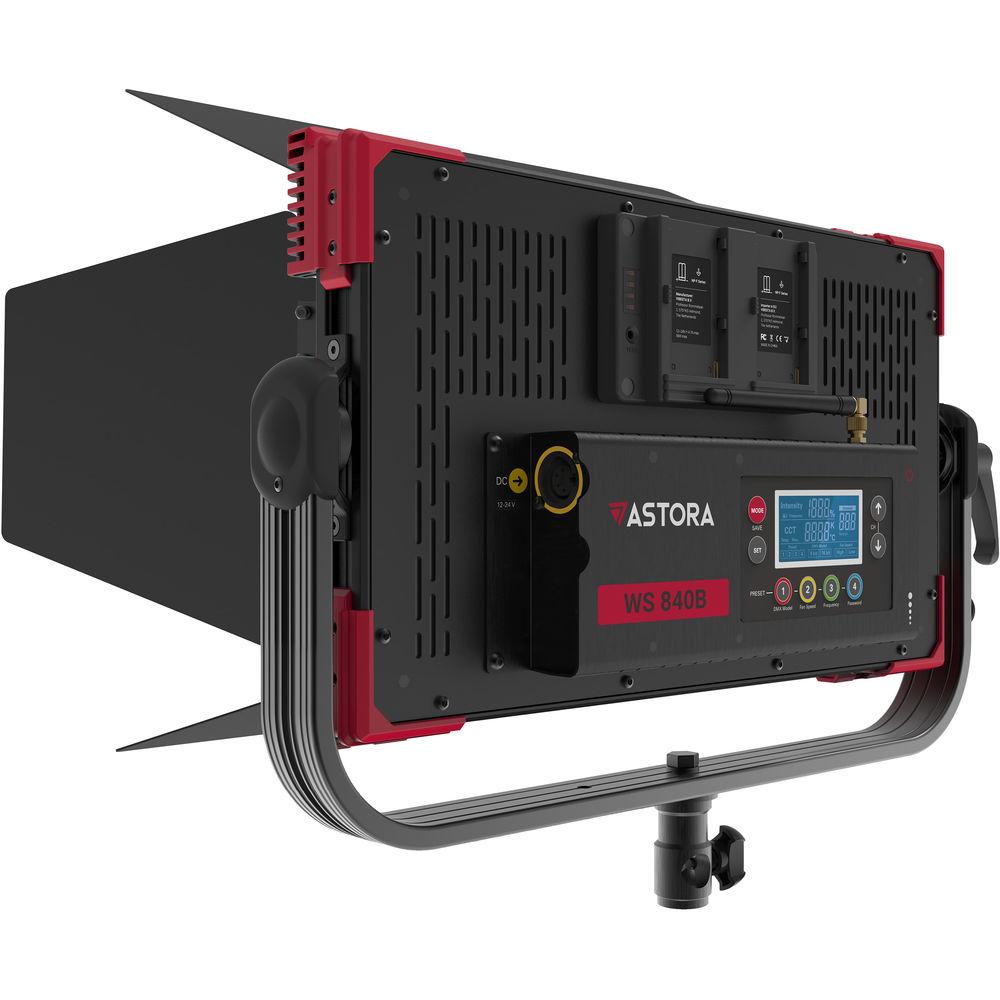

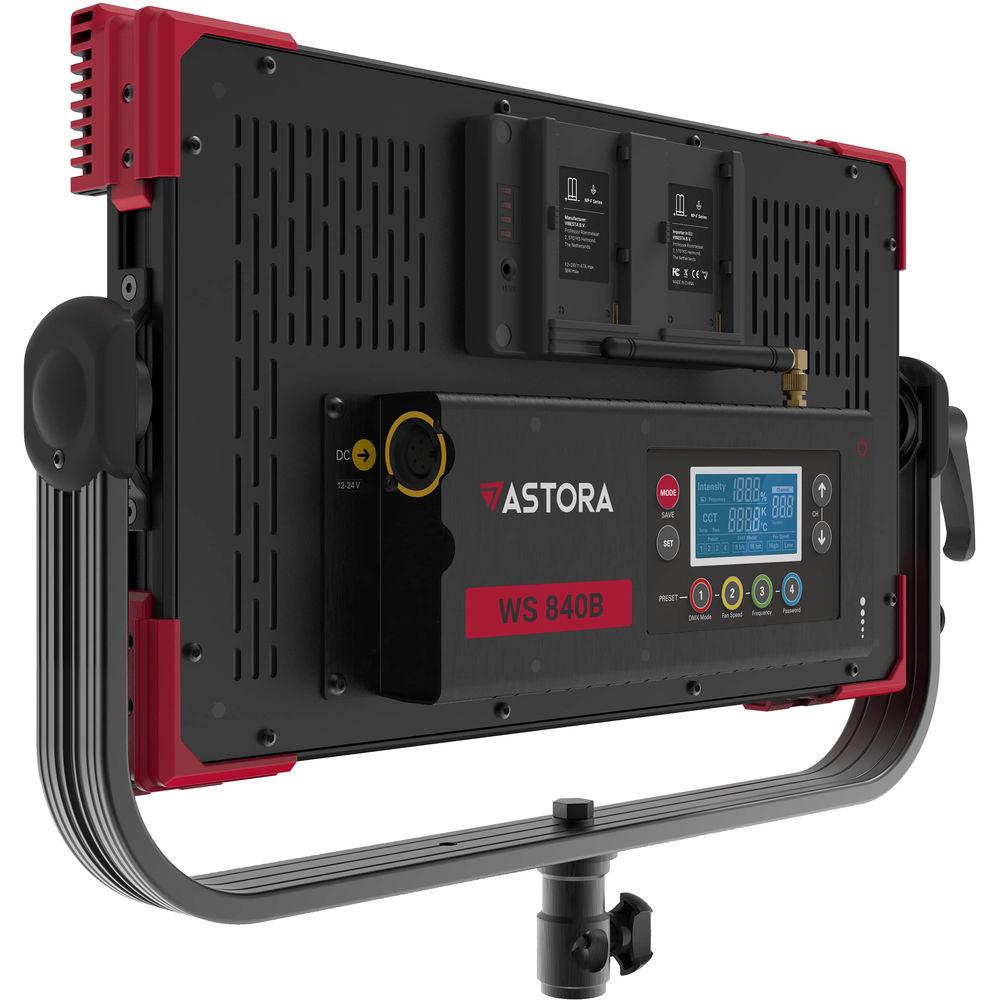

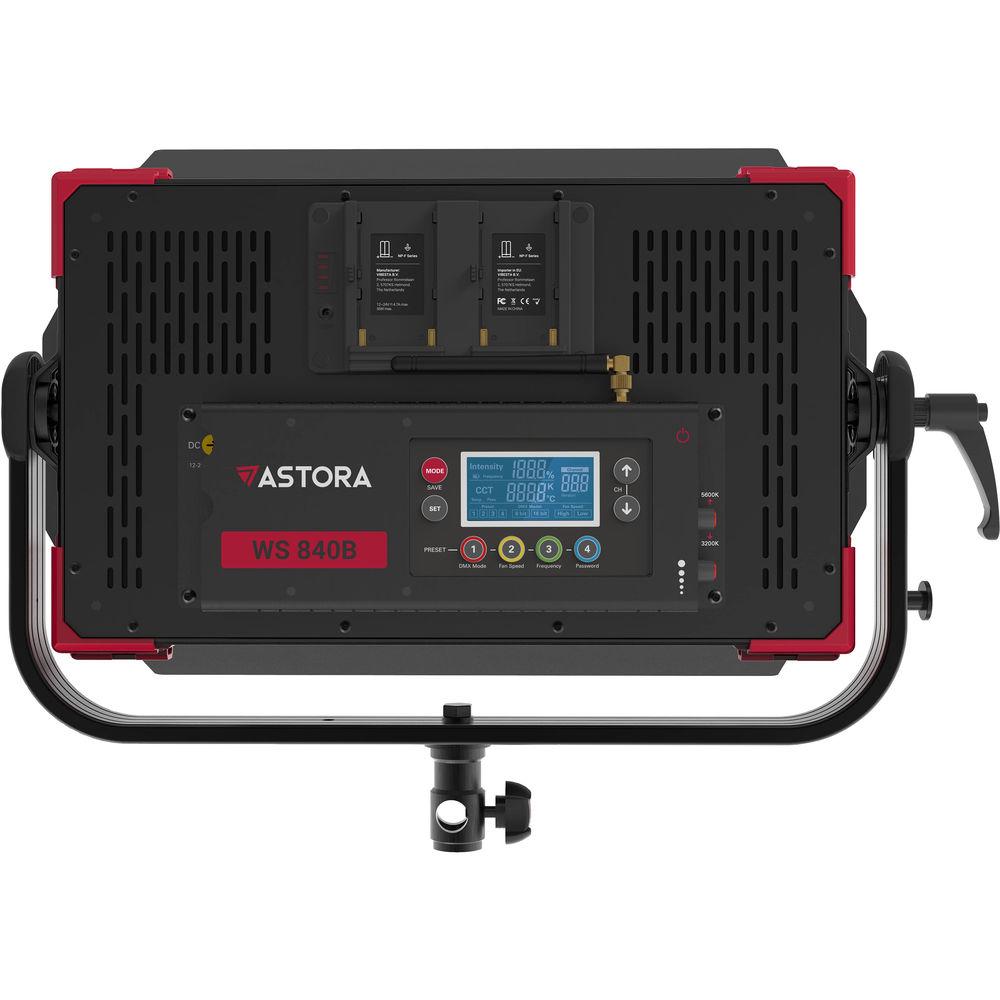

- Integrated controls and battery adapter plate on the light head make it hassle-free to setup and use. No cables or separate controls get in the way.
- Widescreen
- Compact in height, the WS 840 features a widescreen aspect ratio, maximizing surface area to produce a soft light that wraps around your subjects.
- Accurate Color Reproduction
- The WS 840 offers precise color reproduction with a TLCI up to 98 and a CRI up to 97.
- Mobile Power Operation
- With its built-in NP-F battery plate, the Astora WS 840 can easily be powered by affordable NP-F type batteries.
- Wireless Control Built-In
- With the integrated wireless control you can easily adjust settings from a distance.
- Fan-Less, Silent Operation
- The light's metal housing was designed and optimized for passive cooling through efficient internal airflow employing a heatsink for fan-less, silent operation.
- Flicker-Free
- Even at high frame rates or shutter speeds the Astora WS 840 delivers consistent lighting without flicker.
- Complete Shooting Kit

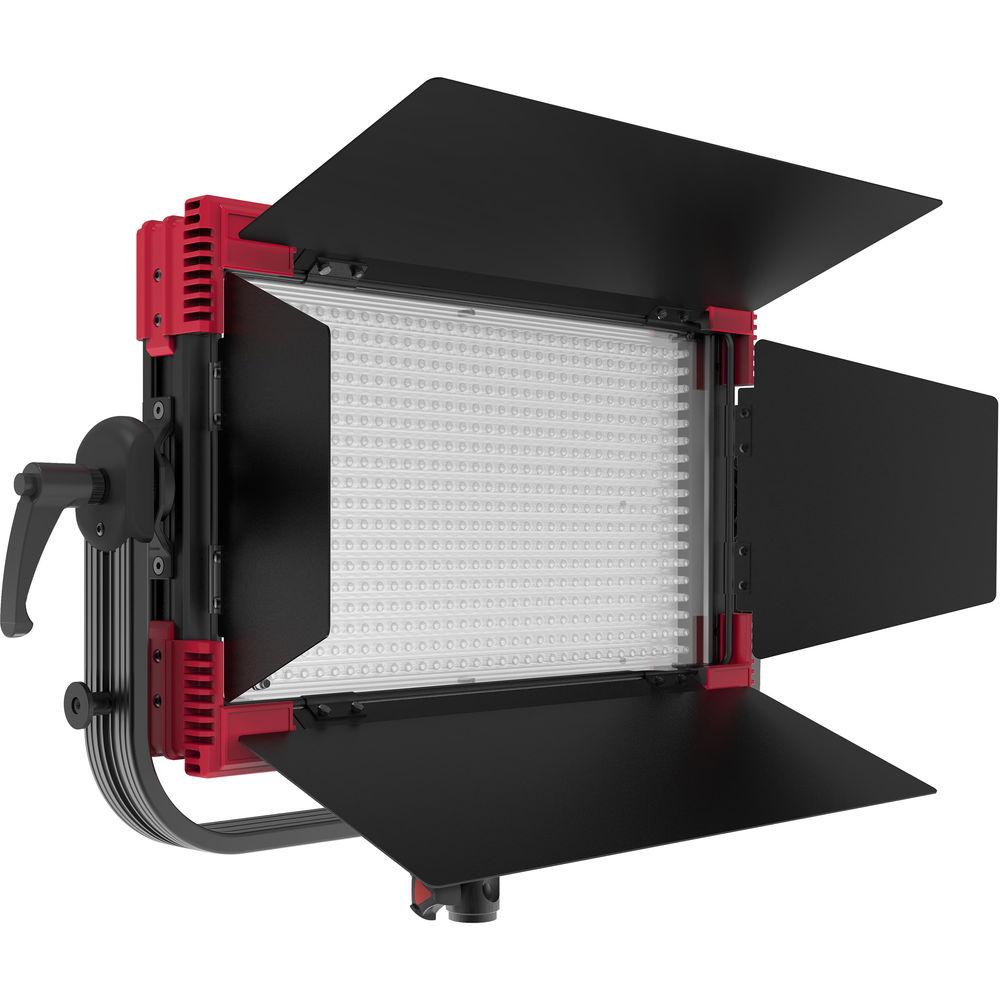

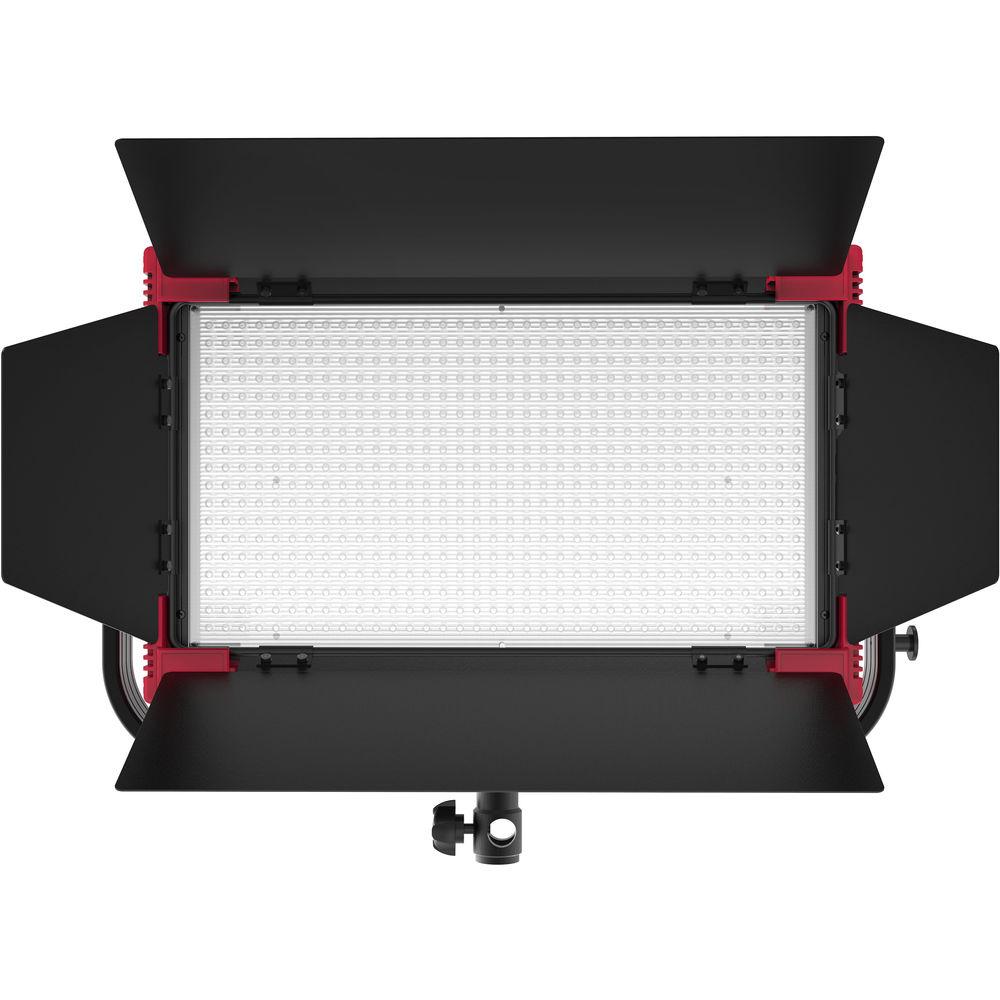

- The Astora WS 840 comes as a complete package including removable barndoors, a remote control for wireless adjustments, and a carrying bag.
In the Box Astora WS 840B Bi-Color Widescreen LED Panel Barndoor Set Remote Control Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astora WS 840B Bi-Color Widescreen LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstora WS 840B Specs | | | Beam Angle | 50° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 97
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Housing Material | Metal | | Photometrics | 618 fc / 6649.7 lux at 3.28' / 1 m | | Number of LEDs | 840 | | Fixture Dimensions | 19.7 x 13.6 x 3.7" / 500.0 x 345.0 x 93.0 mm | | Fixture Weight | 5.73 lb / 2.6 kg (Including Yoke) | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | 4-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery Both Optional | | Max Power Consumption | 56 W | | | | Certifications | CE, FCC, REACH, RoHS, as per Manufacturer | | IP Rating | IP20 |
