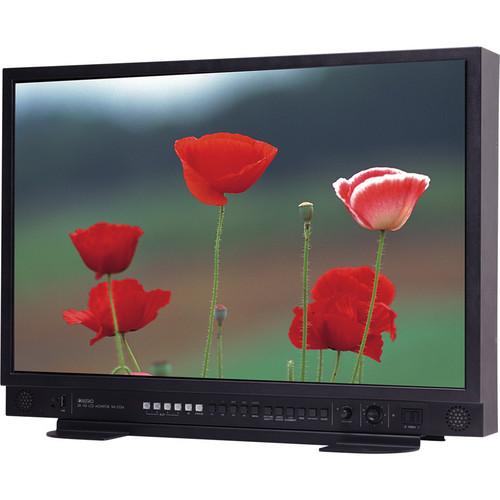

User Manual for Astro Design Inc 3D Engineering Monitor Click to enlarge the picture
Contents of the user manual for the Astro Design Inc 3D Engineering Monitor
- Product category: Production Monitors Astro Design Inc
- Brand: Astro Design Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astro Design Inc Production Monitors
|
User manual for the Astro Design Inc 3D Engineering Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astro Design Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astro Design Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astro Design Inc product will considerably shorten its lifespan!
|
Product description The Astro Systems 3D Engineering Monitor (24") is used for 3D acquisition and video engineering, and offers a resolution of 1920 x 1200 and 178° wide viewing angle. The completed 3D image is circularly polarized using the x-pol filter to reduce glare and sharpen pictures. The built-in 3D processor displays the 3D formats (line-by-line, field sequential and side-by-side) as a 3D picture directly; it can automatically process 2 HD-SDI (single/dual) signals simultaneously to offer high-quality 3D pictures. The 2 HD-SDI input modules connect 3D cameras directly to the monitor without needing any 3D composer in between, providing full HD for both left and right eye with minimum delay. Even inside the monitor, the delay is 0.1 to 3 ms at maximum. A horizontal (-128 to +127 pixels) and vertical (-64 to +63 lines) image shift function helps in fine adjustment of L and R camera positions and a zooming function in pixel-by-pixel image monitoring. If the footage is recorded with a mirror rig, L/R image can be inverted to provide the correct representation of the image. Functions such as marker display and an audio level meter ensure precise monitoring of the recorded video. The USB port serves to upload/download pictures conveniently. - 24" 3D LCD monitor with a resolution of 1920 x 1200 and 178° wide viewing angle
- Circular polarization reduces glare and sharpens pictures by converting linearly polarized light that causes light cancellation or under exposure
- Directly displays 3D formats (line-by-line, field sequential, and side-by-side) as 3D picture
- Automatically processes 2 HD-SDI (single/dual) signals simultaneously, offering high-quality 3D picture
- 2 HD-SDI input modules make it possible to connect directly from 3D cameras
- Full HD is available for both right and left eye
- Cuts down the need of a 3D composer as the 2 HD-SDI input modules make it possible to connect directly from 3D cameras, therefore minimum delay
- Even inside the monitor, the delay is 0.1 to 3 ms at maximum
- Dual link, SMPTE-372M input is available for both L and R channel as optional
- Horizontal (-128 to +127 pixels) and vertical (-64 to +63 lines) image shift function for fine adjustment of L and R camera position
- Zooming function for pixel by pixel image monitoring
- The position you want to check can be easily selected
- L/R image can be inverted to avoid mirror rig
- Supports image conversion function for input signal
- Marker display and an audio level meter for precise monitoring
- View difference from L to R can be measured by cursor enabling you to see on screen how many pixels between L and R
- L/R outline peaking, exaggeration function is supported respectively for fine focus adjustment of both L and R cameras
- Supports very high speed for 3D signal switching before the monitor as compared to other normal 3D monitors, which take switching speed much longer than SM-3324
- Picture upload & download via USB
- 3D still image can be derived from USB port
In the Box Astro Design Inc 3D Engineering Monitor (24") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc 3D Engineering Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc DM-3115 Specs | Input | HD-SDI: 2ch/slot, 2 slots (another 2 slots as optional)
Unbalanced AES/EBU: 4 Pairs
Analog RCA: L/R | | Output | HD-SDI: 1ch/slot (monitor out) Unbalanced AES/EBU: 4 Pairs Analog RCA: L/R (speaker out) | | Signal | HD-SDI: SMPTE292M
Dual Link HD-SDI: SMPTE372M (as optional) | | Format | HDTV:
1080i60/59.94/50 1080p30/29.97/25/24/23.98 1080sF30/29.97/25/24/23.98 720p60/59.94/50/30/29.97/25/24/23.98 | | Control | GPI: D-Sub 15pin | | Display | LCD panel: S-IPS Color depth: 8Bit Contrast: TBD Brightness: TBD Response time: 5 msec (grey to grey) View angle: 178° Resolution: 1920 (H) x 1200 (V) | | Power Requirements | AC100 to 240V, 50/60Hz | | Power Consumption | 95W, typical | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 21.7 x 15.4 x 4.8" (552 x 390 x 123mm) - 1 RU, excluding projected parts | | Weight | 22 lbs (10kg) |
