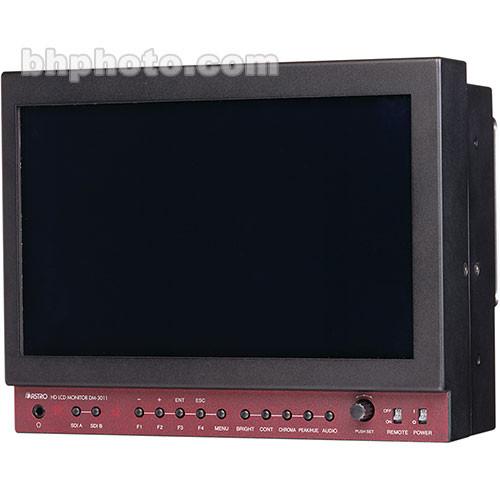

Product description The Astro Design DM-3011-L is a high quality 9" TFT LCD designed for both field monitoring and studio applications. Along with its ability to display bright 1920 x 1080 HD images, the monitor provides heads-up displays for information such as audio channels, time code, peaking, and markers. This gives the camera operator quick reference settings without interfering with the frame. Virtually all HD format signals are supported through the two HD/SD-SDI inputs. - 2 SDI and 1 HD analog signal input jacks
- Compatible with 23 kinds of HDTV and two kinds of SDTV image formats
- Supports tally signal 2-channel input
- Brightness, contrast, and chroma-level adjustments
- Marker display function (center, frame, 4:3, 13:9, 14:9, 2.35:1, 1.85:1, 1.66:1)
- CRCC error detection / input channel display function (when HD-SDI is input)
- Viewing angle: 170° above and below 170° left and right
In the Box Astro Design Inc DM-3011-L 9" LCD Wide Monitor AC/DC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc DM-3011-L 9" LCD Wide Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc DM-3011-L Specs | Application | Professional Studio, Field, Broadcast Monitoring | | Video System | NTSC, PAL | | LCD Size | 9" | | Picture Elements | 800 x 480 | | Input and Output Connectors | HD/SD-SDI: BNC (x2 Input)
Composite: BNC (x1 Input)
Monitor: BNC (x1 Loopthrough Output)
Control: RS-485 (x2)
Tally: 15-pin D-Sub (x1) | | Picture Controls | Brightness, Contrast, Chroma | | Remote Control | No | | Power Requirements | 12VDC (10-18 VDC, Canon Connector) | | Power Consumption | 20W | | Dimensions (WxHxD) | 8.7 x 6.9 x 3.4" (22.1 x 17.5 x 8.6 cm) | | Weight | 3.5 lbs (1.6kg) |
