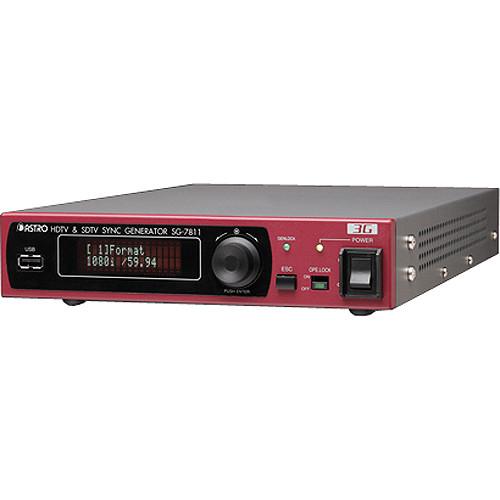

Product description The Astro Design HD/3G-SDI Sync Generator outputs BB (Black Burst) or HD tri-level synchronization signals, with a high level of stability and accuracy. Equipped with 3 channels providing 2 outputs each (6 outputs total), the generator lets you allocate either BB or HD tri-level sync output to each channel.
Capable of working as a signal generator with 3G/HD-SDI output (1 channel 2 outputs), it can also process external reference input (BB / tri-level) to produce an output sync genlocked with the reference input.
The output sync is phase-adjustable with a pattern generator function providing video output synchronization. It is also equipped with an embedded audio generator function with selectable output channel, amplitude, and frequency. The time code embedded function of the generator is used for synchronization, logging, and identifying audio content. You can save the customized image in the user pattern area via the USB. - BB / HD tri-level synchronized video output
- BB (Black Burst) - no picture information carried to avoid disturbing the timing signals
- HD tri-level sync - signal that initially goes from 0 volts DC to a negative voltage, then a positive voltage, before returning to 0 volts DC all over again resulting in the elimination of DC offset for easy signal processing
- 6 Outputs (2 Outputs x 3 Channels)
- Assign either BB or HD tri-level sync output to each channel
- Works as a pattern generator with 3G/HD-SDI output (1 channel)
- 15 internal patterns (bars, lip sync etc.) and one picture can be recorded via USB port
- Processes external reference input (BB / tri-level) and outputs sync genlocked with the reference input
- Genlock - video output of one source, or a specific reference signal, is used to synchronize other sources together to ensure the coincidence of signals in time at a combining / mixing / switching point
- Output sync is phase adjustable with a pattern generator function
- 16-channel embedded audio generator function with selectable output channel, amplitude, and frequency
- Embedded audio when 1280 x 720 30p/29.97p/25p/24p/23.98p are selected
- Time code embedded function for synchronization, logging, as well as identifying audio content
- VITC/LTC when 1280 x 720 60p/59.94p/50p are selected
- VITC (Vertical Interval Timecode) - form of SMPTE time code embedded as a pair of B&W bars in a video signal, typically inserted into the vertical blanking interval of the video signal, used to encode extra data that will not fit in a standard time code frame
- LTC (Linear Timecode) - encoding of SMPTE time code data as an audio signal provides an even number of AC transitions in each time code frame
- Save the customized image in the user pattern area via the USB
In the Box Astro Design Inc HD/3G-SDI Sync Generator Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc HD 3G-SDI Sync Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc SG-7811 Specs | Input | Reference Input
HD tri-level sync signal input (compliant with SMPTE240M/274M/296M standards)
NTSC: BB sync signal input (compliant with EIA RS-170A standard)
PAL: BB sync signal input (compliant with ITU-R BT.470-6 standard) 274M does not support 1080p/60, 59.94 and 50 Hz | | Output Signal | Sync Out: 3 channels (2 distributed outputs for each channel)
HD tri-level sync signal (compliant with SMPTE240M/274M/296M standards)
NTSC: BB sync signal (compliant with EIA RS-170A standard)
PAL: BB sync signal input (compliant with ITU-R BT.470-6 standard)
SDI Out: 1-channel (2 distributed outputs)
3G-SDI Compliant with SMPTE424M standard in part
HD-SDI Compliant with SMPTE292M standard
Embedded Audio compliant with SMPTE299M standard. 274M does not support 1080p/60, 59.94 and 50 Hz
YPbPr422 10 bits only supported for Level B | | Interface | USB connector (series A) | | Power Voltage | 12 VDC (10 to 18 V supported), AC/DC adapter (100 to 240 VAC supported) | | Power Consumption | Maximum 25 W | | Operating Conditions | 41 to 104°F (5 to 40°C), 30 to 80% RH (no condensation) | | Dimensions (W x H x D) | 8.3 x 1.7 x 12.2" (21.0 x 4.4 x 31.0 cm) 1U half size | | Weight | Approximately 4.4 lb (2.0 kg) |
