User Manual for Astro Design Inc HD LCD Wide Monitor Click to enlarge the picture
Contents of the user manual for the Astro Design Inc HD LCD Wide
- Product category: Production Monitors Astro Design Inc
- Brand: Astro Design Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Astro Design Inc Production Monitors
|
User manual for the Astro Design Inc HD LCD Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Astro Design Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Astro Design Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Astro Design Inc product will considerably shorten its lifespan!
|

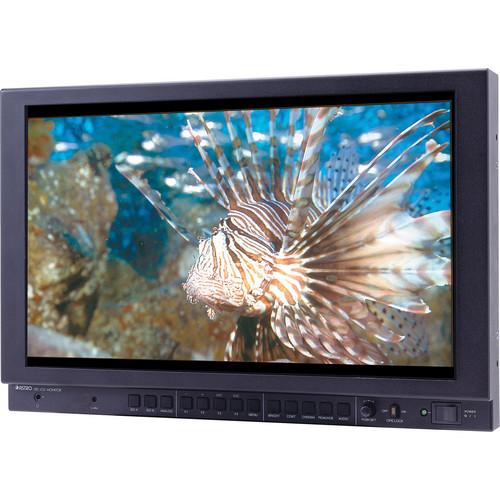

Product description The Astro Systems HD LCD Wide Monitor (15") is a widescreen monitor that supports 23 kinds of HDTV and 2 kinds of SDTV image formats. With a TFT liquid crystal panel, the monitor displays full screen hi-vision (16:9), and is suitable for use while shooting video in the studio, in OB vans, and at location sites. The monitor offers high brightness, high contrast, chroma-level adjustments, and a wide field-of- vision (up to 170°). It offers a broad range of display functions such as marker display function, CRCC error detection, and an input channel display function. The unit features easy-to-use front switches, 2 SDI signal input and 1 analog-composite input jacks, and a tally signal 2-channel input. - 15" wide TFT liquid crystal panel; field of vision extends 170° horizontally
- Compatible with 23 kinds of HDTV and 2 kinds of SDTV image formats
- Brightness, contrast, and chroma-level adjustments
- Marker display function (center, frame, 4:3, 13:9, 14:9, 2.35:1, 1.85:1, and 1.66:1)
- CRCC error detection / an input channel display function (when HD-SDI is input)
- Easy-to-use front switches
- 2 SDI signal input and 1 analog-composite input jacks
- Supports tally signal 2-channel input
In the Box Astro Design Inc HD LCD Wide Monitor (15") AC Cord Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc HD LCD Wide Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc DM-3115 Specs | Standard | NTSC/PAL | | Screen Size | 15" | | Screen Type | IPS LCD | | Resolution | 1280 x 768 | | Brightness | 470 cd/m2 | | Viewing Angle | 170° (U/D/L/R) | | Input Formats | HDTV: SMPTE 274M, 296M / SMPTE 292M, BTA S-004B
SDTV: SMPTE 259M | | Interface | HD/SD-SDI Input: x2
Looping: x1
Composite: x1 | | Power Requirements | 100-240VAC | | Power Consumption | 40W typical | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 15 x 9.9 x 2.8" (380 x 252 x 70mm) - 6RU | | Weight | 10.3 lbs (4.7kg) |
