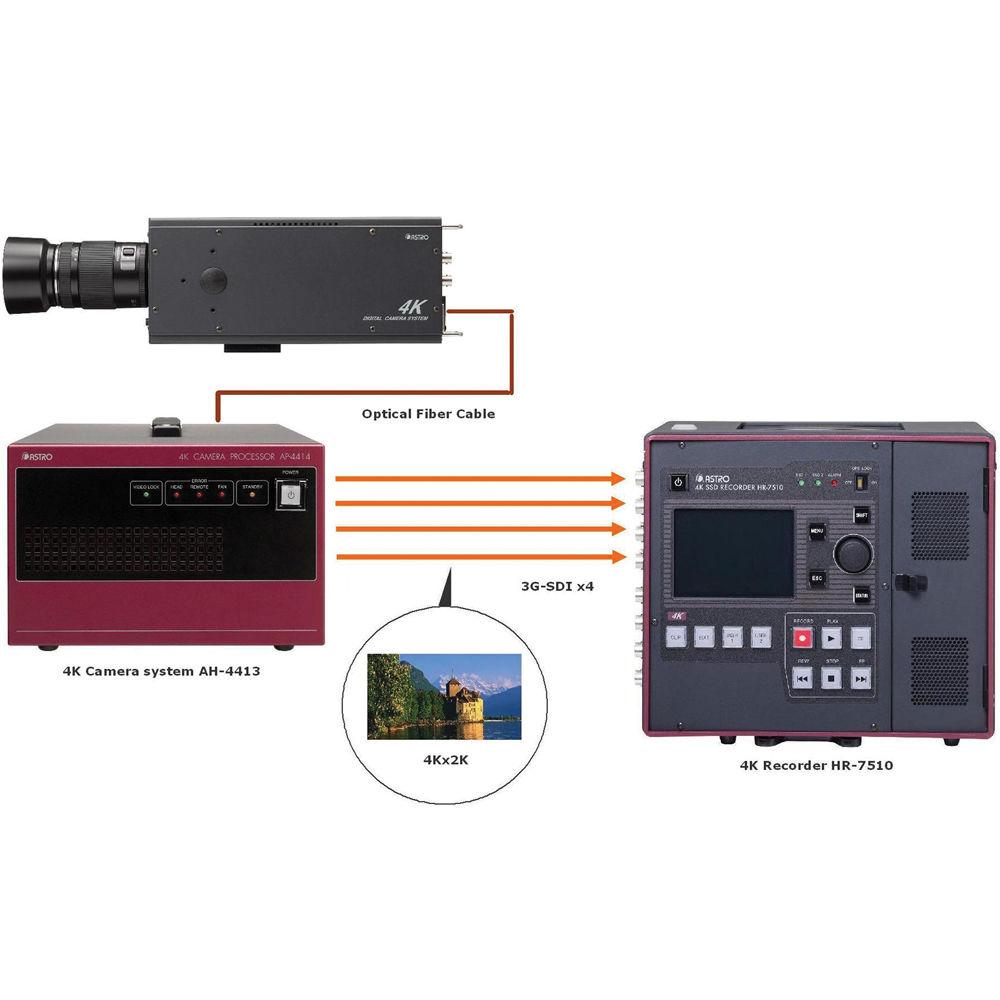

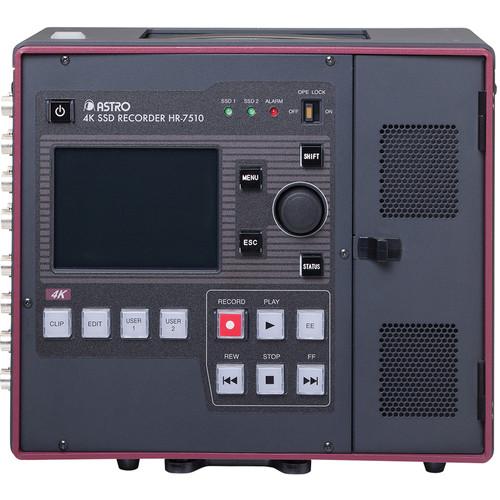

Product description The HR-7510 from Astro Design Inc. is a portable uncompressed 4K SSD recorder that supports up to 4K resolution at 60p over 3G-SDI inputs. It also supports all formats from the Canon C500, including 4K RAW, half-size RAW, 2K RGB 4:4:4 12/10-bit, and 2K YCbCr 4:2:2 10-bit. Footage can be monitored and played back on a built-in 3.5" LCD, or on an external display via the two HD-SDI outputs. When working with Canon RAW, the footage is debayered to RGB or YUV for externally monitoring, with the output color viewable in the original Canon Log, or with Rec.709, WideDR, or Cineon display LUTs. Additional features include embedded time code support, camera/lens metadata capturing, and a SAS interface for transferring your data.
Note: Requires Astro Design SSD Packs, available in 320GB and 1.3TB pairs. - Main Features
-
- Captures up to 4K 4096x2160
- 60p and variable frame rate support
- Requires Astro Design SSD packs

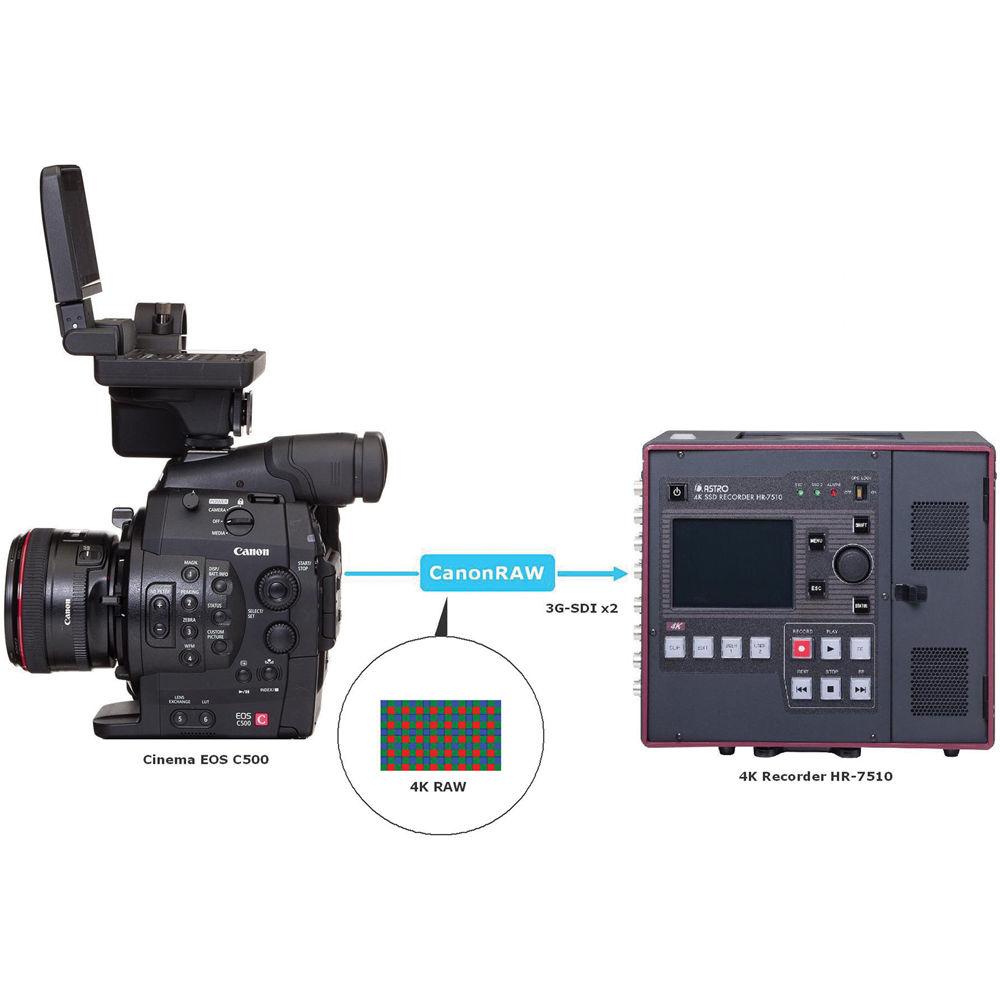

- Supports 4K RAW, Half size RAW, 2K RGB 4:4:4, and 2K YCbCr 4:2:2 from Canon EOS C500
- Real time Cannon RAW debayering output for monitoring
- Canon Log to Rec.709, WideDR, or Cineon display LUTs
- 4x 3G-SDI inputs & outputs
- 2x HD-SDI monitoring outputs
- Time code embedded, LTC and internal
- Data transfer by SAS interface or optional data transfer box (model HB-7511)
- 3.5" preview LCD
- Camera/Lens metadata capturing
- Camera REC start/stop
- Quick start

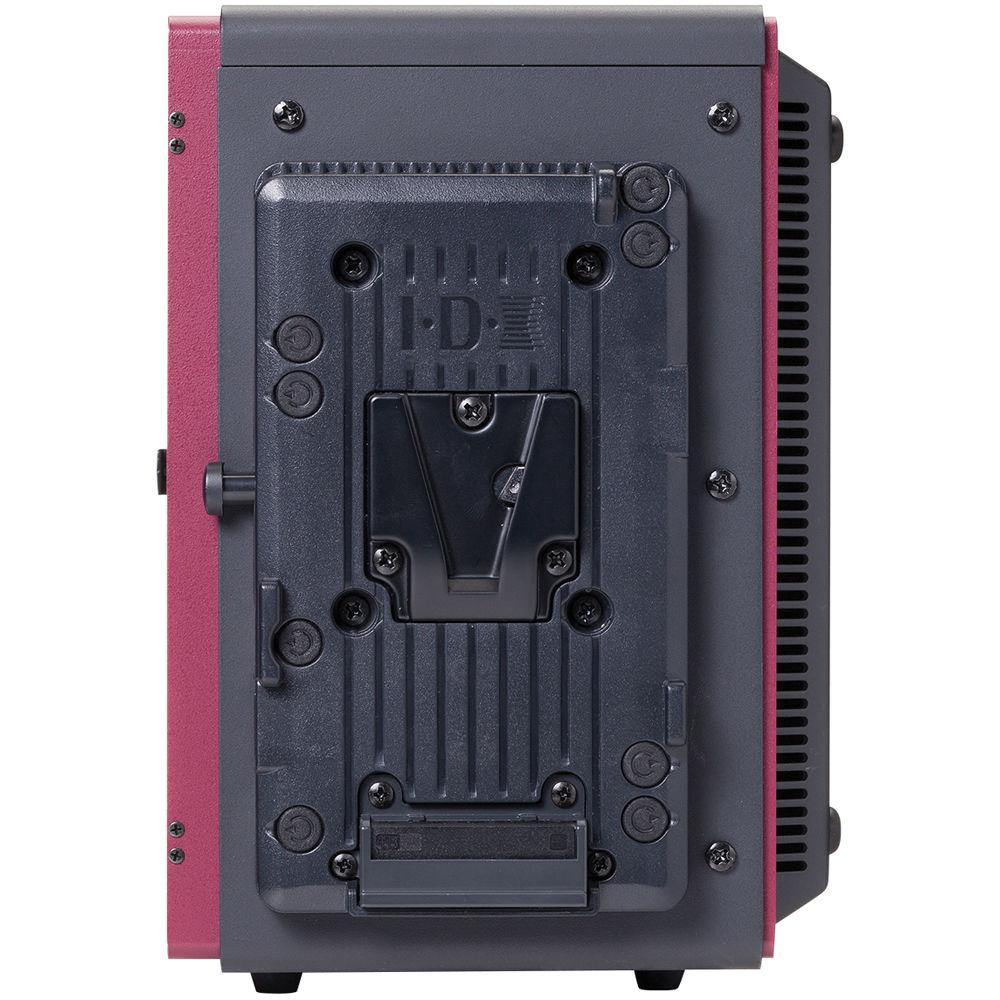

- Optional V-mount battery option
In the Box Astro Design Inc HR-7510 Portable Uncompressed 4K SSD Recorder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc HR-7510 Portable Uncompressed 4K SSD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc HR-7510 Specs | | | SDI | 4 x 3G-SDI | | Formats Supported | Up to 4096x2160 23.98/24/25/29.97/30/50/60p
From Canon EOS C500:
Canon 4K RAW
4096x2160 23.98/24/25/29.97/50/59.94p, slow & fast motion 1-60 fps
3840x2160 23.98/24/25/29.97/50/59.94p, slow & fast motion 1-60 fps
Canon HRAW
4096x1080 50/59.94p, slow & fast motion 1-120 fps
3840x1080 50/59.94p, slow & fast motion 1-120 fps
2K RGB 4:4:4 12-bit / 10-bit
2048x1080 23.98/24/25/29.97/50/59.94p, slow & fast motion 1-60 fps
1920x1080 23.98/24/25/29.97/50/59.94p, slow & fast motion 1-60 fps
2K YCbCr 4:2:2 10-bit
2048x1080 50/60p, slow & fast motion 1-120 fps
1920x1080 50/60p, slow & fast motion 1-120 fps

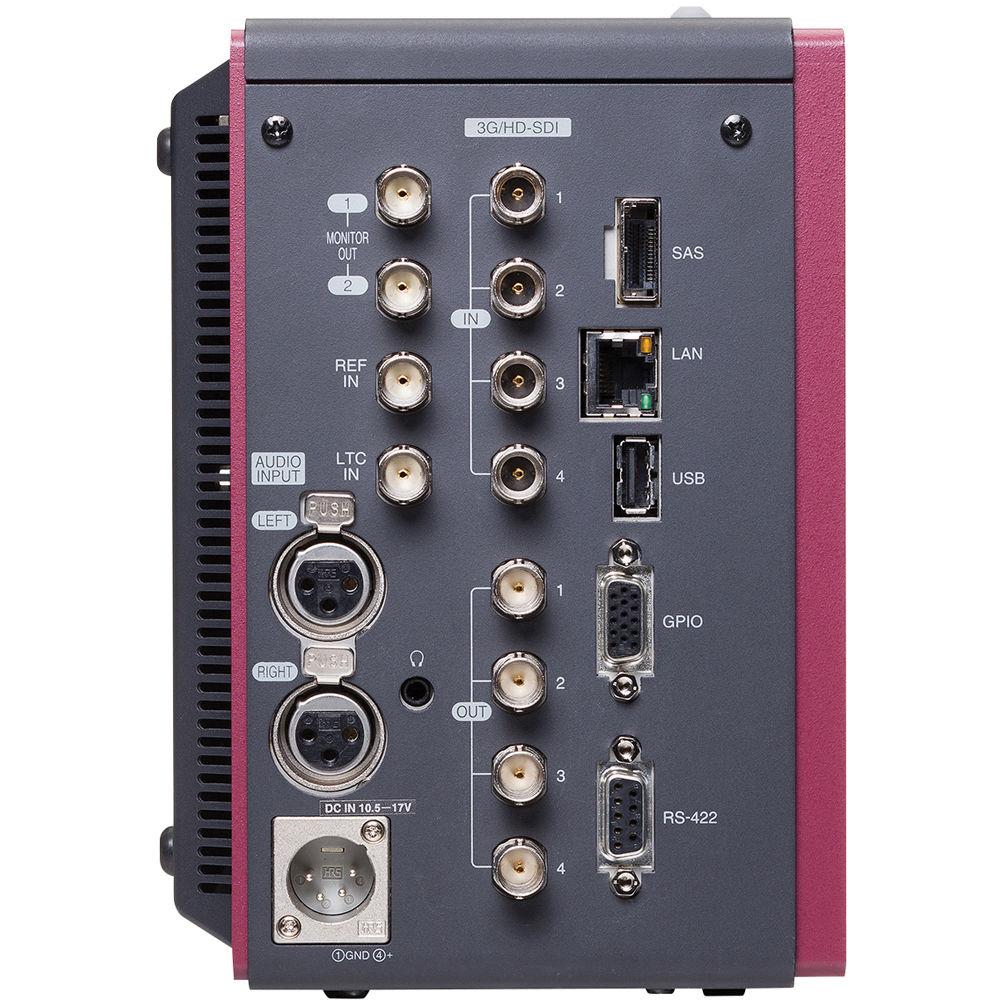

| | Audio | 2 x XLR 3-pin | | Reference | BNC connector, HD tri-level or BB | | | | SDI | 4 x 3G-SDI (SMPTE 424M compliant) | | Monitor Out | 2 x HD-SDI (SMPTE 292M/372M compliant) | | Resolution | 2048x1080
1920×1080
| | Color Space | YCbCr 4:2:2 10-bit / RGB 4:4:4 12-bit | | Frame Rate | 23.98/24/25/29.97/30/50/60p | | Headphone Output | Mini jack | | | | LTC Input | BNC connector, SMPTE 12M compliant | | SDI | Embedded | | Internal | Internal time clock | | | | Media | 2 x SSD bays | | Recording Time | Canon 4K RAW
24p: 12.5 min. (320GB SSD), 50 min. (1.3TB SSD)
25p: 12 min. (320GB SSD), 48 min. (1.3TB SSD)
30p: 10 min. (320GB SSD), 40 min. (1.3TB SSD)
50p: 6 min. (320GB SSD), 24 min. (1.3TB SSD)
60p: 5 min. (320GB SSD), 20 min. (1.3TB SSD)
Canon 4K HRAW
120p: 5 min. (320GB SSD), 20 min. (1.3TB SSD)
4096x2160 / 3840x2160 RGB 4:4:4 10-bit
24p: 6.25 min. (320GB SSD), 25 min. (1.3TB SSD)
25p: 6 min. (320GB SSD), 24 min. (1.3TB SSD)
30p: 5 min. (320GB SSD), 20 min. (1.3TB SSD)
4096x2160 / 3840x2160 YCbCr 4:2:2 10-bit
24p: 12.5 min. (320GB SSD), 50 min. (1.3TB SSD)
25p: 10 min. (320GB SSD), 40 min. (1.3TB SSD)
30p: 5 min. (320GB SSD), 20 min. (1.3TB SSD)
2K RGB 4:4:4 10/12-bit
24p: 16.5 min. (320GB SSD), 66 min. (1.3TB SSD)
30p/60i: 13 min. (320GB SSD), 52 min. (1.3TB SSD)
25p/50i: 16 min. (320GB SSD), 64 min. (1.3TB SSD)
50p: 8 min. (320GB SSD), 32 min. (1.3TB SSD)
60p: 6 min. (320GB SSD), 25 min. (1.3TB SSD)
2K YCbCr 4:2:2 10-bit
24p: 27.5 min. (320GB SSD), 110 min. (1.3TB SSD)
30p/60i: 26 min. (320GB SSD), 105 min. (1.3TB SSD)
25p/50i: 22 min. (320GB SSD), 88 min. (1.3TB SSD)
50p: 13 min. (320GB SSD), 52.5 min. (1.3TB SSD)
60p: 11 min. (320GB SSD), 44 min. (1.3TB SSD)
120p: 5.5 min. (320GB SSD), 22 min. (1.3TB SSD) | | | | Interface | SAS | | Connector | SFF-8088 Mini Multilane 4X | | Cable Length | 3.3' (1 m) | | | | Type | RS-422 9-pin protocol
GPIO 15-pin
LAN RJ45
USB | | | | Power Input | XLR 4-pin, 10.5 to 17 VDC | | Power Consumption | 65 W max. | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 30 to 80% (no condensation) | | Dimensions (WxHxD) | 8.37 x 7.24 x 5.06" (21.25 x 18.40 x 12.85 cm), excluding protrusions | | Weight | Approx. 7.7 lb (3.5 kg) |
