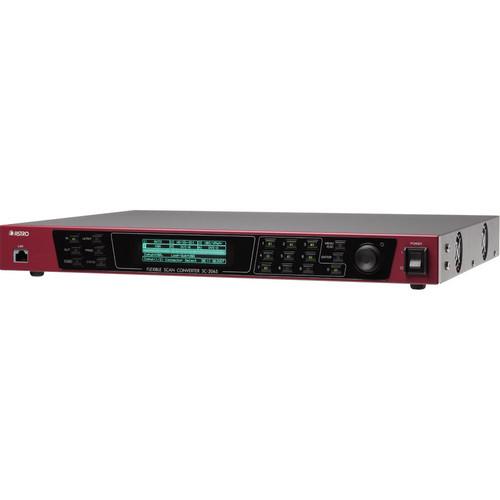

Product description The Astro Design Inc SC-2065 Flexible Scan Converter enables you to perform conversions between various format signals, interface, and aspect ratio conversions. Supporting a wide range of input interfaces such as HD/SD-SDI, DVI-D, YPbPr, RGB, and VBS, it is suitable for a wide variety of input signal formats. Using 12-bit per-pixel motion adaptive IP conversion technology with unique edge improving filter and TERA, and 12-bit scaling technology with zooming rate adaptive coefficient filter, the all-in-one flexible converter also includes astrosnap, which consistently delivers high quality outputs.
Featuring a flexible masking layout, the SC-2065 Flexible Scan Converter allows trimming of desired input area and allows user defined output positioning functions suitable for applications like image editing, impressive presentation, specific event, large scale display system, etc. It offers an easy menu operation with a simple menu and large display and includes buttons on the front, for ease of access to frequently used setting such as in, out and layout. In addition, it includes features such as web based GUI controller (future support), system parameter saving, input timing auto sense, etc. - Enables you to perform conversions between various format signals, interface and aspect ratio conversions
- Supports a wide range of input interfaces such as HD/SD-SDI, DVI-D, YPbPr, RGB, and VBS
- Suitable for a wide variety of input signal formats
- 12bit per-pixel motion adaptive IP conversion technology with unique edge improving filter and TERA
- 12bit scaling technology with zooming rate adaptive coefficient filter
- Consistently delivers high quality outputs
- Features a flexible masking layout
- Allows trimming of desired input area and allows user defined output positioning functions suitable for applications like image editing, impressive presentation, specific event, large scale display system, etc.
- Offers an easy menu operation with a simple menu and large display
- Includes buttons on the front, for ease of access to frequently used setting such as in, out, and layout
- Includes features such as web based GUI controller (future support), system parameter saving, input timing auto sense, etc.
In the Box Astro Design Inc SC-2065 Flexible Scan Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc SC-2065 Flexible Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc SC-2065 Specs | HD-SDI Interface | Scanning: progressive/interlace
Input:1 BNC 1-channel with monitor out
Output: BNC 2-channel
Signal: SMPTE292M
Timing: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 720p60/59.94/50/30/29.97/25/24/23.97
Color: YPbPr (SMPTE240M, 274M, 296M)
Bit depth: 10bit | | SD-SDI Interface | Scanning: interlace
Input BNC 1-channel with monitor out (common with HD-SDI)
Output: BNC 2-channel (common with HD-SDI)
Signal: SMPTE259M-C
Timing: 525i59.94, 625i50
Color: YCbCr (SMPTE125M)
Bit depth: 10bit | | YPbPr Interface | Scanning: interlace
Input: BNC 1-channel
Output: BNC 1-channel
Color: YPbPr, Y/R-Y/B-Y
Bit depth: 10bit | | VBS Interface | Scanning: interlace
Input: BNC 1-channel (common with Y)
Output: BNC 1-channel (common with Y)
Color: NTSC, PAL
Bit depth: 10bit | | DVI-D Interface | Scanning: progressive/interlace
Input: DVI-I 1-channel
Output: DVI-I 1-channel
Pixel clock: 25-165MHz
H/V frequency: 15-110KHz / 24-150Hz
Resolution: 2560 x 1536
Color: RGB, YPbPr
Bit depth: 8bit
DDC: supported
HDCP: not supported | | VGA Interface | Scanning: progressive/interlace
Input: D-sub 15pin 1-channel with monitor out
Output: D-sub 15pin 1-channel
Pixel clock: 25-165MHz
H/V frequency: 15-110KHz / 24-150Hz
Resolution: 2560 x 1536
Color: RGB, YPbPr, YCbCr
Bit depth: 10bit | | Control | RS-232C via D-sub 9pin | | External Sync | HS/VS TTL: negative
CS: bi-level (0.3Vp-p) and tri-level (0.6Vp-p) | | | | Power Supply Voltage | 100-240V AC | | Power Consumption | 75W | | Operating Temperature Range | 41 to 104° F (5 to 40° C) | | Dimensions (W x H x D) | 17 x 1.73 x 13.77" (430 x 44 x 350 mm)
1U size (excluding projected parts) | | Weight | Approximately 8.8 lb (4 kg) |
