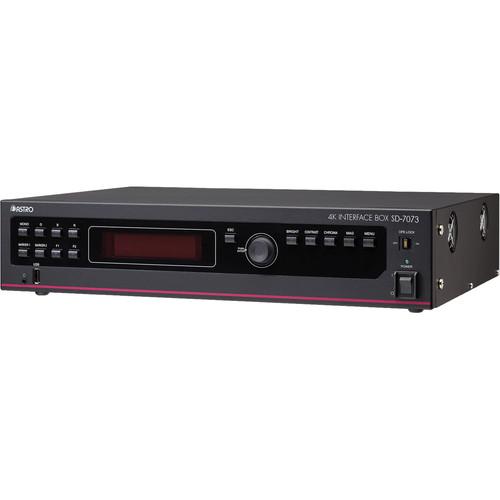

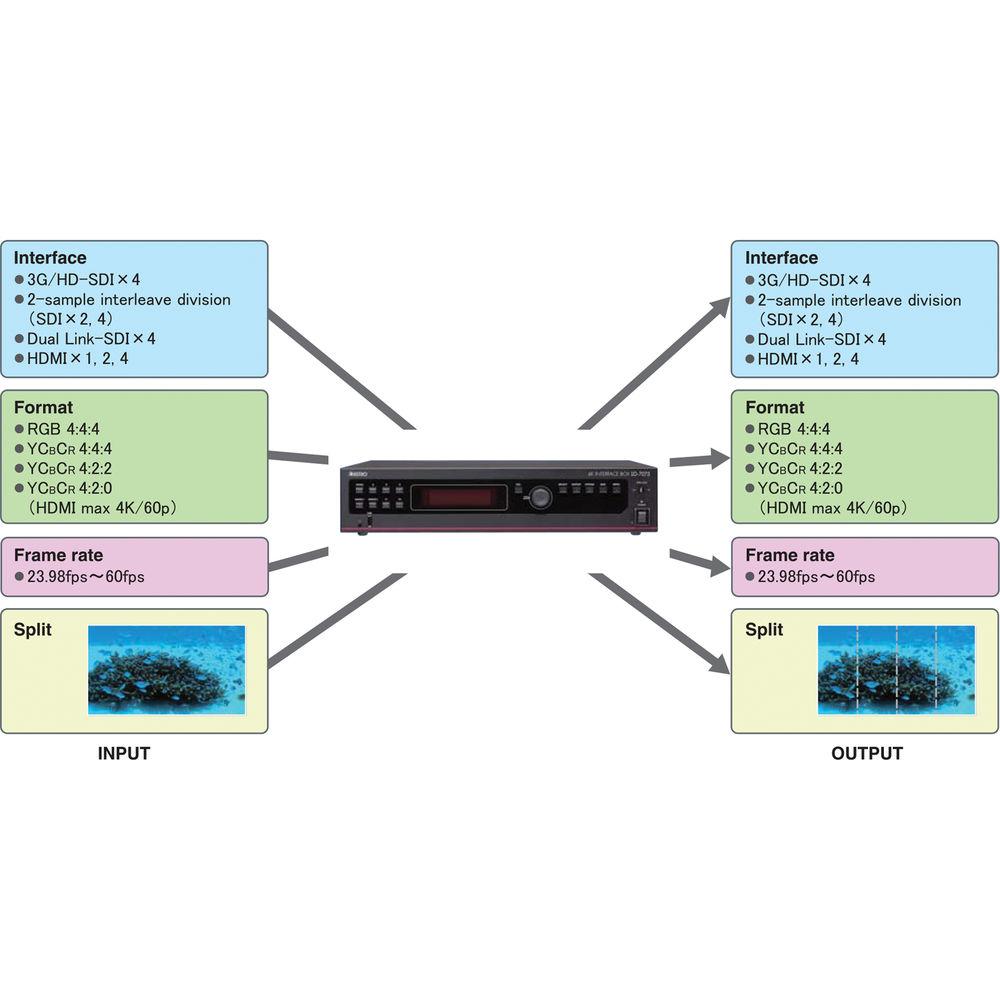

Product description The Astro Design Inc SD-7073 4K Interface Converter features eight 3G/HD-SDI inputs and four HDMI inputs, along with a matching set of outputs that allow you to convert between different 4K interfaces. It supports 4-channel 3G/HD-SDI, Dual-Link HD-SDI, and HDMI, 2-channel 3G-SDI and HDMI, and single-channel HDMI 4K interfaces. In the 4-channel and 2-channel interfaces, each one of the channels handles one quadrant or half of the 4K or Ultra HD image. Additionally, the SD-7073 also provides color format and frame rate conversions, as well as R, G, and B color correction. - Key Features
-
- 4K interface conversion
- Supports 4-channel 3G/HD-SDI, dual-link HD-SDI, and HDMI interfaces
- Supports 2-channel 3G-SDI and HDMI interfaces
- Supports single-channel 4K HDMI interfaces
- Format conversion from RGB to YCbCr and vice versa
- Frame rate conversion (e.g. 60 fps to 24 fps)
- Bit conversion (e.g. 10-bit to 12-bit)
- Display split conversion (e.g. one picture to cross split or vertical split)
- Color correction of offset, gain, and gamma for each R, G, and B channels
- Embedded audio supported
- Simple signal generation
In the Box Astro Design Inc SD-7073 4K Interface Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc SD-7073 4K Interface Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

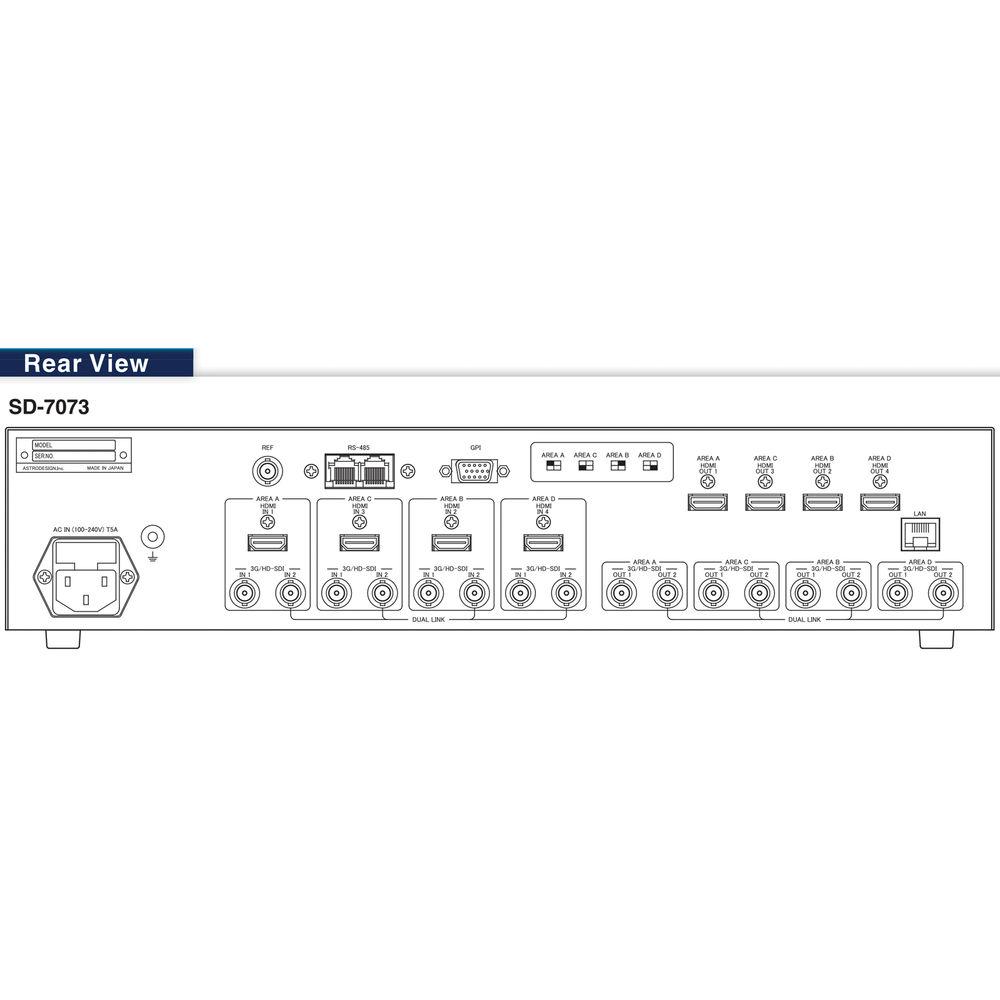

Technical parametersAstro Design Inc SD-7073 Specs | Input Connectors | 8 x 3G/HD-SDI, BNC
4 x HDMI, Type A | | Output Connectors | 8 x 3G/HD-SDI, BNC
4 x HDMI, Type A
1 x Headphone output, 3.5 mm stereo mini-jack | | Supported Formats | 4 x 3G-SDI (Level A, B)
Color Space: YCbCr 4:2:2
Color Depth: 10-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 60p, 59.94p, 50p, 48p
4 x 3G-SDI (Level A, B)
Color Space: YCbCr 4:4:4, RGB 4:4:4
Color Depth: 10-bit/12-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 30p, 29.97p, 25p, 24p, 23.98p, 30psf, 29.97psf, 25psf, 24psf, 23.98psf, 60i, 59.94i, 50i, 48i
2 x 3G-SDI (Level B, 2-sample interleave division)
Color Space: YCbCr 4:2:2, RGB 4:4:4
Color Depth: 10-bit
Resolution: 4096/3840 x 1080 x 2-channels
Frame Rate: 30p, 29.97p, 25p, 24p, 23.98p
4 x 3G-SDI (Level A/B, 2-sample interleave division)
Color Space: YCbCr 4:2:2, RGB 4:4:4
Color Depth: 10-bit/12-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 60p, 59.94p, 50p, 48p
4 x HD-SDI
Color Space: YCbCr 4:2:2
Color Depth: 10-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 30p, 29.97p, 25p, 24p, 23.98p, 30psf, 29.97psf, 25psf, 24psf, 23.98psf, 60i, 59.94i, 50i, 48i
8 x HD-SDI (4x dual-link HD-SDI)
Color Space: YCbCr 4:2:2
Color Depth: 10-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 60p, 59.94p, 50p, 48p
8 x HD-SDI (4x dual-link HD-SDI)
Color Space: YCbCr 4:4:4, RGB 4:4:4
Color Depth: 10-bit/12-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 30p, 29.97p, 25p, 24p, 23.98p, 30psf, 29.97psf, 25psf, 24psf, 23.98psf, 60i, 59.94i, 50i, 48i
4 x HDMI
Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit/10-bit/12-bit
Resolution: 2048/1920 x 1080 x 4-channels
Frame Rate: 30p, 29.97p, 25p, 24p, 23.98p, 30psf, 29.97psf, 25psf, 24psf, 23.98psf, 60i, 59.94i, 50i, 48i
2 x HDMI
Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8-bit
Resolution: 2048/1920 x 2-channels
Frame Rate: 60p, 59.94p, 50p, 48p
1 x HDMI
Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8-bit/10-bit/12-bit
Resolution: 4096/3840 x 2160
Frame Rate: 60p, 59.94p, 50p, 48p, 30p, 29.97p, 25p, 24p, 23.98p (60p, 59.94p, 50p, and 48p are 4:2:0 8-bit only)
| | Reference | HD Tri-level, BB | | Control | 1 x 15-pin D-sub | | Power Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 60 W | | Operating Temperature | 32 to 104°F (0 to 40° C) | | Relative Humidity Range | 30 to 80% (no condensation) | | Dimensions | 16.9 x 3.5 x 11.8" (43.0 x 8.8 x 30.0 cm) (excluding protrusions) | | Weight | 9.9 lb (4.5 kg) |
