Product description The WM-3206 4K Waveform Monitor from Astro Design Inc is a 17" multi-monitor that can display picture, waveform, and vector of HD/SD-SDI signals up to four channels onto one screen. The WM-3206 can act as a powerful substitute of several picture monitors and waveform monitors with only one unit. Also, use of the same LCD panel can guarantee uniformity of colors, with no need to consider different color expressions of different monitors. To improve the usability for video engineers, the monitor allows to design its layout, such as positions or sizes of picture/waveform/vector. - Ideal for monitoring 4K2K/QFHD video
- Four channels of HD-SDI can be shown in one unit

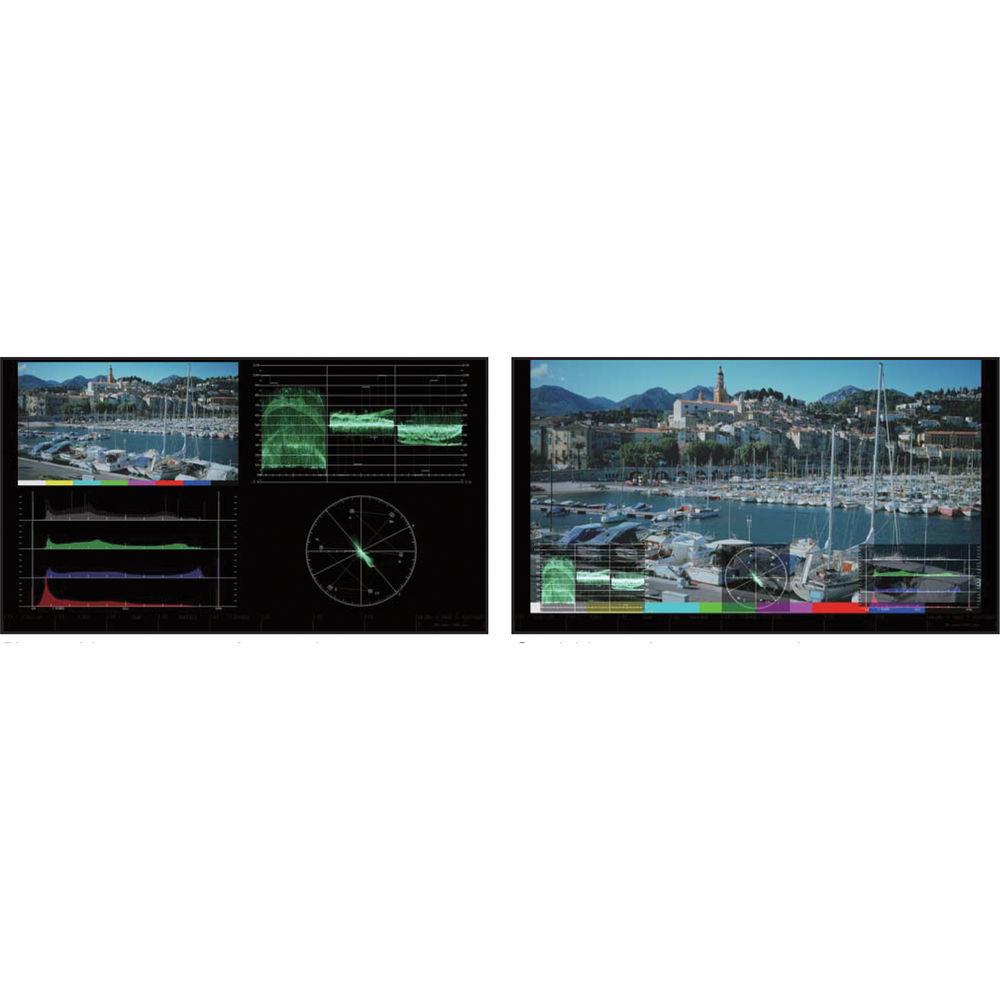

- Picture, waveform, vector, histogram, X-Y colorimetry, phase comparison, and audio Lissajous curves
- Synchronization with CCU and switcher
- Video adjustment functions include brightness, contrast, and chroma level
- Customizable one-touch switches
- Quasi-composite waveform display

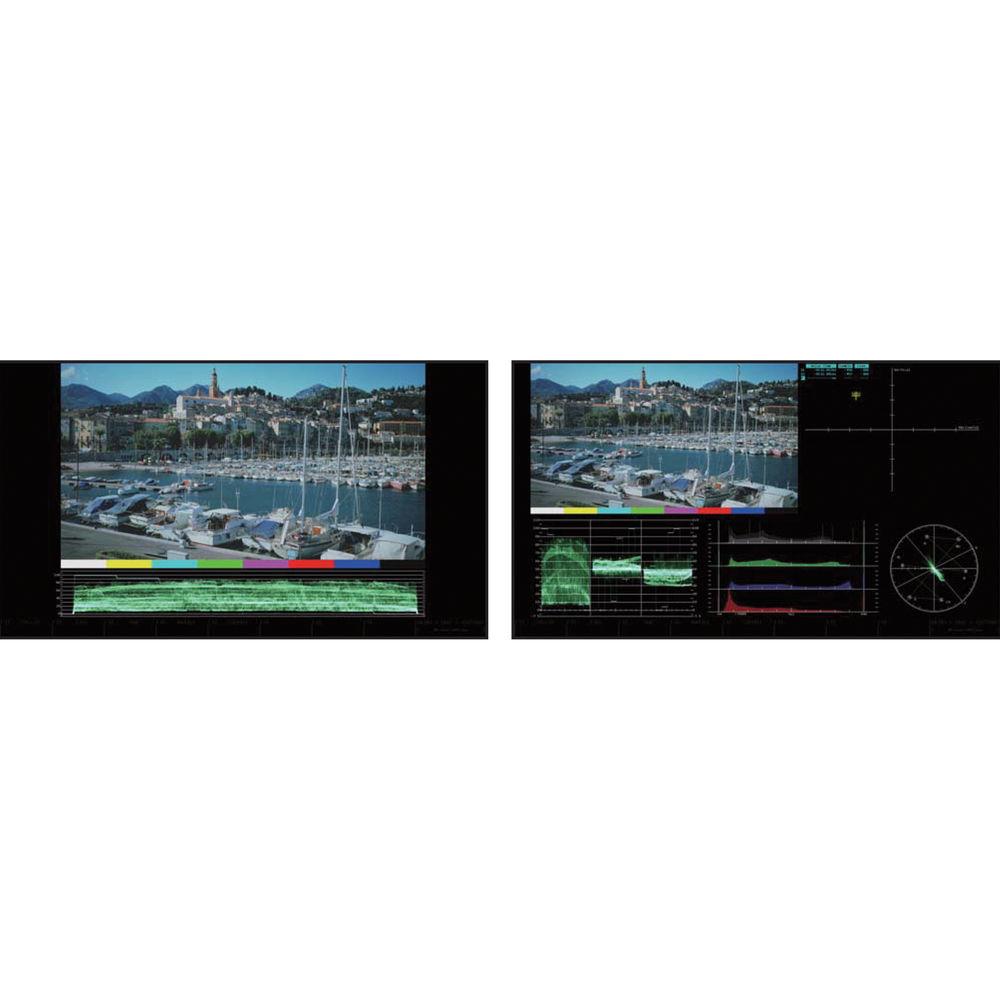

- Layout-free display assignment and 32 presets for instant call
- Dot-by-dot, x2, and x4 zooming for critical focus
In the Box Astro Design Inc WM-3206 4K Waveform Monitor (17") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Astro Design Inc WM-3206 4K Waveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstro Design Inc WM-3206 Specs | Size | 17" / 43.2 cm | | Panel Type | IPS | | Resolution | 1280 x 768 | | Brightness | 500 cd/m² | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Backlight | White LED | | Compliance | 3G-SDI: SMPTE 424M
Dual Link HD-SDI: SMPTE 372M
HD-SDI: SMPTE 292M | | Frame Rate | 60/59.94/50p
60/59.94/50i

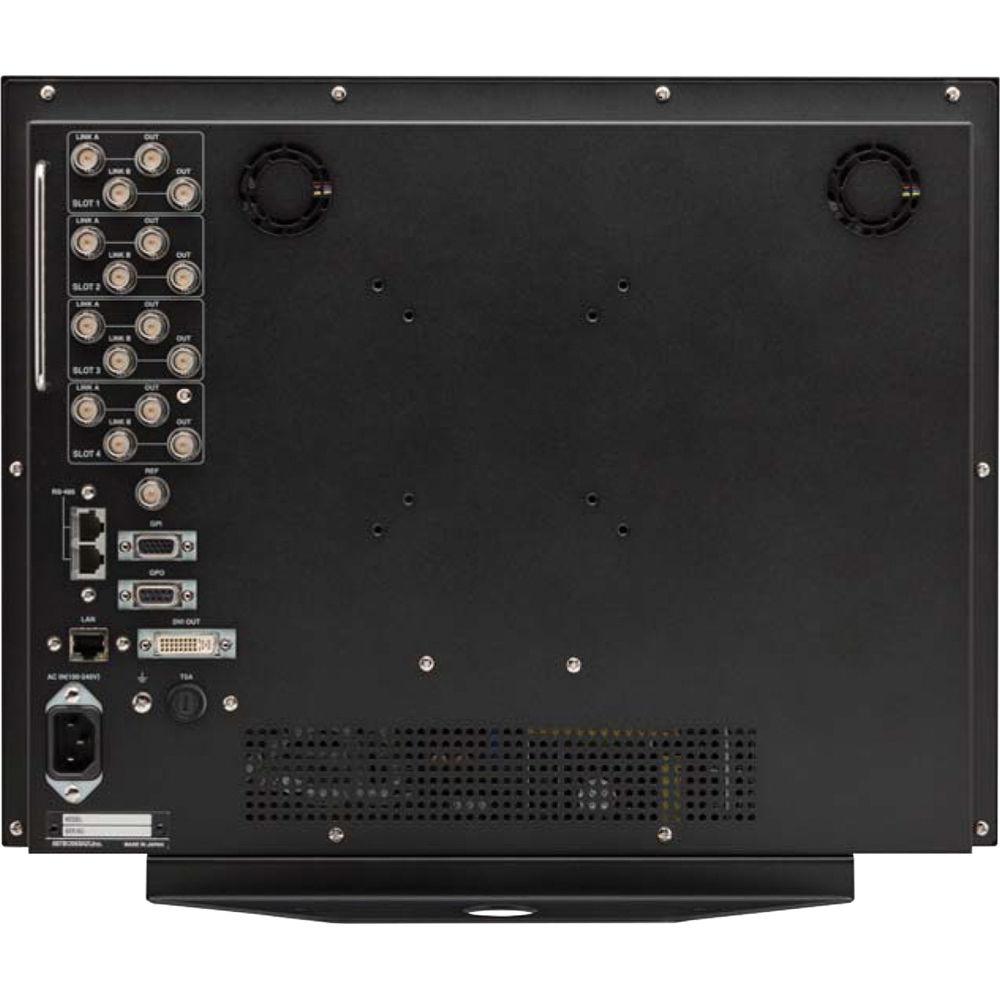

30/29.97/25/24/23.98PsF | | Connectors | 4 x BNC Link A, SDI Video Input
4 x BNC Link A, SDI Video Loop-Output
4 x BNC Link B, SDI Video Input
4 x BNC Link B, SDI Video Loop-Output
1 x BNC, Video Reference Input
1 x DVI, Video Output
1 x 3.5mm Jack, Headphones Output
1 x RJ45, LAN UMD / Layout GUI
2 x RJ45, RJ485 Control
1 x 15-Pin Sub-D, GPI Control
1 x 9-Pin Sub-D, GPO Alarm
1 x USB, Firmware Upgrade | | Power Voltage | 100 to 240 VAC | | Power Consumption | 85 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 30 to 80% RH | | Dimensions | 16.3 x 12.6 x 3.1" / 41.4 x 32.0 x 8.0 cm | | Weight | 17.6 lb / 8 kg |
