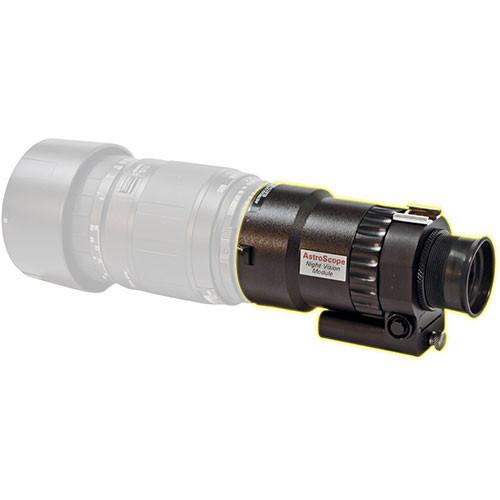

User Manual for AstroScope Night Vision Adapter 9350SCOPE-3PRO Click to enlarge the picture
Contents of the user manual for the AstroScope Night Vision Adapter 9350SCOPE-3PRO
- Product category: Photo/Video Converter Adapters AstroScope
- Brand: AstroScope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AstroScope Photo/Video Converter Adapters
|
User manual for the AstroScope Night Vision Adapter 9350SCOPE-3PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AstroScope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AstroScope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AstroScope product will considerably shorten its lifespan!
|
Product description Electrophysics develops advanced near infrared, night vision and thermal imaging systems for industrial, law enforcement and military applications. Their expertise in complex signal processing, optics, embedded software, and computer software applications puts them at the leading edge of tackling real-world challenges and creating practical solutions. The 9350SCOPE-3PRO combines cross-platform versatility with mission-flexibility, to supersede the abilities of common night vision monoculars. Its modular design and concept can be applied to a myriad of nighttime operations and applications. This scope can be used hand-held or tripod mounted as a night vision monocular for covert night-time observation. When the mission mandates that the scene be recorded, the Pocketscope can be deployed to operate as an image intensification module for a SLR type camera, or a camcorder based surveillance system. The high resolution imaging system of the Pocketscope is built around a highly acclaimed 3rd generation intensifier tube rated with 64 lp/mm of resolution. The rugged housing is built to endure the rigors of actual field use and features a substantial collar for tripod mounting. The 9350SCOPE is designed to be used with C-mount lenses, which are sold separately. An FLA (font lens adapter) can be employed to facilitate the attachment of a high-quality SLR type lens for superior imaging performance. There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and the method of calculation varies by manufacturer. The important factors to consider when evaluating any night vision device are the intensifier tube's generation, s/n ratio, level of magnification, specified resolution, along with the clarity & light transmission efficiency of the optical system. All night vision devices sold by have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARuyvazucqwtsesvwsttbweburzdddzcvdt), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - 1/4-20" Standard tripod mount
- Accessory mount for IR illuminator
- Field expedient multi-purpose modular design
- Third Generation Intensifier
- While 2nd generation night vision works well in most applications, 3rd generation night vision will outperform it in all situations. With a 3rd generation NVD, your image will be crisper and clearer with a decreased level of bright light blooming. These improvements substantially increase the recognition and detection range of the system.
In the Box AstroScope Night Vision Adapter 9350SCOPE-3PRO 2 x Lens Caps 2 x 1.5V "AAA" Type Batteries Lens Cleaning Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AstroScope Night Vision Adapter 9350SCOPE-3PRO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAstroScope 914838 Specs | Intensifier Tube | 3rd Generation | | Infrared Illuminator | No | | Magnification | 1.0x | | Angle of View | Not applicable, dependent upon lens | | Field-of-View (@ 1000 Yds) | Not applicable, dependent upon lens | | Minimum Focus Distance | Not applicable, dependent upon lens choice | | Lens System | Accepts C-mount lenses | | Power Source | 2 "AAA" batteries | | Waterproofing | Waterproof | | Dimensions | 5.3 x 2.3 x 2.9" (135mm x 58mm x 74mm) | | Weight | 1.5 lb (680 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
