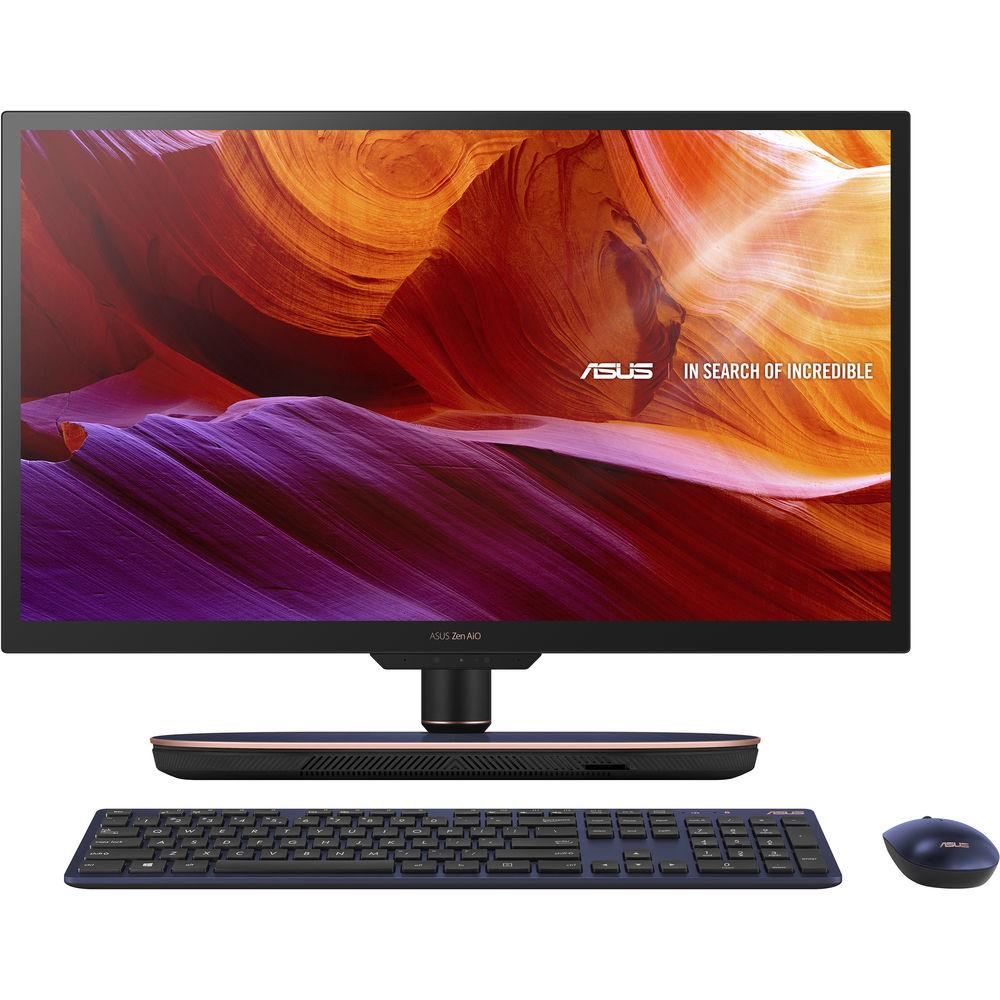

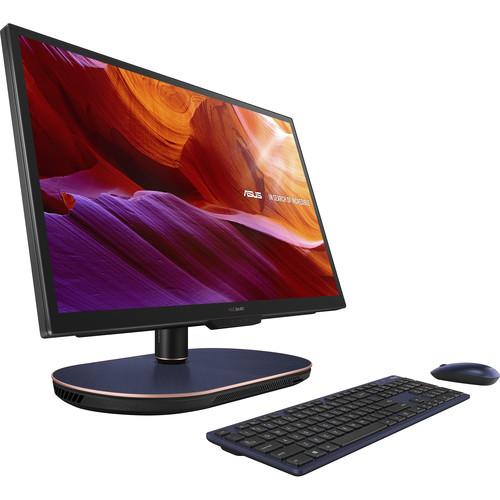

User Manual for ASUS 27" Zen AiO 27 Multi-Touch All-in-One Desktop Computer Click to enlarge the picture
Contents of the user manual for the ASUS 27" Zen AiO 27 Multi-Touch
- Product category: All-In-One Desktop Computers ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS All-In-One Desktop Computers
 |
User manual for the ASUS 27" Zen AiO 27 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

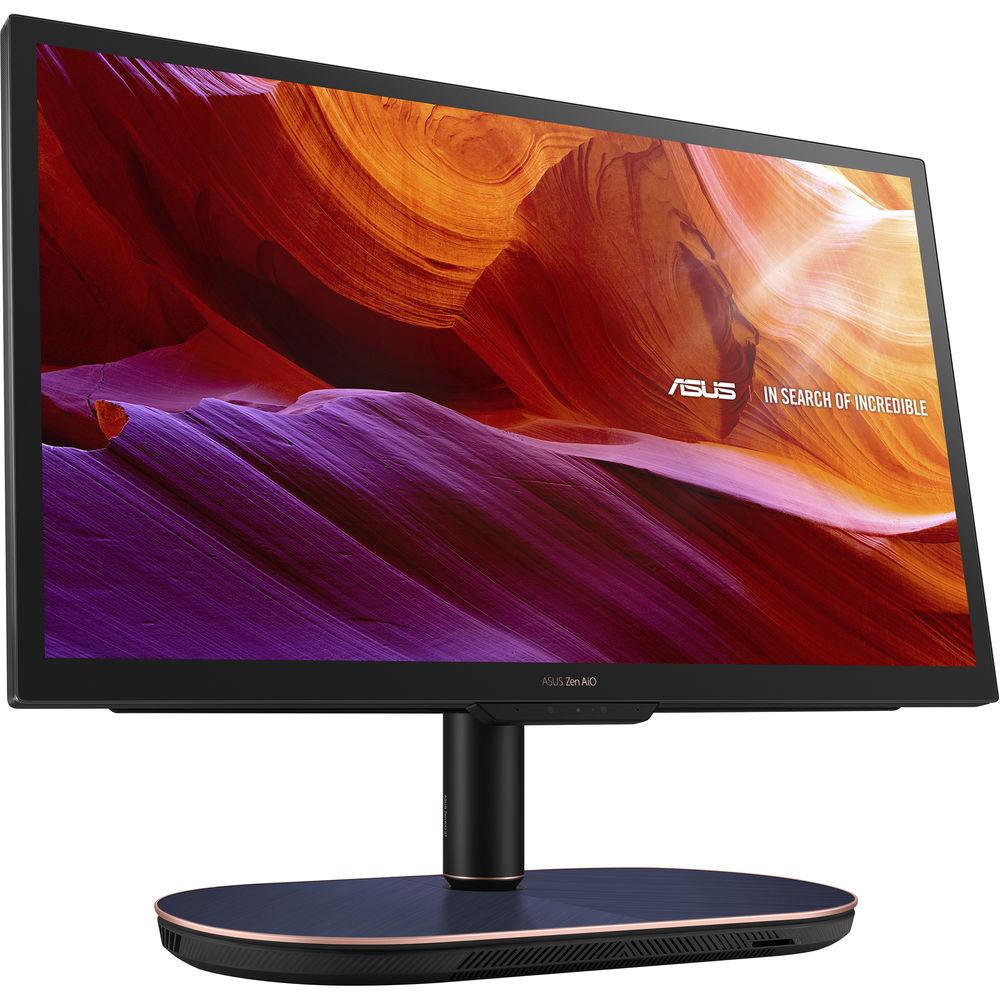

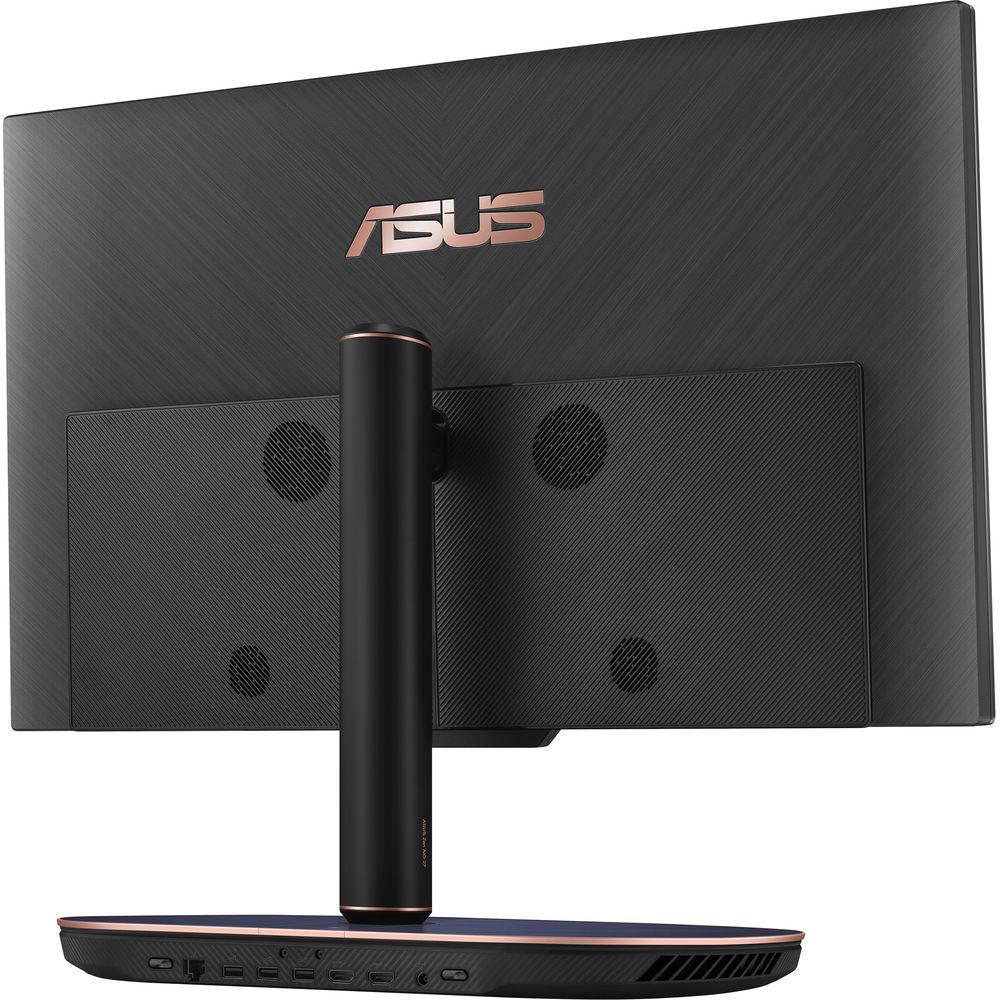

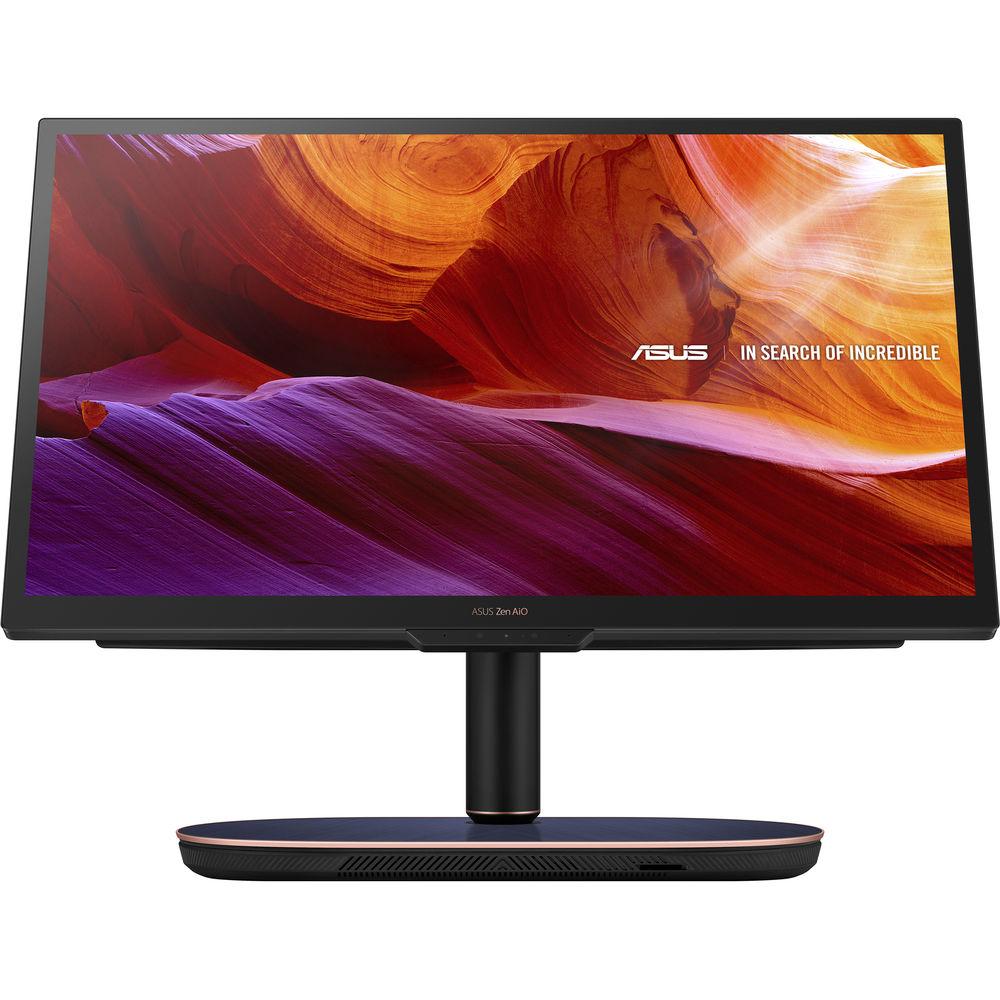

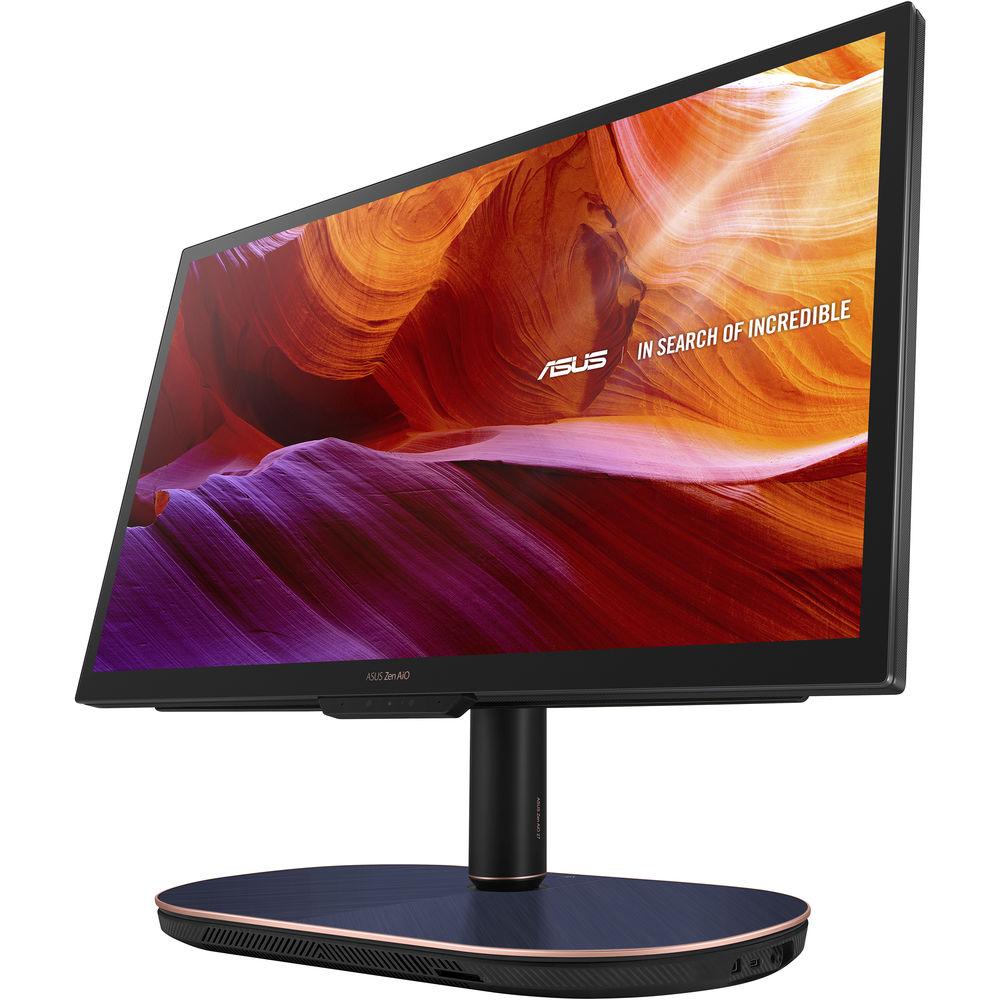

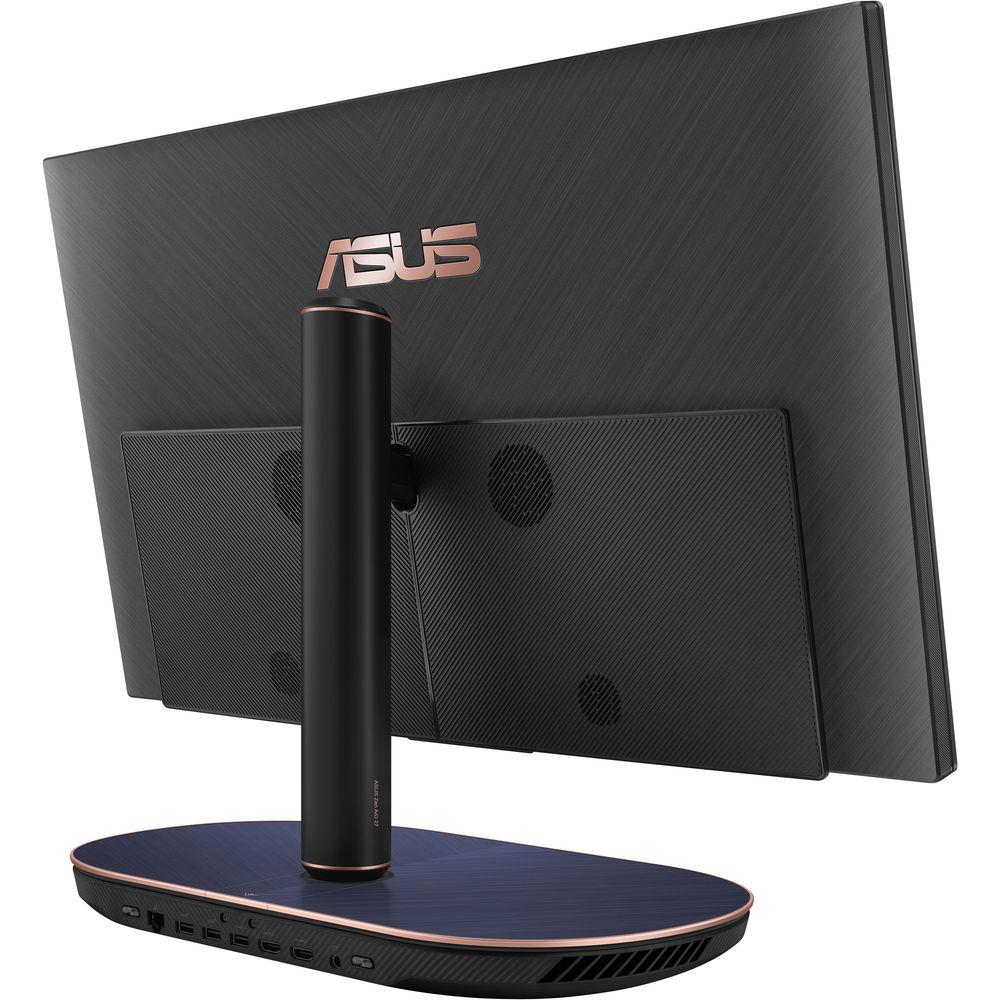

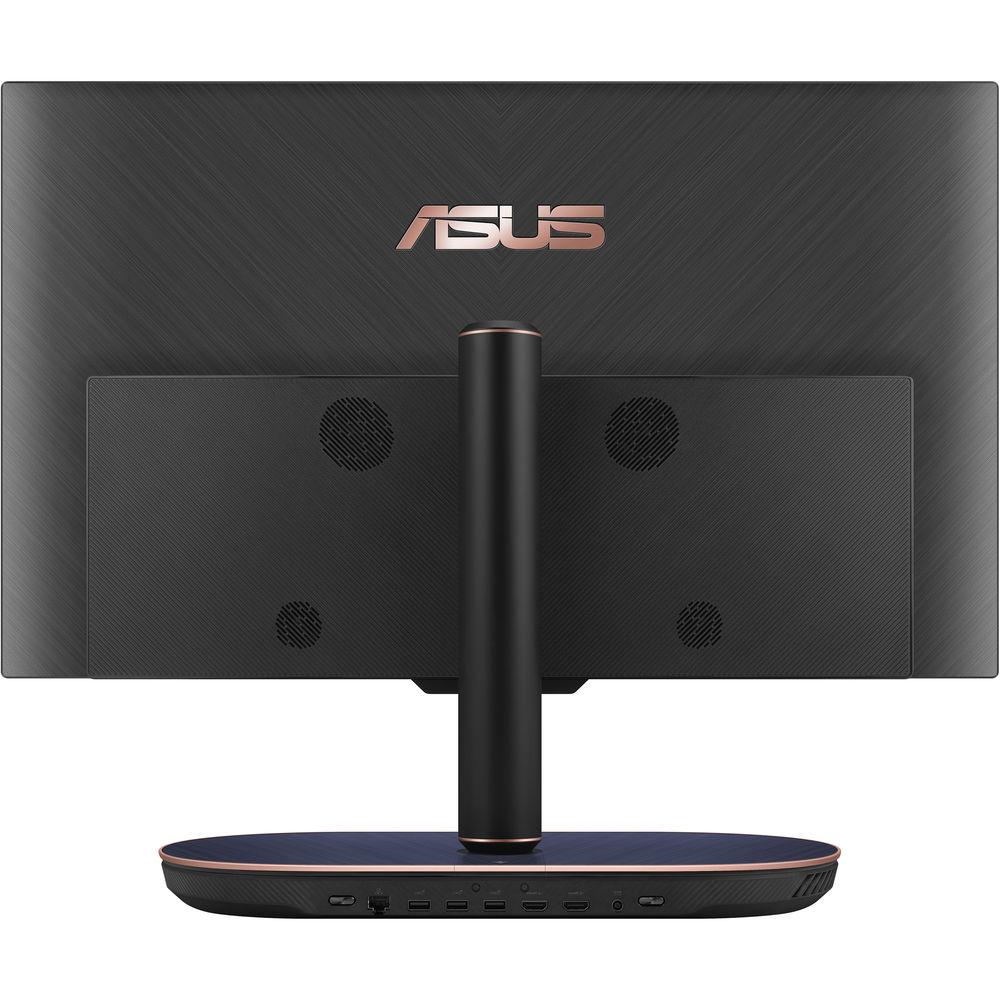

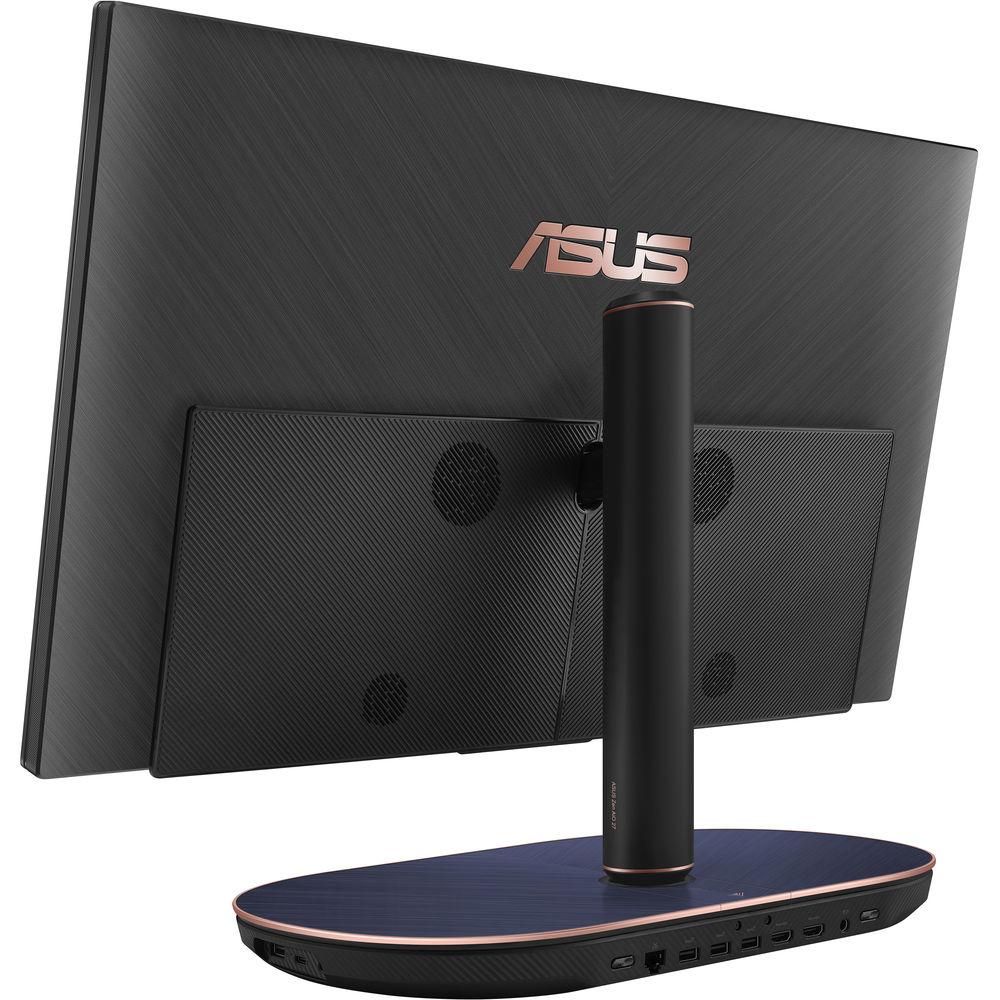

Product description 5 Essential Tips for Cleaning Your Gadgets Read More The 27" Zen AiO 27 Multi-Touch All-in-One Desktop Computer from Asus features a 3840 x 2160 4K UHD resolution display with a NanoEdge bezel design for an immersive viewing experience. Moreover, it's factory calibrated and supports up to 16.7 million colors with 100% sRGB color coverage for color-sensitive work. Performance-wise, it's equipped with a 2.4 GHz Intel Core i7-8700T six-core processor, 16GB of DDR4 RAM, a 512GB SSD paired with a 2TB HDD, and an NVIDIA GeForce GTX 1050 graphics card. With these combined, this system can easily tackle everyday tasks and can even be used for gaming. Other integrated features include a webcam, speakers, microphones, USB, HDMI, and Thunderbolt 3 connectivity, as well as a 3.5 mm combo audio jack. The operating system installed is Windows 10 Pro and it comes with a wireless keyboard and mouse, so you can get started as soon as possible. - Ergonomically-Designed

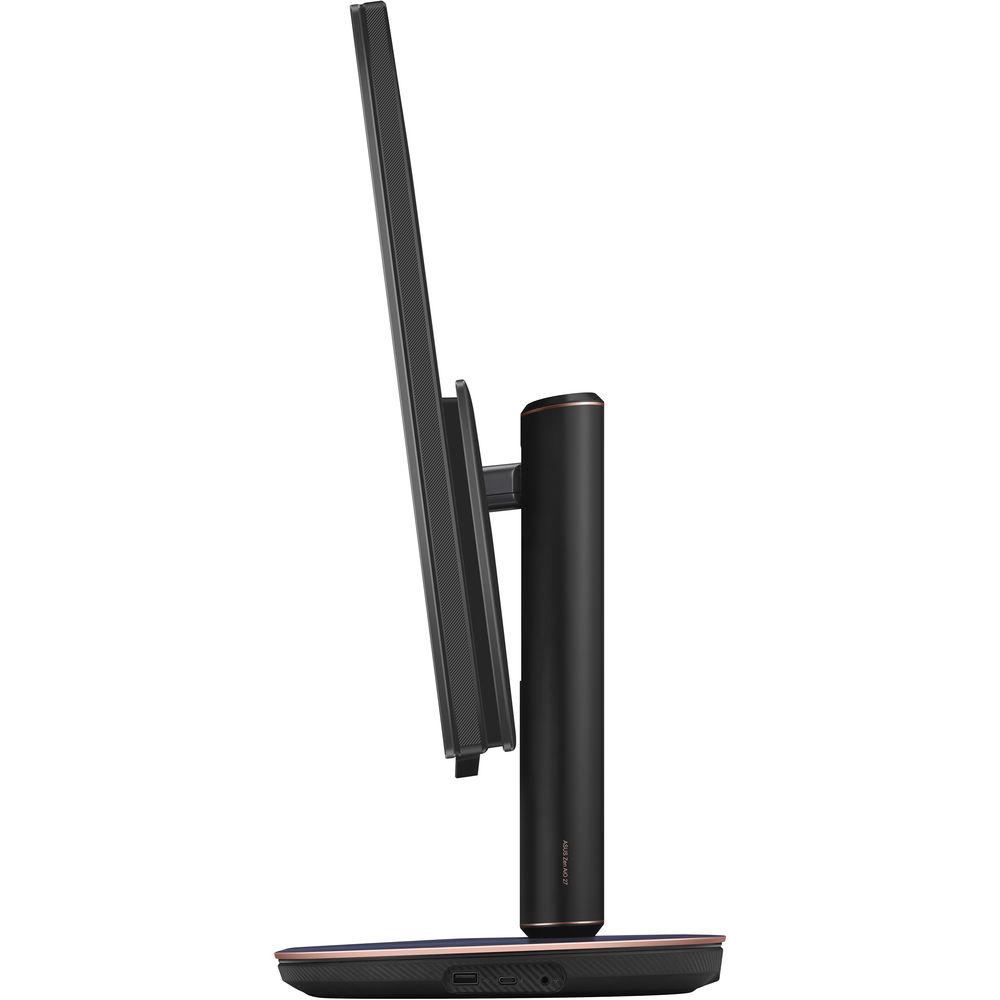

- The stand on the Zen AiO 27 supports -5 to 15° tilt, 90° swivel, and 3.35" / 85 mm height adjustments for your viewing comfort.
- Display
- Aside from its 3840 x 2160 4K UHD resolution, the display on the Zen AiO 27 is also PANTONE validated with factory-calibrated 100% sRGB color accuracy and a delta E value of less than two.
- Audio
- For listening to music, watching movies, video-chatting, and more, the Zen AiO 27 is built with quad 16 W Harman Kardon-certified speakers that deliver smooth and powerful audio.
- Thunderbolt 3
- This hardware interface utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Face Login
- Whether you forgot your password or would rather not have one, the infrared camera enables you to quickly and securely log into your system via Windows Hello.
- Amazon Alexa
- This computer is built with Amazon Alexa support. Ask Alexa questions, command her to play music, read the news, control your smart home, tell a joke, and much more.
UPC: 192876123782 In the Box ASUS 27" Zen AiO 27 Multi-Touch All-in-One Desktop Computer Wireless Keyboard & Mouse Power Cable & Adapter Limited 1-Year Warranty More info from ASUS euezrerysasbebcfbateeqaqr Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS 27" Zen AiO 27 Multi-Touch All-in-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Zen AiO 27 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.4 GHz Intel Core i7-8700T 6-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 12 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 32 GB | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | NVIDIA GeForce GTX 1050 with 4 GB GDDR5 VRAM | | | | Size | 27" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Touchscreen | Yes | | Finish | Glossy | | Viewing Angle (H x V) | 178 x 178° | | | | Solid State Storage | 1 x 512 GB M.2 | | Hard Disk Storage | 1 x 2 TB 2.5" SATA (5400 rpm) | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 2.0)
3 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI Input
1 x HDMI Output | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC/MMCplus Hybrid | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 5.0 | | Webcam | User-Facing | | | | Keyboard | Wireless Full-Size Keyboard | | Pointing Device | Wireless Mouse | | | | Power Supply | 180 W | | Dimensions | 24.7 x 20.6 x 9.7" / 627.4 x 523.2 x 246.4 mm | | Weight | 24.2 lb / 11 kg | | | | Package Weight | 35.5 lb | | Box Dimensions (LxWxH) | 29.0 x 22.5 x 15.0" |
