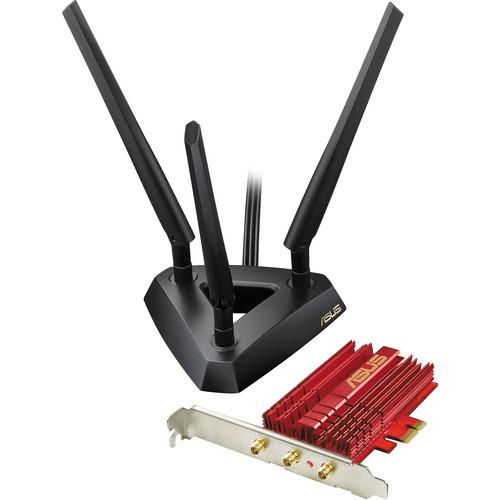

User Manual for ASUS AC1900 Dual-Band PCIe Wireless Adapter Click to enlarge the picture
Contents of the user manual for the ASUS AC1900 Dual-Band PCIe Wireless Adapter
- Product category: Wireless Adapters & Cards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Wireless Adapters & Cards
|
User manual for the ASUS AC1900 Dual-Band PCIe Wireless Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The AC1900 Dual-Band PCIe Wireless Adapter from ASUS has 5th generation 802.11ac chipset which gives dual-band, 2.4/5GHz for speeds up to 1.30 Gb/s. Its flexible extended antenna placement helps you pinpoint the best reception in the environment. The wireless adapter also provides instant Wi-Fi upgrade for your desktop, thus no more messy Ethernet cables needed. Its high power design clears up dead zones with 150% greater coverage and custom heat sink dissipates heat for more stable and reliable non-stop operation. - Fastest Wi-Fi Standard: 802.11ac
- The PCE-AC68 adapter uses Broadcom's 5th generation Wi-Fi 802.11ac chipset to reach speeds of up to 1.3 Gb/s through the 5GHz band, which is three times faster than 802.11n Wi-Fi. At the same time, it maintains full backward compatibility with all previous Wi-Fi protocols, providing high performance two-way transmission while ensuring a smooth transition to 802.11ac and seamless interconnection with existing devices.
- Next-Generation Wi-Fi on Both Bands
- Broadcom TurboQAM hardware integrated on this adapter brings the speed benefits of next-generation 802.11ac Wi-Fi to both 2.4GHz and 5GHz bands. At 600 Mb/s and 1.3 Gb/s respectively, they turn the PCE-AC68 into an AC1900 wireless adapter, providing speeds that cannot be bettered by generic wireless adapters. Connect the PCE-AC68 to ASUS networks to attain the very highest possible Wi-Fi speeds.
- Extend and Strengthen the Wireless Connection
- ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data-throughput speed, and enhanced stability. Wi-Fi-connection strength varies based on environment you are in, so the PCE-AC68 intelligently detects wireless router locations and 'shapes' data transmissions using three external antennas and high-powered beam-packing.
- No More Dead Zones with 150% Coverage
- Powerful two-way transmission and a signal-boosting high-gain design give the PCE-AC66 two-way transmission that extends Wi-Fi range and coverage by up to 150% compared to generic client devices. This extended reach means the elimination of many dead spots at any location, offering fast and uninterrupted HD streaming and smooth multiplayer gaming wherever you are.
- Flexible Extended Antenna Placement
- The three detachable antennas of the PCE-AC68 can be placed remotely via bundled extension cables. A magnetized stand also comes in the box, which can easily attach to various surfaces for more placement options. By making the antennas mobile, the design offers more flexibility in choosing locations for better signal reception and quality.
- Stylish Aluminum Heatsink Handles Heat for Extra Stability
- The added heatsink uses highly-conductive aluminum to remove heat from the chipset, ensuring greater reliability for non-stop operation. Lower temperatures translate into a more stable device in all climatatic conditions, even during hot summers, and greater stability means more consistent connectivity and longer product lifespan. Plus, the heat sink has been crafted for a stylish look, once more showing ASUS always goes beyond the spec.
UPC: 886227557790 In the Box ASUS AC1900 Dual-Band PCIe Wireless Adapter 3 x Dipole Antennas External Magnetic Antenna Base Low Profile Bracket Support CD Limited Warranty More info from ASUS dyeadwqbfqxtdycbxfrscwyetraa Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS AC1900 Dual-Band PCIe Wireless Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PCE-AC68 Specs | Network Standard | IEEE 802.11a/b/g/n/ac | | Interface | PCIe | | Antenna | 3 x R SMA antenna | | Operating Frequency | 2.4/5 GHz | | Operation Channel | 11 for North America, 13 Europe (ETSI) | | Product Segment | AC1900 Ultimate AC Performance: 600+1300 Mb/s | | Data Rate | 802.11 b/g/n/ac:
Downlink up to 1300 Mb/s
Uplink up to 1300 Mb/s (20/40/80 MHz) | | Output Power | ac mode: 18 ~22 dBm
b mode: 22 dBm
g mode: 19 ~22 dBm
n mode: 18 ~22 dBm | | Modulation | 64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM | | Management | Wireless configuration
Connection management
Connection profile setup | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 149°F (-20 to 65°C) | | Operating Humidity | 10 to 90 % (non-condensing) | | Storage Humidity | 10 to 90 % (non-condensing) | | Operating System Support | Windows 8 (32/64-bit)
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Windows XP (32/64-bit) | | Security | 64-bit WEP, 128-bit WEP
WPA2-PSK, WPA-PSK | | Certificates | CE, FCC, IC | | Dimensions (W x H x D) | 4 x 0.82 x 2.71" (103.3 x 21 x 68.9 mm) | | Weight | 4.4 oz (125 g) Device weight only. | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 2.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
