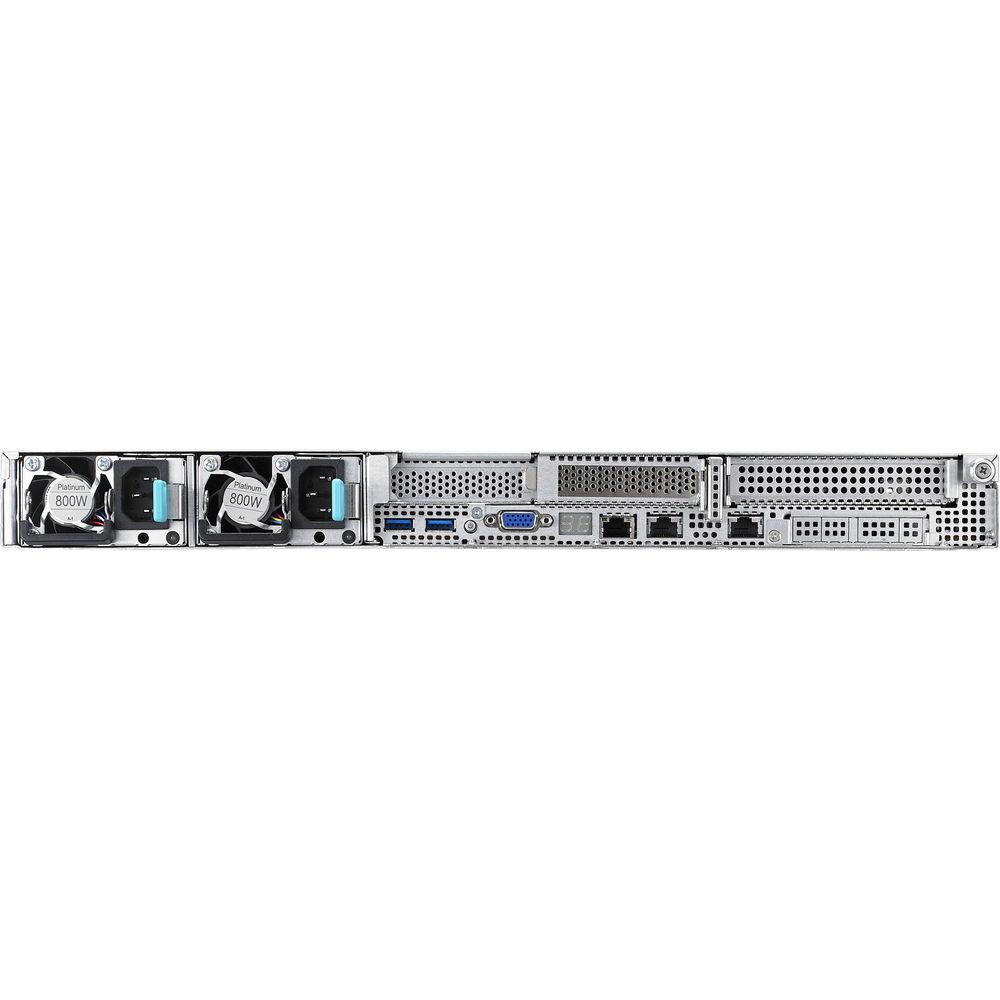

User Manual for ASUS AMD EPYC Server with 12 x 2.5" Drive Bays and 3 x PCIe Gen-3 Expansion Slots Click to enlarge the picture
Contents of the user manual for the ASUS AMD EPYC Server with 12
- Product category: Server Systems ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Server Systems
 |
User manual for the ASUS AMD EPYC Server with 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

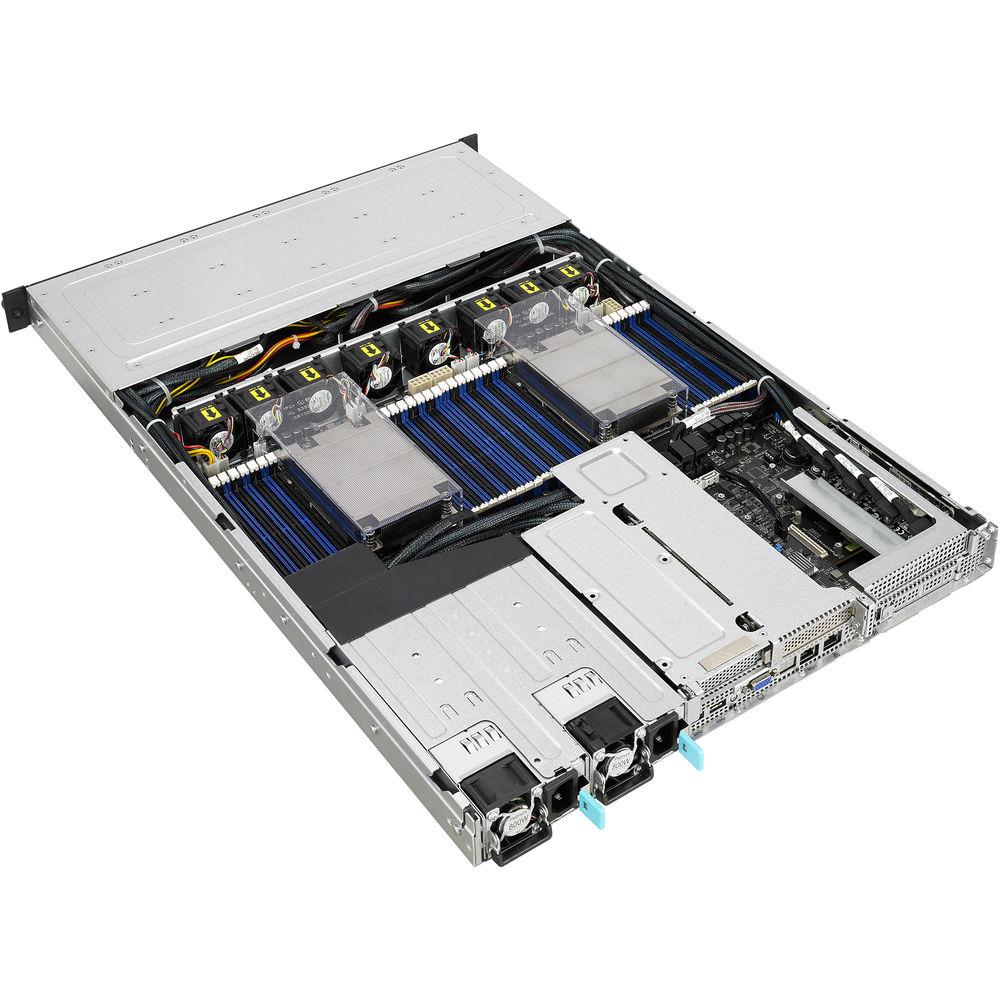

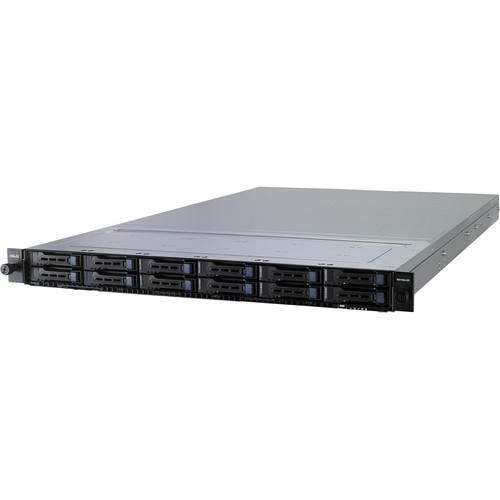

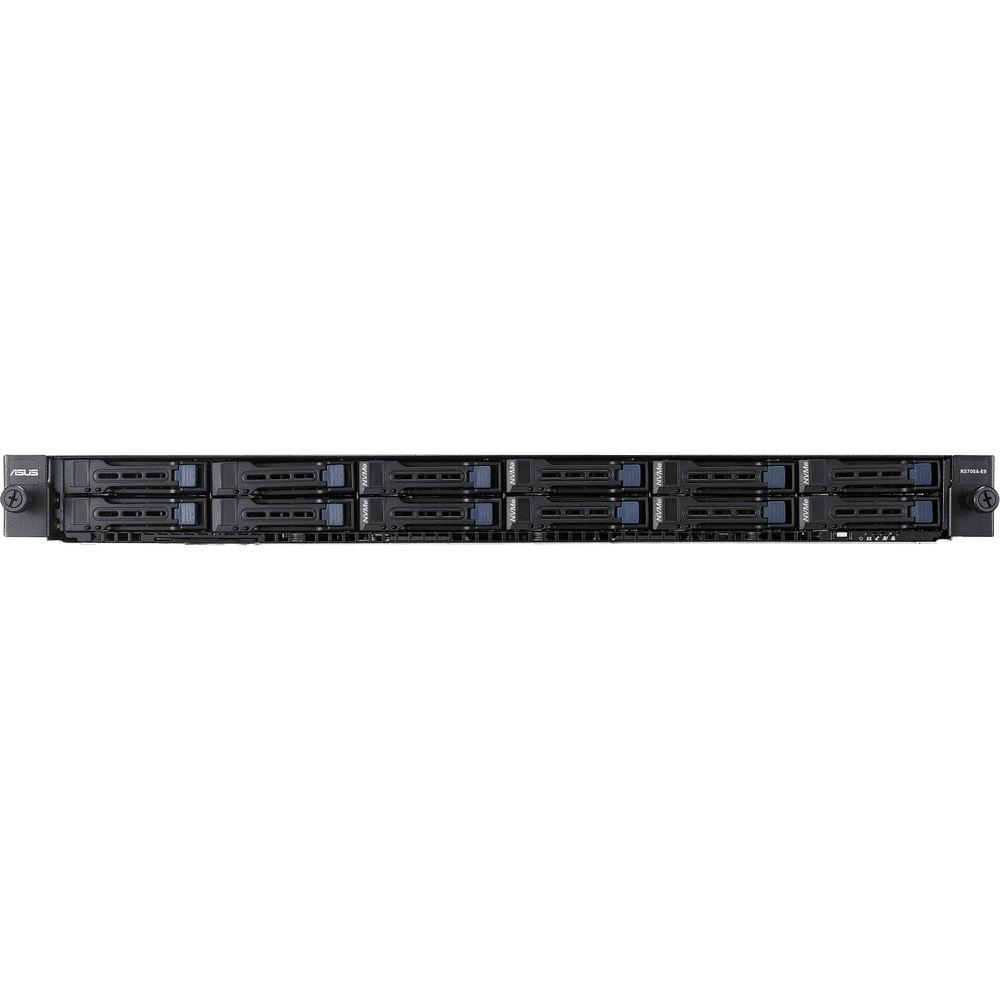

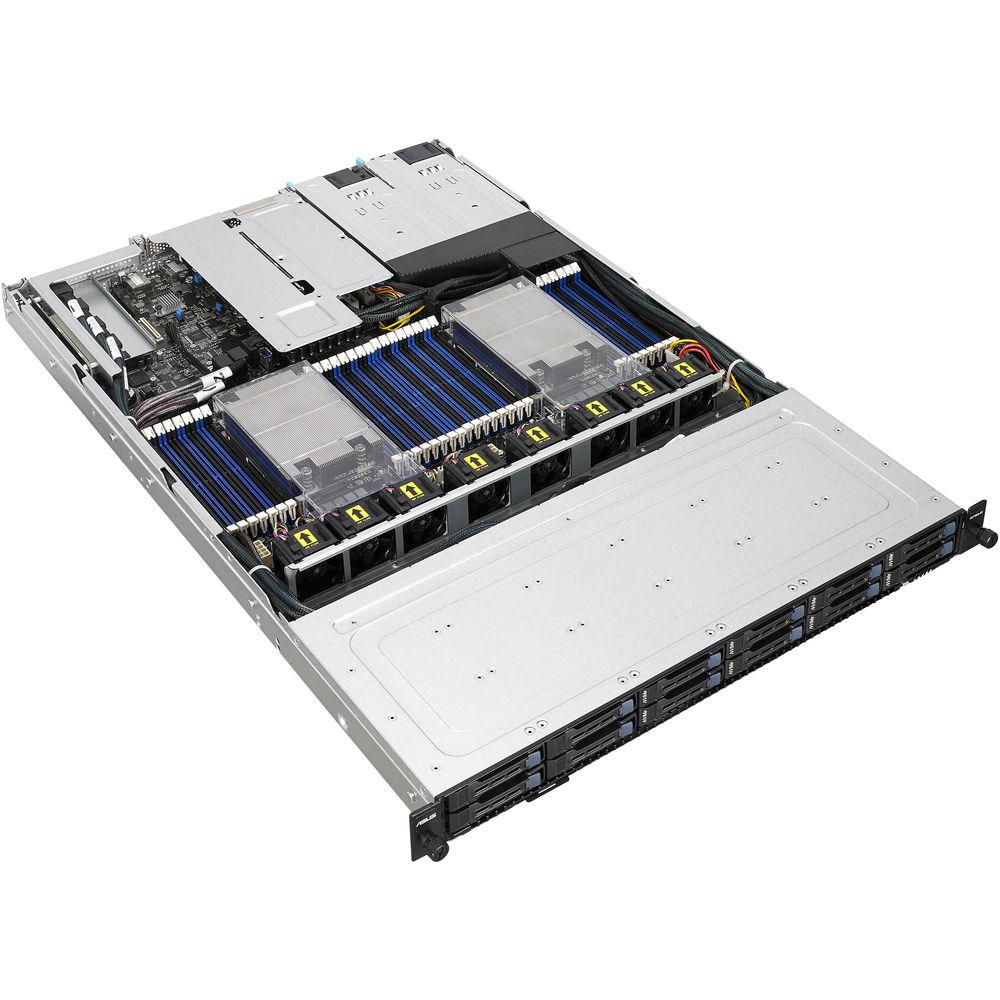

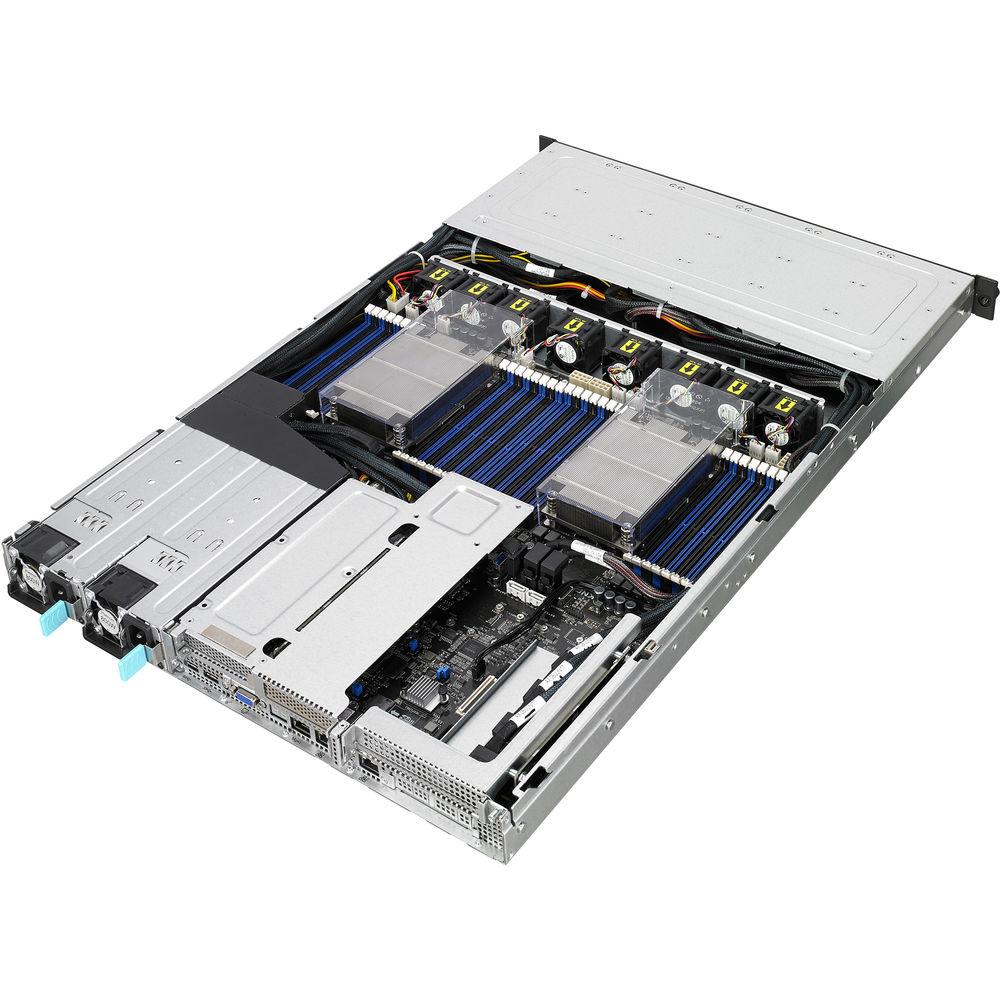

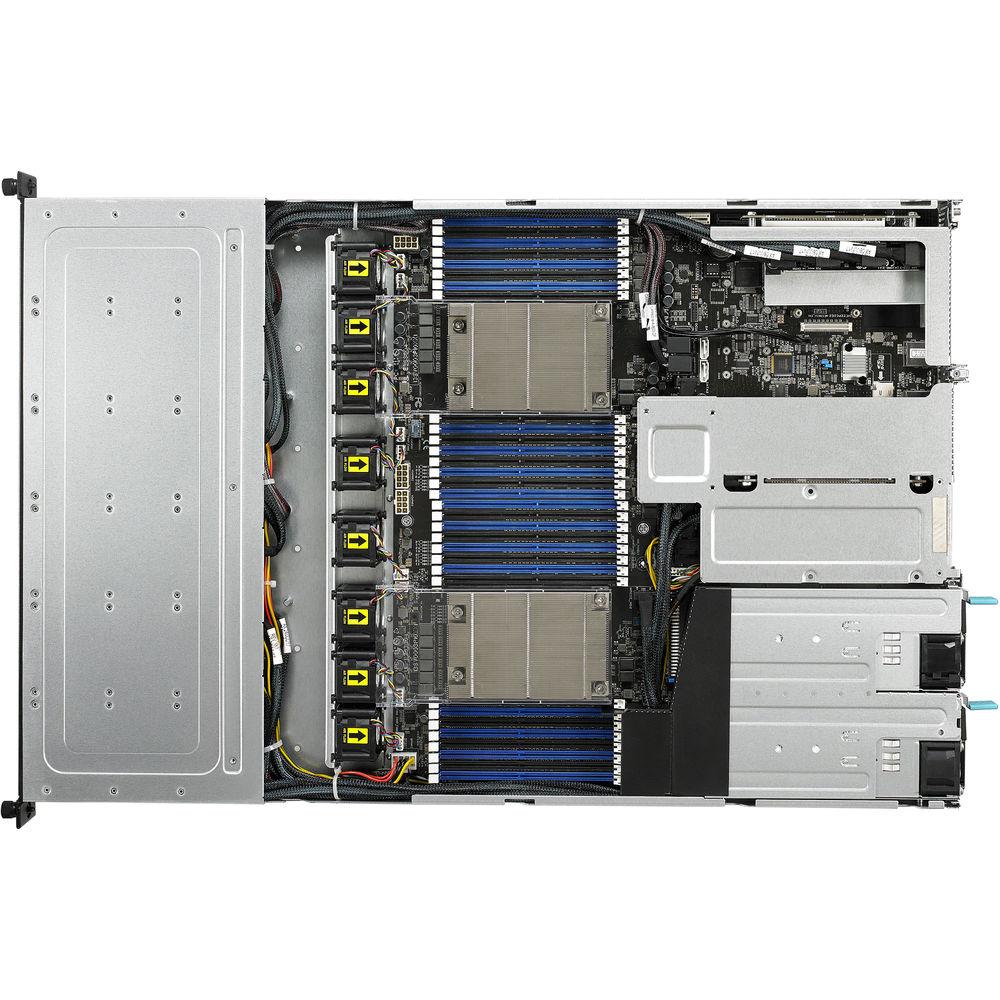

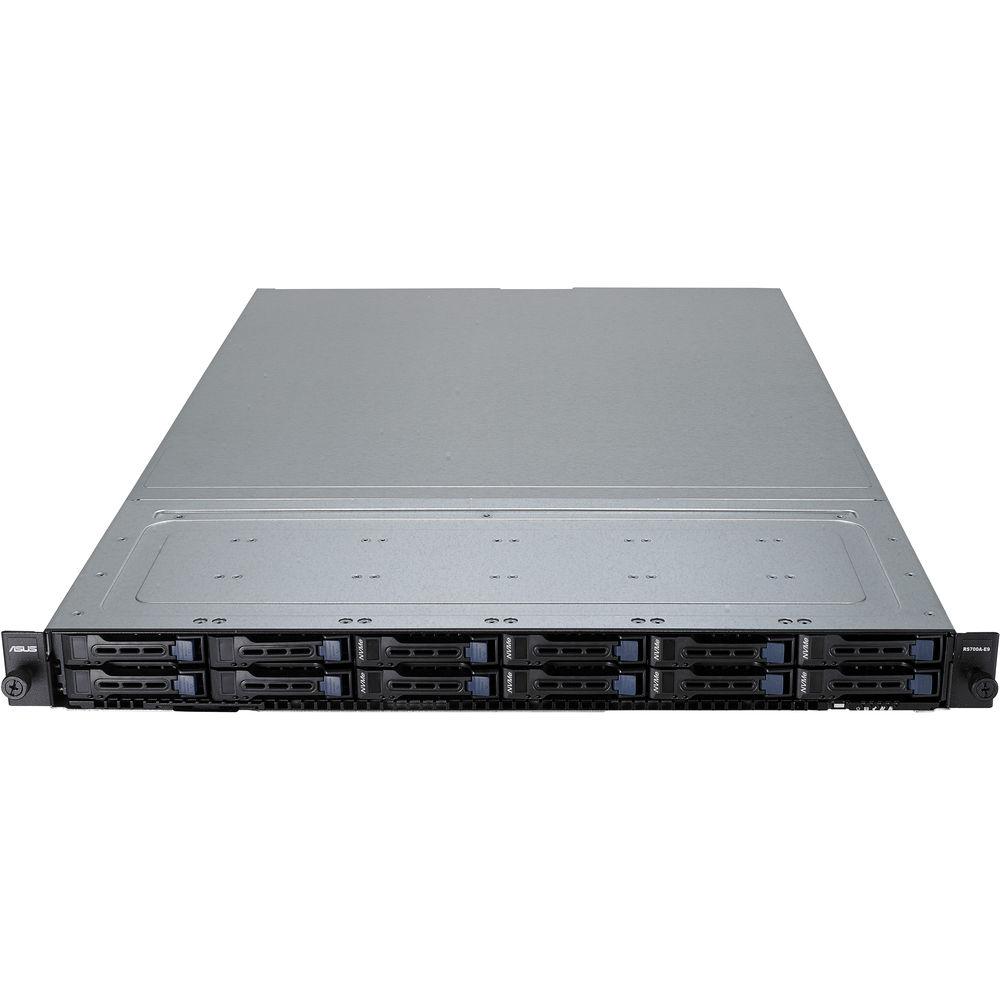

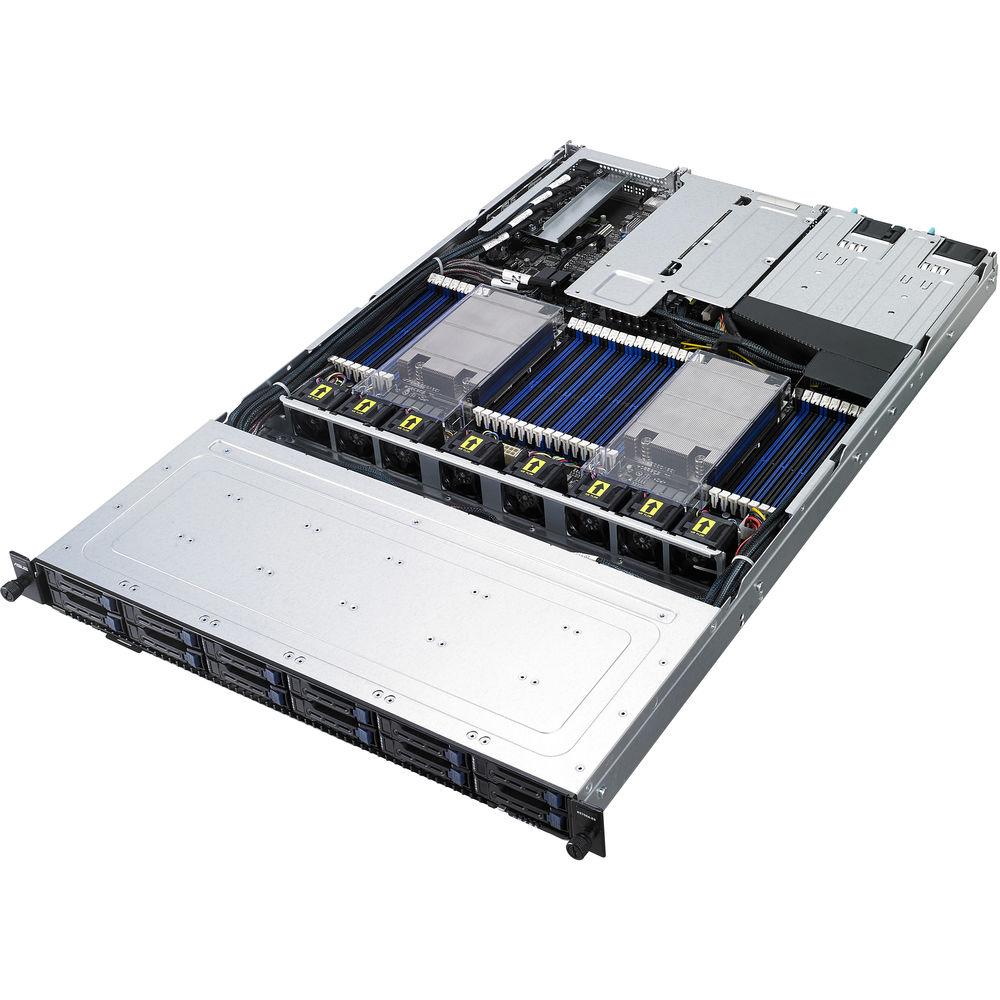

Product description This AMD EPYC Server from ASUS packs twelve 2.5" hot-swap drive bays in a compact 1 RU form factor. With support for multiple drive configurations, including eight NVMe and four SATA drives, four NVMe and eight SATA drives, or four NVME and eight SAS drives with an optional ASUS PIKE II card, this AMD EPYC server provides storage flexibility for a wide range of applications. The server has numerous expansion slots to support additional storage and networking configurations, including a PCIe 3.0 x16 slot for a 4-NVMe adapter card, two PCIe 3.0 x8 slots for ASUS PIKE II HBA/RAID and 2-NVMe adapter cards, and an OCP Mezzanine x16 slot for a high-speed networking card. Dual M.2 slots support either SATA 6 Gb/s or PCIe 3.0 x4 with 32 Gb/s bandwidth to enable fast data transfers. The OS can be installed on an M.2 SSD to speed up load times and leave all twelve 2.5" drive bays available for storage. - 2 x M.2 slots accommodate 22110-size SSDs for additional storage
- Q-code is visible from the outside to make diagnosing issues easier and more convenient
- Tool-less rack rail kit included for easy server installation and removal
- Tool-less, hot-swappable fan makes for faster and simpler maintenance
- Energy-efficient design eliminates power-sharing board for reduced power consumption
- 64-core density; 32 cores per CPU
- AMD EPYC Processor
- The RS700A-E9-RS12 is built on the AMD EPYC platform to deliver high server performance. With up to 32 cores per CPU and up to 128 threads in a single 1 RU server, the RS700A-E9-RS12 packs much power in minimal space.
- Memory Bandwidth and Capacity
- The RS700A-E9-RS12 supports up to 32 DDR4-2666 DIMMs for up to 4TB of RAM. An integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and faster system performance.
- Comprehensive IT Infrastructure Management Software
- The RS700A-E9-RS12 features an embedded iKVM module and comes with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations, and digital signage devices. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics—even if the operating system is down or offline—through a user-friendly, web-based graphical interface that works with all major browsers. - Smart Thermal Design for Energy Efficiency
- The RS700A-E9-RS12 features ASUS thermal radar technology with temperature sensors on the front panel and key components such as CPU, NVMe SSD, and OCP cards. This design provides internal and external temperature monitoring and enables dynamic fan curve adjustment, cutting fan power consumption by up to 20% and reducing TCO for non-stop operation in data centers and similar venues.
- Server Fan Control
-
- Adjust fan curve via BMC
- User-friendly graphic user interface
- Flexible fan policy
- No reboot needed after changing fan policy
- Remote-controllable fan curve
In the Box ASUS AMD EPYC Server with 12 x 2.5" Drive Bays and 3 x PCIe Gen-3 Expansion Slots (1 RU) Rack Rail Kit AMD EPYC Support DVD Set of Screws 2 x CPU Heatsinks 2 x AC Power Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS AMD EPYC Server with 12 x 2.5" Drive Bays and 3 x PCIe Gen-3 Expansion Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS RS700A-E9-RS12 Specs | | | Drive Expansion | 2 x M.2 (Internal) | | Storage Drive | Bays: 12 x 2.5" (7 mm)
Installed: 0 GB | | Drive Connections | 8 x SATA III | | PCI Expansion | 1 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8 | | | | Processor | 1 x AMD EPYC 7000 Series | | Total Installed Memory | None | | Maximum Memory Capacity | 4096 GB | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Available Memory Slots | 32 | | GPU | Aspeed AST2500 with 64 MB | | | | Network | 1 x Ethernet (RJ45) Management
2 x Ethernet (RJ45) | | Ports | 2 x USB 3.1 Gen 1 Type-A | | Display | 1 x VGA | | Audio | None | | | | Supported Operating Systems | CentOS, Citrix Xen, Redhat Linux, SuSE, Ubuntu, VMware, Windows Server | | Rack Form Factor | 1 RU | | Power Supply | 2 x 800 W 80 PLUS Platinum (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.72 to 9.4 A | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 20 to 90% | | Dimensions (W x H x D) | 27.0 x 17.5 x 1.7" / 68.6 x 44.4 x 4.4 cm | | Weight | 26.9 lb / 12.2 kg |
