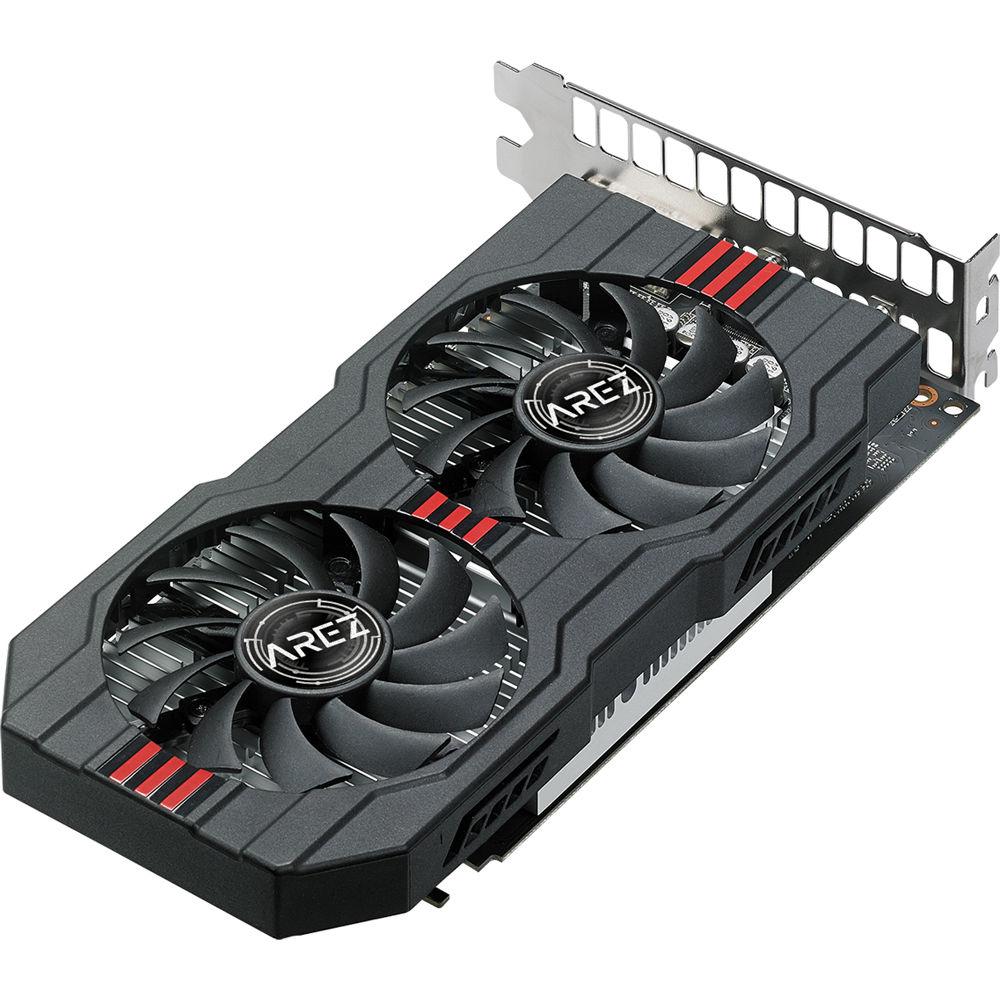

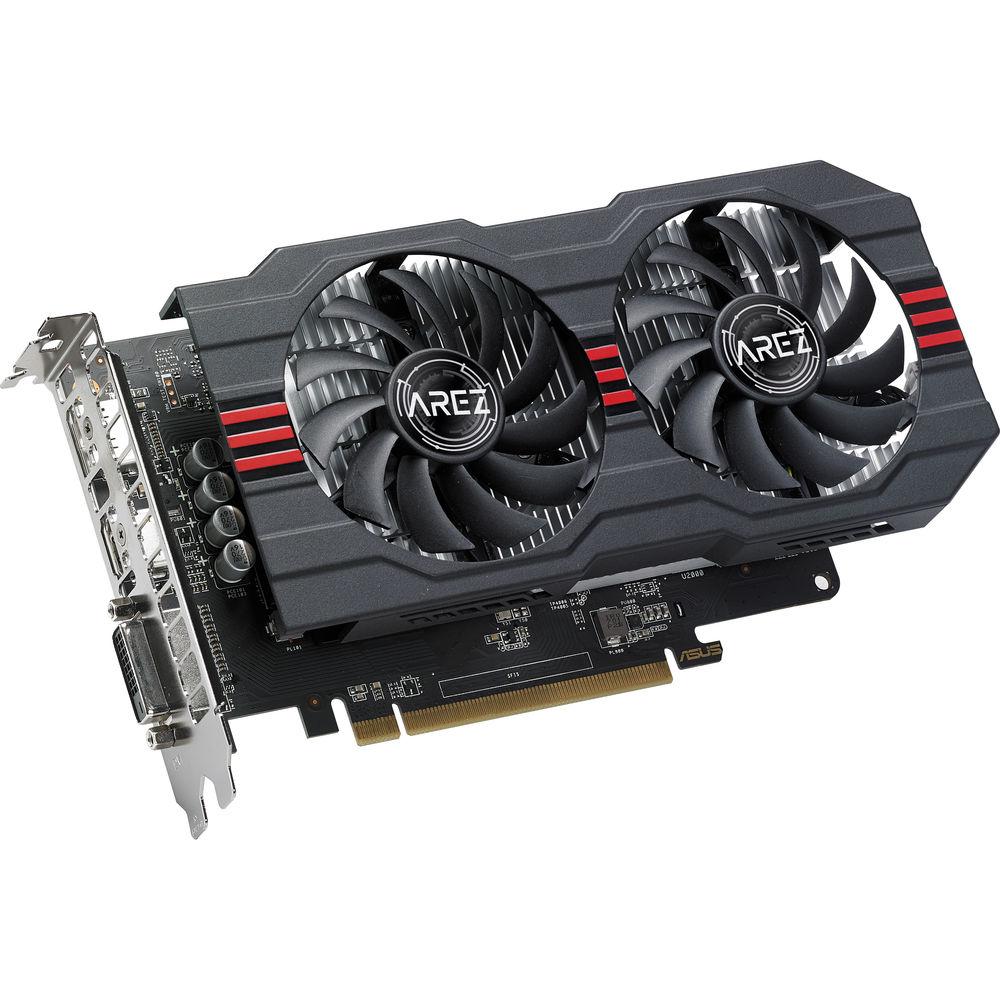

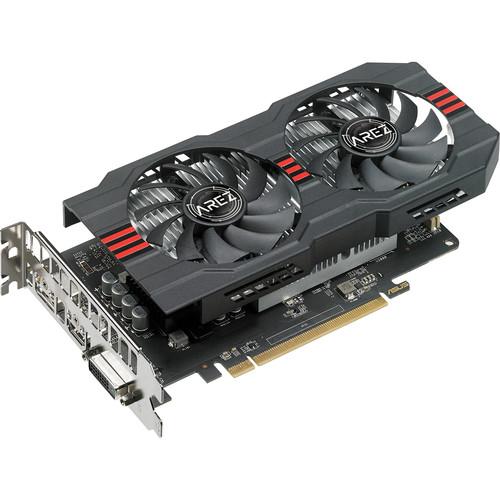

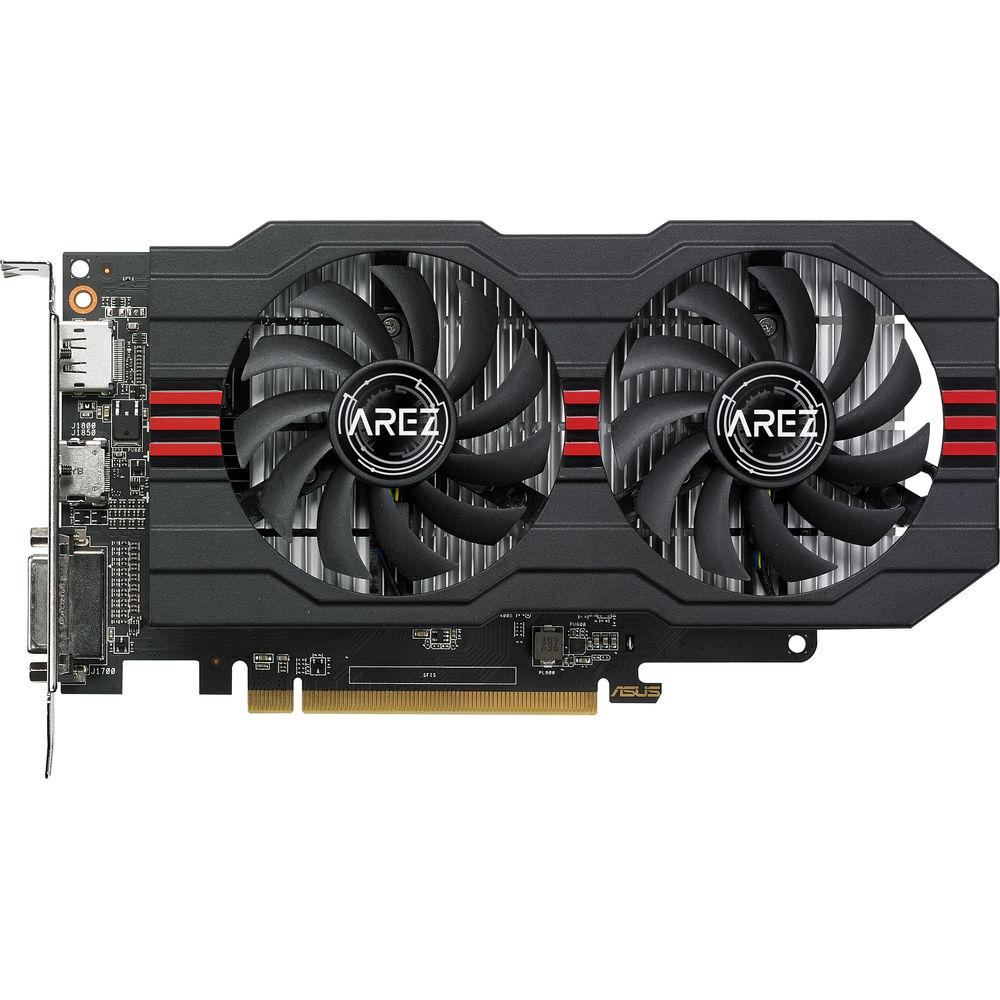

User Manual for ASUS AREZ Radeon RX 560 OC Edition Graphics Card Click to enlarge the picture
Contents of the user manual for the ASUS AREZ Radeon RX 560 OC
- Product category: Graphic Display Cards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Graphic Display Cards
 |
User manual for the ASUS AREZ Radeon RX 560 OC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

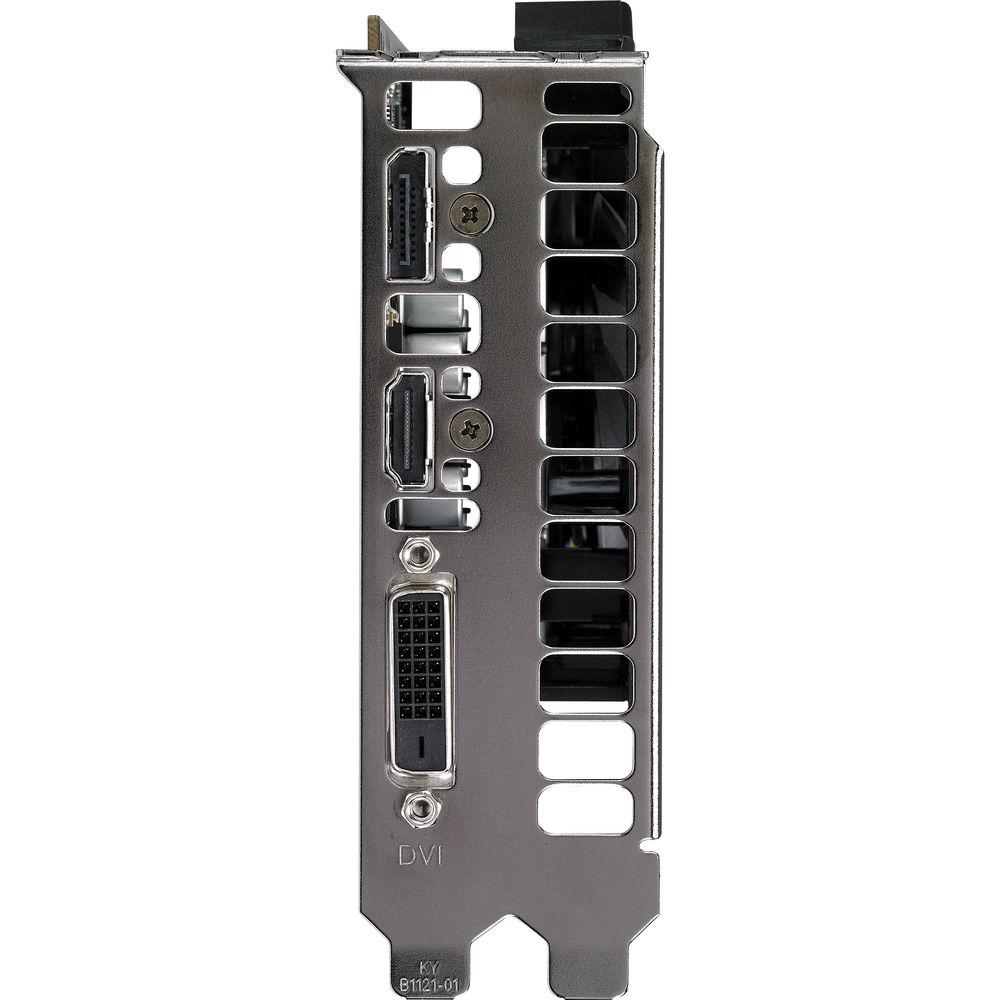

Product description Based on Polaris architecture, the ASUS AREZ Radeon RX 560 OC Edition Graphics Card provides smooth gameplay at HD resolutions on DirectX 12, Vulkan, and e-Sports titles. The Radeon RX 560 is also compatible with HDR (High Dynamic Range) content so you can experience enhanced contrast and color. The front panel of the card features a variety of outputs. There is a DisplayPort 1.4 output, an HDMI 2.0b output, and a DVI-D output. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience on multiple monitors. To keep this card cool, ASUS implemented dual IP5X-rated fans, which provide greater airflow performance and enhanced cooling. - HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for multiple monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productive, but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.
UPC: 192876030837 In the Box ASUS AREZ Radeon RX 560 OC Edition Graphics Card Driver Disc Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS AREZ Radeon RX 560 OC Edition Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS AREZ-RX560-O2G-EVO Specs | | | GPU Model | AMD Radeon RX 560 | | Stream Processors | 896 | | Boost Clock Speed | Gaming Mode: 1187 MHz
OC Mode: 1197 MHz | | Base Clock Speed | 1149 MHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | OpenGL: 4.5 | | | | Memory Speed | 6 Gb/s | | Memory Configuration | 2 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 128-Bit | | Memory Bandwidth | 112 GB/s | | | | Display Connectors | 1 x DisplayPort 1.4
1 x HDMI 2.0
1 x DVI-D | | Maximum Digital Resolution | 5120 x 2880 @ 60 Hz | | | | Height | 4.5" / 114.30 mm | | Length | 8.7" / 220.98 mm | | Width | Dual-Slot | | | | Cooler Type | Open Fansink | | Lighting | None |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
