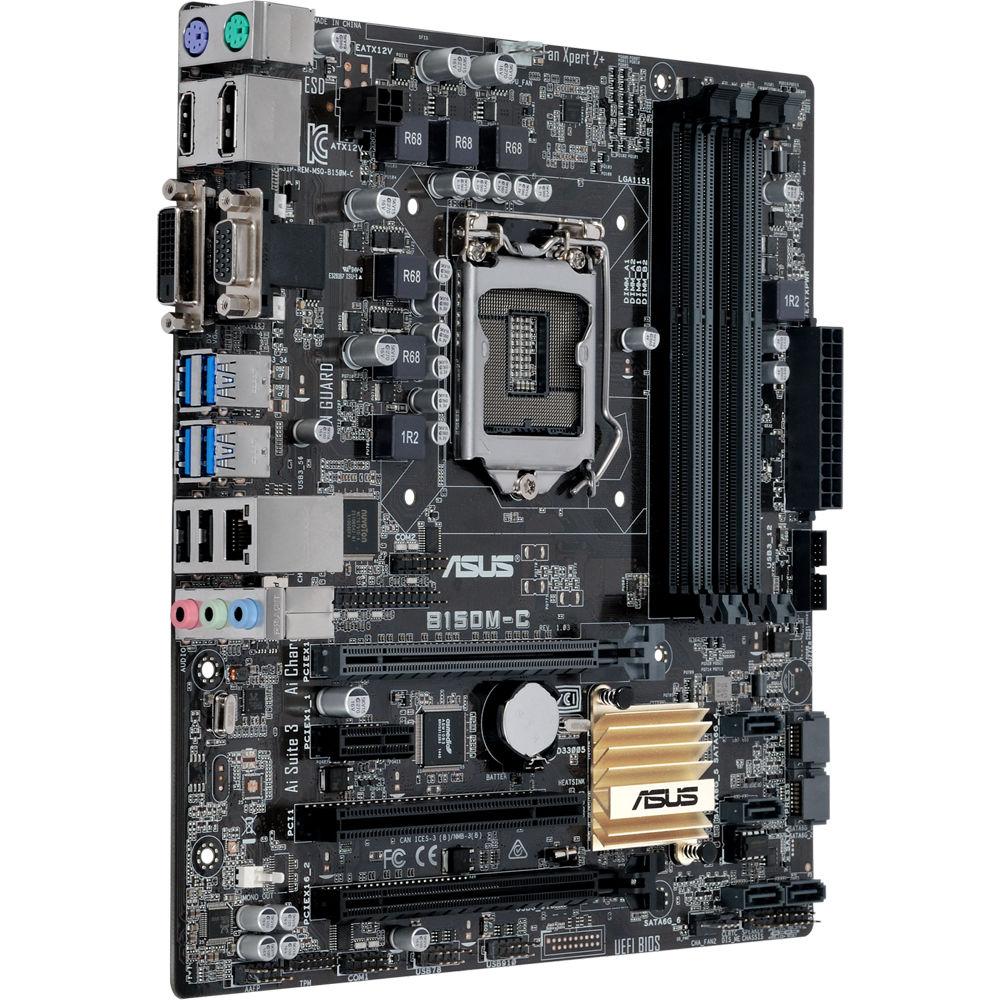

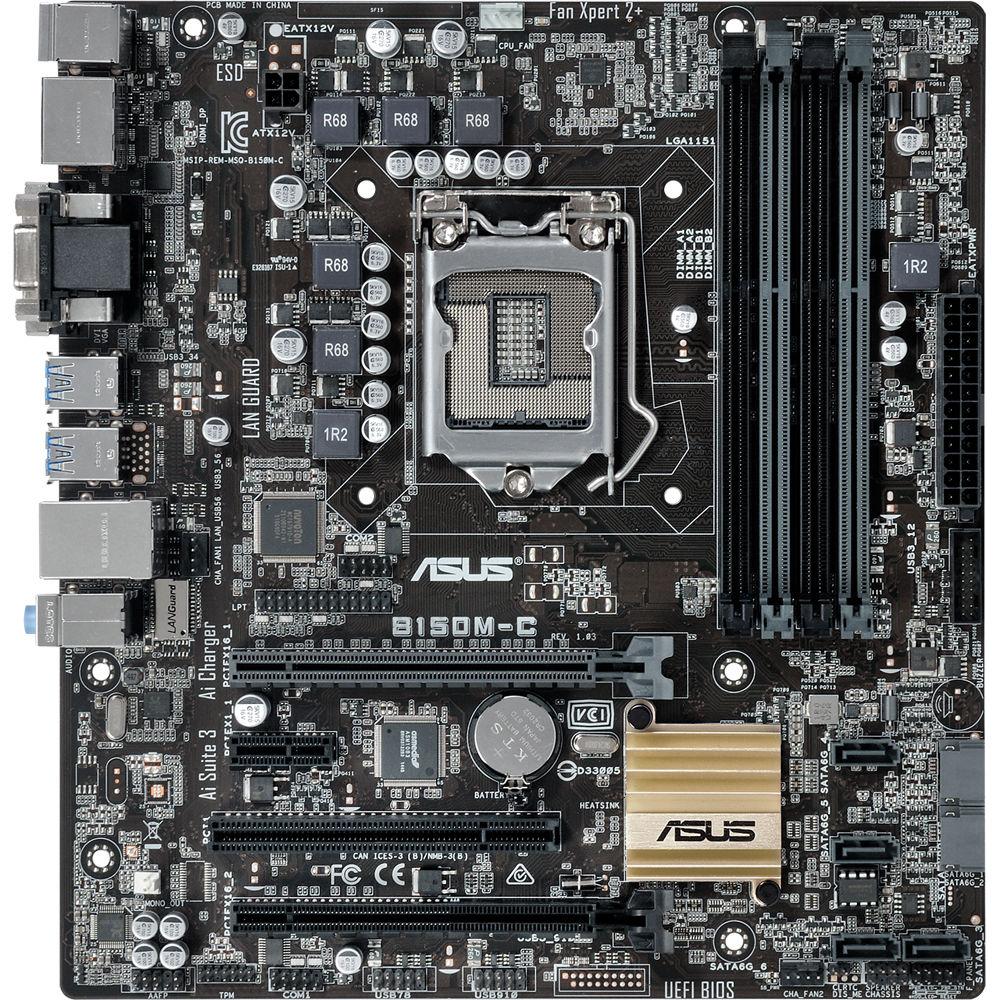

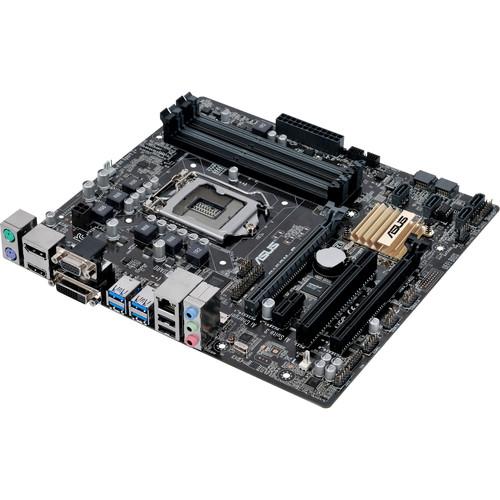

Product description Designed for system builders, this 10-pack of B150M-C/CSM LGA 1151 MicroATX Motherboards from ASUS supports 6th-generation Intel Core i7/i5/i3, Pentium, and Celeron processors with its LGA 1151 socket. The 9.6 x 8.9" B150M-C/CSM comes equipped with an Intel B150 chipset and supports Windows 10 (64-bit), Windows 8.1 (64-bit), as well as Windows 7 (32-bit/64-bit).
The B150M-C/CSM has four DDR4 DIMM slots that can support up to 64 GB of memory. This motherboard also has six SATA 6 Gb/s ports, six USB 3.0/2.0 ports, six USB 2.0/1.1 ports, two PCIe 3.0/2.0 x16 slots, a PCIe 3.0/2.0 x1 slot, a PCI slot, and a LAN port. The integrated graphics processor provides a multi-VGA resolution up to 4096 x 2160 @ 24 Hz using the HDMI port and a resolution of up to 1920 x 1200 @ 60 Hz using the DVI-D or RGB port.
Included with this motherboard are two SATA 6 Gb/s cables and an I/O shield. It is protected by a limited 3-year warranty. - DDR4 Support
- This motherboard supports DDR4 with up to 64 GB of system memory and non-ECC un-buffered memory at 2133 MHz.
- Intel Processors Supported
- 6th Generation Intel Core i7/i5/i3, Pentium, and Celeron processors can be used with this motherboard.
- LANGuard
- LANGuard is hardware-level networking protection that employs signal-coupling technology. Premium anti-EMI surface-mounted capacitors ensure a reliable connection and throughput. Electrostatically guarded and surge-protected components provide tolerance to static electricity and improved protection against surges.
- Overvoltage Protection
- A circuit design with built-in voltage regulators protects your chipset, connectivity ports, and audio codecs from damage caused by high-level voltages from unstable or inferior power supplies.
- DRAM Overcurrent Protection
- Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
- Stainless Steel Back I/O
- Corrosion-resistant stainless steel back I/O panels are bonded with chromium oxide.
- ESD Guards
- An active protective-circuit design guards your system against electrostatic interference and damage. ESD (Electrostatic Discharge) can happen suddenly, and ESD Guards are capable of up to +/- 10kV for air discharge and +/- 6kV for contact discharge.
- UEFI BIOS
- The updated UEFI BIOS features the EZ Flash 3 mode to update the latest BIOS via the internet and from within the graphical, mouse-controlled BIOS. The S.M.A.R.T mode lets you check up your storage devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and to determine if they're about to fail. Q-Fan control allows you to configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes. The My Favorites mode lets you quickly find tuning options and add preferred tools to the list.
- Ultrafast Transfer Speed
- There are two USB 3.0 ports on the front panel with fast data-transfer speeds and plug-and-play connectivity.
- Easy PC DIY
- Safe motherboard mounting with component-free areas to minimize damage risk.
- Q-Slot
- The large winged clip is easy to reach and to operate. By pressing the Q-Slot clip lightly the graphics card will pop out.
- Q-DIMM
- Q-DIMM provides easy memory removal. By pushing down on the one-sided clip you can push or pull the RAM modules in or out.
- Fan Xpert 2+
- Fan Xpert 2+ ensures that every fan achieves the balance of cooling performance and low noise with onboard thermal detection and hardware-level 4-pin/3-pin PWM/DC mode. It includes an Auto-Tuning mode to scan and detect fan characteristics for single-click customization as well as a RPM Fixed mode which lowers noise levels to near-0dB silence, allowing to you fix the fan speed.
- One-Stop Control
- AI Suite 3 offers a clear and attractive interface with support for large monitors. It consolidates ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.
- Intel B150 Express Chipset
- A single-chipset design that supports 6th-generation Intel LGA 1151 Core i7/i5/i3, Pentium, and Celeron processors. It provides improved performance by utilizing serial point-to-point links, with increased bandwidth and stability. It has six USB 3.0 ports and six SATA 6 Gb/s ports, and supports PCIe 3.0 lane speed and iGPU functionalities.
UPC: 889349198070 In the Box ASUS B150M-C/CSM LGA 1151 MicroATX Motherboard (10-Pack) 2 x SATA 6 Gb/s Cables I/O Shield Support DVD Limited 3-Year Warranty User Manual PDF 5.2mbwdbasbauyzycbczaasxccrtbtxf Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS B150M-C CSM LGA 1151 MicroATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS B150M-C/CSM/C/SI Specs | Form Factor | microATX | | Compatibility | LGA-1151 Socket
6th-generation Intel Core i7/i5/i3, Pentium, and Celeron processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 | | Chipset | Build-in Intel B150 | | Memory | 4 x DIMM, 64 GB (max),
DDR4 2133 MHz non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) | | Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x4 mode)
1 x PCIe 3.0/2.0 x1
1 x PCI | | Graphics | Integrated graphics processor
Multi-VGA output support: HDMI, DVI-D, RGB, DisplayPort
Supports HDMI, 4096 x 2160 @ 24 Hz (max)
Supports DVI-D, 1920 x 1200 @ 60 Hz (max)
Supports RGB, 1920 x 1200 @ 60 Hz (max)
1024 MB shared memory (max)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Intel Insider
Supports up to 3 displays simultaneously | | Storage | Intel B150 Chipset:
6 x SATA 6 Gb/s ports, gray | | LAN | Realtek 8111F Gigabit LAN controller | | Audio | Realtek ALC887-VD 7.1-channel high-definition audio codec
Supports jack detection, front-panel jack retasking | | USB | 6 x USB 3.0/2.0 ports (4 at back panel, blue)

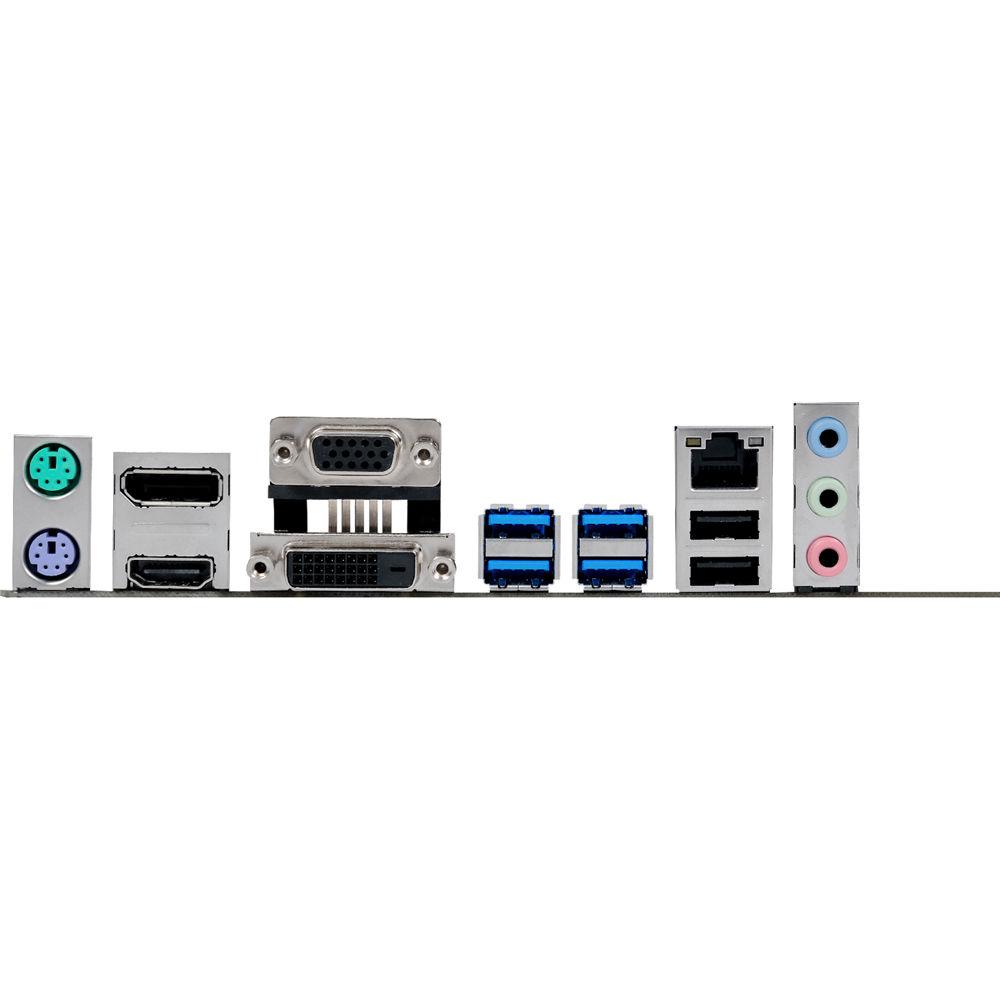

6 x USB 2.0/1.1 ports (2 at back panel, black) | | Back I/O Ports | 1 x PS/2 keyboard (purple)
2 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port
1 x USB 3.0 port (blue)
2 x USB 2.0 ports
3 x Audio jacks | | Internal I/O Ports | 1 x MONO out header
1 x USB 3.0 connector supports additional 2 x USB 3.0 ports
2 x USB 2.0 connectors supports additional 4 x USB 2.0 ports
1 x LPT header
2 x COM port connectors
6 x SATA 6 Gb/s connectors
1 x CPU fan connector (1 x 4-pin)
2 x Chassis fan connectors (2 x 4-pin)
1 x 24-pin EATX power connector
1 x 4-pin ATX 12 V power connector
1 x Front-panel audio connector (AAFP)
1 x Internal speaker connector
1 x System panel
1 x Chassis intrusion connector | | BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | | Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE | | Support Disc | Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) | | OS Support | Windows 10 (64-bit)
Windows 8.1 (64-bit)
Windows 7 (32-bit / 64-bit) Please download "Windows 7 installation guide" and "ASUS EZ installer" from the ASUS website in order to install Windows 7. | | Dimensions | 9.6 x 8.9" (24.4 x 22.6 cm) | | Weight | Not specified by manufacturer |
