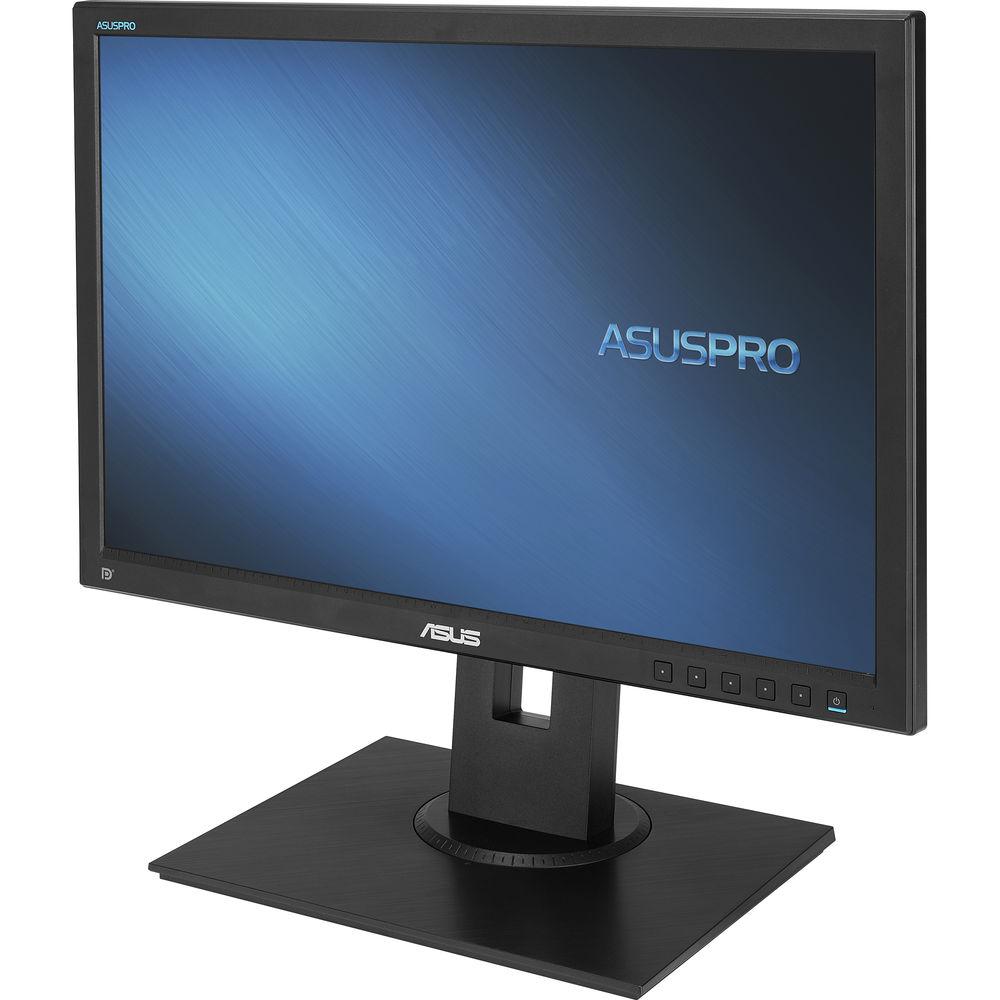

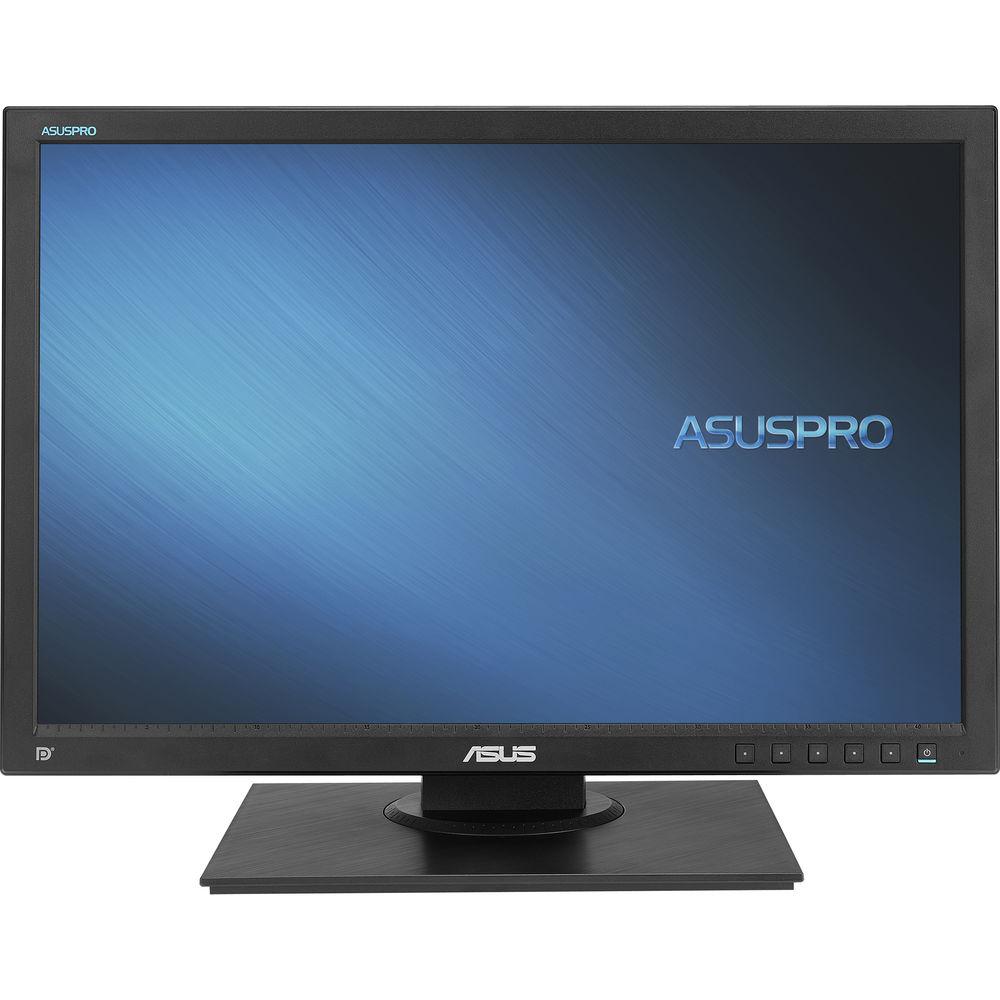

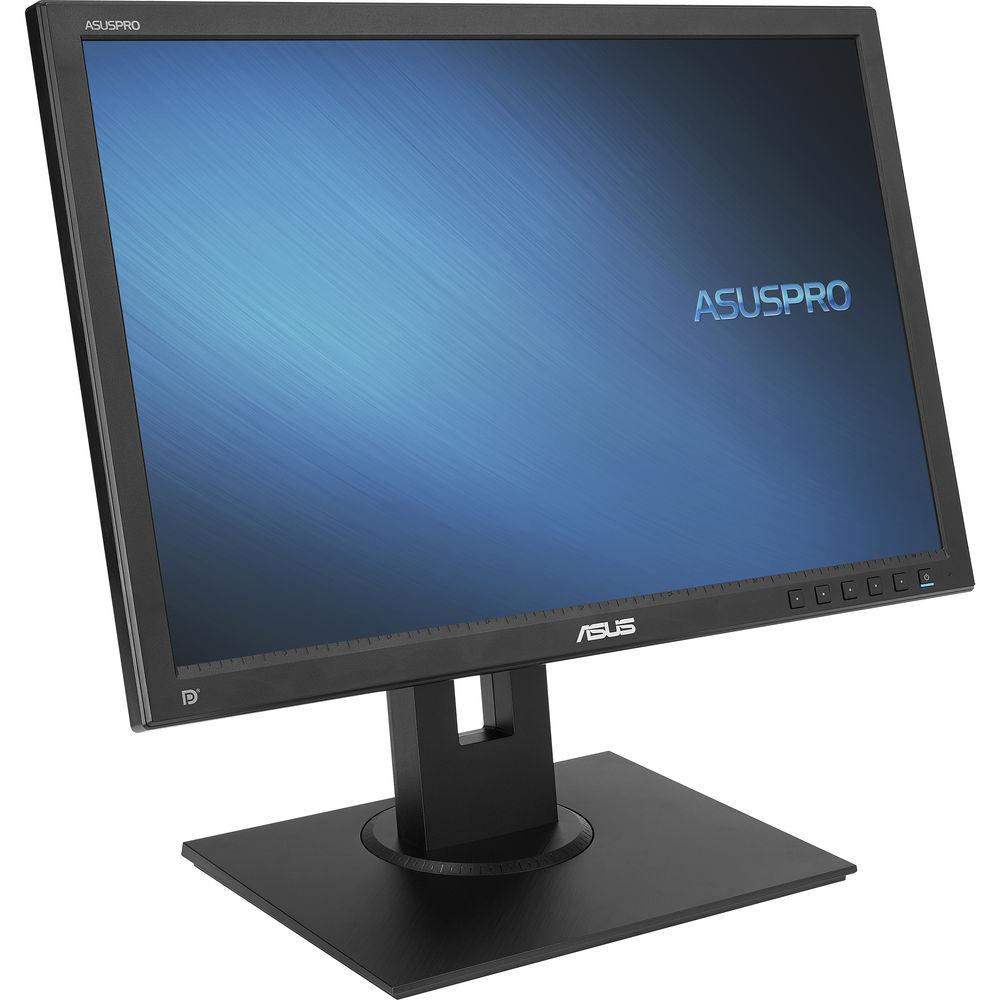

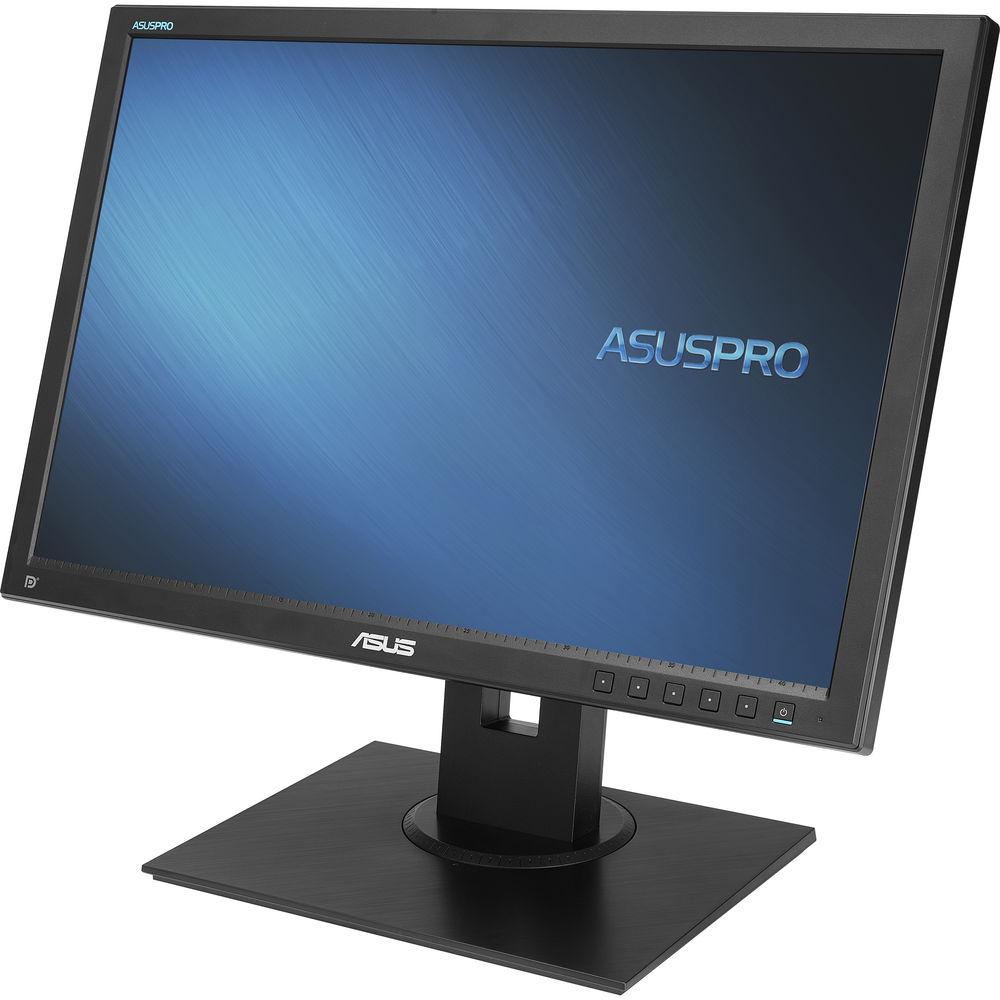

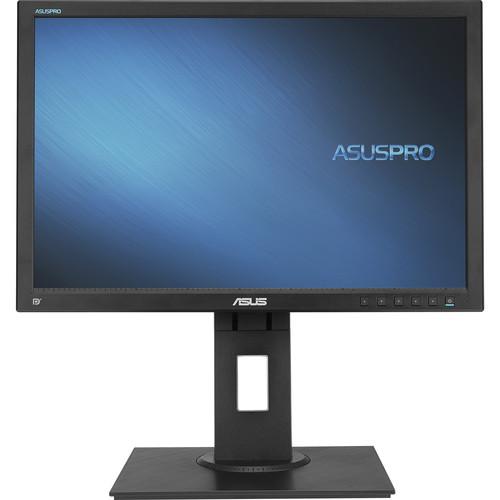

User Manual for ASUS C620AQ 19.5" Widescreen LED Backlit LCD Business Monitor with Ergonomic Stand Click to enlarge the picture
Contents of the user manual for the ASUS C620AQ 19.5" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS C620AQ 19.5" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cqtaqeawzzsfscatudyutfwwzrwyaa Collaborate with co workers and colleagues using the C424AQ 23.8" Widescreen LED Backlit LCD Business Monitor from ASUS. This business monitor features an IPS (in-plane switching) panel designed to offer expansive 178° horizontal and vertical viewing angles, which are intended to help reduce screen distortion when looking at the screen from various angles. In addition to enhanced viewing angles, the C620AQ provides a crisp clear picture thanks to the 1440 x 900 resolution and the 1,000:1 contrast ratio which creates deeper dark and brighter bright colors for a more dynamic picture. Setup and configuration is simple as this ASUS monitor comes equipped with a single DisplayPort, D-Sub, and DVI-D connector, you can even plug USB compatible peripherals into either of the two USB 2.0 ports. For a complete multimedia experience ASUS has also included a dedicated headphone jack and an audio-in port, making it easy to connect a pair of headphones directly to the monitor. Once configured, the display can be swiveled, pivoted, and height adjusted to ensure maximum viewing comfort. - Vivid Lifelike Colors and 178° Viewing Angles
- The C620AQ business monitor features an HD+ (1440 x 900) resolution, that's LED-backlit, and a 178° wide-viewing angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction.
- Extensive Connectivity

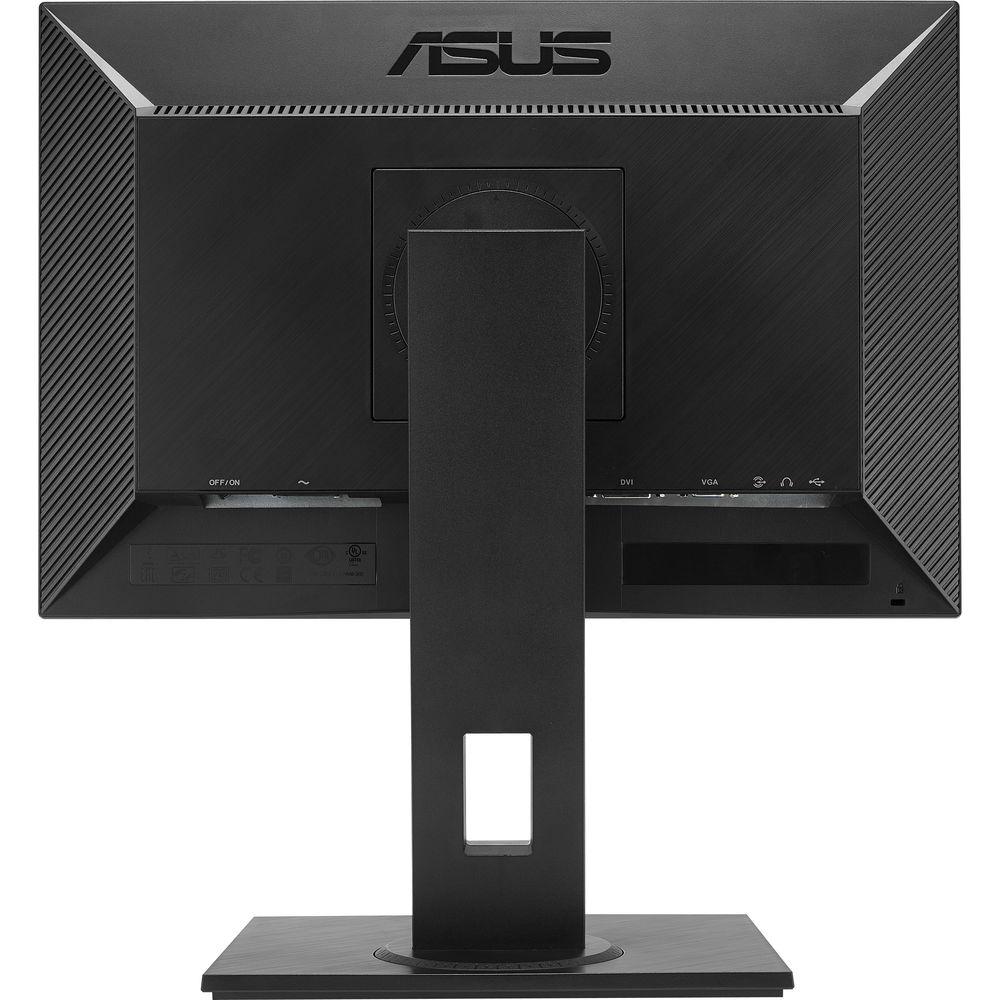

- The C620AQ business monitor features a host of connectivity options including DisplayPort, DVI-D, D-sub, Audio-in, Earphone jack, and two USB 2.0 ports.
- ASUS Flicker Free Technology
- ASUS Flicker Free Technology uses Smart Dynamic Backlight Adjustment to avoid low brightness levels and high speed LED backlight flashing, clears out the distractive flicker, and brings a more comfortable viewing experience to avoid Computer Vision Syndrome.
- ASUS Low Blue Light Technology
- This ASUS Low Blue Light Monitor allows users to access four different Blue Light Filter settings onscreen, which you can choose from level 1 to level 4, depending on different tasks, to effectively reduce harmful blue light from the screen for the best viewing comfort.
- Versatile Comfort with Ergonomic Stand Design

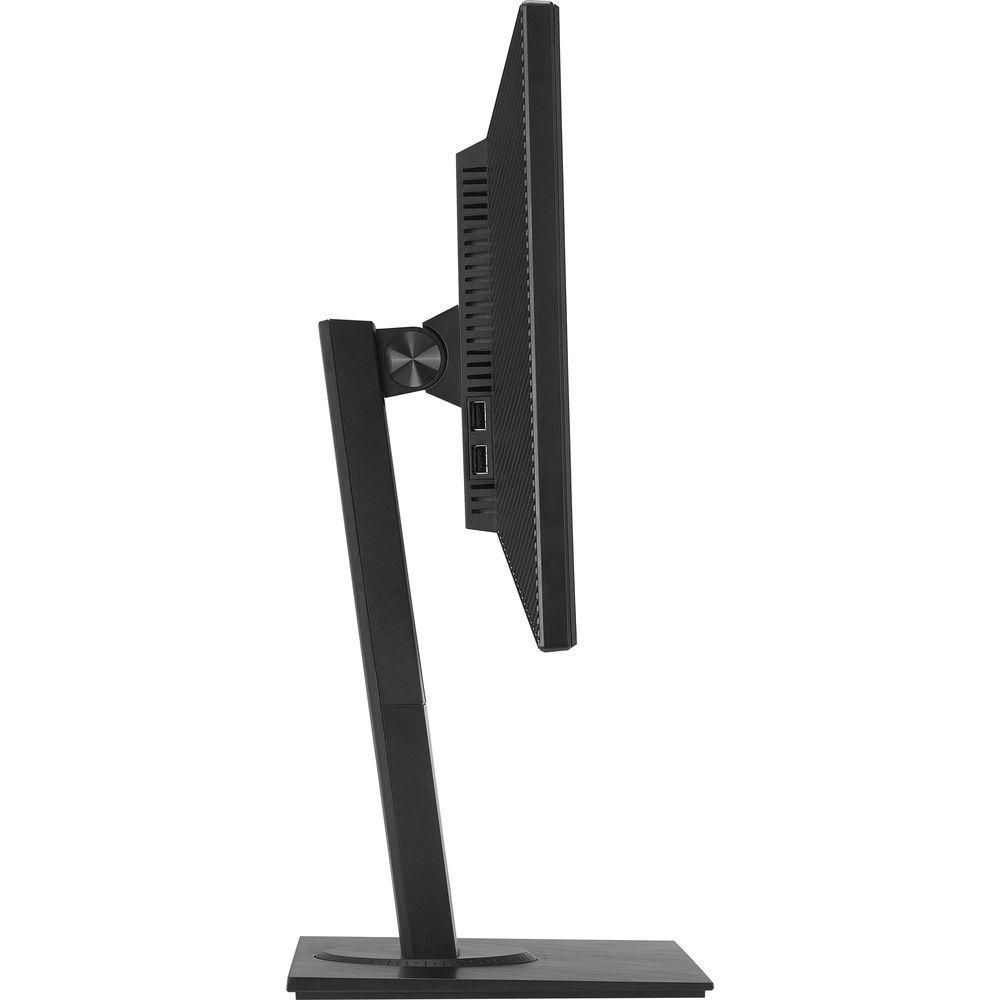

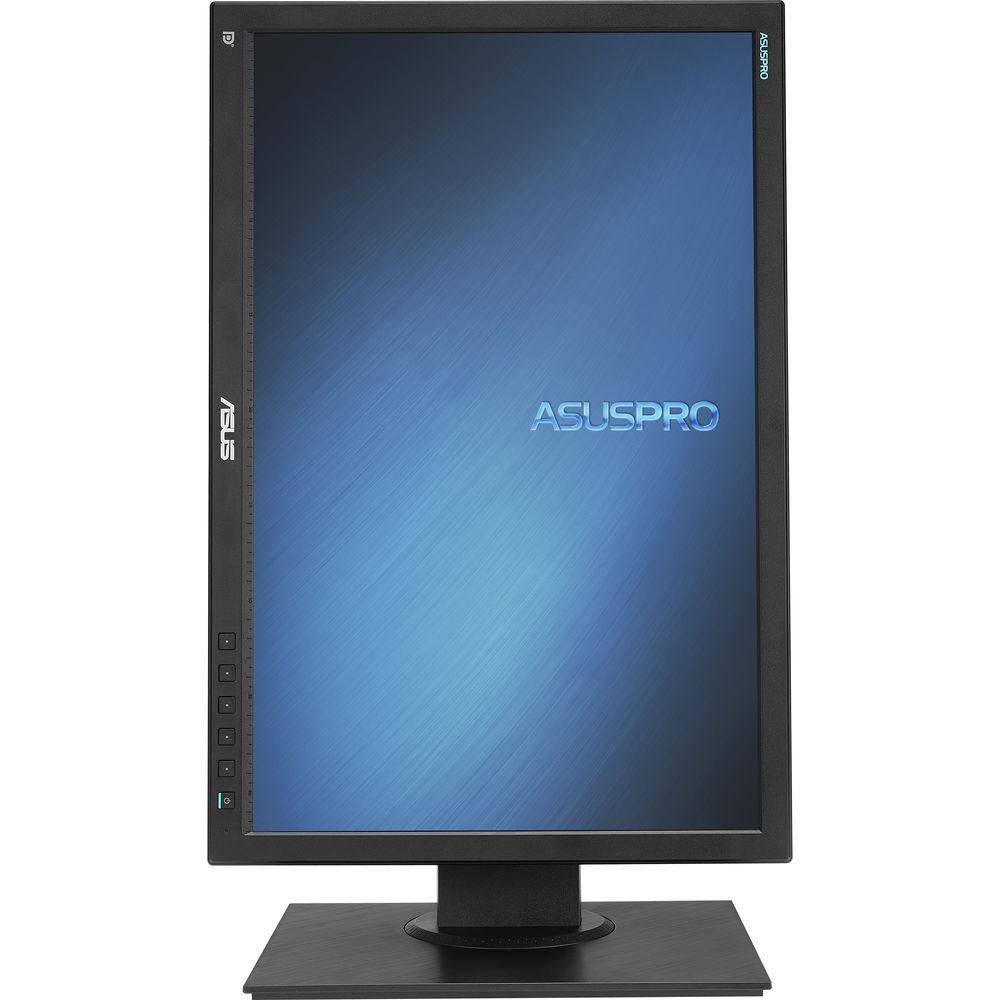

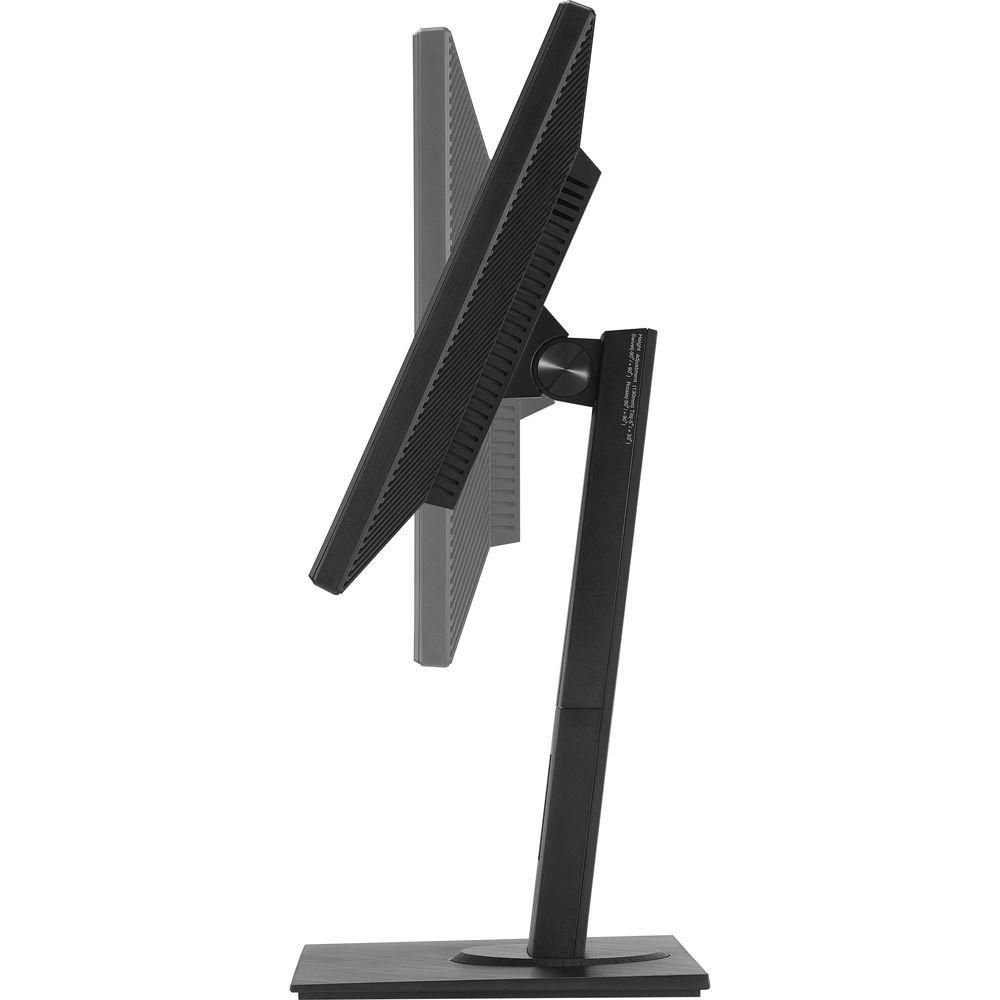

- With an ergonomically-designed stand with tilt, swivel, pivot, and height adjustments, the C620AQ provides a comfortable viewing and usage experience. The ability to pivot the screen clockwise or counterclockwise 90 degrees for use in portrait mode comes in handy when working with long documents, coding, or website browsing. Furthermore, the C620AQ features a quick release stand to provide an easier way for frequent VESA wall mount scenario setup. Screw-free and it's done in seconds.
UPC: 889349137789 In the Box ASUS C620AQ 19.5" Widescreen LED Backlit LCD Business Monitor with Ergonomic Stand VGA Cable Audio Cable Power Cord DisplayPort Cable USB Cable Limited 3-Year Warranty User Manual PDF 2.7mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS C620AQ 19.5" Widescreen LED Backlit LCD Business Monitor with Ergonomic Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS C620AQ Specs | | | Size | 19.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1440 x 900 | | Aspect Ratio | 16:10 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2915 x 0.2915 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
2 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 15.7 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 33° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 18.0 x 12.1 x 2.0" / 45.6 x 30.6 x 5.0 mm (Without Stand)
17.9 x 15.2 x 7.5" / 45.4 x 38.6 x 19.2 mm (With Stand) | | Weight | 10.6 lb / 4.8 kg | | | | Package Weight | 14.55 lb | | Box Dimensions (LxWxH) | 24.1 x 15.0 x 7.0" |
