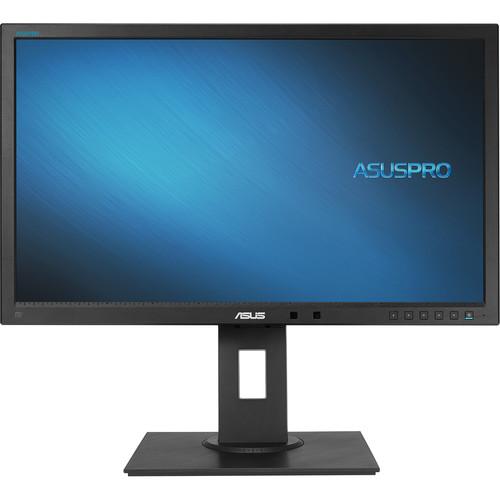

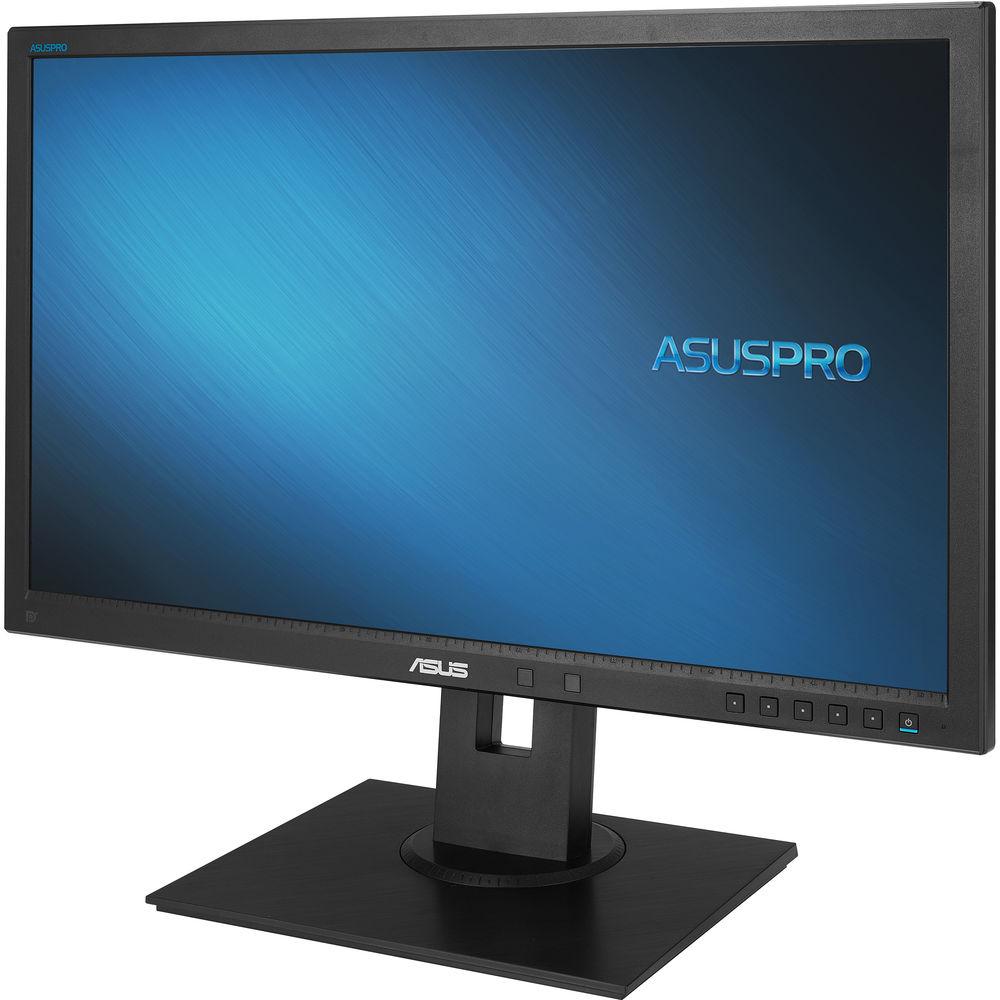

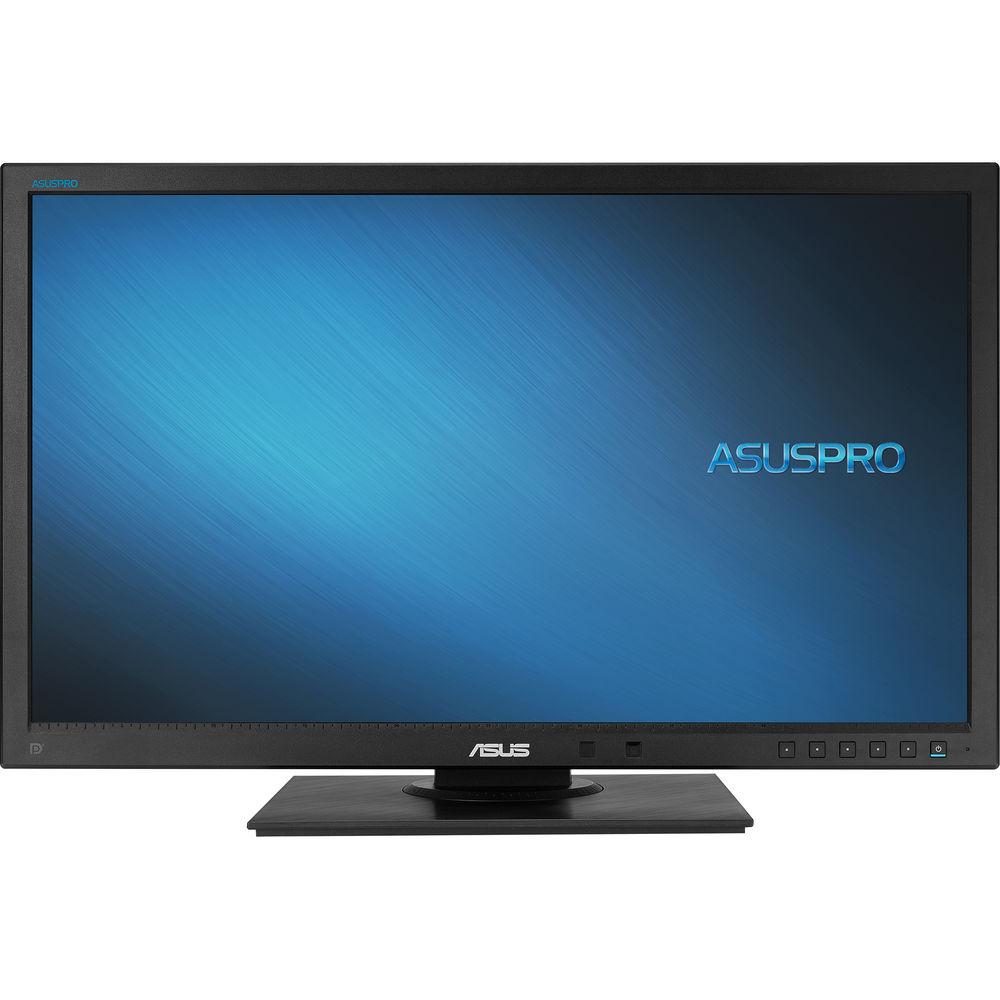

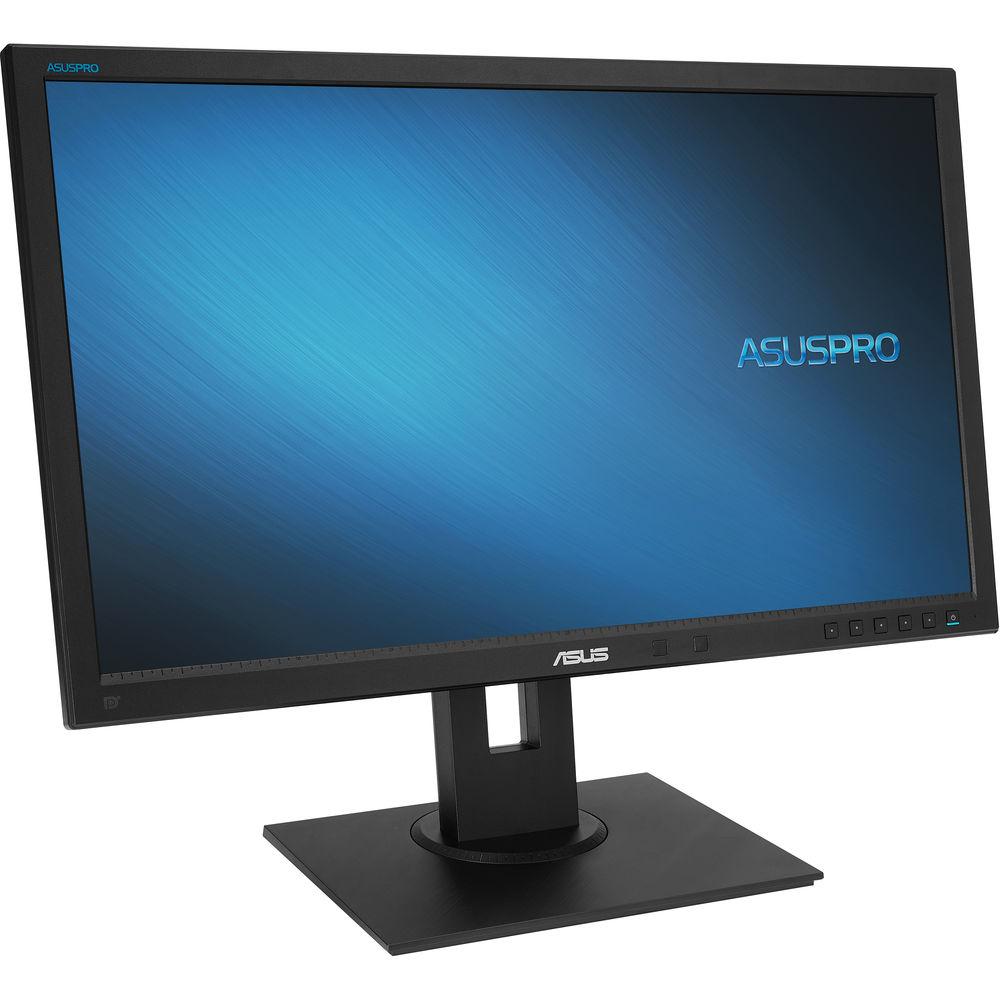

User Manual for ASUS C623AQR 23" 16:9 IPS Monitor with Ergonomic Stand Click to enlarge the picture
Contents of the user manual for the ASUS C623AQR 23" 16:9 IPS Monitor
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS C623AQR 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Featuring a Full HD 1920 x 1080 resolution, the C623AQR 23" 16:9 IPS Monitor from ASUS offers an enhanced picture quality for multimedia content, photos, documents, and more. In addition to the Full HD resolution, this display also supports a 1,000:1 contrast ratio, 250 cd/m² brightness rating, and 5 ms response time for a more dynamic viewing experience with reduced ghosting and blur while viewing videos and movies. The C623AQR also comes with a variety of display technologies and preset modes to easily adjust the display settings to accommodate the content being viewed. Installation and configuration of this ASUS monitor has also been simplified as it comes equipped with D-Sub, DisplayPort, and DVI-D inputs as well as two USB 2.0 ports and built-in audio jacks. Once configured, the IPS panel can be viewed from nearly any perspective as it supports 178° horizontal and vertical viewing angles. - Lifelike Visuals with 178° Wide Viewing Angles
- The C623AQR business monitor features a Full HD (1920x1080) resolution with LED-backlit and a 178° wide-view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction.
- Extensive Connectivity

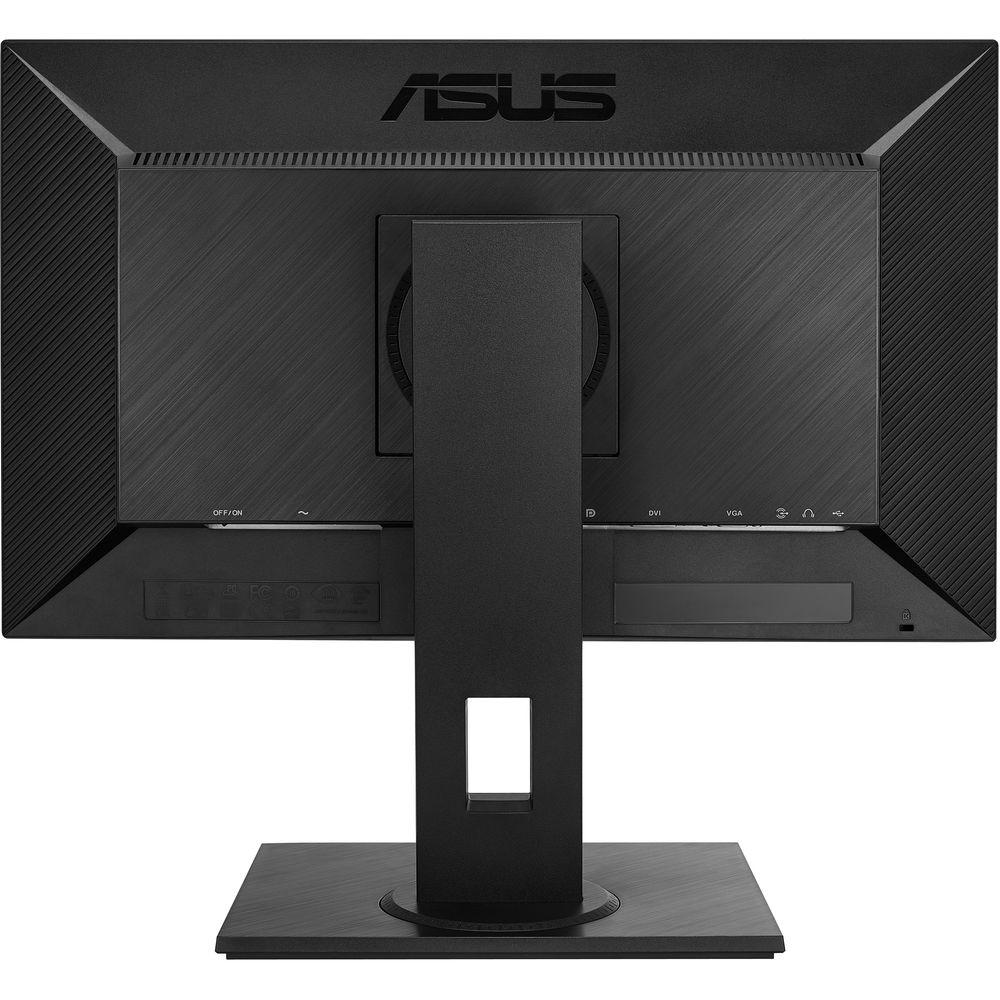

- This ASUS business monitor features a host of connectivity options that include DisplayPort, DVI-D, D-Sub, audio-in, earphone jack, and two USB 2.0 ports.
- Eye Care Technology
- Say goodbye to tired, strained eyes. The C623AQR features ASUS Flicker-free and Low Blue Light technologies to reduce instances of eyestrain and other damaging effects when spending long hours in front of a display.
- Ergonomic Stand Design

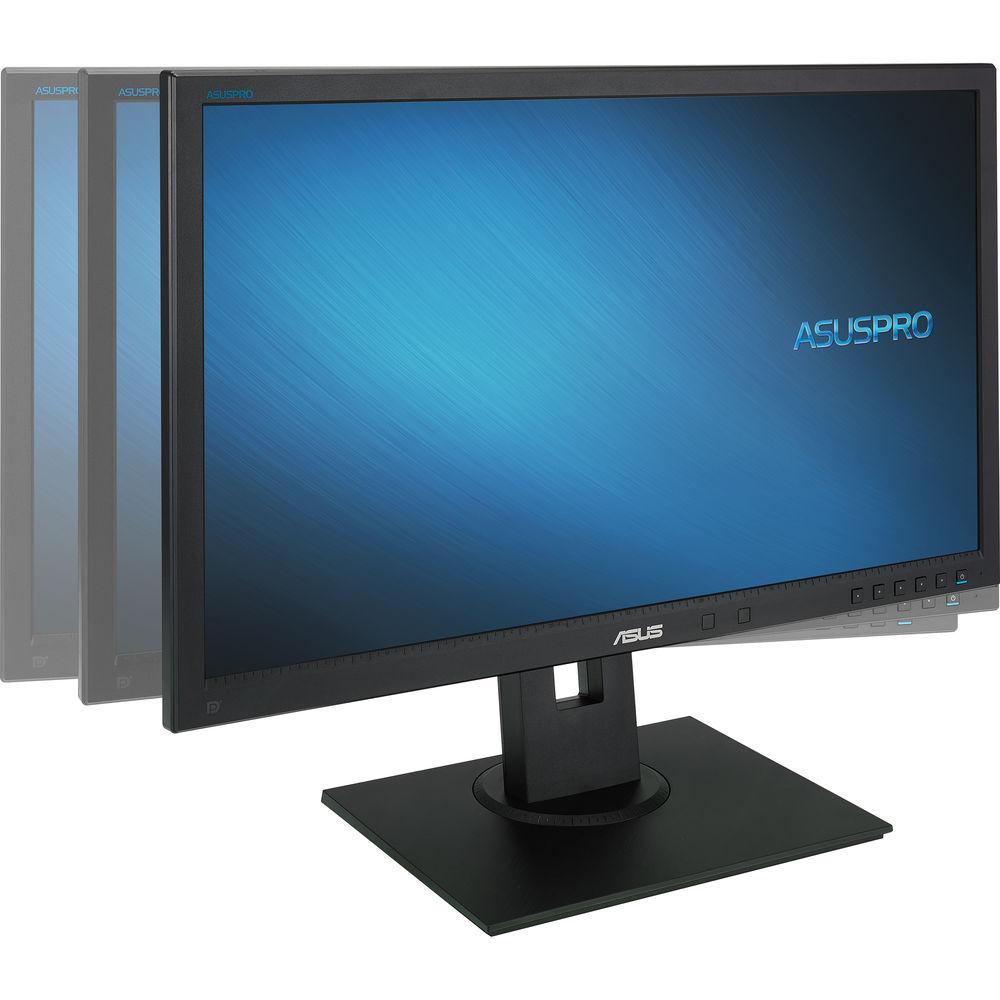

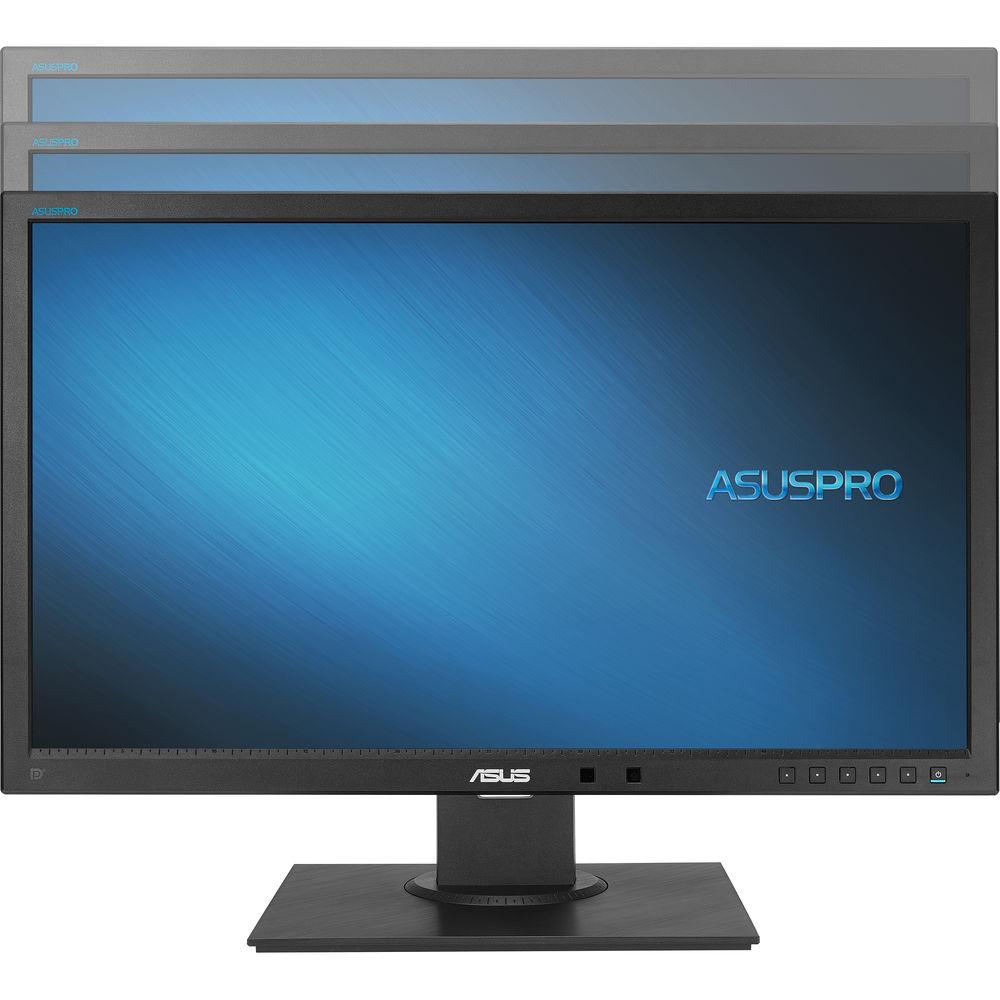

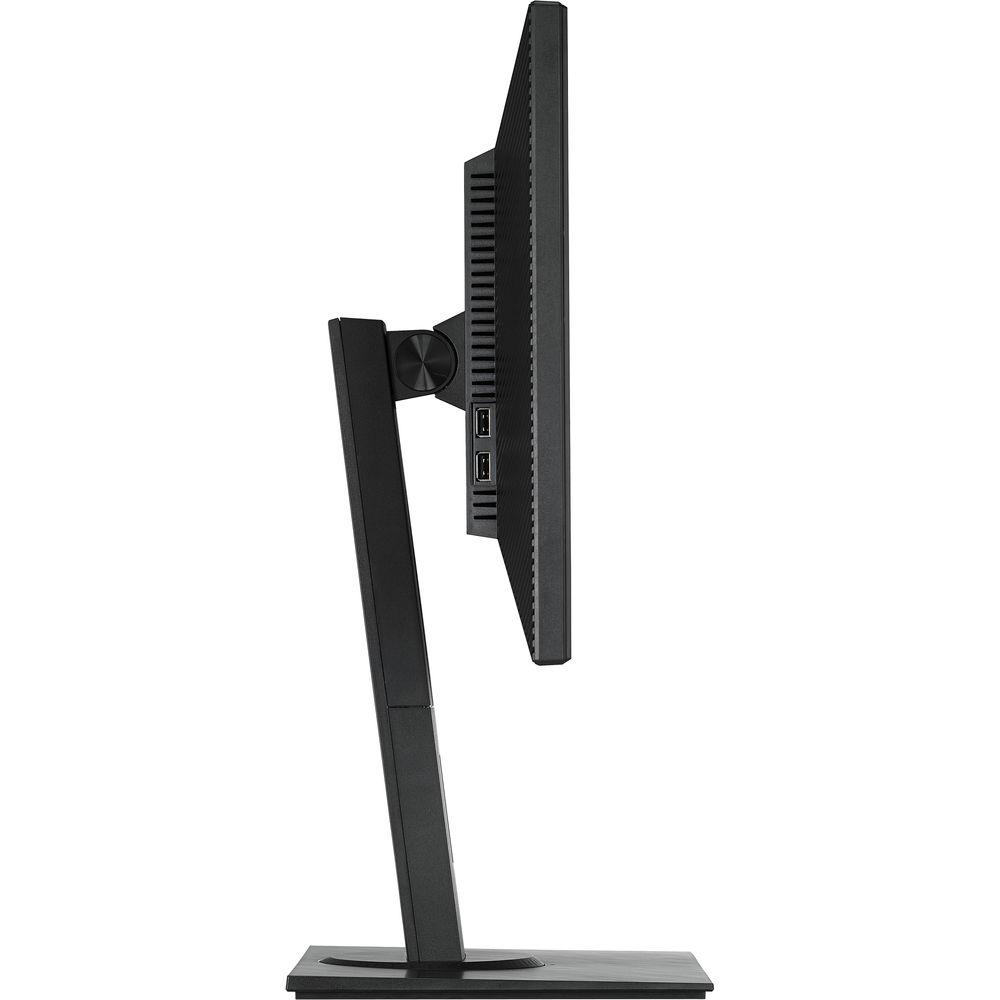

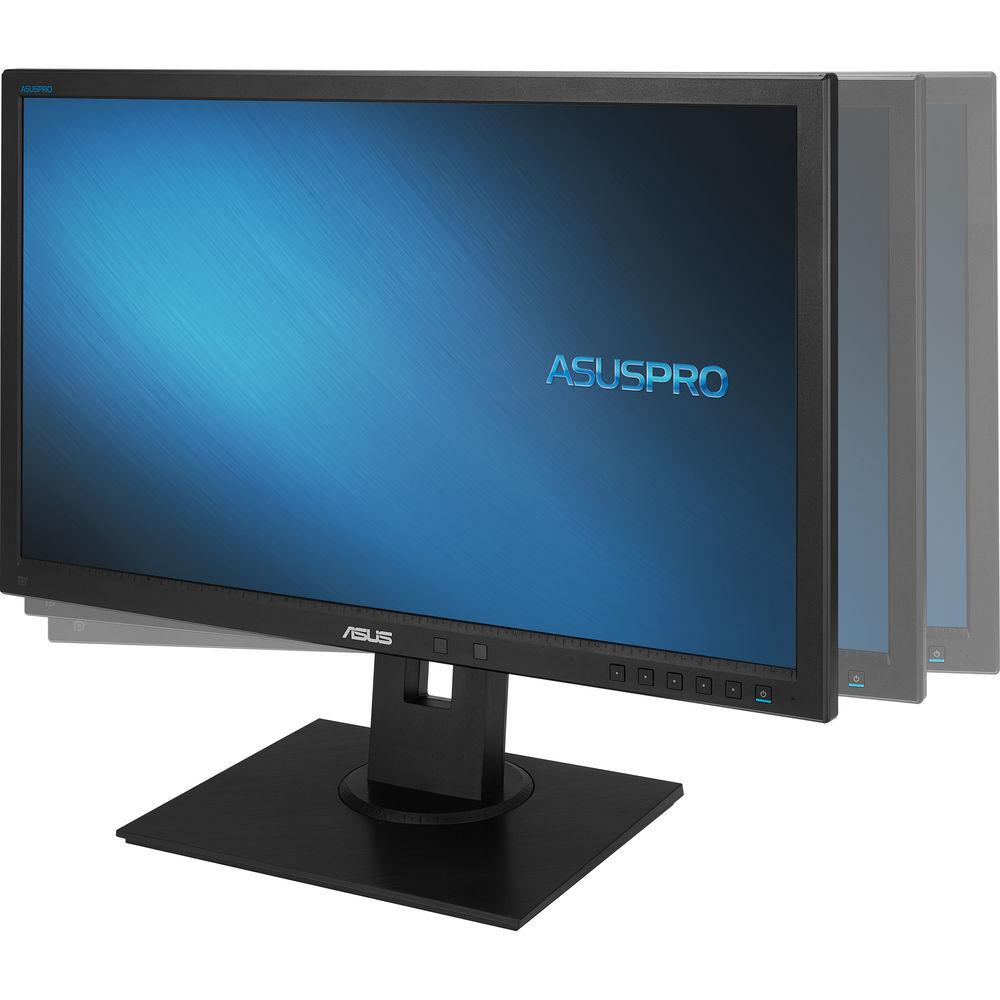

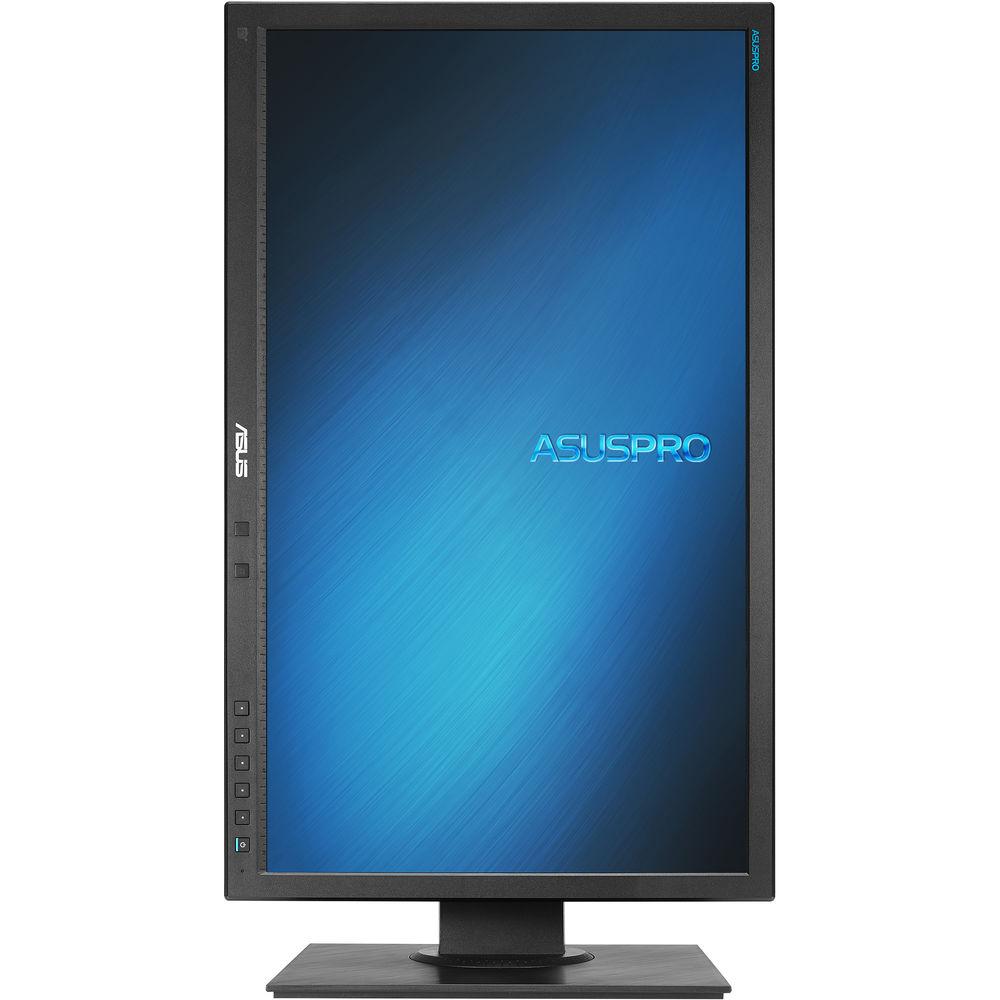

- With an ergonomically-designed stand with tilt, swivel, pivot, and height adjustments, the C623AQR provides a comfortable viewing and usage experience. The ability to pivot the screen clockwise or counterclockwise 90 degrees for use in portrait mode comes in handy when working with long documents, coding or website browsing. Furthermore, the C623AQR features a quick release stand to provide an easier way for frequent VESA wall mount scenario setup. Screw-free and it's done in seconds.
UPC: 889349113950 In the Box ASUS C623AQR 23" 16:9 IPS Monitor with Ergonomic Stand VGA Cable Audio Cable DisplayPort Cable USB Cable Power Cord Limited 3-Year Warranty User Manual PDF 2.7mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS C623AQR 23" 16:9 IPS Monitor with Ergonomic Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS C623AQR Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 49 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2652 x 0.2652 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
2 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 22 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 33° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.6 x 14.2 x 8.3" / 54.8 x 36.0 x 21.1 mm (With Stand)
21.6 x 13.1 x 2.0" / 54.8 x 33.3 x 5.0 mm (Without Stand) | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 15.95 lb | | Box Dimensions (LxWxH) | 25.0 x 15.8 x 6.7" |
