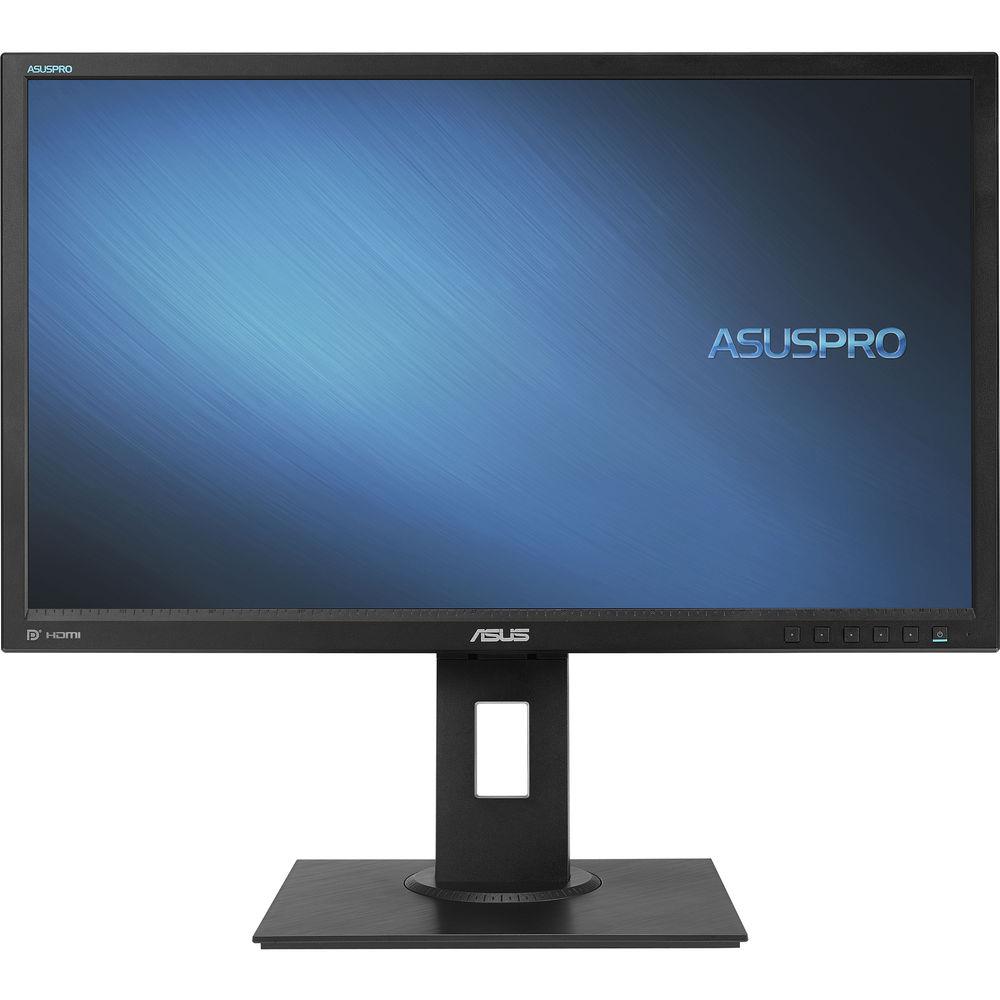

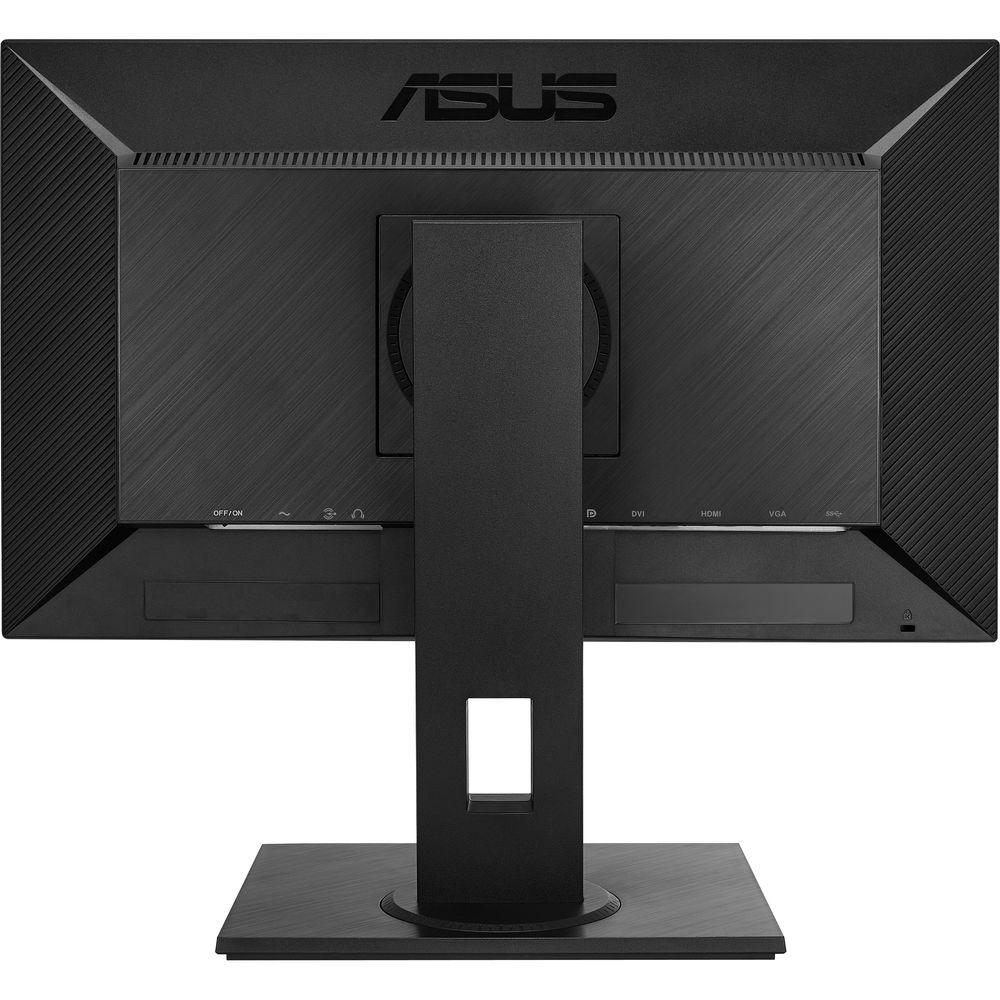

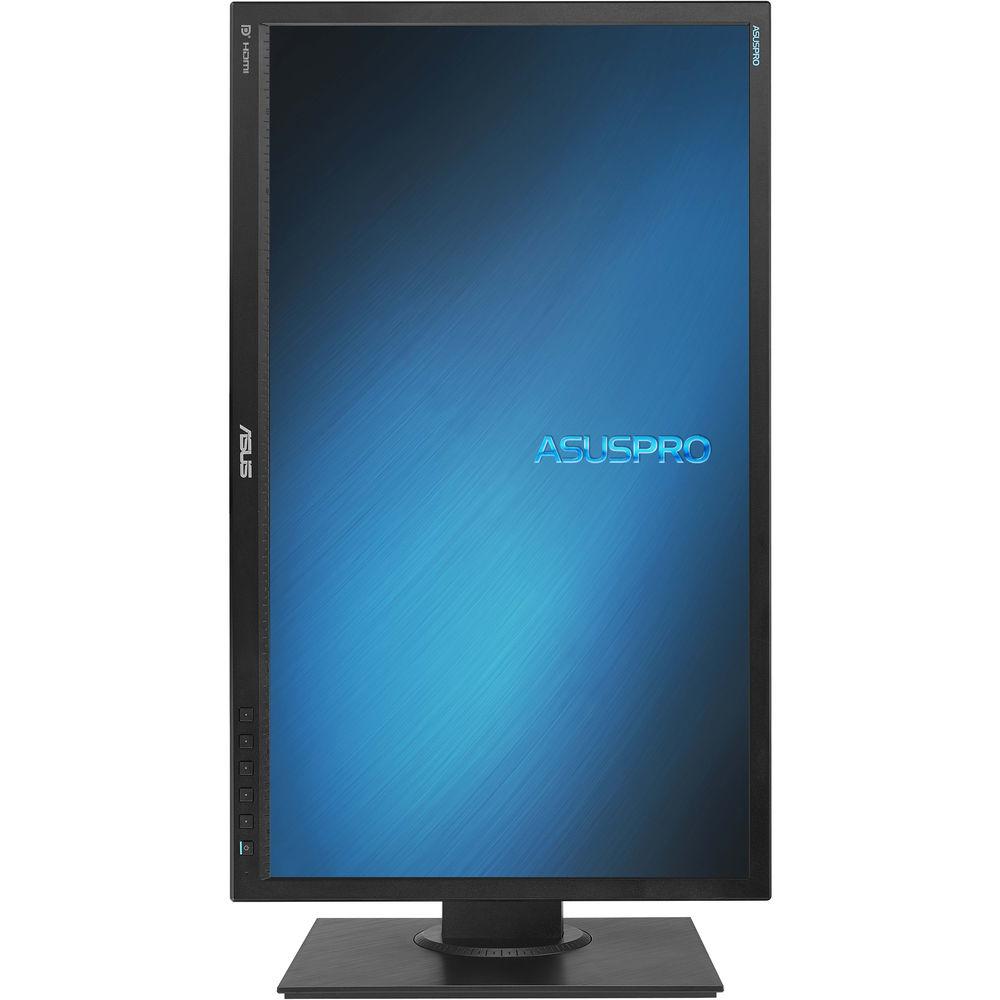

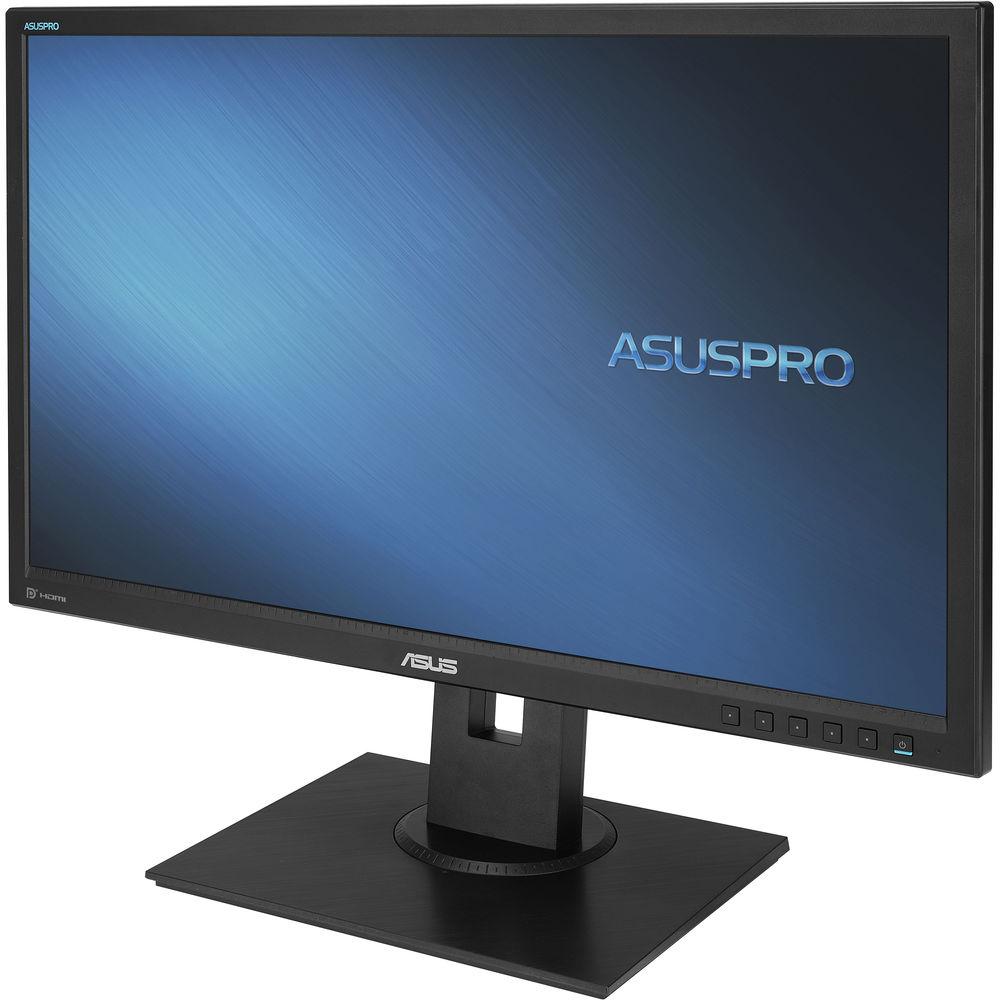

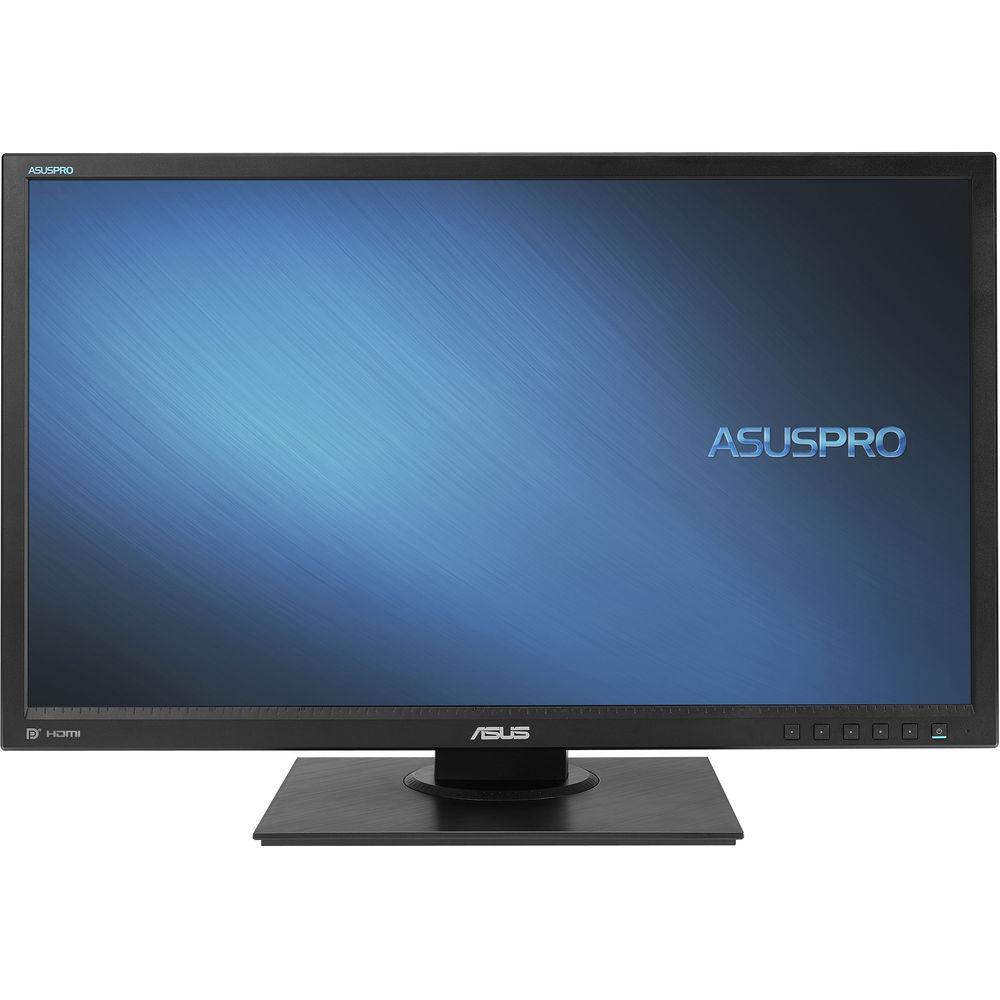

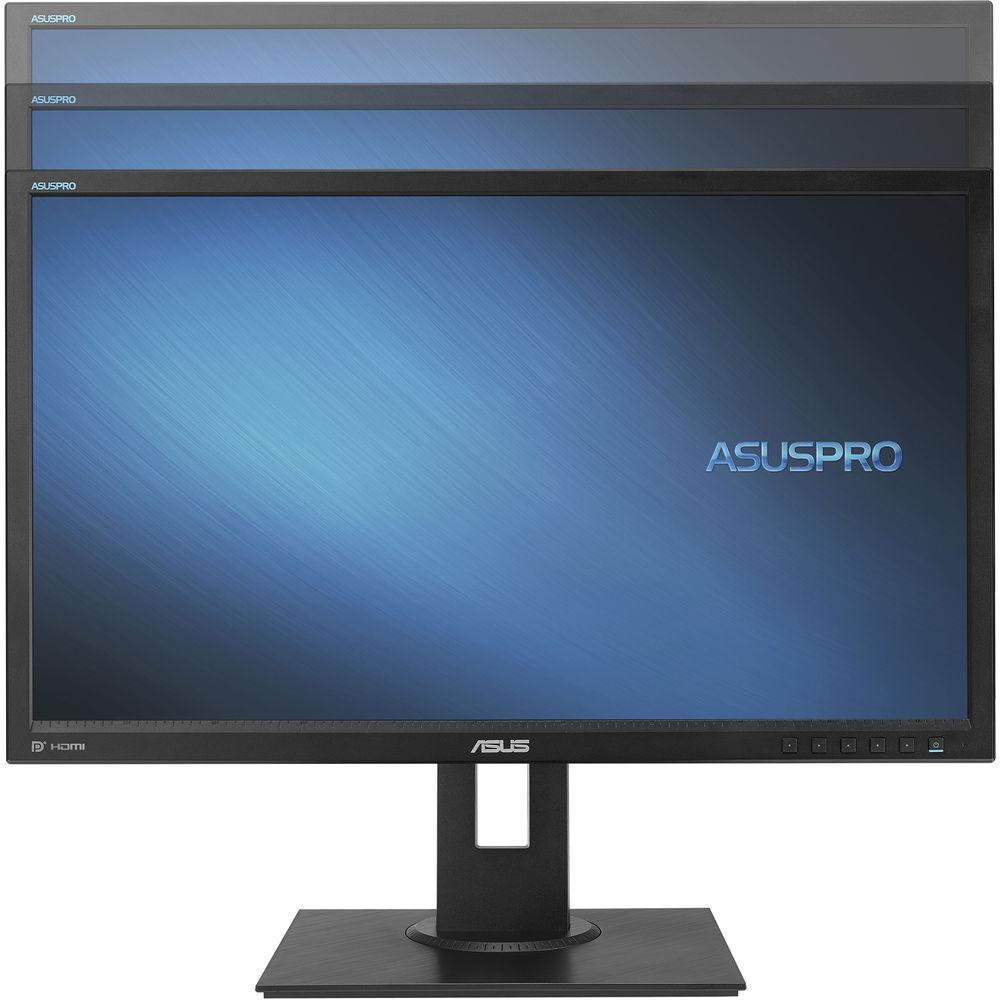

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ydqquzyrerqfbsv The C624AQH AsusPro 23.8" 16:9 IPS Monitor from Asus is fit for almost any system thanks to its extensive connectivity options including DisplayPort, HDMI, DVI-D, and VGA. It features a 1920 x 1080 Full HD display with a 250 cd/m² brightness rating and a 1000:1 static contrast ratio for vivid colors. Moreover, it has 178° viewing angles, a 5 ms response time, and support for up to 16.7 million colors. Once connected to your system, you can swivel, tilt, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional stand, mount, or arm using the VESA mounting holes on the back. For your convenience, it has a built-in two-port USB 3.0 hub that you can use to quickly and easily connect peripherals - Ultra-Low Blue Light
- The C624AQH monitor supports ultra-low blue light viewing with four different modes. Swap through them to fit your current application such as normal web browsing, reviewing photos and videos, long reading sessions, and environments with dim ambient light.
- Flicker-Free Technology
- Flicker-Free technology helps to reduce eyestrain and provide you with a more comfortable viewing experience over extended viewing sessions.
- Additional Features
-
- Convenient key controls for functional setup in the multi-language OSD.
- Built-in 2W stereo speakers for multimedia usage.
- Easily quick releasing stand for wall mount.
- Optional MiniPC Kit for mounting mini PCs on the monitor.
- Compatible with VESA Wall Mount Standard (100 x 100mm).
- Kensington lock compatible.
UPC: 889349919972 In the Box ASUS C624AQH AsusPro 23.8" 16:9 IPS Monitor VGA Cable Audio Cable Power Cable DisplayPort Cable USB Cable Limited 3-Year Warranty User Manual PDF 3.2mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS C624AQH AsusPro 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS C624AQH Specs | | | Size | 23.8" | | Screen Area | 20.75 x 11.67" / 527.04 x 296.46 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 49 to 76 Hz | | HDR Compatibility | None | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x 3.5 mm Output
1 x DisplayPort
1 x DVI-D
1 x HDMI
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 14.4 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | CE, ENERGY STAR, EPEAT GOLD, FCC, Kcc, REACH, RoHS, TCO Certified, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.1 x 14.3 x 8.3" / 562.0 x 362.0 x 211.0 mm (With Stand)
22.1 x 13.4 x 2.0" / 562.0 x 340.0 x 50.0 mm (Without Stand) | | Weight | 12.79 lb / 5.8 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 7.0" |
