User Manual for ASUS Chromebox 3 N7403U Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the ASUS Chromebox 3 N7403U Mini Desktop
- Product category: Desktop Computers ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Desktop Computers
 |
User manual for the ASUS Chromebox 3 N7403U Mini Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

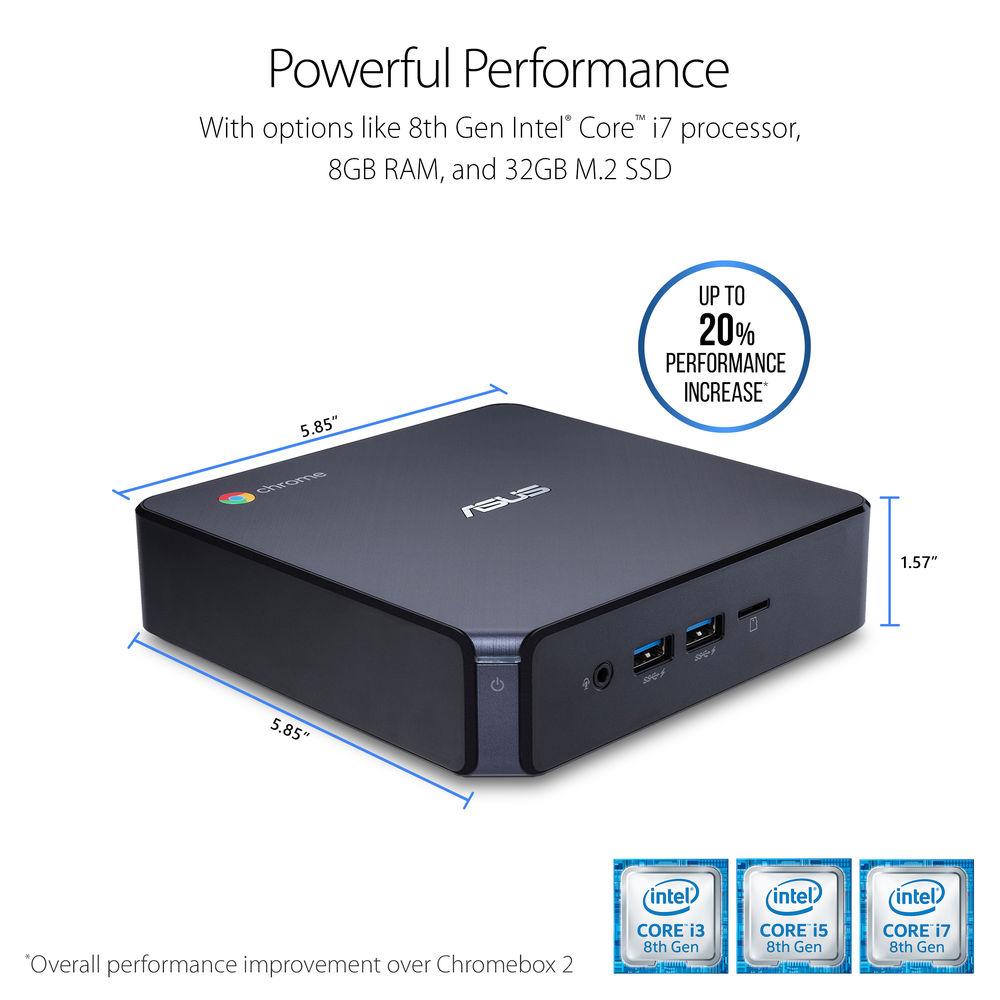

Product description The Chromebox 3 N7403U Mini Desktop Computer from ASUS is a compact system ideal for a wide range of applications ranging from digital signage to education and more. Specs-wise, it's equipped with a 1.8 GHz Intel Core i7-8550U quad-core processor, 4GB of DDR4 memory, and a 32GB M.2 SSD. Using the power of its integrated graphics processor, it can support up to two displays via HDMI and USB Type-C. Other integrated features include a microSD card reader, USB Type-A and Type-C ports, 802.1ac Wi-Fi, Bluetooth 4.0, and a combo audio jack. The operating system installed is Chrome OS. - Chrome OS
- Using Linux as a base, Google designed Chrome OS to work exclusively with web applications. The user interface takes a minimalist approach, which greatly resembles the Google Chrome web browser. Chrome OS was built for people who spend a majority, if not all, of their time on the computer connected to the internet. The only application that comes installed on Chrome OS is a special Google Chrome web browser with an integrated media player and file manager. All other applications are accessed by adding apps from the Google Chrome Web Store. Since Chrome OS relies entirely on Google's web apps and access to Google's services, it is highly recommended that you connect to the internet to optimize your Chrome OS experience.

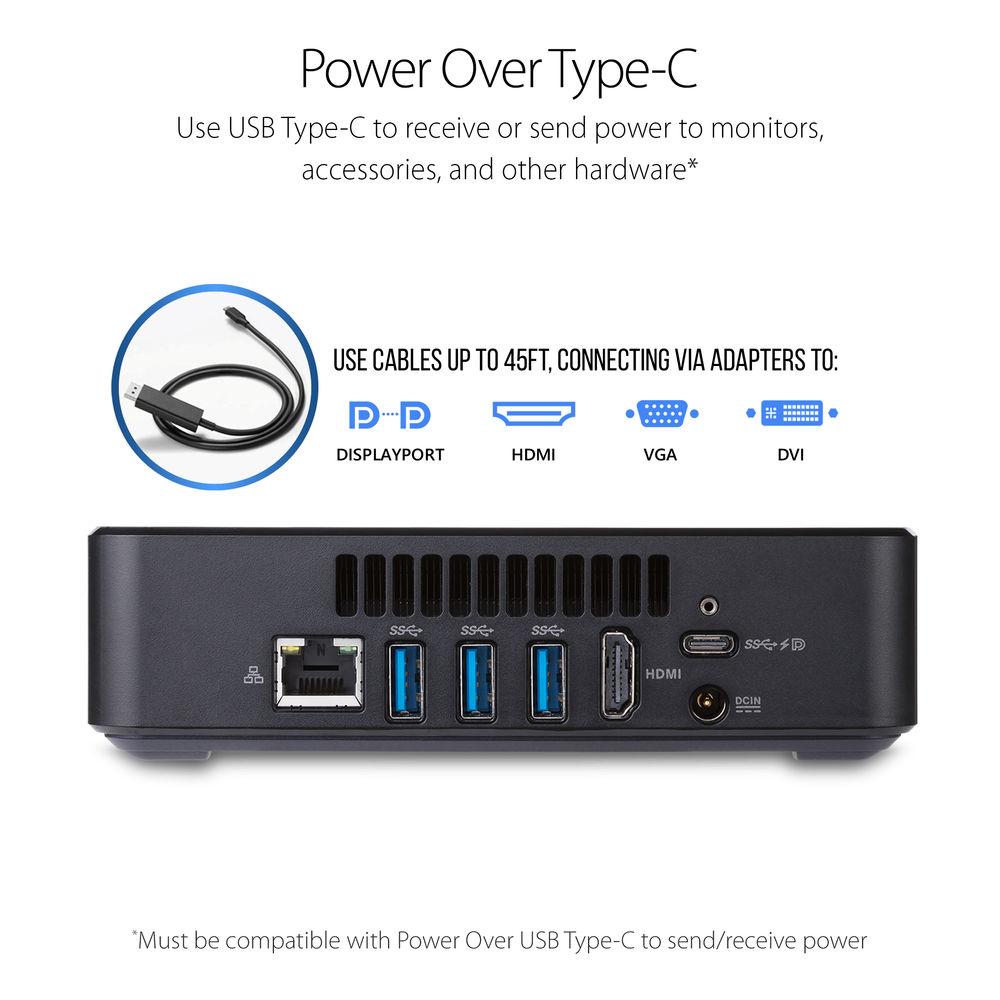

- Power Delivery
- Aside from charging, the Chromebox 3 can receive power from a support display or device, so you don't have to use a power adapter for a cleaner setup.
- Dual Display
- The Chromebox 3 has one HDMI port and one DisplayPort over USB Type-C. With two displays, you can easily multitask and work more efficiently.

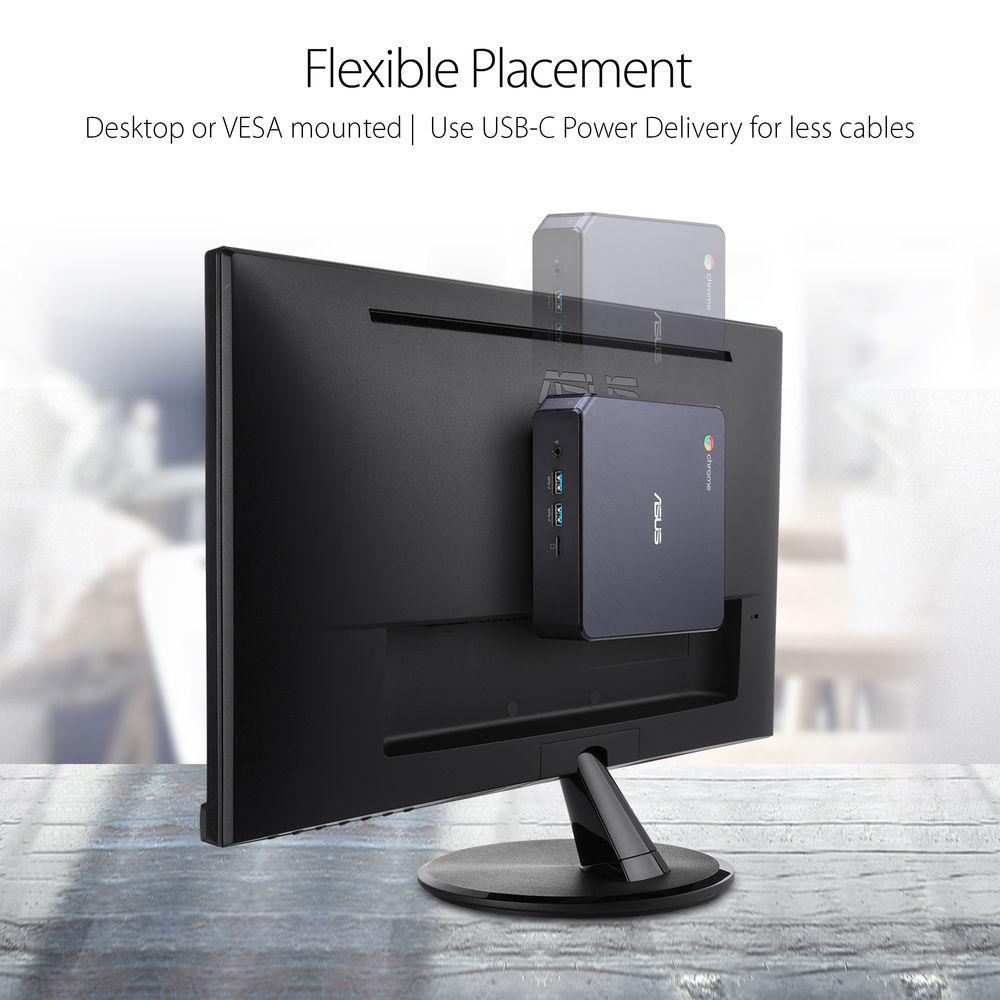

- Space Saving
- The Chromebox 3 can be mounted to any VESA-compatible solution, even to the back of your monitor for an all-in-one computing solution.

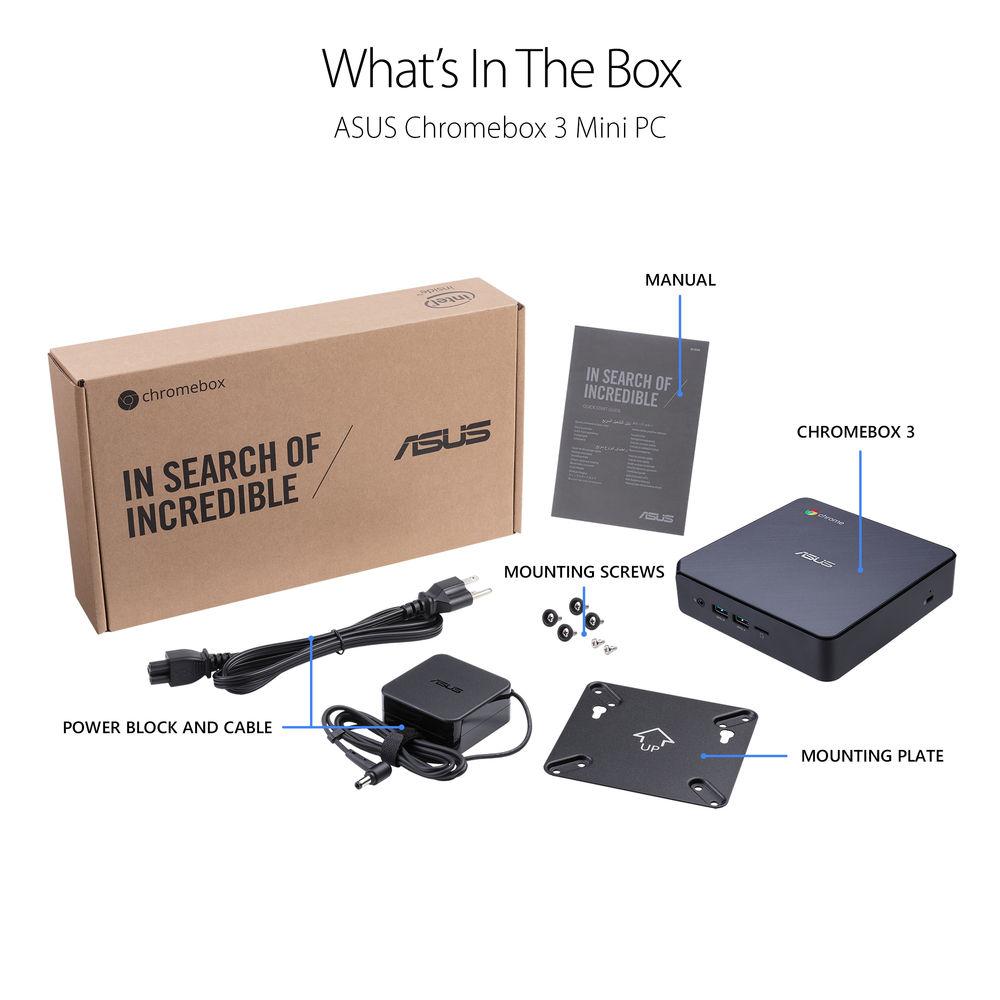

UPC: 192876117002 In the Box ASUS Chromebox 3 N7403U Mini Desktop Computer Power Cable & Adapter VESA Mount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Chromebox 3 N7403U Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

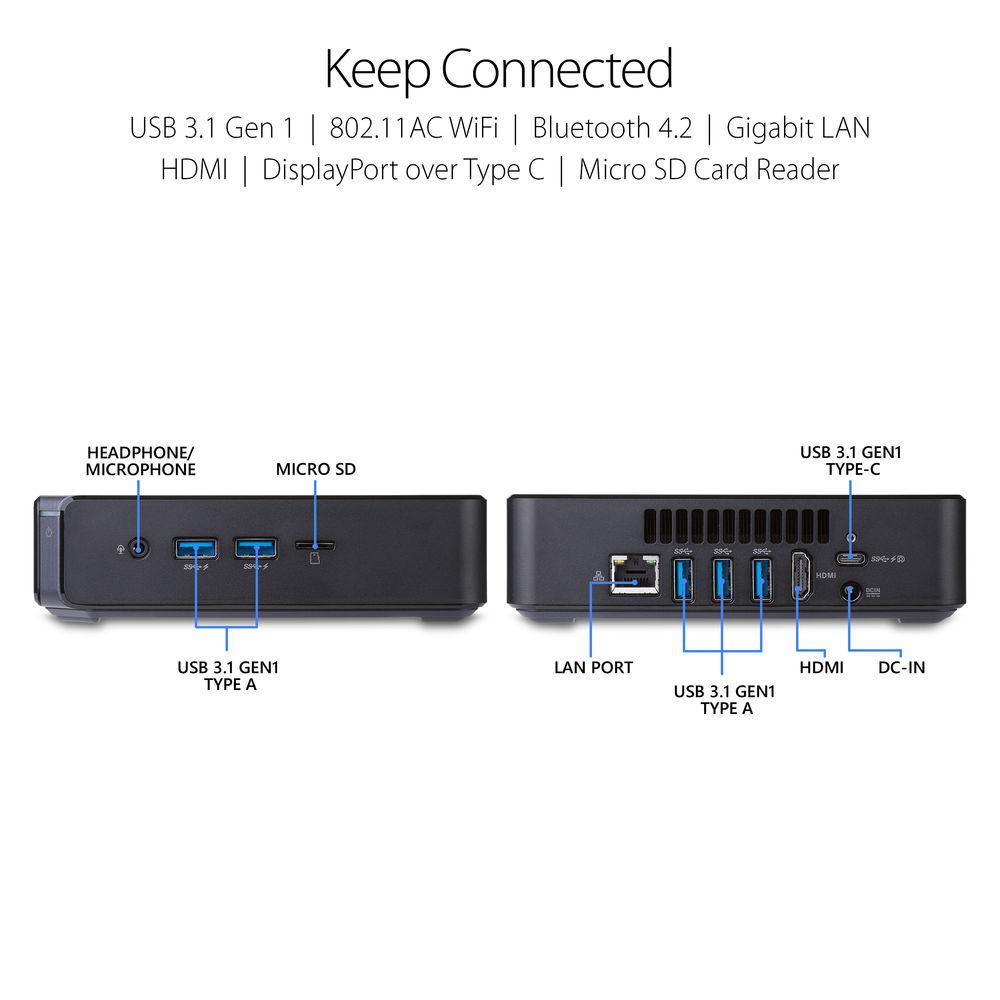

Technical parametersASUS CHROMEBOX3-N7043U Specs | Operating System | Chrome OS | | | | CPU Socket | LGA 1356 | | CPU | 1.8 GHz Intel Core i7-8550U Quad-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 4 GB | | Maximum Memory Capacity | 16 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel HD Graphics 620 | | | | Solid State Storage | 1 x 32 GB M.2 | | Optical Drive | None | | | | Ports | 5 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1
1 x USB 3.1 Gen 1 (Supports DisplayPort) | | Display | 1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Dimensions | 5.8 x 1.6 x 5.8" / 148.5 x 40 x 148.5 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 3.195 lb | | Box Dimensions (LxWxH) | 13.5 x 7.6 x 2.6" |
