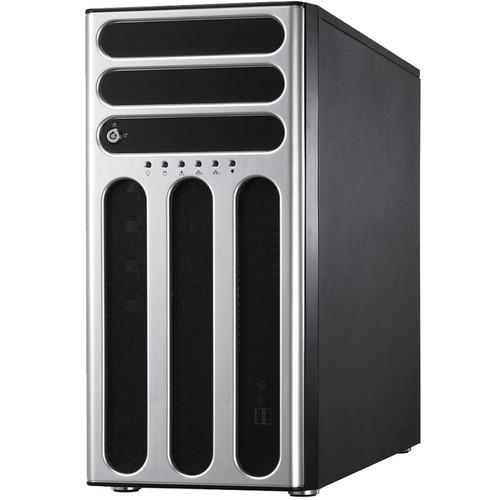

User Manual for ASUS Commercial Server Workstation with Intel Xeon E3-1200 Processor Click to enlarge the picture
Contents of the user manual for the ASUS Commercial Server Workstation with Intel
- Product category: Barebone PCs ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Barebone PCs
 |
User manual for the ASUS Commercial Server Workstation with Intel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

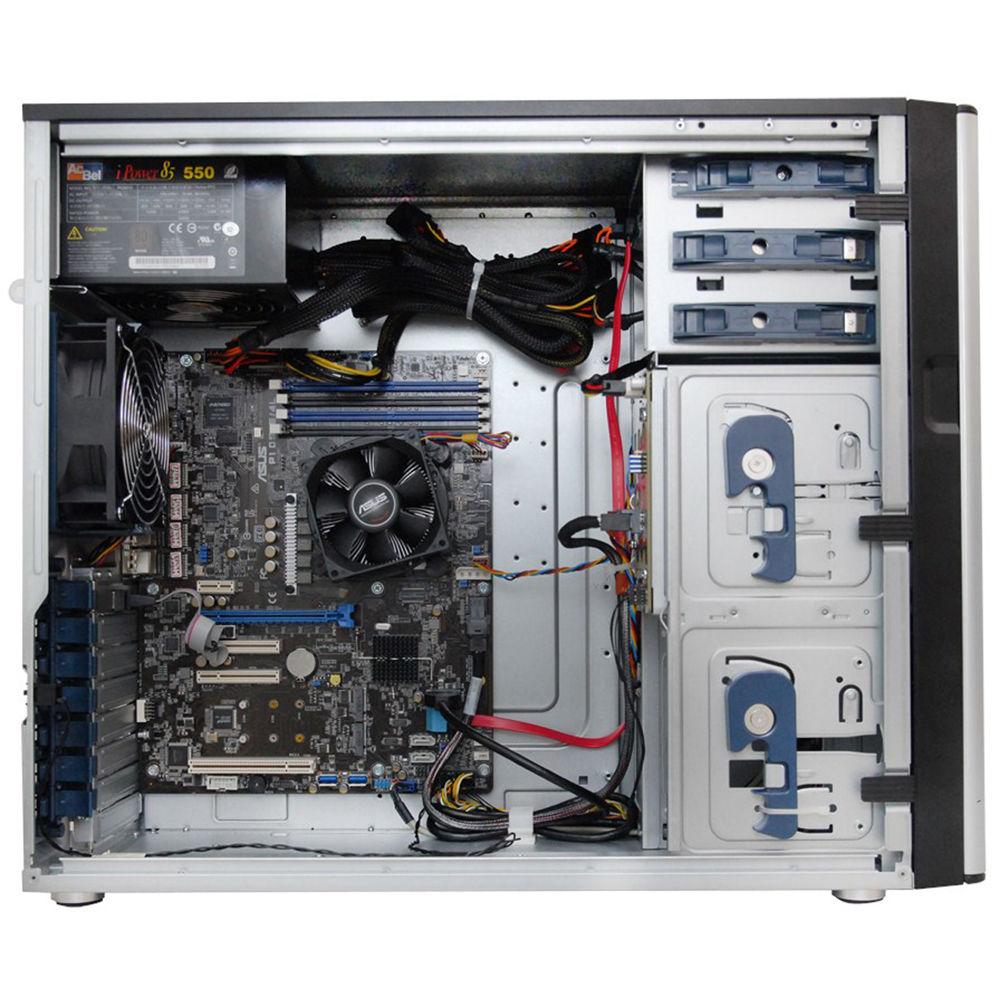

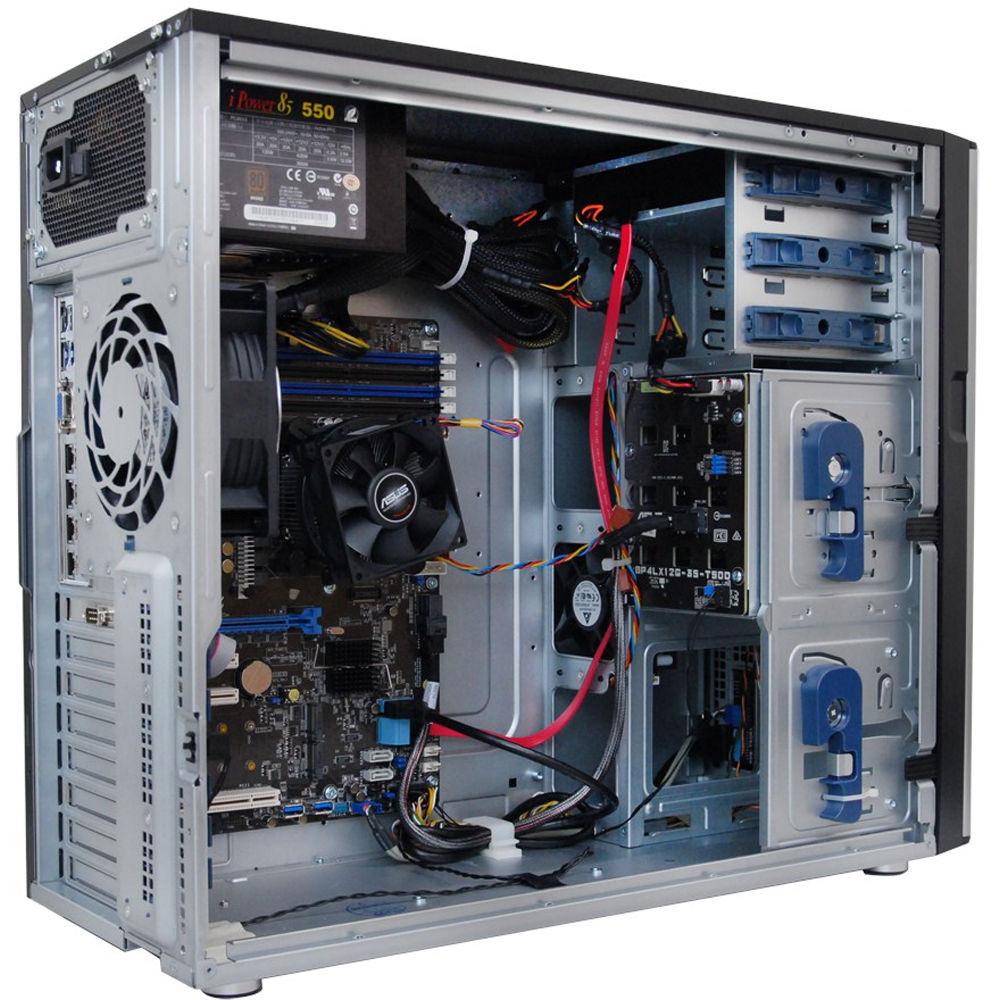

Product description The Commercial Server Workstation from Asus offers the latest 12 Gb/s SAS together with PCI-E 3.0 solution. The 12 Gb/s SAS doubles the data rate running at twice the speed of the previous generation, making this server a suitable choice for an operating system or application drive. It further furnishes various choices for OS drive placement, such as M.2 (dual, up to 512GB x 2) and SATA DOM. Also, upgradable to eight 3.5” Hot-Swap disk bays.
The TS300-E9-PS4 has quad server-class Intel LAN controllers, which doubles queues compared to previous-generation. This is better for virtualization applications. In addition, the quad LAN teaming quadruples the network bandwidth and the failover function ensures uninterrupted network connections. - Intel Xeon E3-1200 V5 processor
- High networking connection
- Power efficiency and stability
- Comprehensive remote management
UPC: 889349375037 Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Commercial Server Workstation with Intel Xeon E3-1200 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS TS300-E9-PS4 Specs | Processor / System Bus | 1 x LGA1151 socket
Intel Xeon E3-1200 processor v5 | | Generation | E9 | | Core Logic | Intel C236 Chipset | | Memory | Total Slots: 4 (2-channel)
Capacity: Maximum up to 64 UDIMM
Memory Type: DDR4 2133 UDIMM non ECC and with ECC
Memory Size: 16, 8, 4 GB UDIMM | | Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: 4
1 x PCI-E x16 (Gen3 x16 link) + 1x PCI-E x8 (Gen3 x4 link) + 1 x PCI + 1 x MIO
Or
1 x PCI-E x16 (Gen3 x8 link) + 1x PCI-E x8 (Gen3 x8 link) + 1x PCI-E x8 (Gen3 x4 link) + 1 x PCI + 1 x MIO | | Storage | Intel C236
8 x SATA3 6 Gb/s ports
2 x M.2 connector (2280/2260/2242)
Intel Rapid Storage Technology Enterprise (RSTe) (For Linux/Windows)

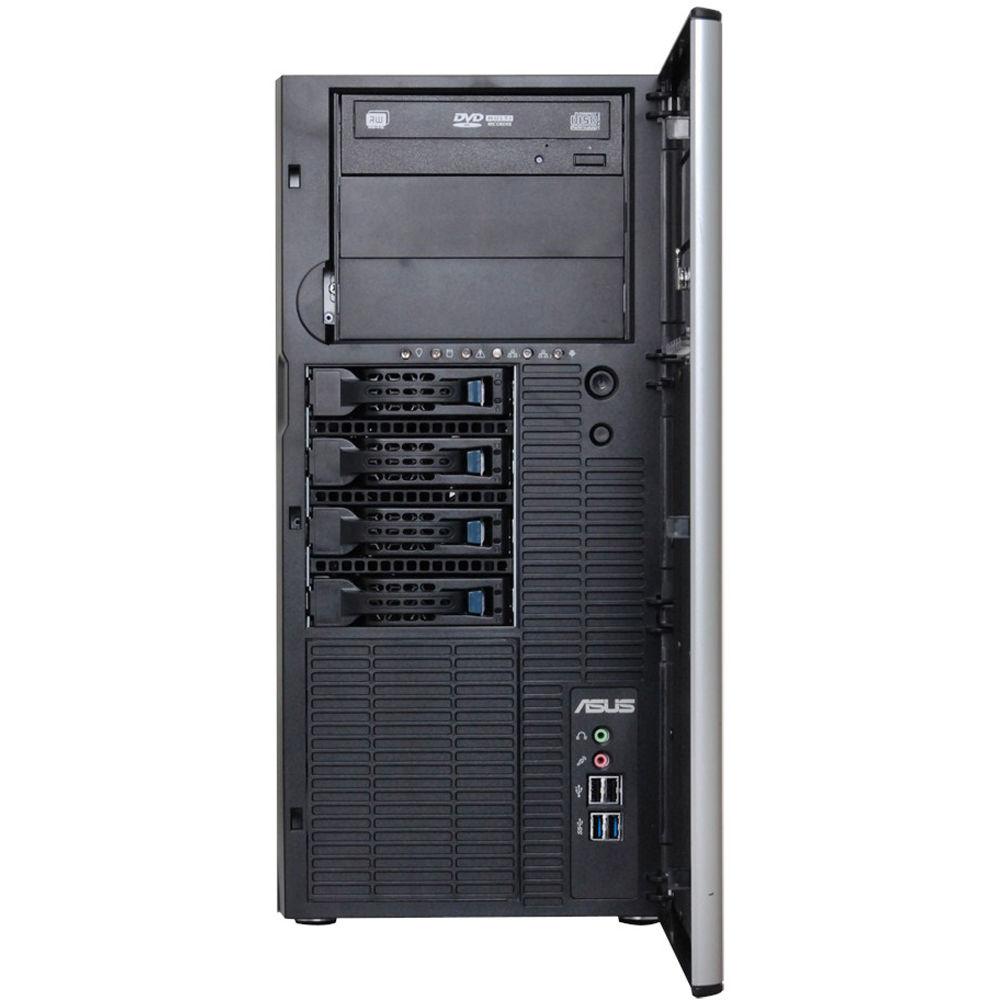

Support Software RAID 0, 1, 5, 10 | | HDD Bay | 4 x Hot-swap 3.5" HDD Bays | | Auxiliary | Storage: 3 x 5.25" media bays | | Networking | 4 x Intel I210AT + 1 x Mgmt LAN | | Graphic Controller | Aspeed AST2400 with 32MB VRAM | | Front I/O Ports | 2 x USB 3.0 ports
2 x USB 2.0 ports
1 x Audio out port (with optional MIO card)

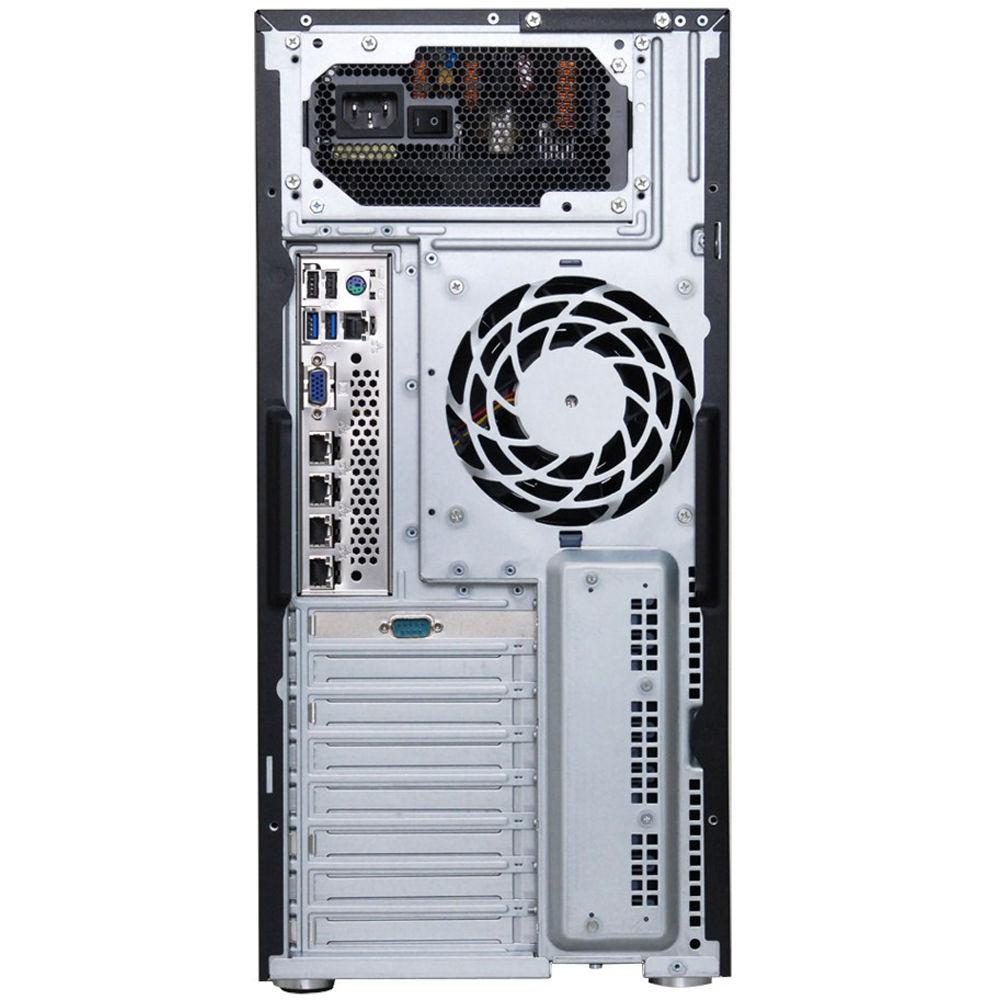

1 x MIC in port (with optional MIO card) | | Rear I/O Ports | 5 x RJ-45 ports (One for ASMB8-iKVM)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x VGA port
1 x PS/2 KB/MS port
1 x External serial port | | Switch LED | Front LED:
1 x Power LED
1 x Location LED
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED | | Chassis | T50 5U Pedestal Chassis | | HDD Backplane | 1 x BP4LX12G-35-T50D | | Front Panel | 1 x FPB-TRS8A | | CPU | 1 x CPU Cooler | | Power Supply Unit | 1 x PSU ATX 500W 80PLUS Bronze | | HDD Tray | 4 x R21A 3-5 HDD tray ASSY | | Fan | 1 x ESC2000 front fan
1 x ESC2000 rear fan | | Optical Drive | 1 x DVD-RW | | Cable | 1 x Wire cable USB 10P to 10P
1 x USB 3.0 180 to 90-R L = 900 mm
1 x COM1 Cable 9P, L: 260 mm (Bracket)
1 x Internal SAS HD cable, L = 60 cm
1 x SATA CABLE 7P 90-180, L: 500 mm | | OS Support | Windows Server 2012 R2
Windows Server 2012
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
VMware
Citrix XenServer | | Management Solution | Optional ASMB8-iKVM for KVM-over-IP support | | Regulatory Compliance | BSMI, CE, C-Tick, FCC (Class B) | | Form Factor | Tower | | Power Supply | Single 500 W 80 PLUS bronze power supply
Rating: 100 to 240 V, 10 to 6 A, 50 to 60 Hz, Class I | | Environment | Operation Temperature: 50 to 95°F (10 to 35°C) Non-Operation Temperature: -40 to 158°F (-40 to 70°C) Non-Operation Humidity: 20 to 90% (non-condensing) | | Dimensions | 17.9 x 8.6 x 21.5" (45.4 x 22 x 55 cm) | | Weight | 33 lb (15 kg) |
