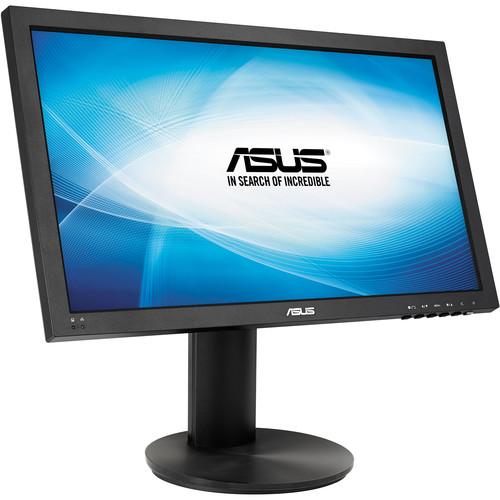

User Manual for ASUS CP220 22" Widescreen LED Backlit Zero Client Cloud Display Click to enlarge the picture
Contents of the user manual for the ASUS CP220 22" Widescreen LED Backlit
- Product category: Terminal & Thin Clients ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Terminal & Thin Clients
 |
User manual for the ASUS CP220 22" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The CP220 22" Widescreen LED Backlit Zero Client Cloud Display from ASUS comes equipped with a Teradici TERA2321 CPU and VMware PCoIP (PC over IP) functionality, allowing you to connect this monitor directly to a VMware-based environment. By connecting directly to a VMware environment, you have the ability to implement a virtual desktop infrastructure, which effectively eliminates the need to connect a separate PC to each monitor, as each monitor is able to connect to a central server.

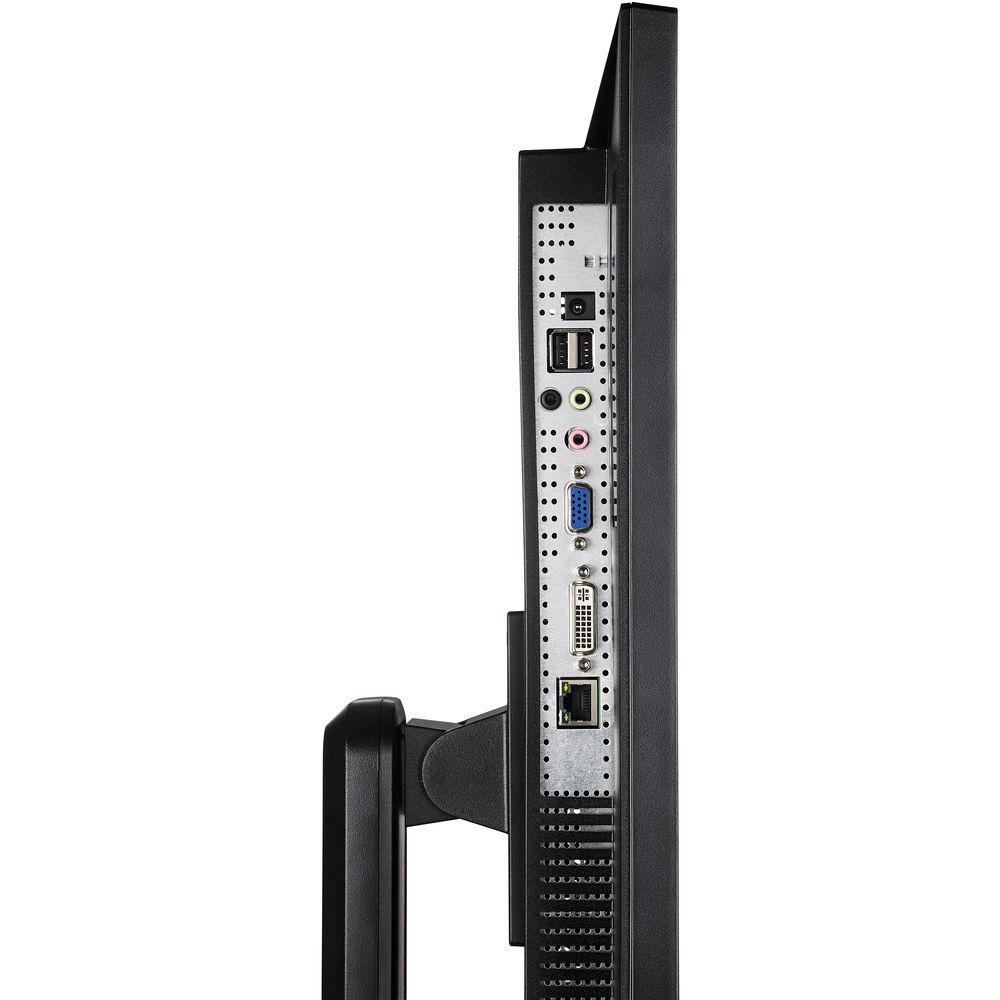

The CP220 Cloud Display also comes equipped with a Full HD 1920 x 1080 display, a 5 ms response time, a 1,000:1 contrast ratio, and a 250 cd/m² brightness rating. On the outside of the monitor you will find a variety of connectivity options, including one D-Sub port, one DVI-I port, audio input and output ports, and four USB 2.0 ports. You can also tilt, swivel, pivot, and adjust the height of the monitor to enhance viewing comfort. - ASUS CP220 with PCoIP
- This ASUS display is a VMware Ready PCoIP (PC-over-IP) all-in-one monitor. With the built-in Teradici TERA2321 processor and on-board PCoIP (PC-over-IP) technology, the CP220 Zero Client Monitor integrates seamlessly with VMware based environments to become part of your Virtual Desktop Infrastructure (VDI) solution. The CP220's PCoIP remote desktop protocol allows each workstation to connect to a central server that hosts the operating systems and applications. This frees users and administrators from the burden of applying patches and updates or other routine PC maintenance tasks, simplifying desktop management and increasing security.
- Virtual Desktop Infrastructure
- In a VDI (Virtual Desktop Infrastructure) environment, clients connect to desktop operating systems and applications running on virtual machines that are hosted on a central server.
- Effortless IT Management
- The CP220 Zero Client Monitor's Teradici PCoIP processor synchronizes administrative tasks and software updates seamlessly to give your business a highly efficient IT management system.
- Secure Your Data
- With PCoIP technology, all files and software are safely stored on the central server. This approach also means users only have internet access via a secure gateway, minimizing the risk of malware and other security issues.
- All-In-One Design
- The CP220 monitor is a standalone solution that needs no PC. This saves on additional infrastructure costs and provides your workforce with an all-in-one workstation.
- Fast Data Transmission
- Teradici PCoIP uses the User Datagram Protocol (UDP) for high-speed data transfers between the CP220 Zero Client Monitor and the remote host, which can help increase productivity.
- Full HD 1080p Screen
- The ASUS CP220 has a Full HD 1080p (1920x1080) screen with enhanced color accuracy and improved backlight transmission. CP220 is also designed to be energy efficient, with low power consumption that reduces energy costs and helps protect the environment.
- Ergonomically Designed

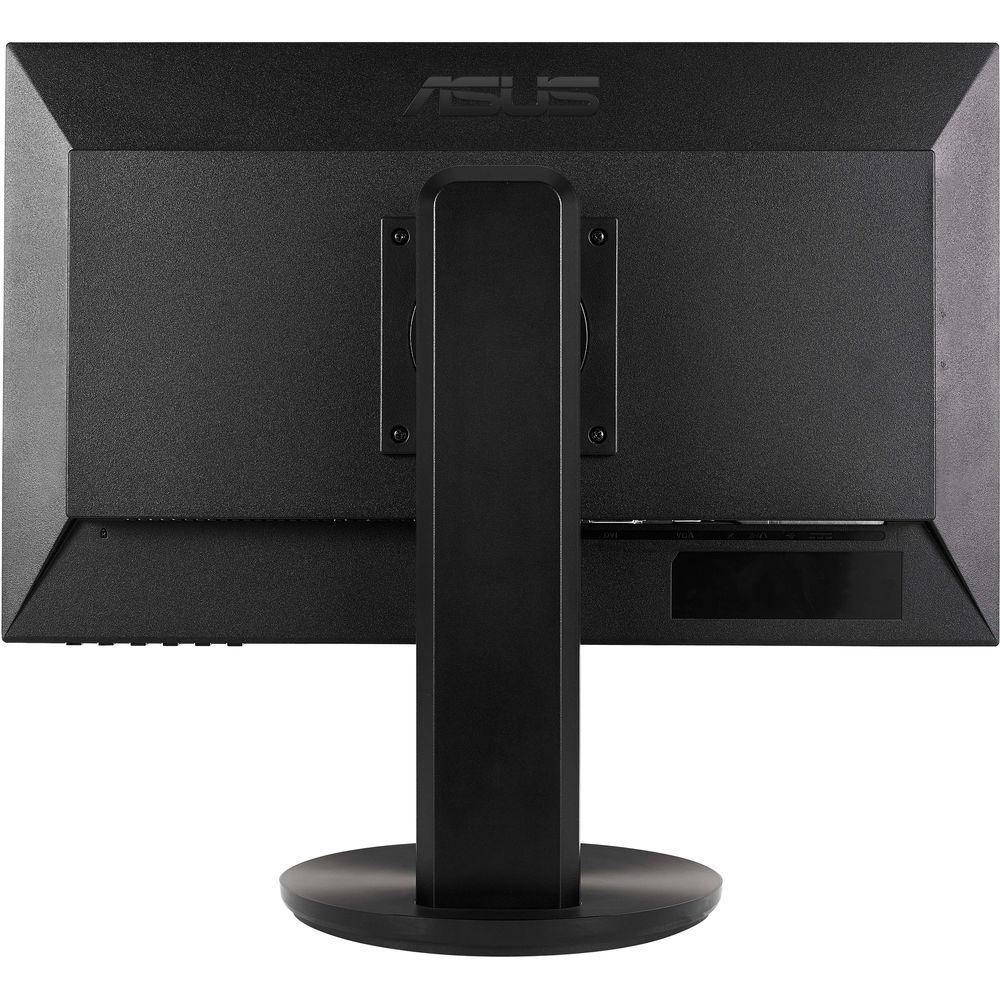

- The ASUS CP220 is ergonomically designed with a full range of adjustments including tilt, pivot, swivel, and height. It is also compatible with 100 x 100 mm VESA mounts. These features mean the ASUS CP220 can be positioned easily for maximum user comfort.
- Green Design
- CP220 uses a mercury-free LED-backlit panel and corrugated cardboard packaging that uses at least 80% recycled material. And with its low power consumption, CP220 is not only environmentally friendly but can also help larger enterprises and public sector increase savings in energy costs.
UPC: 886227611522 In the Box ASUS CP220 22" Widescreen LED Backlit Zero Client Cloud Display Power Cord Adapter DVI Cable D-Sub Cable Limited 3-Year Warranty User Manual PDF 2.3mbfcxtwvveewzbffcycvuvvscesveuzfte Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS CP220 22" Widescreen LED Backlit Zero Client Cloud Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS CP220 Specs | | | Type | Cloud display | | Panel Size | 21.5" / 54.6 cm | | Backlight Type | LED | | Active Area (WxH) | 18.7 x 10.5" / 47.5 x 26.7 cm | | Resolution | 1920 x 1080 | | Frame Rate | 60 Hz | | Brightness | 250 cd/m² | | Contrast Ratio | 1,000:1 | | Viewing Angles | Horizontal: 170°
Vertical: 160° | | Response Time | 5 ms | | | | CPU | Teradici TERA2321 | | OS | VMware PCoIP | | Communication | 10/100/1000 (RJ-45) | | | | Video Input | 1 x D-Sub (RGB) | | Video Output | 1 x DVI-I | | Audio Input | 1 x 3.5 mm microphone jack | | Audio Output | 2 x 1 watt built-in speakers
1 x 3.5 mm line-out jack
1 x 3.5 mm headphone-out jack | | USB Ports | 4 x USB 2.0 ports | | | | Operating | <42 watts (max.) | | Stand-By Power | <0.5 watts (max.) | | | | Tilt | +20°~-5° | | Swivel | +160°~-160° | | Pivot | 90° (clockwise) | | Height Adjustment | 0 to 110 mm | | VESA Compatibility | 100 x 100 mm | | Regulation Approval | Energy Star, UL/cUL, CB, CE, FCC, BSMI, VCCI, C-Tick, J-MOSS, PSE, ErP, ROHS2.0, WEEE, WIN7 & WIN8 WHQL | | Dimensions (WxHxD) | 20.4 x 15.4-19.8 x 8.9" / 51.8 x 39.2-50.2 x 22.5 cm | | Weight | 12.17 lb / 5.52 kg | | | | Package Weight | 15.85 lb | | Box Dimensions (LxWxH) | 26.0 x 15.25 x 6.5" |
