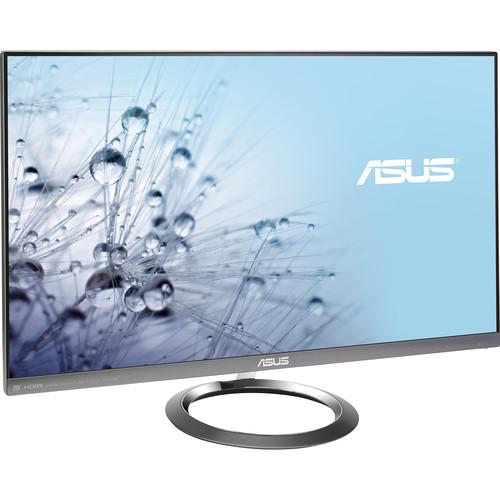

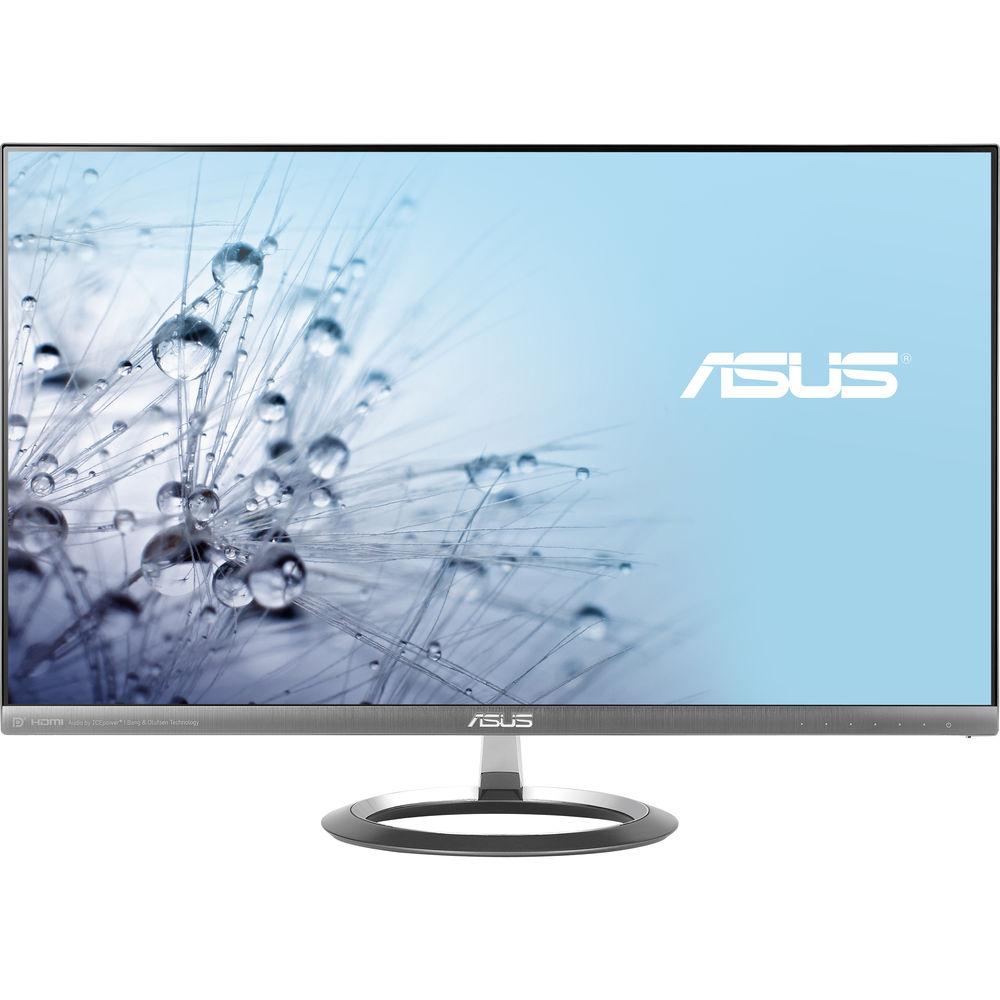

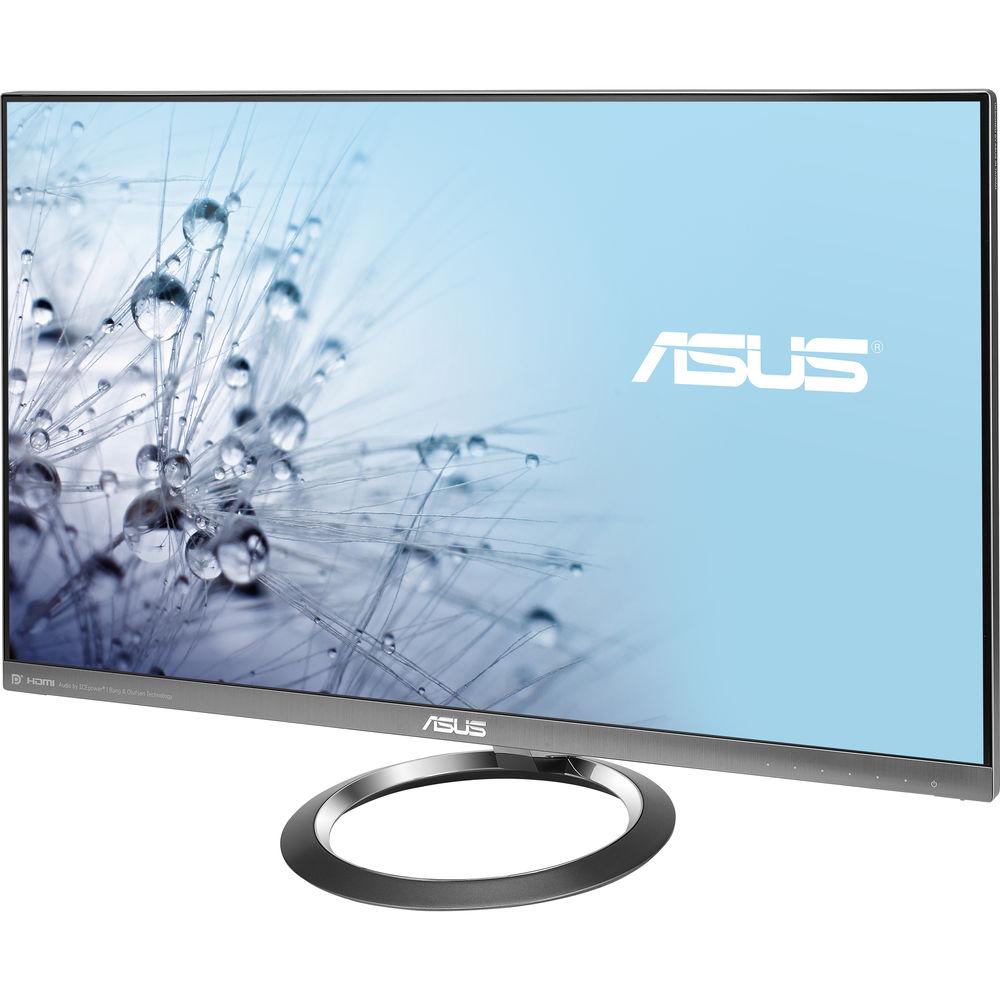

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Designo MX27AQ 27" 16:9 WQHD IPS Monitor from ASUS is a multi-purpose LED-backlit display that has been designed for gaming, document, photo, graphics work, multimedia, and more. With a WQHD resolution of 2560 x 1440, it provides more workable screen area and sharper images as compared to a Full HD 1920 x 1080 display. This display features IPS technology and has a 5 ms (gray to gray) response time, a 100,000,000:1 ASUS Smart Contrast Ratio, 300 cd/m2 brightness, 178°/178° viewing angles, -5 ~ 20° tilt, and support for 16.7 million colors.
This WQHD display also features 2 x 3W stereo speakers that are 25mm in diameter and have been co-developed with ICEpower and Bang & Olufsen. They also are equipped with ASUS SonicMaster audio technology and an AudioWizard allows users to select from four preset audio modes to tailor audio output. Connectivity options are provided using the 2 x HDMI ports, 1 x HDMI/MHL port, and 1 x DisplayPort 1.2 port. There are also 3.5mm audio input and output jacks. In order to help protect your eyes, ASUS has designed this display with ASUS Eye Care technology, which includes flicker-free technology and a blue light filter.
The Designo MX27AQ operates using 100-240V at 50/60 Hz, allowing it to be used worldwide. It includes a power cord, a power adapter, a DisplayPort cable, and an HDMI cable. - Ultra-Slim & Frameless Design

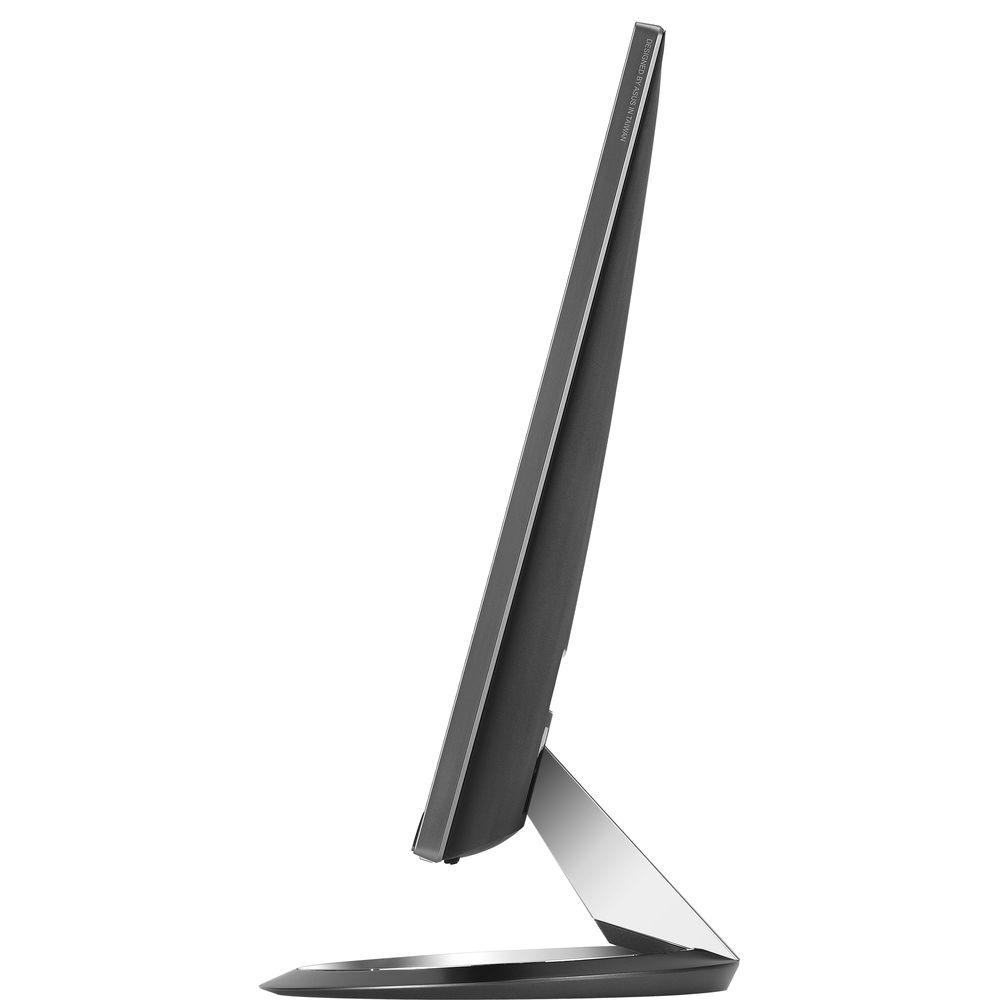

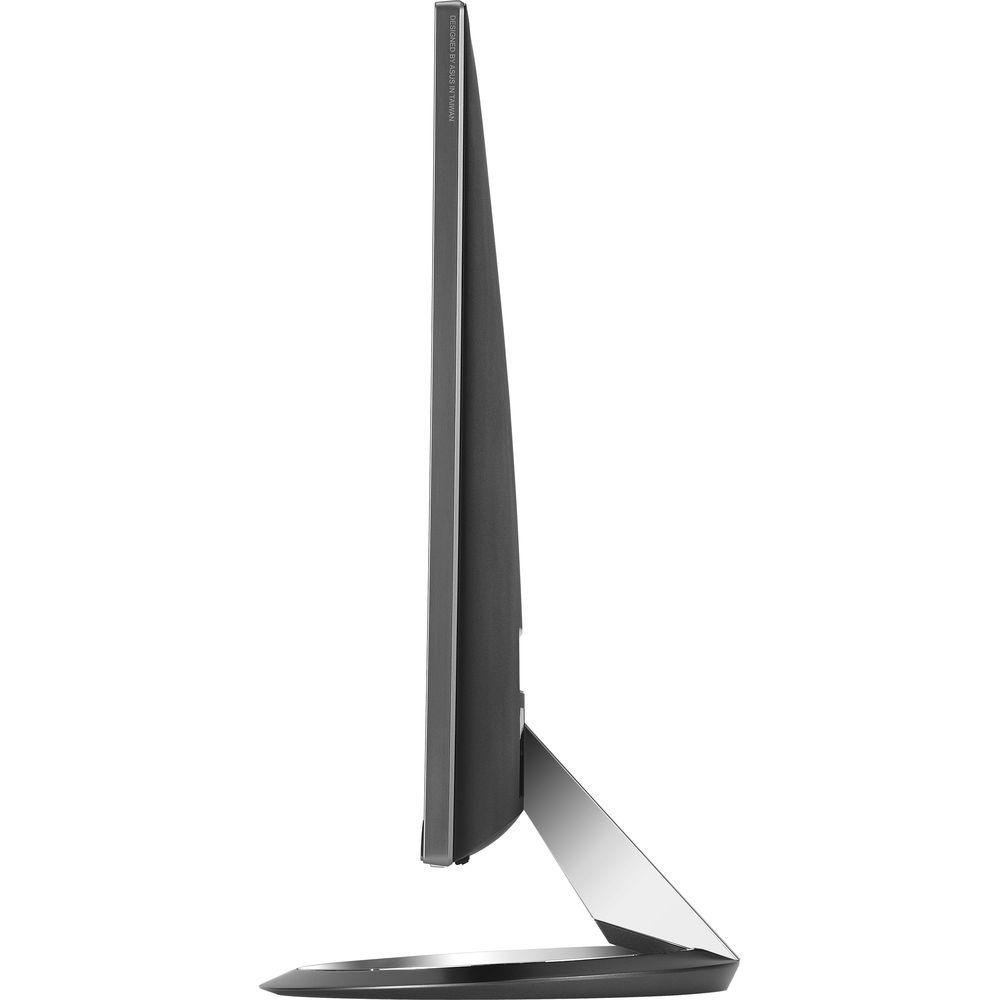

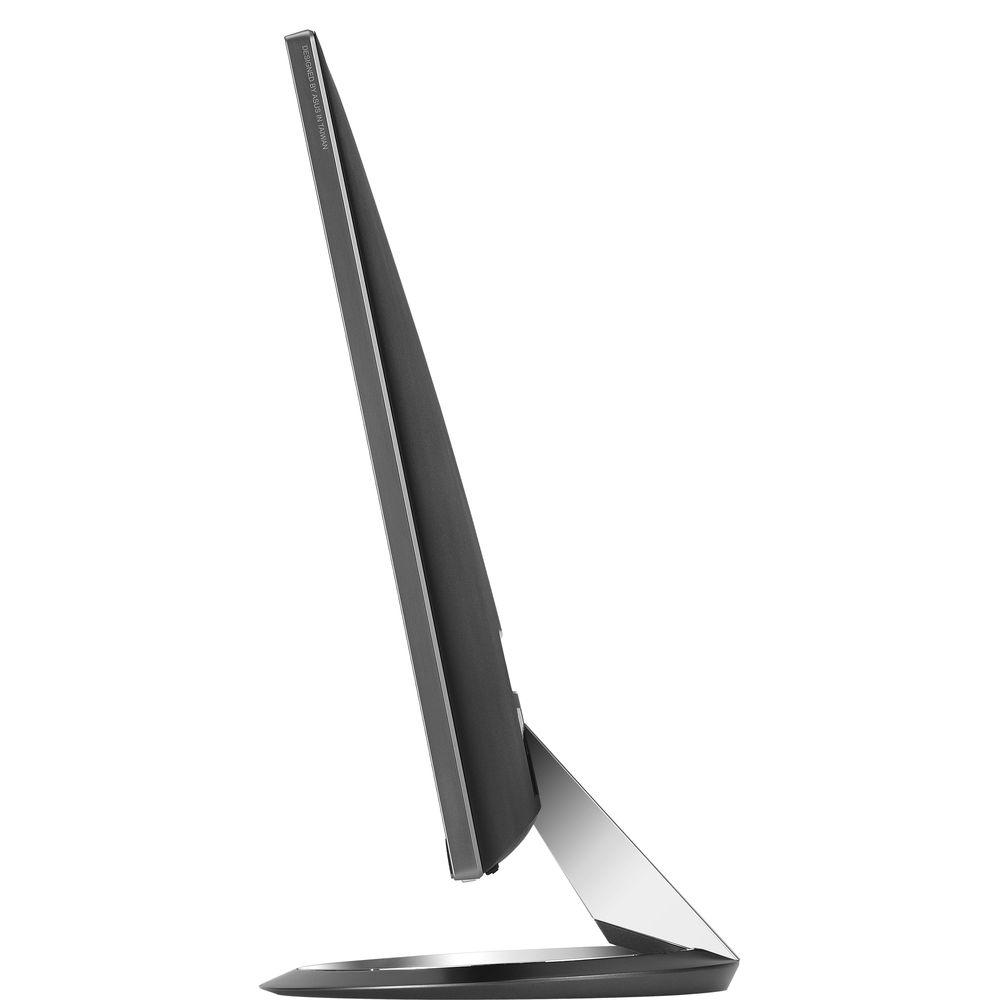

- The MX27AQ fits well in virtually any living space. Its ultra-slim profile measures just 1.25cm at its thinnest point and takes up very little desktop space. Like other ASUS Designo MX Series displays, the elegant MX27AQ features an edge-to-edge frameless panel with bezel thickness of just 0.1cm. It also has a sturdy metal stand with a sundial-inspired base
- WQHD Resolution
- Experience the 2560 x 1440 resolution visuals with the ASUS Designo MX27AQ. With its 27" WQHD display, the MX27AQ gives you up to 25% sharper images and up to 77% more onscreen space than a similarly sized Full HD display
- 178° Wide Viewing Angles
- The Designo MX27AQ features an advanced high performance in-plane switching (AH-IPS) panel to give you a 100,000,000:1 contrast ratio and 178° wide viewing angles. The LED-backlit display also gives you accurate color reproduction with 100% of sRGB color space, making the MX27AQ suitable for professional-grade photo and video editing, or for home entertainment
- Immersive Audio
- The ASUS Designo MX27AQ fully immerses you in sound through a combination of advanced audio hardware and professional audio processing. The MX27AQ features ASUS SonicMaster audio technology, co-developed with ICEpower | Bang & Olufsen Technology. SonicMaster refines every acoustic detail to help deliver crystal clear sound with richer, more distinct vocals and a wide frequency range. The MX27AQ has an embedded ICEpower |Bang & Olufsen Technology MobileSound 3 chip that delivers incredible audio fidelity through the two built-in 3W stereo speakers for rich and satisfying sound. Each speaker is 25mm in diameter
- AudioWizard
- The MX27AQ features the ASUS AudioWizard OSD function, with four pre-set audio modes allowing you to tailor audio settings to suit the task at hand:
Music Mode - Enhances bass and gives you a wider audio range
Movie Mode - Enhances vocals and overall audio for a true theater-like audio experience
Gaming Mode - Enhances in-game sound effects and vocals to add a new level of immersion to your gaming experience
User Mode - Manual mode allowing you to customize your preferred audio settings - ASUS Eye Care Technology
- Flicker-free Technology
The Designo MX27AQ features the TÜV Rheinland-certified ASUS Flicker-Free technology designed to help reduce flicker for a comfortable viewing experience. This minimizes instances of eyestrain and other damaging effects when you spend long, countless hours in front of a display
ASUS Blue Light Filter
The Designo MX27AQ also comes with the TÜV Rheinland-certified ASUS Blue Light Filter to help protect you from harmful blue light; an OSD menu lets you easily access and select four different filter settings onscreen.
The MX27AQ has undergone stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels - Connectivity

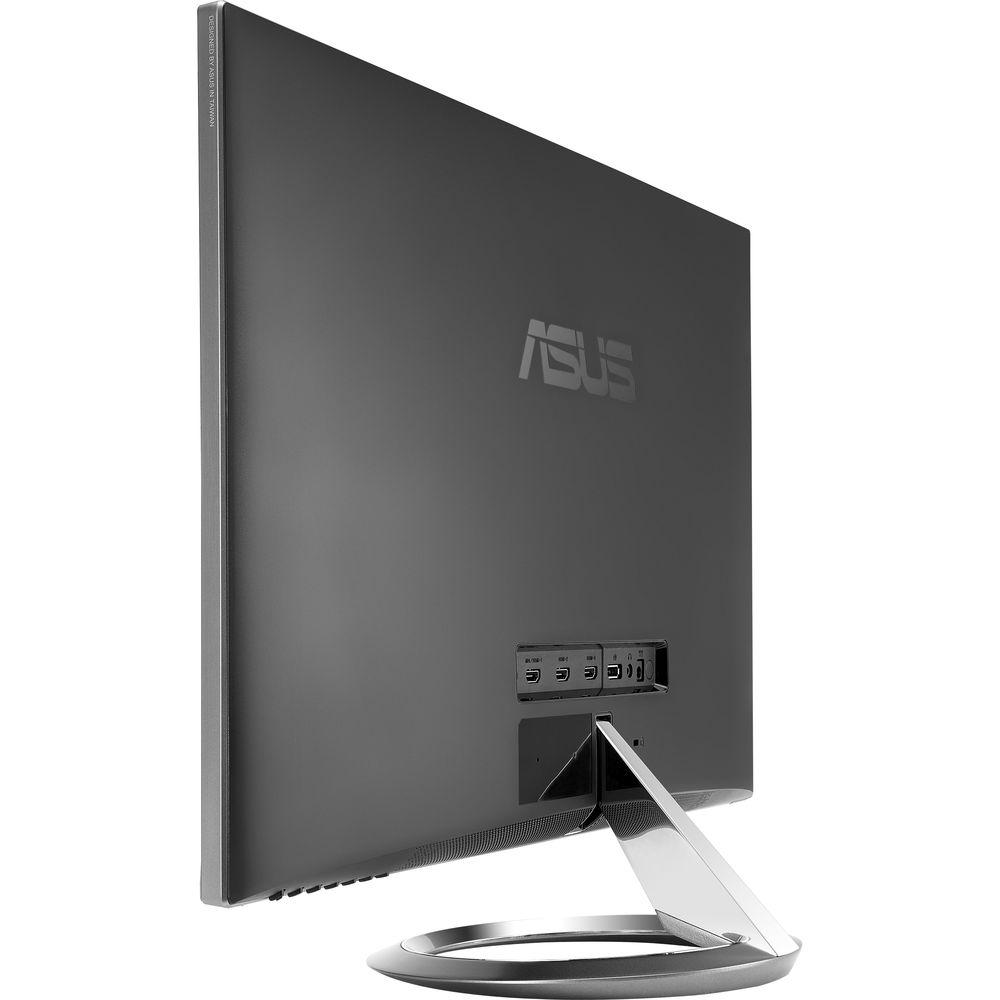

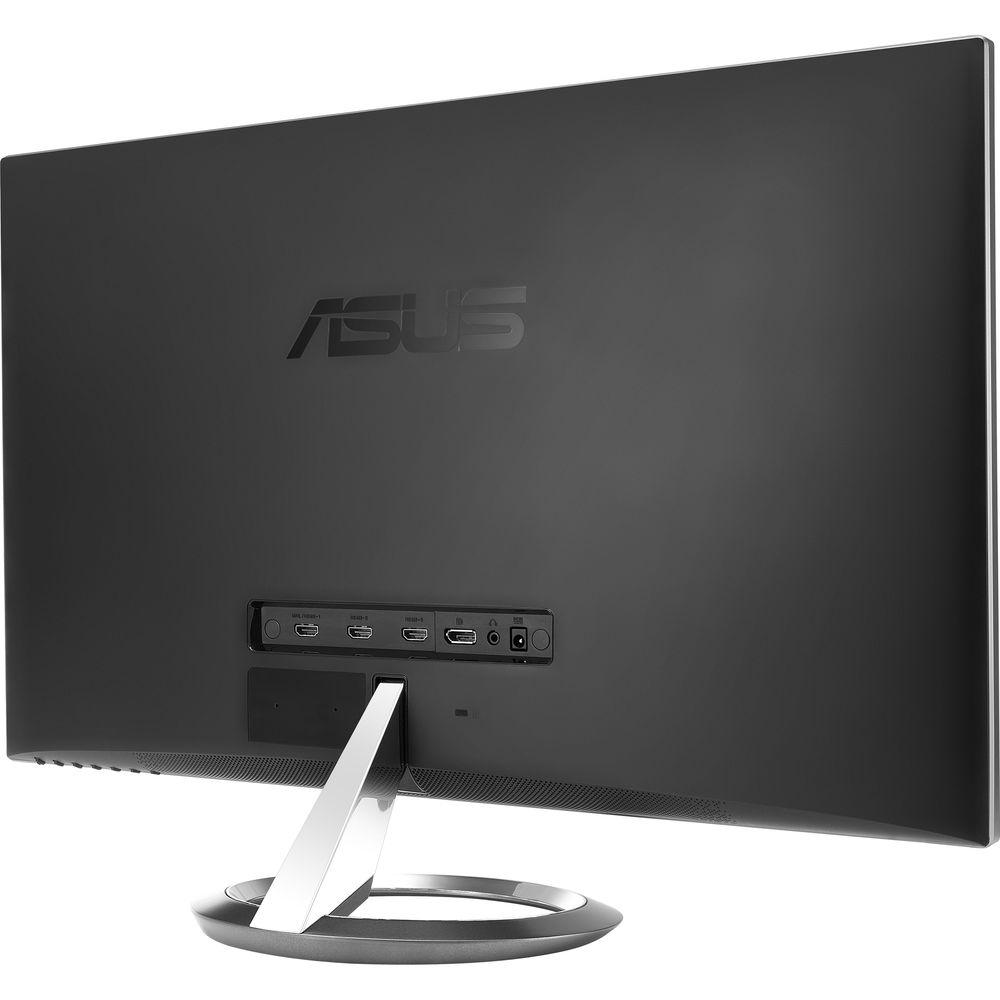

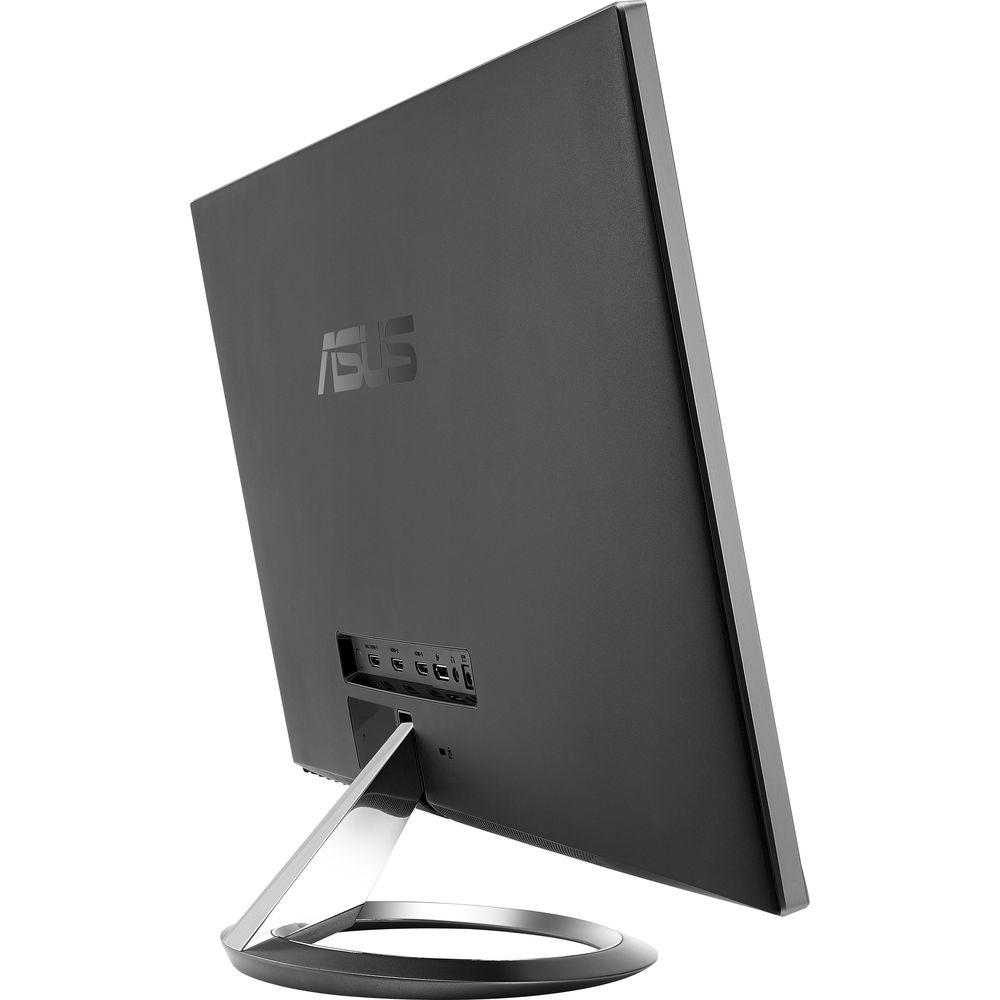

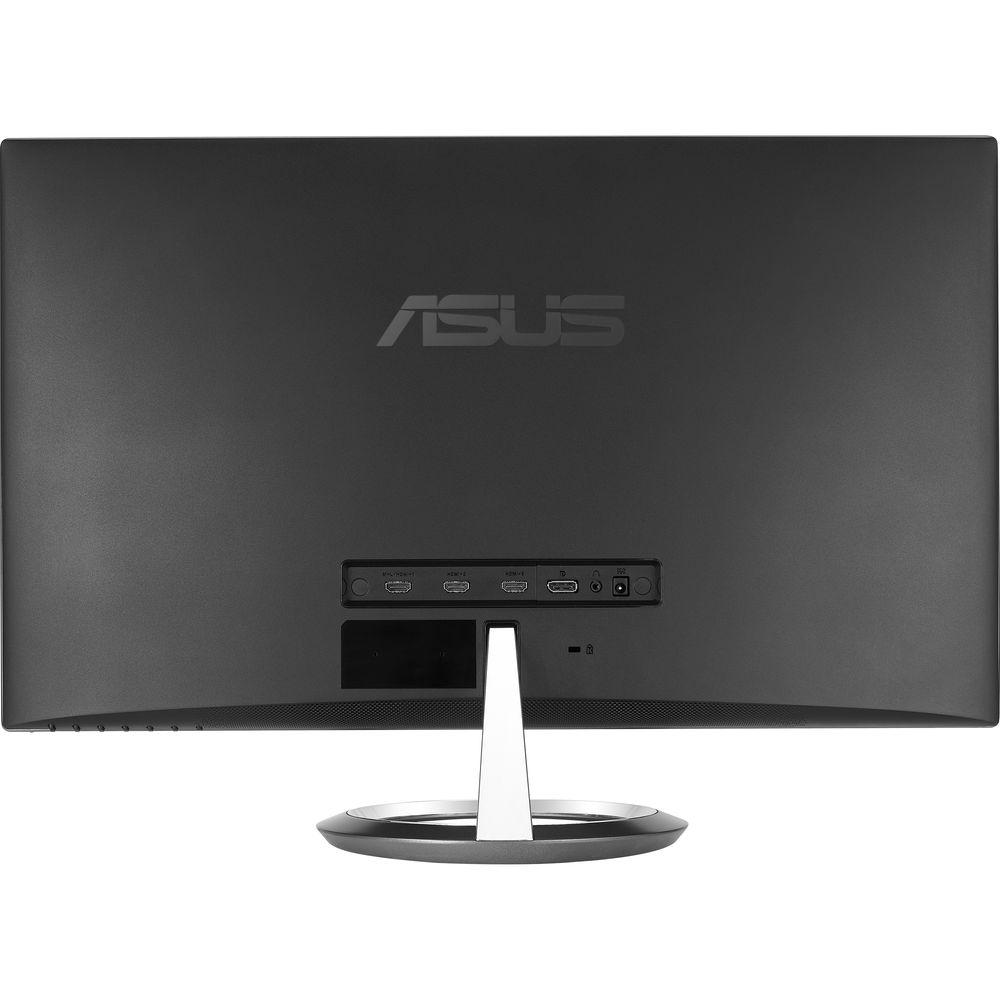

- The Designo MX27AQ gives you compatibility with most multimedia devices. It has a variety of video input options ranging from a DisplayPort 1.2 port, dual HDMI ports, and a HDMI/MHL2.0 port. The latter lets you view content from your MHL-compatible devices on the MX27AQ while simultaneously charging the mobile device
- ASUS Features
- SplendidPlus Video Intelligence Technology
ASUS Splendid helps optimize videos and images by enhancing color brightness, contrast, and sharpness. It include 8 preset modes (Reading, Darkroom, Scenery, Night View, Theater, Game, sRGB, and Standard) to suit whatever is currently onscreen
VividPixel Technology
ASUS VividPixel Technology helps enhance image outlines and reduces noise bars, further adding to the Designo MX27AQ's crystal-clear and detailed visuals - QuickFit Virtual Scale
- A hotkey lets you preview your photos and documents on screen in their actual sizes prior to printing; it also provides you with an alignment grid to help ensure everything is straight and true
- MultiFrame Management Software
- ASUS MultiFrame helps keeps your desktop neat and organized and allows you to manage multiple windows simultaneously
- GamePlus
- Provides gamers crosshair and timer functions. Gamers can select four different crosshair types to suit the gaming environment; while the latter keeps players aware of the elapsed time in real-time strategy games
UPC: 886227920044 In the Box ASUS Designo MX27AQ 27" 16:9 WQHD IPS Monitor Power Cord Power Adapter DisplayPort Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 1.8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Designo MX27AQ 27" 16:9 WQHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS MX27AQ Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 28 to 83 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort 1.2 Input
1 x HDMI (MHL)
2 x HDMI | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 0.5 W (Standby)
38.7 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.2 x 16.9 x 8.9" / 61.4 x 43.0 x 22.2 cm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 27.8 x 21.4 x 4.8" |
