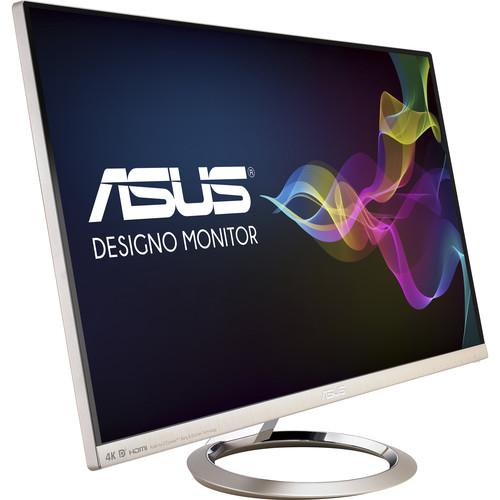

User Manual for ASUS Designo MX27UC 27" 16:9 4K IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS Designo MX27UC 27" 16:9 4K
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS Designo MX27UC 27" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for use in a variety of mediums including photo work, gaming, writing, and more, the Designo MX27UC 27" 16:9 4K IPS Monitor from ASUS offers enhanced display clarity along with a nearly invisible bezel. With a 4K resolution of 3840 x 2160, it provides more workable screen area and sharper images as compared to a Full HD 1920 x 1080 display. This display features IPS (In-Plane Switching) technology and has a 5 ms (GtG) response time, a 100,000,000:1 ASUS Smart Contrast Ratio, 300 cd/m2 brightness, 178°/178° viewing angles, -5 ~ 20° tilt, and support for 1.07 billion colors.
This 4K display also features 2 x 3W stereo speakers that have been co-developed with ICEpower | Bang & Olufsen. They are equipped with ASUS SonicMaster audio technology and an AudioWizard allows users to select from four preset audio modes to tailor audio output. Connectivity options are provided using the HDMI 2.0 port, the DisplayPort 1.2 port, or the DisplayPort connector available through the USB Type-C port. There is also a 3.5mm audio jack. In order to help protect your eyes, ASUS has designed this display with ASUS Eye Care technology, which includes flicker-free technology and a blue light filter.
The Designo MX27UC operates using 100-240V at 50/60 Hz, allowing it to be used worldwide. It includes a power cord, a power adapter, a DisplayPort cable, an HDMI cable, and a USB Type-C to A cable. - Ultra Slim, Frameless Design

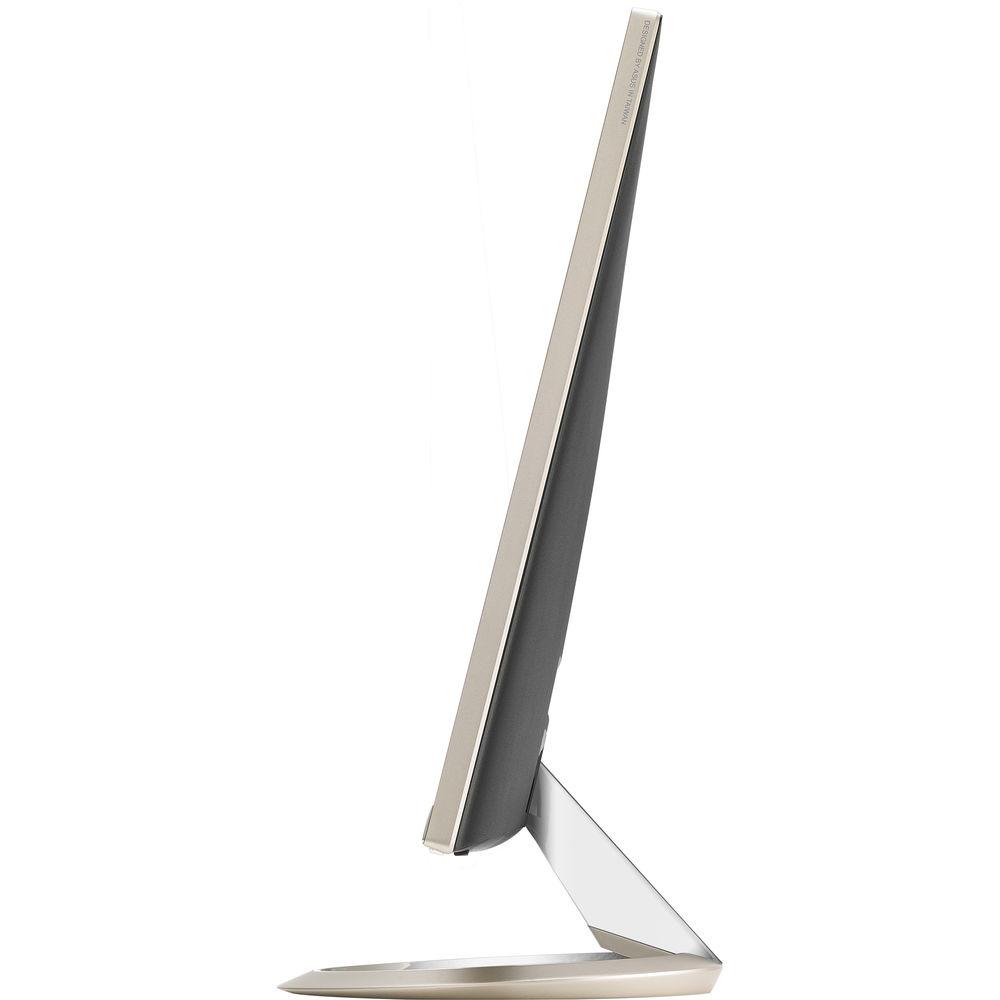

- The ASUS Designo MX27UC features a space-saving ultra-slim profile that measures just 1.25cm at its thinnest point. Like its contemporaries in the Designo MX family, Designo MX27UC features an exquisite edge-to-edge frameless panel with a bezel measuring just 0.1cm thick.
- 4K UHD Resolution
- The Designo MX27UC delivers 4K UHD (3840 x 2160 resolution) visuals with enhanced levels of detail. With a pixel density of 163 pixels per inch, the MX27UC gives you sharp images with detail and texture. Having a higher pixel count also means more efficient multitasking, with the Designo MX27UC giving you up to 300% more onscreen space than a similarly sized Full HD display.
- Enhanced 178° Wide Viewing Angles
- The Designo MX27UC has an advanced high-performance IPS panel that provides a 100,000,000:1 dynamic contrast ratio and 178-degree wide viewing angles. This LED-backlit display covers the entire sRGB color space - providing accurate color reproduction for professional-grade photo and video editing, or for home entertainment.
- Extensive Connectivity Options

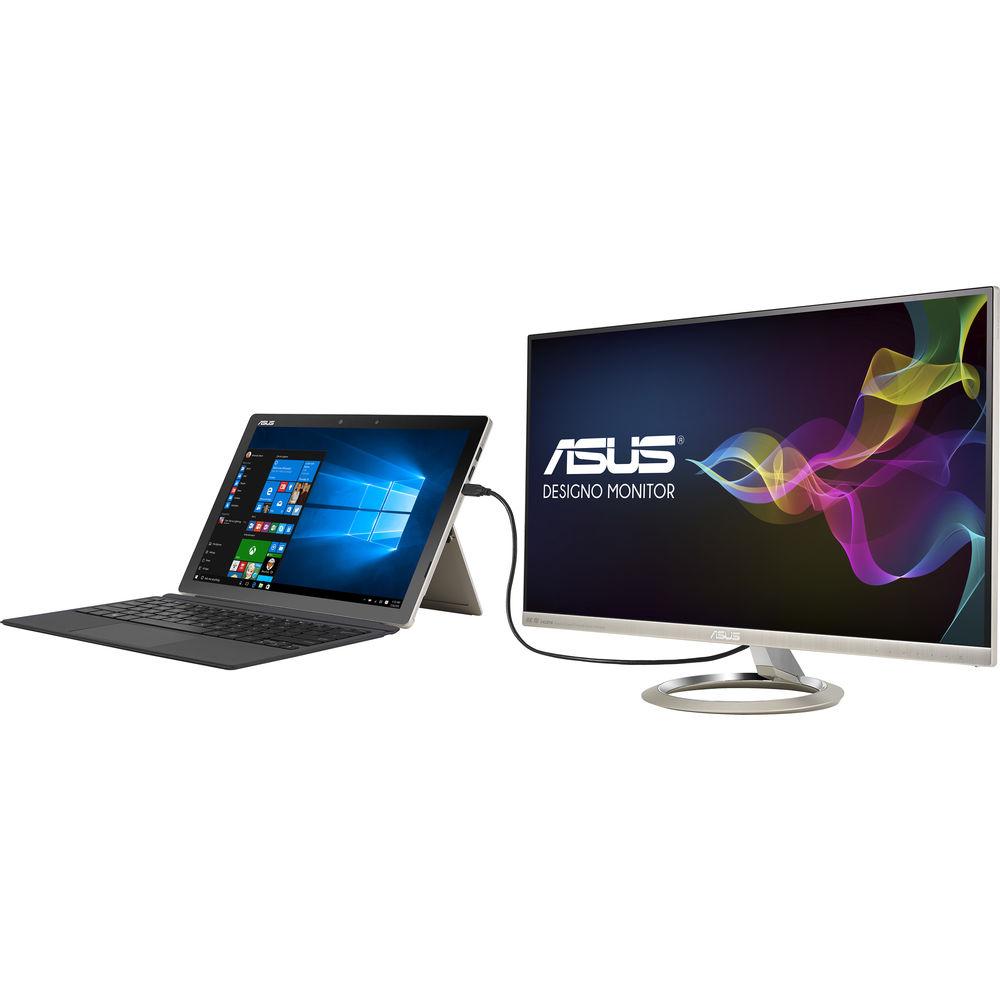

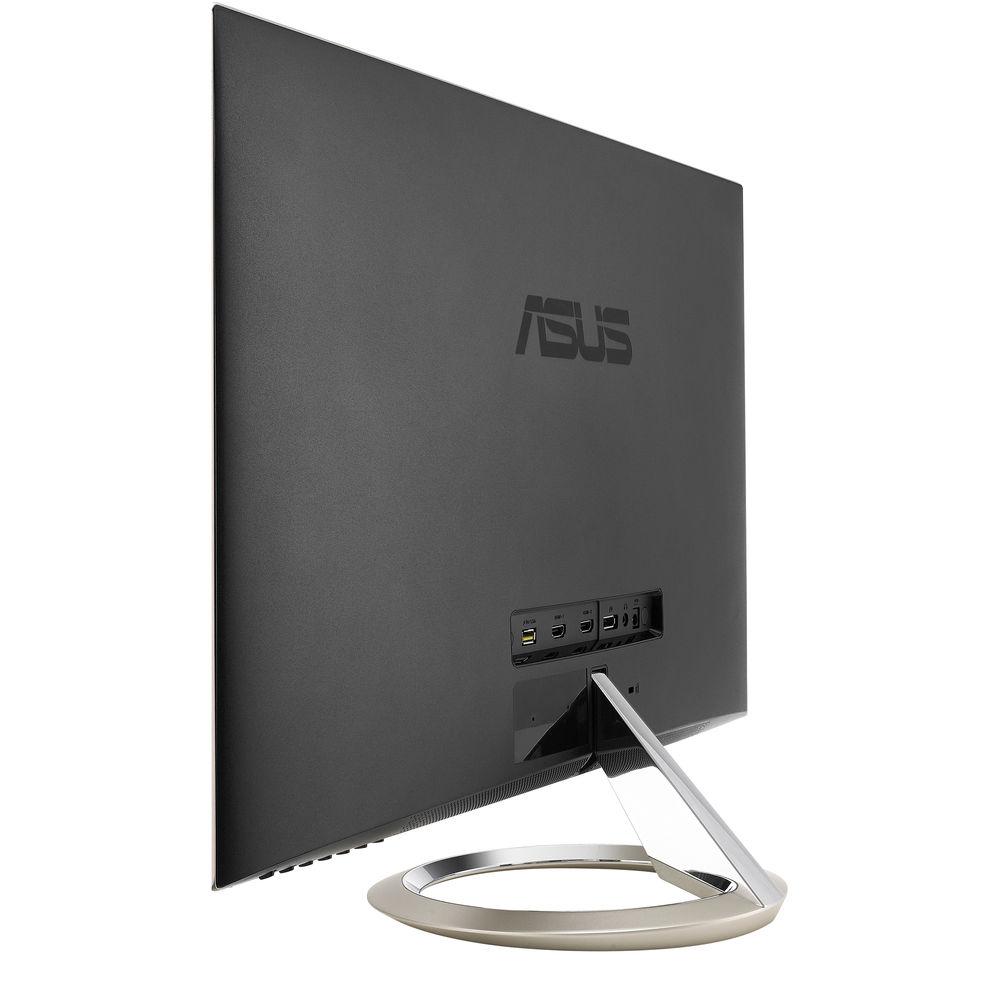

- The Designo MX27UC gives you improved compatibility with most multimedia devices. Its USB Type-C, DisplayPort, and HDMI (v2.0) ports support 4K UHD content playback at 60 Hz. The integrated USB Type-C port gives you data transfer speeds of up to 5 Gbps, and provides power to charge laptops or mobile devices via a single cable. MX27UC also serves as a USB hub, meaning that when you connect to it via USB-C (using C to C cable, or C to A cable), your device gains access to whatever peripherals are connected to the two USB 3.1 ports.
- Powerful Immersive Audio
- The Designo MX27UC utilizes a combination of advanced audio hardware and professional audio processing with built-in 3W dual stereo speakers for fully-immersive sound. ASUS SonicMaster audio technology, co-developed with ICEpower | Bang & Olufsen, refines the acoustic details to deliver clear sound with more distinct vocals, a wide frequency range, and improved audio fidelity. Additionally, this monitor features Asus AudioWizard for optimized audio settings to suit the task at hand. AudioWizard has four pre-set modes that can be accessed via the on-screen display.
- Blue Light Filter
- The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access its four different filter settings via a hotkey. The Designo MX27UC has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.
- Flicker-Free Technology
- The Designo MX27UC features TÜV Rheinland-certified ASUS Flicker-Free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
- Exclusive ASUS Features
- The Designo MX27UC features ASUS SplendidPlus technology to provide you with optimized visuals by enhancing color brightness, contrast, and sharpness. It has eight preset modes (Reading, Darkroom, Scenery, Night View, Theater, Game, sRGB, and Standard) - allowing you to select the one that best suits the content you're currently viewing.
- ASUS GamePlus
- ASUS GamePlus enhances your gaming experience with additional in-game crosshair, timer functions, and FPS counter. You get four different crosshair options to suit the game environment; while the latter keeps you aware of the elapsed time - especially useful in real-time strategy games. FPS counter shows the rate at which frames are being drawn by the graphics card. You can access these GamePlus functions easily via the OSD menu.
Please note the FPS counter function can be activated while Adaptive-Sync is on, and the MX27UC monitor should connect to AMD graphics card via DisplayPort - Additional Features
-
- Trace Free Technology
- QuickFit Virtual Scale
- MultiFrame Management Software
UPC: 889349599785 In the Box ASUS Designo MX27UC 27" 16:9 4K IPS Monitor Power Cord Power Adapter DisplayPort Cable DisplayPort over USB-C Cable USB-C to A Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Designo MX27UC 27" 16:9 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS MX27UC Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1300:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 94 kHz | | Vertical Frequency | 40 to 76 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.155 x 0.155 mm | | | | Connectivity | 1 x 3.5 mm Input
2 x USB
1 x HDMI 2.0
1 x DisplayPort 1.2 | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 0.5 W (Standby)
35 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.2 x 16.9 x 8.9" / 61.4 x 43.0 x 22.5 cm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 4.75" |
