User Manual for ASUS Designo MX32VQ 31.5" 16:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS Designo MX32VQ 31.5" 16:9 Curved
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS Designo MX32VQ 31.5" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

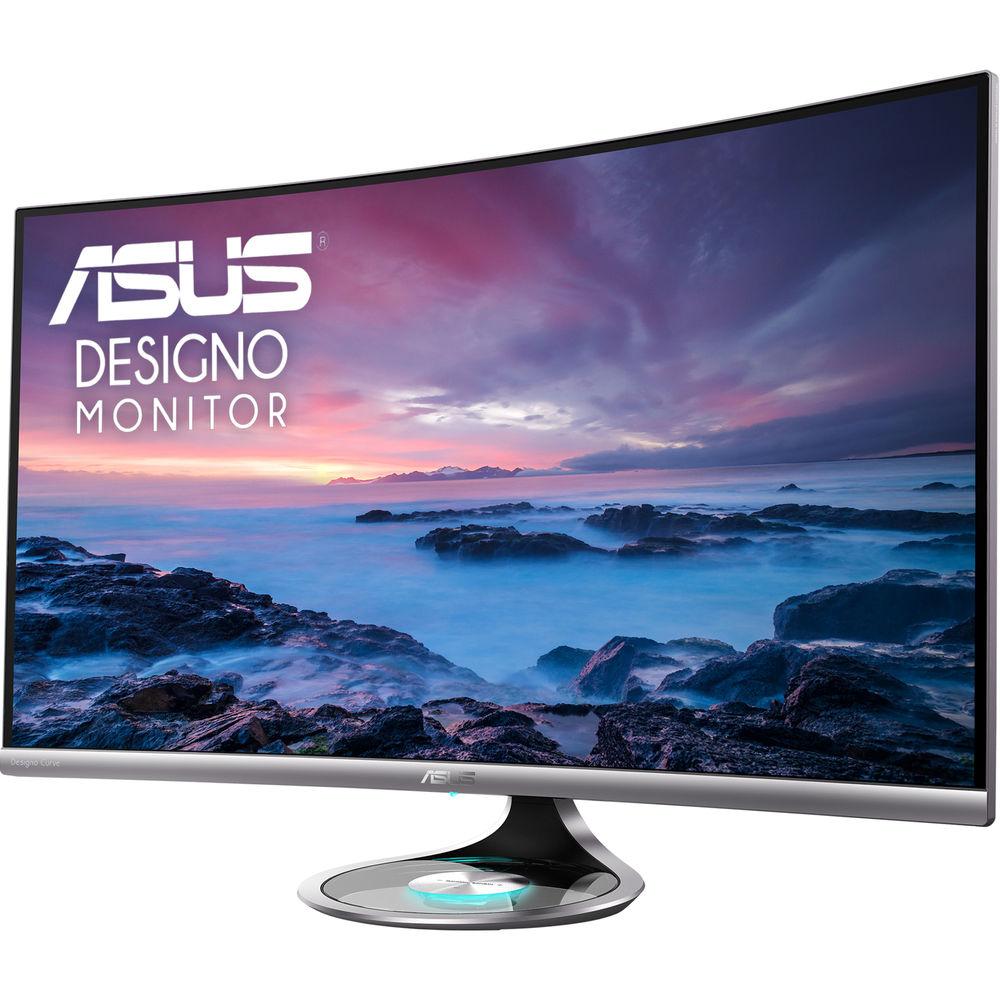

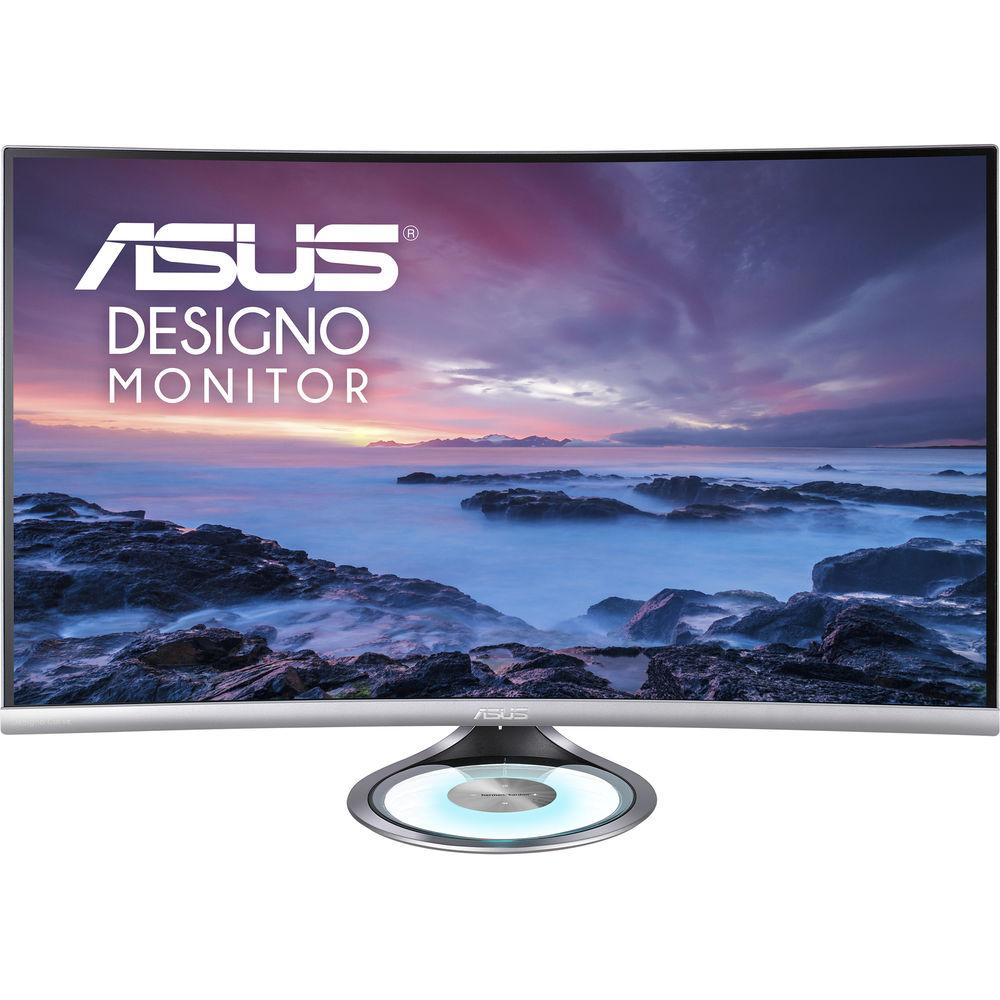

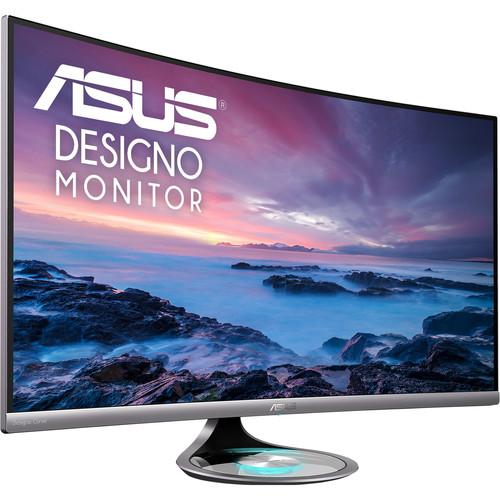

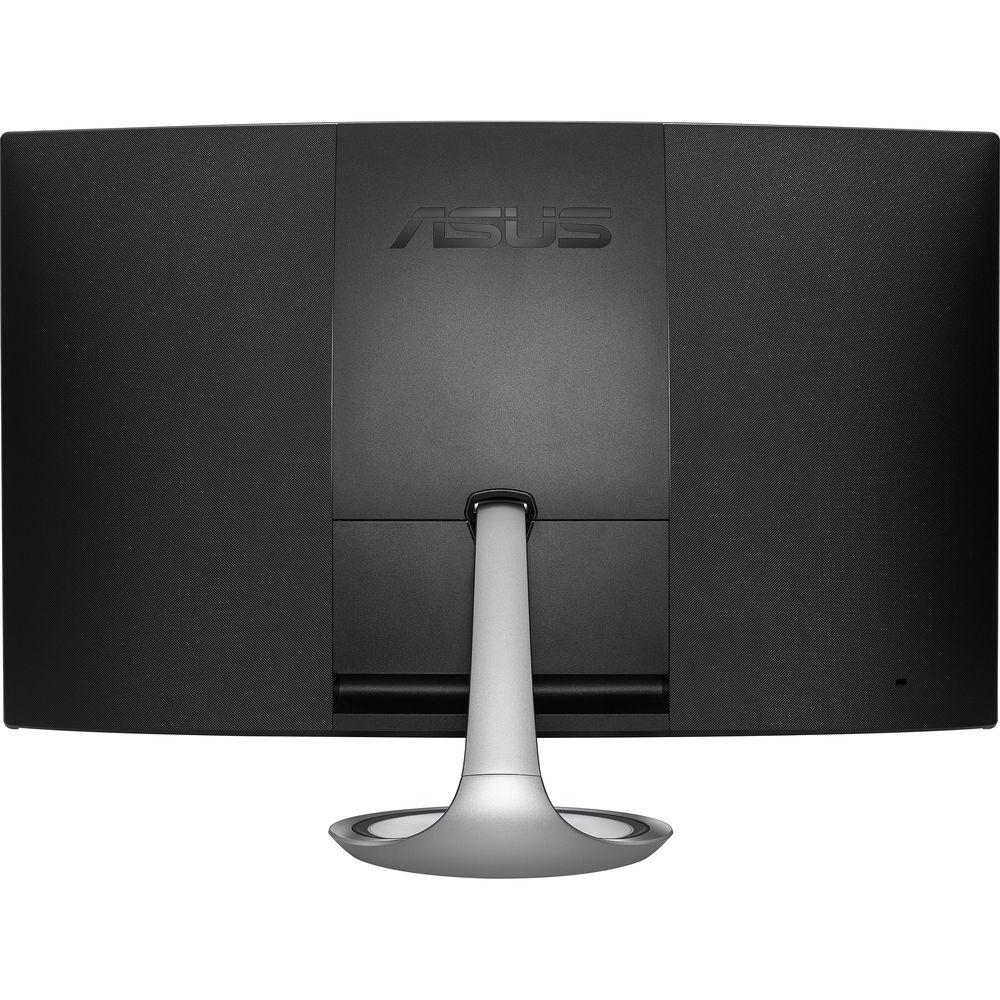

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an 1800R curvature, the MX32VQ 31.5" 16:9 Curved LCD Monitor from ASUS is designed to mimic the curvature of the human eye thus nearly eliminating the need to turn your head to see the corners of the display.
In addition to the curvature of this display, this ASUS monitor also features 178° horizontal and vertical viewing angles and a virtually frameless design for a cinema-like viewing experience. Viewers can also take advantage of the 2560 x 1440 resolution, a 3000:1 contrast ratio, a 300 cd/m² brightness rating, and a 4 ms response time as well as support for up to 16.7 million colors.
Installation of the MX32VQ has been simplified as it comes equipped with HDMI and DisplayPort inputs as well as dedicated 3.5mm input and headphone jacks. You can also unplug the headphones to hear your multimedia content or music through the built-in 8W stereo speakers, which feature ASUS SonicMaster and Harman Kardon technologies.
If that's not enough, this ASUS monitor also features ASUS SplendidPlus technology with a variety of viewing modes designed to suit the content being displayed on the screen. ASUS MultiFrame Management software allows viewers to divide up the screen into multiple windows so you can see your content side by side. Finally, ASUS has included their exclusive GamePlus Technology to give gamers an edge with features like crosshair overlay, an onscreen timer, and a frames-per-second counter. - Curved for a Wider View
- The ASUS Designo Curve MX32VQ monitor is a 31.5-inch monitor with a 1800R curved display for a wider field of view, letting you enjoy a cinema-like experience with comfort. Its curved panel also helps to reduce ambient light reflection, making Designo Curve MX32VQ a good choice for both work and play.

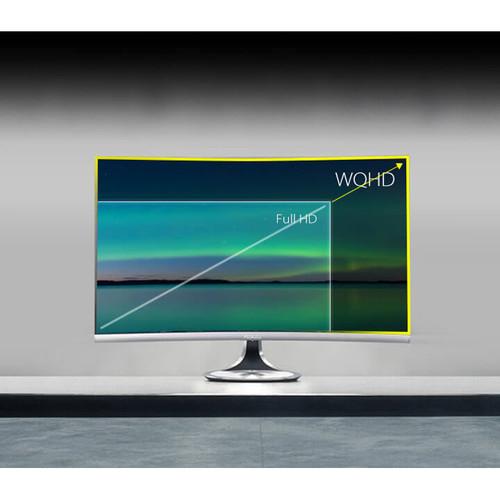

- WQHD Resolution
- With a WQHD (2560 x 1440) resolution, the Designo Curve MX32VQ monitor displays 77% more pixels than conventional Full HD monitors, resulting in sharper, more detailed images.

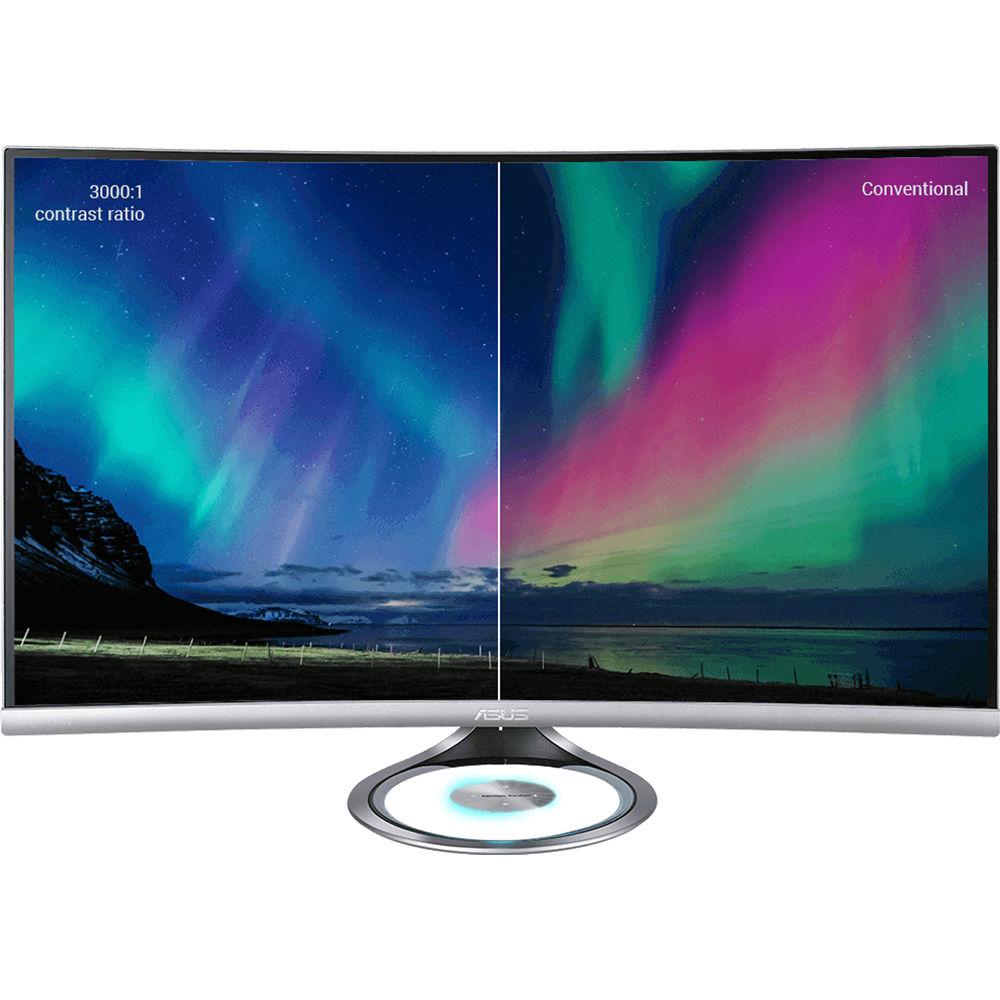

- Wide Gamut and High Contrast Ratio
- The Designo Curve MX32VQ has a 125% sRGB color gamut for a wider range of lifelike colors and an ultra-high 3000:1 contrast ratio for the reproduction of the bright whites and the dark black hues.

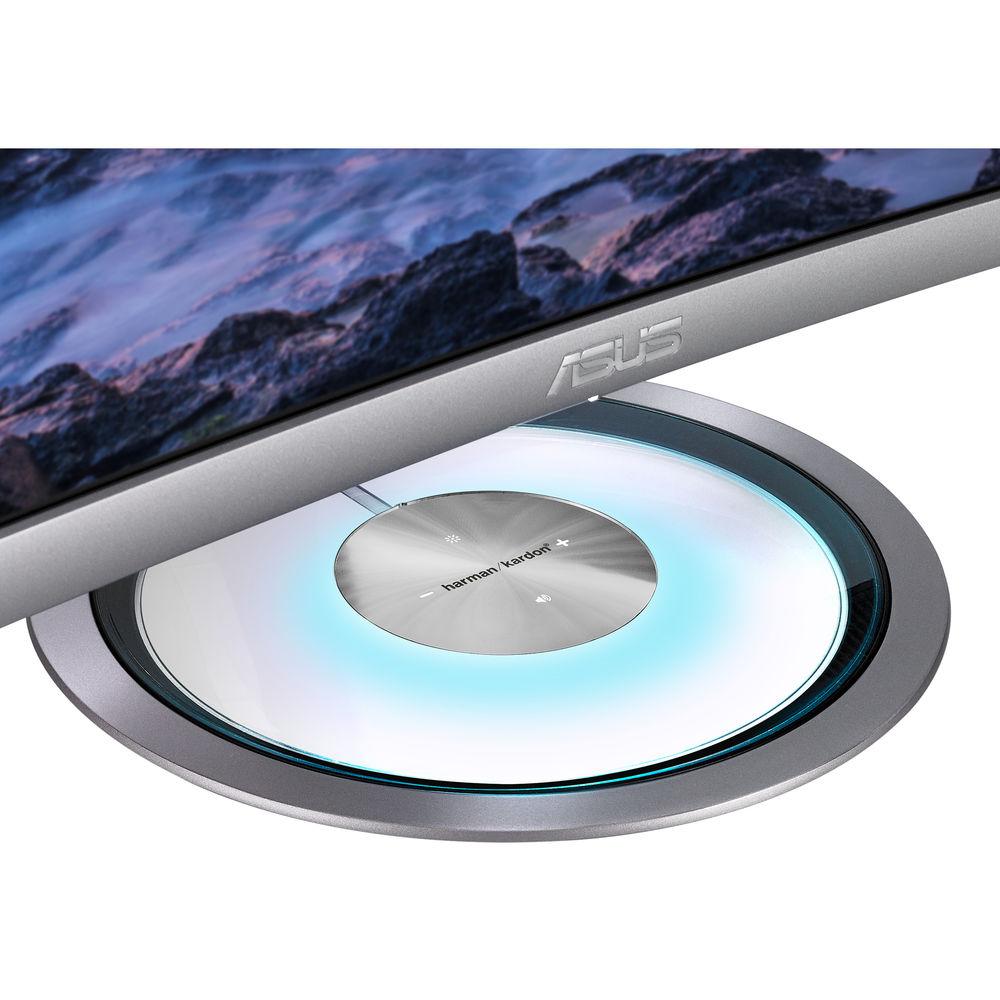

- Halo Lighting
- With a Halo Lighting Base, the Designo Curve MX32VQ monitor delivers a soothing and relaxing atmosphere with a range of lighting effects. Synchronize the lights to the beat of your favorite music using Rhythm Sync mode, and adjust the lighting effects and the volume of your speakers using the intuitive touch control panel.
- Co-Developed with Harman Kardon
- The Designo Curve MX32VQ monitor is designed for entertainment and delivers theater-quality audio with integrated ASUS SonicMaster technology co-developed with Harman Kardon, a leader in professional audio.
- Extensive Connectivity

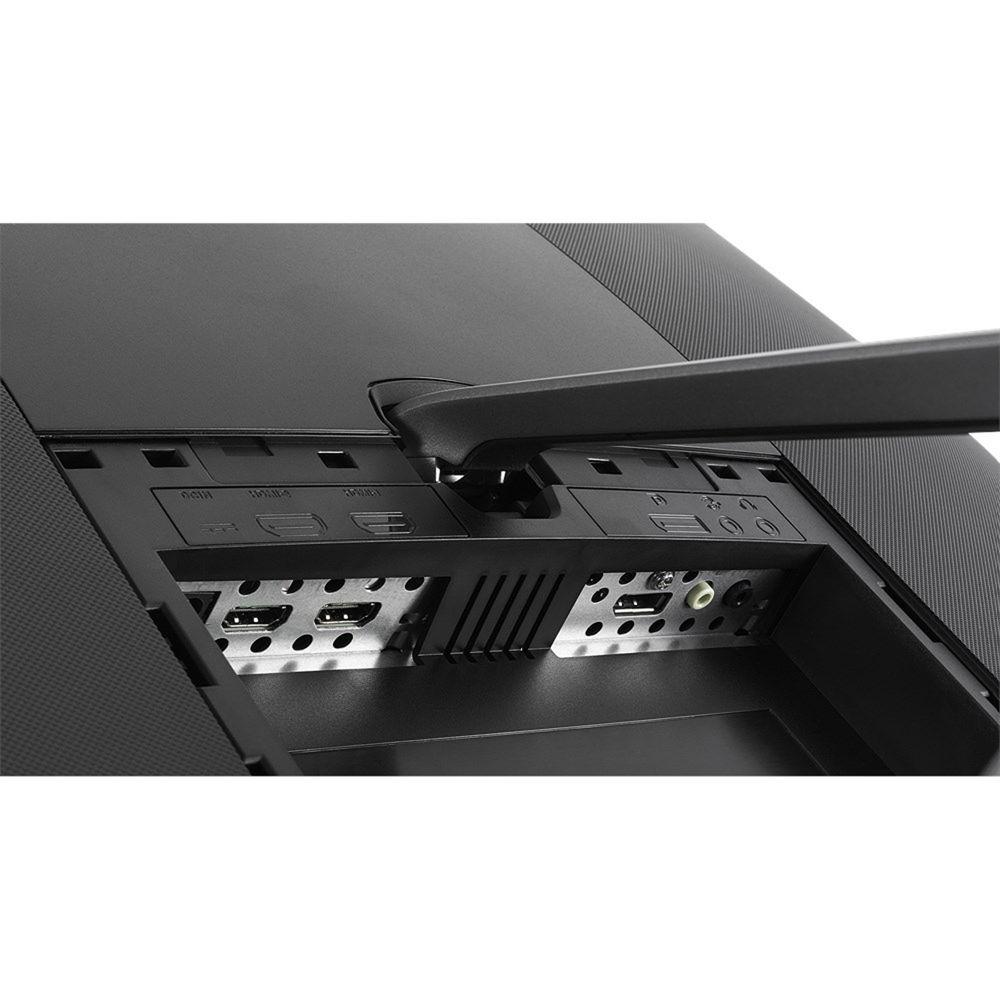

- The Designo Curve MX32VQ monitor has several connectivity options, such as a DisplayPort and two HDMI ports. The embedded audio input also lets you enjoy your favorite music directly from your phone, even if the monitor is on standby.
- ASUS AudioWizard Optimization
- ASUS AudioWizard provides optimized audio settings to suit different types of content. It features four pre-set modes which can be accessed via the onscreen display menu.
Music Mode
Enhances bass and provides a wider audio range for different music genres.
Movie Mode
Enhances vocals and overall audio for a true theater-like audio experience.
Gaming Mode
Enhances in-game sound effects and vocals for a more immersive gaming experience.
User Mode
Manual mode that allows users to customize their audio settings. - ASUS Eye Care Technology
- ASUS Blue Light Filter
Exclusive ASUS Blue Light Filter protects you from harmful blue light. It offers four blue light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-Free Technology
It's time to say goodbye to those tired, strained eyes. Flicker-Free technology helps reduce onscreen flicker, giving you a more comfortable, movie-marathon-ready environment. It is designed to minimize eyestrain, headaches and eye fatigue when you spend long, countless hours in front of the display. - SplendidPlus Video Intelligence Technology
- The Designo Curve MX32VQ monitor features ASUS SplendidPlus technology that optimizes videos and images by enhancing color brightness, contrast and sharpness. It features a wide variety of modes - including Reading, Darkroom, Scenery, Standard, Theater, sRGB, Game, and Night View.
- ASUS MultiFrame Management Software
- ASUS MultiFrame keeps your desktop neat and organized, helping you manage multiple windows simultaneously.
- ASUS-Exclusive GamePlus Technology
- The ASUS-exclusive GamePlus hotkey provides in-game enhancements such as a crosshair overlay, an onscreen timer, and a frames-per-second counter.
The crosshair overlay offers four crosshair options, so you can select the one that best suits your current game environment. The onscreen timer (positioned on the left of the screen) helps track elapsed game time while the fps counter tells you how smoothly the game is running. All functions can easily be accessed via the onscreen display menu. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills. - Additional Features
- Trace Free Technology
SPLENDID Video Preset Modes: 8 modes
Skin-Tone Selection: 3 modes
Color Temperature Selection: 4 modes
GamePlus (Modes): Yes (Crosshair/Timer/FPS Counter)
Low Blue Light
HDCP support
Adaptive-Sync support
AudioWizard Preset Sound Modes: 4 modes (Gaming mode/Movie mode/Music mode/User mode) UPC: 889349834084 In the Box ASUS Designo MX32VQ 31.5" 16:9 Curved LCD Monitor Audio Cable Power Cable and Adapter DisplayPort Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 2.2mbsdtdadrw More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Designo MX32VQ 31.5" 16:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Designo Curve MX32VQ Specs | | | Size | 31.5" | | Screen Area | 27.45 x 15.44" / 69.73 x 39.23 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 122 Hz | | Vertical Frequency | 48 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 125% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI
1 x DisplayPort 1.2
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 8 W | | | | Power Consumption | 36 W (Typical)
0.5 W (Eco)
0.5 W (Standby) | | | | Certifications | BSMI, CE, FCC, Kcc, Microsoft WHQL, RCM, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Tilt Adjustment | -5 to 15° | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.1 x 19.7 x 9.4" / 71.4 x 50.0 x 23.9 cm | | Weight | 19 lb / 8.62 kg | | | | Package Weight | 27.6 lb | | Box Dimensions (LxWxH) | 33.5 x 23.5 x 11.5" |
