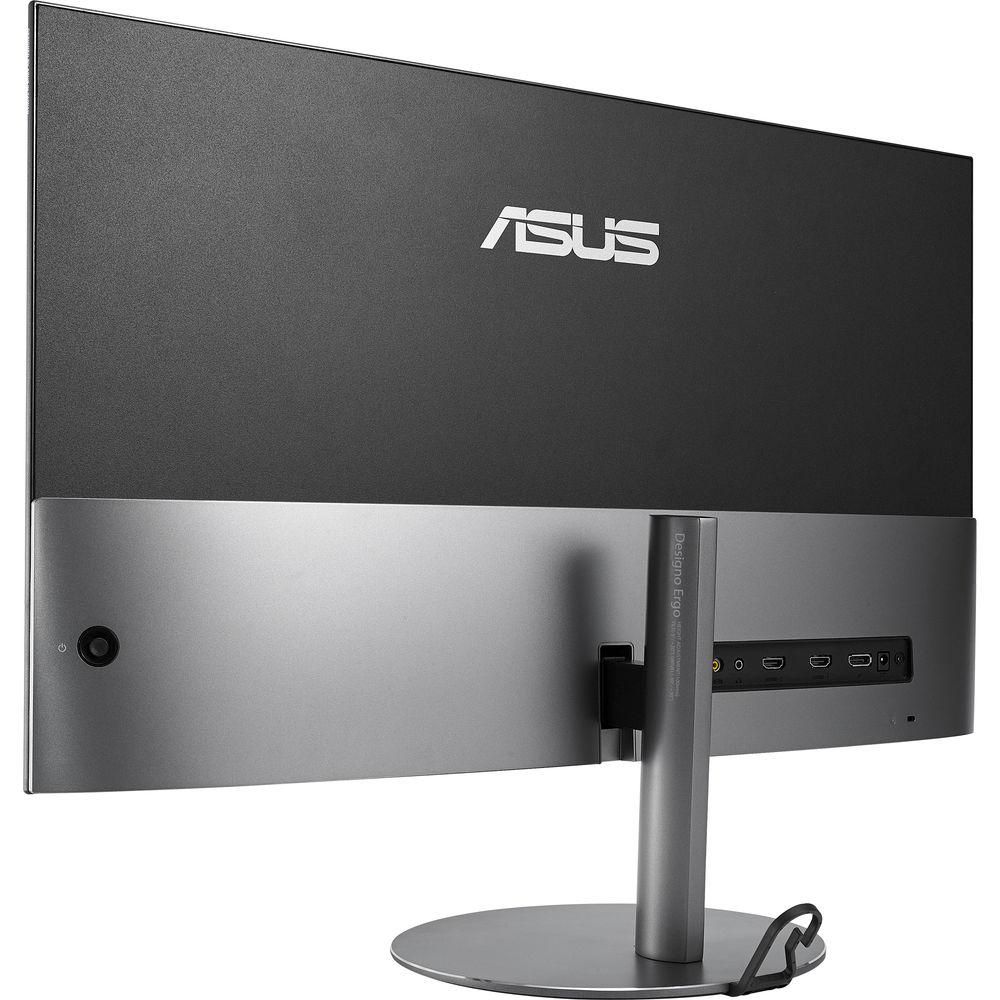

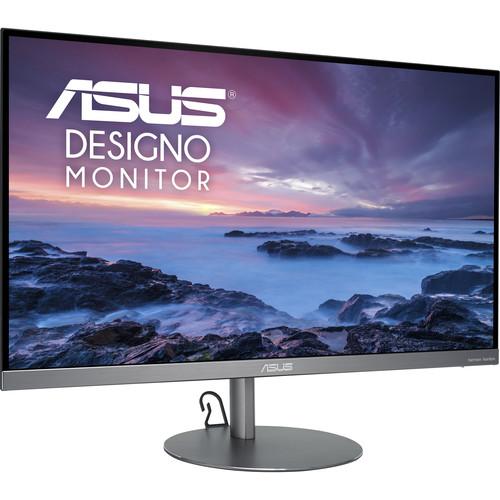

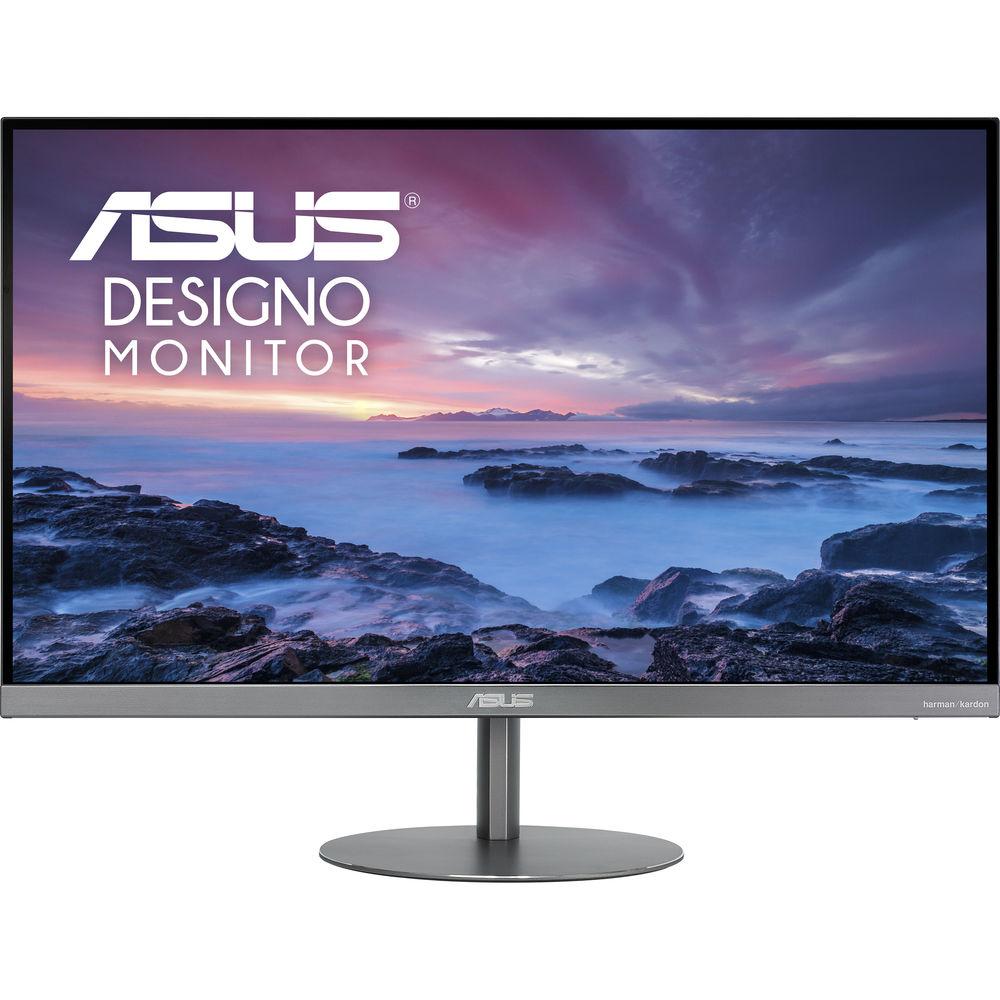

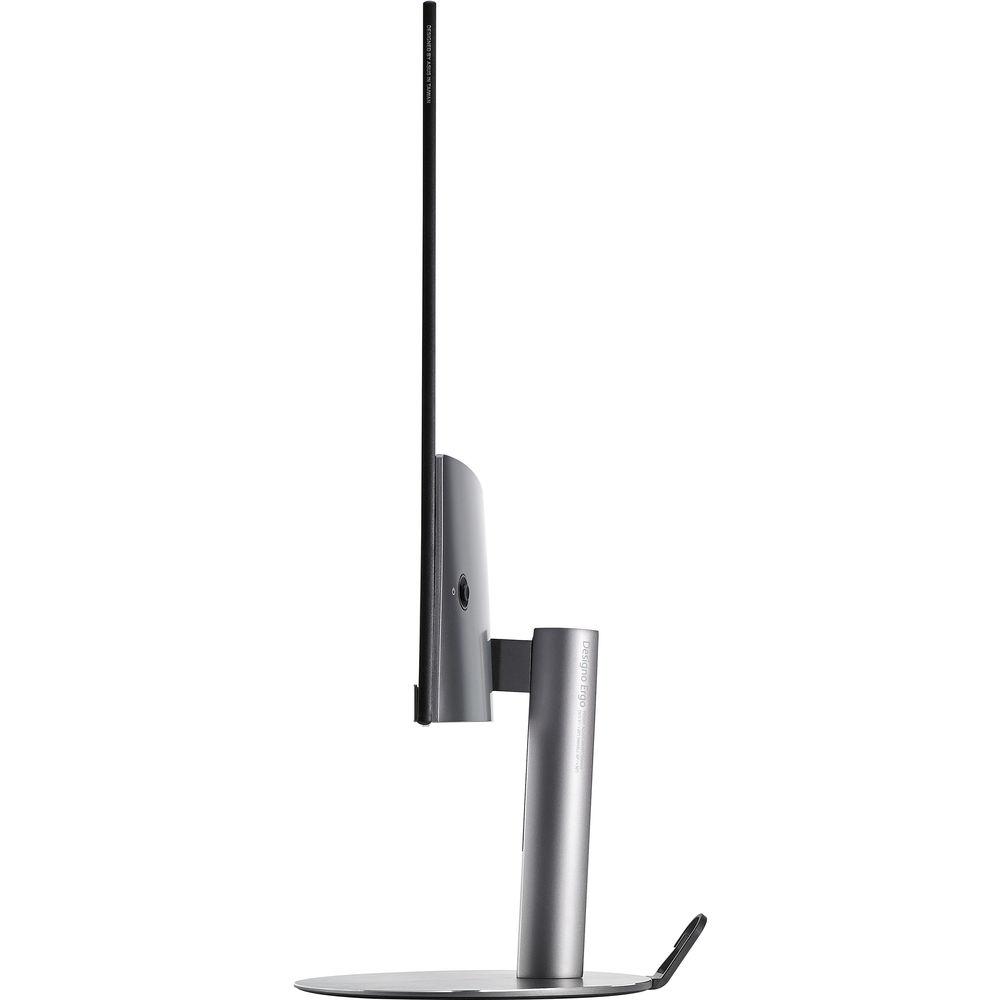

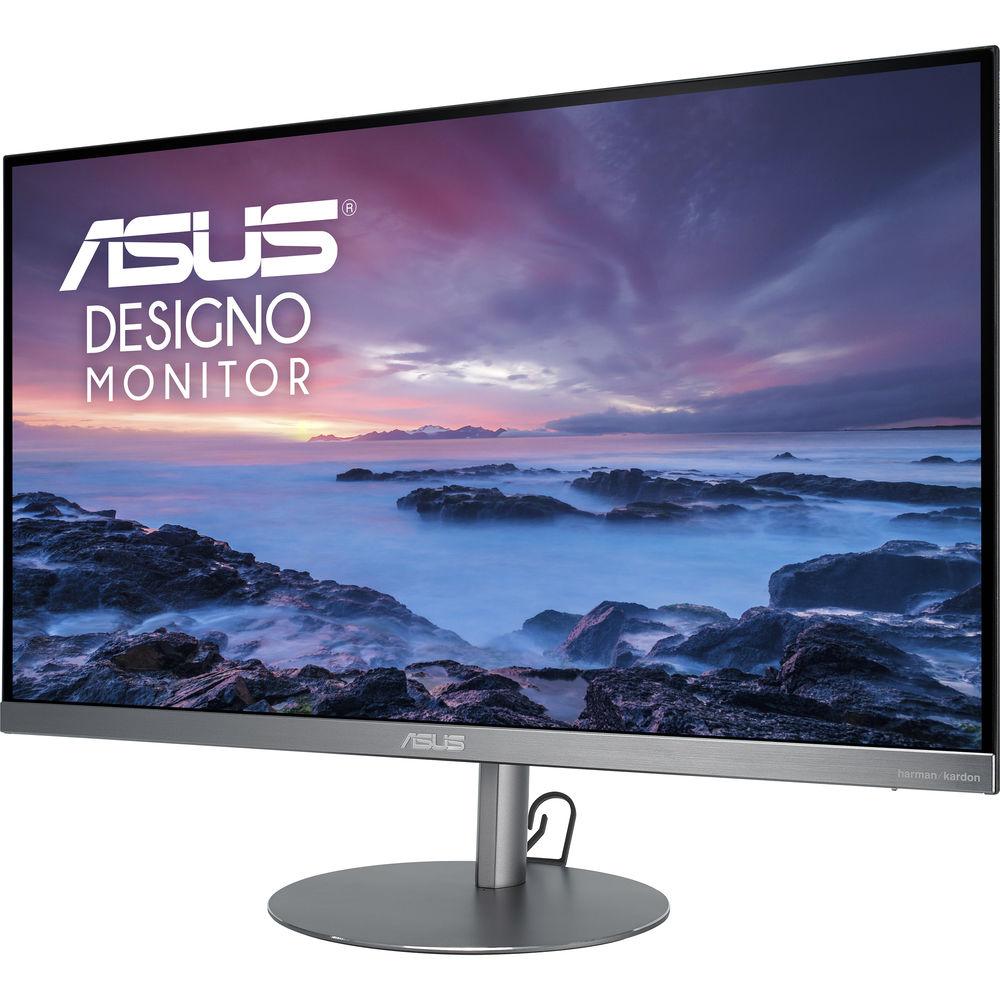

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More zbrcfzxf The Designo MZ27AQL 27" 16:9 IPS Monitor from Asus features an ultra-slim, frame-less design for an immersive viewing experience. Furthermore, it's built with an IPS (In-Plane Switching) panel that provides you with vivid colors and wide viewing angles. Specs-wise, it has a 2560 x 1440 resolution, a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, a 5 ms response time, and support for 16.7 million colors. Combined, these features help to deliver crisp and clear pictures with brighter whites and deeper blacks. For your convenience, it's equipped with two integrated 6W speakers and even comes with an external 5W subwoofer for wide sound coverage. Connect it to your system via HDMI or DisplayPort and tilt, swivel, and adjust its height to your viewing preference. - Audio

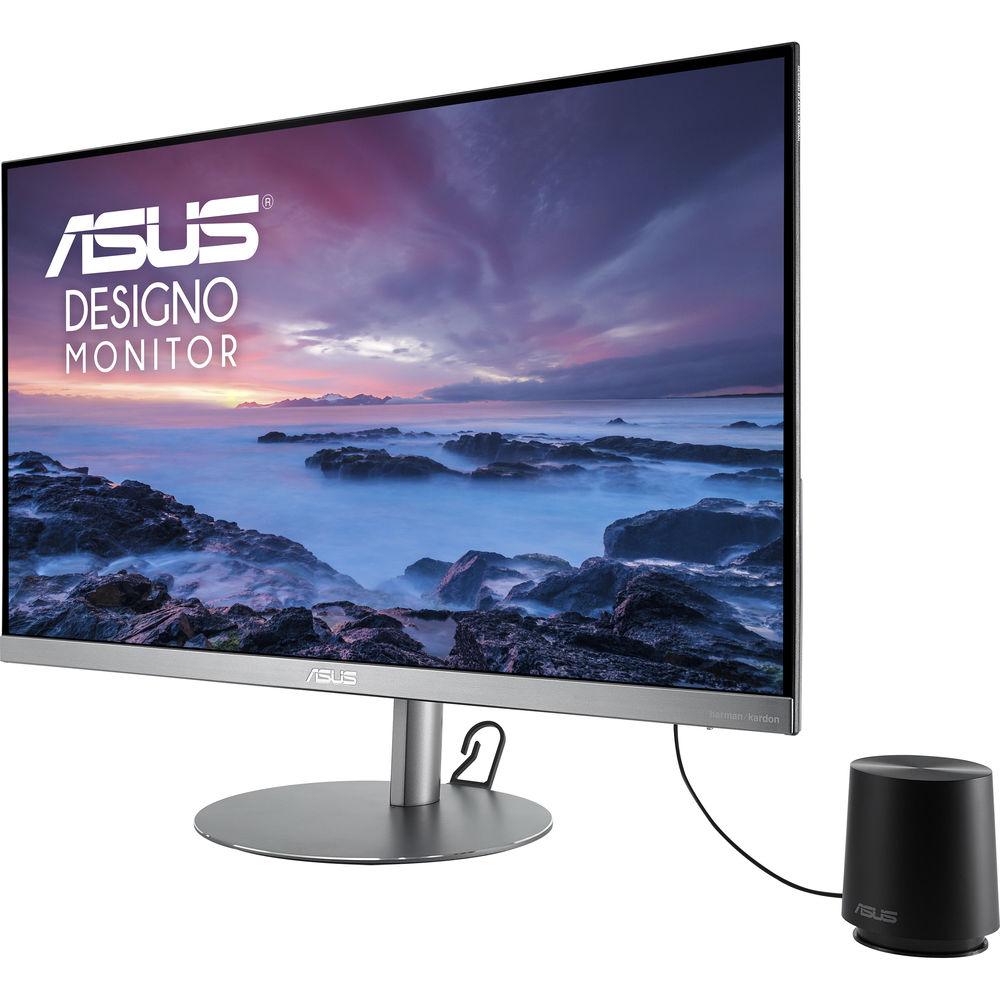

- The Asus Designo MZ27AQL features two integrated 6W speakers and an external 5W subwoofer built with Asus SonicMaster technology, co-developed by Harman Kardon, for well-balanced audio and deep bass.
- Asus AudioWizard Optimization
- Asus AudioWizard provides you with optimized settings based on your current application including: Music Mode, Movie Mode, Gaming Mode, and User Mode.
- Asus Eye Care Technology
- Asus Eye Care Technology includes Asus Blue Light Filter and Flicker-free technology, which reduces blue light emissions and flickering to reduce eyestrain and fatigue for a more comfortable viewing experience.
- Asus SplendidPlus Video Intelligence Technology
- Asus SplendidPlus Video Intelligence technology optimizes videos and images, adjusting color brightness, contrast, and sharpness to best fit your current application. Modes include: Standard, sRGB, Scenery, Theater, Game, Night View, Reading, and Darkroom.
- Asus MultiFrame Management Software
- Asus MultiFrame Management Software helps you manage multiple windows simultaneously to keep your desktop neat and organized.
- Asus GamePlus
- The Asus GamePlus hotkey provides you with in-game enhancements such as a crosshair overlay, an onscreen timer, and a FPS counter.
UPC: 889349983959 In the Box ASUS Designo MZ27AQL 27" 16:9 IPS Monitor Power Cord Power Adapter DisplayPort Cable Subwoofer Limited 3-Year Warranty User Manual PDF 4.8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Designo MZ27AQL 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Designo MZ27AQL Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.7 x 335.6 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI 1.4
1 x DisplayPort 1.2
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 6 W | | | | Power Consumption | 50 W (Typical)
0.5 W (Standby) | | Power Adapter Type | External | | | | Certifications | BSMI, CCC, CE, ENERGY STAR, EPEAT GOLD, FCC, Kcc, Microsoft WHQL, RCM, TCO Certified, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Height Adjustment | 3.94" / 100 mm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | None | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.2 x 21.1 x 10.5" / 614.7 x 535.9 x 266.7 mm (With Stand) | | Weight | 10.4 lb / 4.72 kg (With Stand) | | | | Package Weight | 17.04 lb | | Box Dimensions (LxWxH) | 25.4 x 23.7 x 6.9" |
